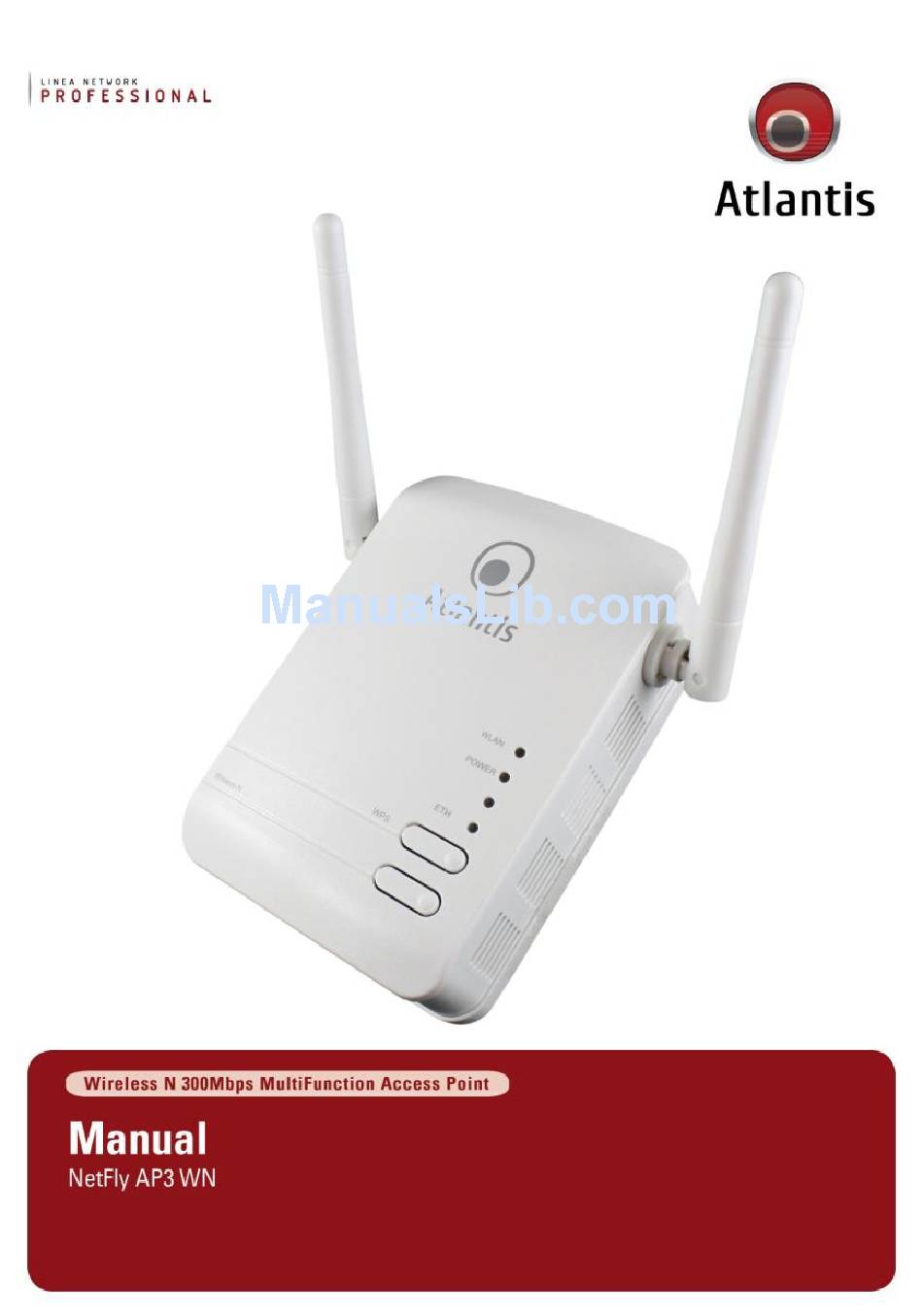

Atlantis NetFly AP3 WN Manual

Atlantis netfly ap3 wn wireless n 300mbps multifunction access points
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetFly AP3 WN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantis NetFly AP3 WN

Summary of Contents for Atlantis NetFly AP3 WN

  • Page 2 ITALIANO Questo prodotto è coperto da garanzia Atlantis della durata di 2 anni. Per maggiori dettagli in merito o per accedere alla documentazione completa in Italiano fare riferimento al sito www.atlantis-land.com. ENGLISH This product is covered by Atlantis 2 years warranty. For more detailed informations please refer to the web site www.atlantis-land.com.

  • Page 3: Table Of Contents

    INDEX 1. Product Overview ................9 1.1 System Requirements ..............9 2. Package Contents ................10 3. Hardware Installation ................ 10 4. LED ....................11 5. Cabling .................... 12 6. Default SETTINGS ................13 7. INTERNET EXPLORER CONFIGURATION ..........14 8.
  • Page 4 A.4 Login Username e Password ............48 A.5 LAN Interface ................48 A.6 Frequently Asked Question ............49 APPENDIX B: Connect to a network using Windows client ....... 52 APPENDIX C: Country Channel List ............54 APPENDIX D: Technical Specifications ............ 55 A02-AP3-W300N_ME01 (v1.00 April 2010)
  • Page 5 Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis logo is a registered trademark of Atlantis. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.
  • Page 6 CE in which Countries where the product may be used freely: Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except the channel 10 through 13, law prohibits the use of other channels. CE/EMC Restriction of Liability The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations.
  • Page 7 “Electromagnetic Compatibility” and 1999/5/CE within CE Marking Requirememnt. CE Declaration is available on the web site www.atlantis-land.com. Important information for the correct recycle/treatment procedures of this equipment The crossed-out wheeled bin symbol printed on the unit label or unit packaging indicates that this equipment must not be disposed of as unsorted municipal waste but it should be collected separately.
  • Page 8 Do not open or repair the case yourself. If the device is too hot, turn off the  power immediately and have a qualified serviceman repair it. Do NOT upgrade firmware on any Atlantis product over a wireless connection.  Failure of the device may result. Use only hard-wired network connections.

  • Page 9: Product Overview

    Thank you for purchasing the NetFly AP3 WN that provides the easiest way to wireless networking. Please keep this Manual for future reference. 1. Product Overview IEEE 802.11n Wireless Multi-Function Access Point Thanks to its embedded Access Point, based on the most recently 802.11n specifications, is possible to create high performance WLANs with extended coverage.

  • Page 10: Package Contents

    1 x Warranty Card and 1 x WEEE Card If any item is found missing or damaged, please contact your local reseller for replacement. 3. Hardware Installation Refer to the following diagrams and direction to install the clip with NetFly Ap3 WN.

  • Page 11: Led

    Please DO NOT remove or disassemble the socket clip frequently as this may cause serious damage to your device. 4. LED NetFly AP3 WN has 3 lights indicator (LEDs), 2 buttons (WPS and reset) and an Ethernet port.

  • Page 12: Cabling

    Press this button 3 seconds to reset device to factory default settings. 5. Cabling Plug NetFly AP3 WN into the wall outlet/socket. With the power source on, once the device is connected, the Power, LAN and WLAN port LEDs will light up indicating a normal status.

  • Page 13: Default Settings

    6. Default SETTINGS The NetFly AP3 WN can be configured with your Web browser. The web browser is included as a standard application in following operation systems, UNIX, Linux, Mac OS, Windows XP/2000/Vista/7, etc. The product provides a very easy and user- friendly interface for configuration.

  • Page 14: Internet Explorer Configuration

    TCP/IP installed and configured to obtain an IP address through a DHCP server or a fixed IP address that must be in the same subnet of the NetFly AP3 WN. The default IP address of the NetFly is 192.168.1.252 and subnet mask is 255.255.255.0.

  • Page 15: Configuring Pc (Windows Xp)

     Click OK to finish the configuration. Configuring PC (Windows XP)  Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections.  Double-click Local Area Connection/Wireless.  In the LAN Area Connection/Wireless Status window, click Properties.

  • Page 16: Web Configuration

    192.168.1.252, and click Go to get the login page. The default username is admin, password atlantis and click OK to continue. Click on the desired item to expand the page with all settings in the main navigation...
  • Page 17 At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the desired setup page, including:  Status [Status, Statistics]  LAN Settings [LAN]  Wireless Settings [Basic, Security, Advanced, WPS, VLAN, Station List]  Administration [Management, Firmware...

  • Page 18: Status -> Status

    9.1 Status -> Status Congratulations! You are now successfully logon to the NetFly AP3 WN. If the authentication succeeds, the homepage will appear on the screen. SYSTEM INFORMATION DESCRIPTION MEANING Model Name Displays the model name. Firmware Version Displays the firmware version for this device.
  • Page 19 WIRELESS LAN DESCRIPTION MEANING WLAN Service Status of the WLAN connection. SSID A unique name used to identify the wireless LAN to which a user wants to connect. Channel The current status in WAN interface. Click the WLAN Service, SSID or Channel link to change the settings.

  • Page 20: Status -> Statistics

    9.2 Status -> Statistics MEMORY DESCRIPTION MEANING Memory Total Displays the total memory size of the device (in bytes). Memory Left Displays the amount of memory left (in bytes). DESCRIPTION MEANING LAN Rx Packets Displays the number of received packets. LAN Rx Bytes Displays the received packet traffic (in bytes).

  • Page 21: Lan Settings -> Lan

    9.3 LAN Settings -> LAN LAN SETUP DESCRIPTION MEANING IP Address Enter the preferred IP address. Default is 192.168.1.252. Subnet Mask Enter the preferred subnet mask. Default is 255.255.255.0. LAN2 This function enables the creation of multiple virtual IP interfaces for this device. It helps to connect two or more local networks to the ISP or remote node.
  • Page 22  Enable: Select to activate the device’s UPnP function.  Disable: Select to inactivate the device’s UPnP function. DHCP SERVER DHCP allows networked devices to obtain information on the parameters of IP, Netmask, and so forth through the Ethernet Address of the device. To configure the device’s DHCP Server, select Server from the DHCP Type dropdown menu and you can then configure parameters of the DHCP Server.

  • Page 23: Wireless Setting -> Basic

    9.4 Wireless Setting -> Basic When you click this item, the column will expand to display the sub-items that will allow you to configure your wireless settings.  Basic  Security  Advanced   VLAN  Station List The function of each configuration sub-item is described in the following sections. WIRELESS NETWORK DESCRIPTION MEANING...
  • Page 24  Disable: When disabled, prevents the SSID broadcast from being seen by wireless users. Country Region Please select the region where NetFly AP3 WN is used. Frequency Select the wireless connection ID channel that you would like (Channel) to use.
  • Page 25 The range of radio frequencies used by IEEE 802.11g wireless devices is called a “channel”. Channels available depend on your geographical area. You may have a choice of channels (for your region) so you should use a different channel than an adjacent AP (access point) to reduce interference.

  • Page 26: Wireless Distribution System (Wds)

    Wireless Distribution System (WDS) It is a wireless access point mode that enables wireless link and communication with other access points. It is easy to install simply by defining the peer’s MAC address of the connected AP. WDS takes advantage of the cost saving and flexibility which no extra wireless client device is required to bridge between two access points and extending an existing wired or wireless infrastructure network to create a larger network.

  • Page 27: Wds->Bridge Mode

    WDS->Bridge Mode DESCRIPTION MEANING WDS Mode Select Bridge Mode from the drop-down menu. In this case, AP adapter acts as a wireless bridge and will not respond to wireless requests. Phy Mode Select the appropriate mode from the drop-down menu. There are 4 options: ...

  • Page 28: Wds->Repeater Mode

    WDS->Repeater Mode DESCRIPTION MEANING WDS Mode Select Repeater Mode from the drop-down menu. In this case, AP adapter acts as a repeater and interconnects between access points. AP MAC Address Enter the associated AP’s MAC Address(es) in this feild and the following fields.

  • Page 29: Wireless Setting -> Security

    9.5 Wireless Setting -> Security You can disable or enable the wireless security function using WEP or WPA for wireless network protection. The default mode of wireless security is disabled. Please refer to the Security Mode section for detail description. DESCRIPTION MEANING SSID Choice...

  • Page 30: Wep (Wired Equivalent Privacy)

    WEP (Wired Equivalent Privacy) WEP is not completely secure. If possible please use WPA-PSK. DESCRIPTION MEANING Security Mode Select WEP OPEN, WEP SHARED or WEP AUTO from the drop-down menu. Default Key Select the encryption key ID. WEP Keys Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP Encryption Key values on all wireless stations must be the same as the device.

  • Page 31: Wpa-Psk/Wpa2-Psk (Wifi Protected Access)

    WPA-PSKmode). Pass Phrase Enter a pass phrase to access the network. It can be a password like “atlantis” or a pass phrase, from 8 to 63 case- sensitive characters. Renewal The period of renewal time (in seconds) for changing the...

  • Page 32: Wpa/Wpa2 With Radius

    WPA/WPA2 with RADIUS WPA / WPA2: If WPA or WPA2 is selected, the below screen is shown. Please set the length of the encryption key and the parameters for the RADIUS server. DESCRIPTION MEANING Security Mode Select from the drop-down menu. ...
  • Page 33 Port Enter the Port used by Radius Server, usually is 1812. Shared Secret Enter the Shared Secret, which is used by the Radius Server. Session Timeout Enter timeout.

  • Page 34: Access Policy

    Access Policy DESCRIPTION MEANING Rule When the Policy is selected Allow, all the MAC addresses you entered in the Add a station MAC address field will be pass; when the Policy is selected Reject, all the MAC addresses you entered in the Add a station MAC address field will be blocked. Add a station MAC Enter the MAC address of the wireless client.

  • Page 35: Wireless Setting -> Advanced

    9.6 Wireless Setting -> Advanced ADVANCED SETTINGS DESCRIPTION MEANING TX Power Power measurement that enhances wireless transmission signal strength. You can adjust this power level from minimum (0) to maximum (100). Default is 100. TX Burst This feature is used to activate the transmitted time slot to increase transmission throughput.
  • Page 36 IGMP. The address 224.0.0.2 is assigned to the multicast routers group. The NetFly AP3 WN supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-v2). At start up, the device queries all directly connected networks to gather...
  • Page 37 9.7 Wireless Setting -> WPS WPS feature is designed to ease setup of security enabled WiFi networks in small offices or home. It supports methods to you to set a network and enable security by entering a PIN or pushing a button.
  • Page 38 WPS-enabled wireless devices. You can enable WPS PBC mode through WPS configuration interface as above or by pushing the WPS button of your NetFly AP3 WN Adapter for more than 1 seconds and the WPS will establish the connection automatically.
  • Page 39 9.8 Wireless Setting -> VLAN Click “Wireless->VLAN” option in left menu. We can set different VLAN ID in each SSID,VLAN ID range is between 0 ~ 4094. Please be noticed. After enable Wireless VLAN function, we maybe can configure the device through SSID1,unless the ethernet adapter can tag and untag VLAN ID packet or through VLAN ID switch.
  • Page 40 9.9 Wireless Setting -> Station List The Station List displays the Wireless Network information. Wireless DESCRIPTION Descrizione The Media Access Control (MAC) addresses for each device on MAC Address your WLAN. The association ID. The power save mode. The MIMO power save mode. MIMO, Multiple-input and multiple-output, is the use of multiple antennas at both the MimoPS transmitter...
  • Page 41 9.10 Administration -> Management Account: You are allowed to set your own account name. Default is admin. Password: You are allowed to set your own password. Default is atlantis. Click Apply to save the changes.
  • Page 42 PC. Once the correct file is selected, click Upgrade to update the firmware in your router. Then click Upgrade. Do NOT upgrade firmware on any Atlantis product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.
  • Page 44 9.12 Administration -> Settings Management These functions allow you to save a backup of the current configuration of your device to a defined location on your PC, to restore a previously saved configuration, or to restart your device with the factory default settings. This is useful if you wish to experiment with different settings, knowing that you have a backup in hand in case any mistakes occur.
  • Page 45 9.13 Administration -> Restart Click Restart with option Current Settings to reboot your router and save the current configuration to device. If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.

  • Page 46: Support

    For technical questions and support, please contact our help-desk by ticket on http://www.atlantis-land.com/ita/supporto.php. For generic informations, please send an e-mail to info@atlantis-land.com For presales informations, please send an e-mail to prevendite@atlantis-land.com. Atlantis Via S. Antonio, 8/10 20020 Lainate (MI) Fax: +39.02.78.62.64.39 Website: http://www.atlantis-land.com...

  • Page 47: Appendix A: Troubleshooting

    Corrective Action Make sure you are using the correct IP address of the device. Check the IP address of the NetFly AP3 WN. Make sure that there is not an console session running. Check that you have enabled web service access. If you have...

  • Page 48: Login Username E Password

    Press the RESET button for 3 seconds, and then release it. The default username is “admin”. The default password is “atlantis”. The Password and Username fields are case-sensitive. Make sure that you enter the correct password and username using the proper casing.

  • Page 49: Frequently Asked Question

    A.6 Frequently Asked Question Question Can I run an application from a remote computer over the wireless network? Answer This will depend on whether or not the application is designed to be used over a network. Consult the application’s user guide to determine if it supports operation over a network.
  • Page 50 need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. Question Would the information be intercepted while transmitting on air? Answer WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence Spread Spectrum technology, it has the inherent security feature of scrambling.
  • Page 51 relatively short distances at up to 54 megabits per second (Mbps) compared with the 11 megabits per second of the 802.11b (Wi-Fi) standard. Like 802.11b, 802.11g operates in the 2.4 range and is thus compatible with it.

  • Page 52: Appendix B: Connect To A Network Using Windows Client

    APPENDIX B: Connect to a network using Windows client MS Windows XP and Windows VISTA/7 can manage the USB/PCI client with its embedded utility for wireless networks; Windows 2000 and MAC OS X requires an external management utlity (provided on the CD) to set and manage the USB/PCI wireless client.
  • Page 53 Windows XP  Double click on Wireless network icon on the system tray (see picture).  Select the wireless network SSID A02-AP3-W300N, digit default password NetFlyAP3WN and click Connect. If any wireless network is available, please check that the USB/PCI wireless client is correctly installed on your PC.

  • Page 54: Appendix C: Country Channel List

    APPENDIX C: Country Channel List For some European Country, it may have its own domain; users are responsible for ensuring that the channel set configuration is in compliance with the regulatory standards of these countries. Country Name Classification Range Argentina, Bahrain, Brazil, Canada, Chile, CH1~11 Croatia, Ecuador, Hong Kong, Malaysia, Mexico, Panama , Peru, Philippines, Puerto...

  • Page 55: Appendix D: Technical Specifications

    APPENDIX D: Technical Specifications Technical Specs Product Code A02-AP3-W300N Standards IEEE 802.11b/g/n ® Chipset RaLink RT3052 (MIPS 24KEc 384MHz with 32KB I- cache/16KB D cache) Interface 1 x Fast Ethernet (LAN) 3 (LAN, WLAN, Power) WPS/Reset Yes/Yes Antenna 2 x 2 dBi fixed external Antennas Virtual AP ...
  • Page 56 Wireless Security  64/128-bit WEP, WPA-PSK, WPA2-PSK  WPA, WPA2 with Radius  MAC Access Control List  Transmitting Power 802.11b/g/n: up to 16 ± 1 dBm Receiver Sensitivity  802.11b (1Mbps): -90dBm @8% PER  802.11b (6Mbps): -88dBm @8% PER ...
  • Page 57 Atlantis SpA Via S. Antonio, 8/10 20020 Lainate (MI) info@atlantis-land.com...
