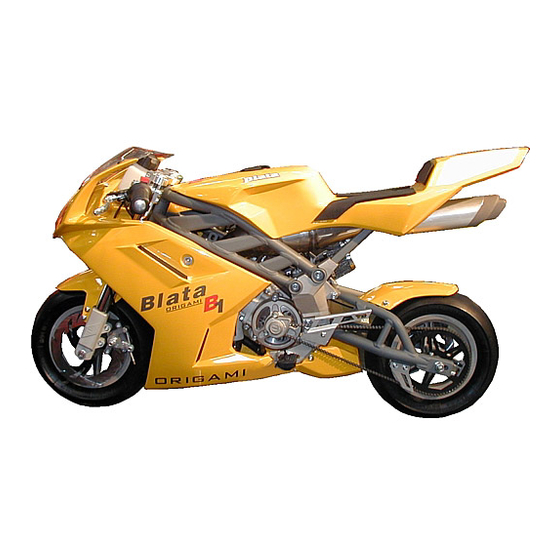

Blata ORIGAMI B1 Service Manual
  1. Manuals
  2. Brands
  3. Blata Manuals
  4. Motorcycle
  5. Origami B1
  6. Service manual

Blata ORIGAMI B1 Service Manual

Hide thumbs Also See for ORIGAMI B1:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORIGAMI B1 and is the answer not in the manual?

Questions and answers

Related Manuals for Blata ORIGAMI B1

Summary of Contents for Blata ORIGAMI B1

  • Page 2: Table Of Contents

    REMOVE AND REFIT THE FRONT WHEEL – FIG. 5 ……………........7 REMOVE AND REFIT THE REAR WHEEL - FIG. 5 ............7 REPLACEMENT OF SPROCKET - FIG. 9 ..............7 MINIBIKE ORIGAMI B1 - FIG. 5 …………………………………………………....8,9 PARTS LIST ……………………………………………………………………....... 10,11 ENGINE - BLATA …………………………………………………………………....12 CLUTCH COMPLETE - FIG.

  • Page 3: Introduction

    INTRODUCTION The Minibike Origami B1 is designed and built for use on a paved closed circuit track. The track should be clean and without obstacles of any kind. Qualified adults and younger persons can drive the minibike. Children can drive the minibike only under the supervision of a responsible adult person.

  • Page 4: Unpacking And Setting Up Before Riding

    UNPACKING AND SETTING UP BEFORE RIDING The minibike is delivered in a cardboard carton and packed with folded handlebars and brake levers. After unpacking, set up the handlebars into the position, that suits the best for driving. The maximum pulled brake lever position should not touch on the handlebar grip.

  • Page 5: Starting The Engine - Fig. 2

    Check the tire inflation – 200 kPa (2 bars) or (28 to 30psi) to be commensurate with the driver’s weight. The Tyre pressure should never exceed 2,5 bars, (38psi) in either the front or rear wheel. IMPORTANT NOTICE: If the coolant level rises in the balance tank, switch off the engine immediately! Check the drive of the coolant pump and sealing of the cooling system.

  • Page 6: Periodic Maintenance

    PERIODIC MAINTENANCE Periodic maintenance is the best way to help the machine perform well, give longevity and provide safety and low cost operation. In addition, you will be spared from many worries from self caused problems, resulting from poor maintinence or no maintinence. A - Before every ride: 1.

  • Page 7: Front Brakes Pads Replacement - Fig. 7

    ADJUSTING THE BRAKES Small incremental brake adjustment Free play at the handlebar lever is effected by turning the knurled end on the cable adjustor. This will allow the lever to be set at the nominal to ¼ inch of free lever movement. Basic brake adjusting: Screw in the knurled cable adjustor at the brake lever so the cable is in it’s most slack starting position..
  • Page 8 REMOVE AND REPLACE THE FRONT WHEEL - FIG. 5 Before dismantling the front wheel it is necessary to remove the front brake pads from the front brake, so it is possible to move the brake caliper from the wheel and be able to draw out the wheel and tire. Remove the front axel nut. M10 (920.011.01) Draw out the axel from the fork and wheel.

  • Page 9: Replacement Of Tire - Fig. 5

    REPLACEMENT OF TIRE – FIG. 5 Remove the wheel from the minibike. For the front wheel unbolt the brake disk and for the rear wheel, the brake disk and sprocket. Deflate the tire, by removing the valve stem. Place the wheel on a hard surface and press the tire bead from the wheel rim in to the middle relief at centre of rim.

  • Page 10: Maintenance Of Cooling System

    MAINTENANCE OF COOLER SYSTEM 1. Liquid filling: Place the minibike on the stand. Dismantle the seat and very carefully check all the joints on the hose. For older minibikes do not forget to check for holes and other damages to the hose. To fill the cooler system, 0.5 liters of the coolant is needed.

  • Page 11: Storage Proceedures

    * Long period is 90 days and longer. Rights reserved for technical, text and design changes of the BLATA Company. It is a great honor for us, that you have chosen our product. We believe that the MINIBIKE will work for you without problems and will bring you much pleasure and fun.
  • Page 14 312.010.20 FRONT BRAKE COMPLET 312.031.00 REAR BRAKE COMPLETE...
  • Page 15 MINIBIKE ORIGAMI B1 340.000.00 MINIBIKE ORIGAMI B1 330.152.00 SPACER L=4.6 330.153.00 CLEARANCE WASHER -WATER PUMP ENGINE 330.155.01 WATER PUMP SHAFT ASSEMBLY 120.041.00 STARTER ROPE 330.159.01 PULLEY - LARGE 310.040.00 HEAD HOLDER SILENT BLOCK 340.050.00 SILENCER TERMINATION 330.001.40 ENGINE COMPLETE 340.055.00 EXHAUST BRACE 330.002.20...
  • Page 16 FOOT PEGS PLASTIC -PAIR 950.025.00 SAFETY LOCK 6 339.012.00 HOSE CLAMP 28/8 950.050.00 SPRING PIN 10 x 50 349.002.00 DECALS SET ORIGAMI B1 960.003.00 BALL BEARING 6000 - 2 ZR 349.004.00 SEAT RUBBER 960.004.00 BALL BEARING 6200 - 2 ZR 349.005.00 FOOT REST WASHER 960.009.01...
  • Page 17 349.012.00 FUEL TANK WITH CAP 970.005.00 SEAL 17 x 25 x 4 349.013.00 CARBURETOR FUEL HOSE 970.006.00 SEAL 10 x 18 x 4 349.014.00 FUEL HOSE 971.050.00 O - RING 5 x 1,8 349.015.00 WHEEL AXLE NUT 971.070.00 O - RING 22 x 2 349.020.00 STAND 971.071.00...
