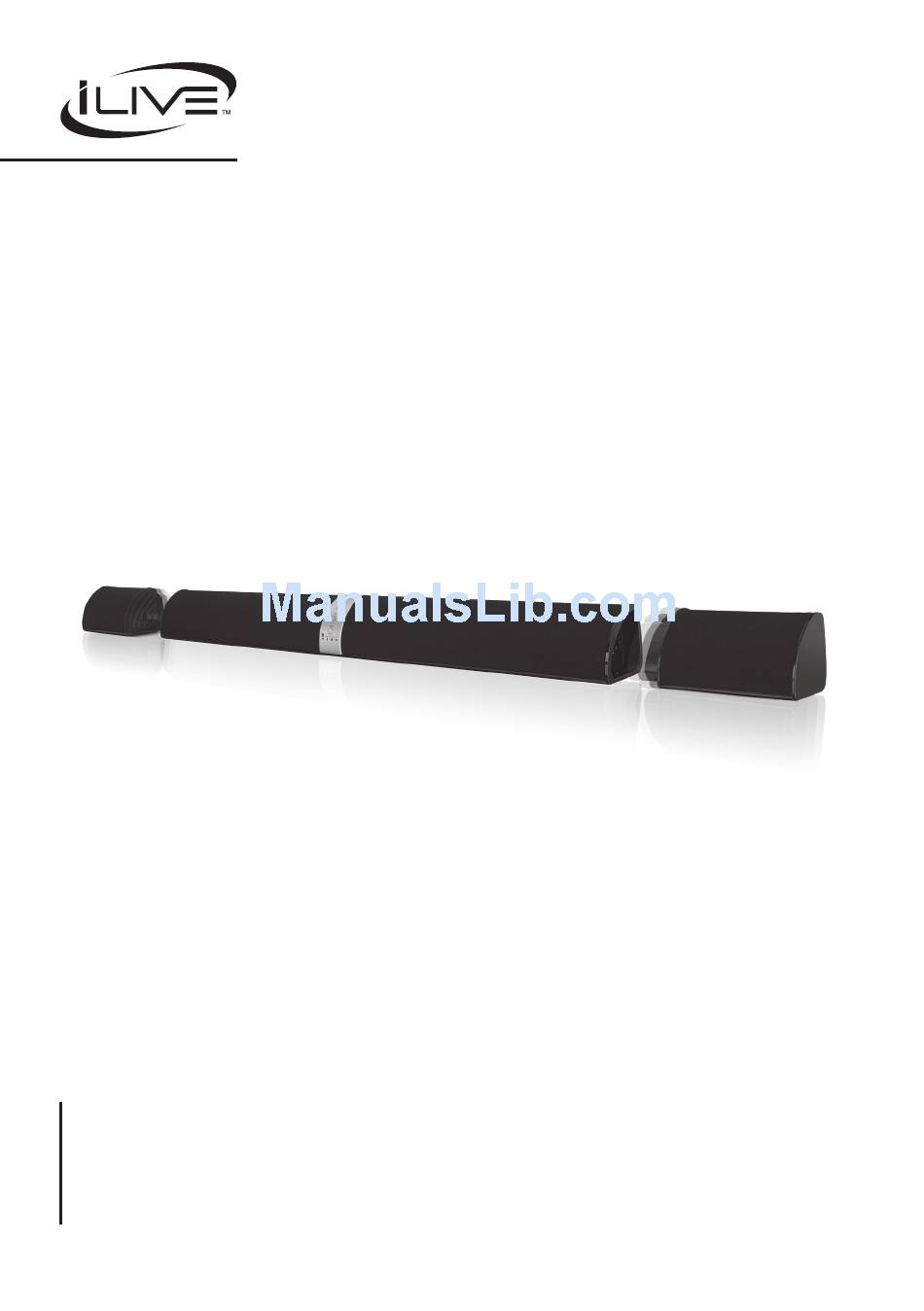

- Page 1 Bluetooth HD Soundbar with Detachable Wireless Speakers User’s Guide for Model ITB474B v1146-01 For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com...
-
Page 2: Warnings And Precautions
Warnings and Precautions FCC Warnings be incinerated since they might explode. • WARNING: Shock hazard - Do Not Open. Warning: Changes or modifications to this unit not expressly AVIS: Risque de choc électrique - ne pas ouvrir approved by the party responsible for compliance could void the • Caution and marking information is located at the rear or user’s authority to operate the equipment. -
Page 3: Table Of Contents
Table of Contents Unboxing Your HD Soundbar � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4 Features &... -
Page 4: Unboxing Your Hd Soundbar
Unboxing Your HD Soundbar Features & Specifications • Remote • 4 channel sound • Optical digital audio input • Supports Bluetooth • 3.5mm audio input • Supports profile A2DP (Advanced Audio • RCA stereo audio inputs Distribution Profile) • LED pairing indicator • 2.4GHz wireless speakers • LED source indicators • Detachable satellite speakers with built-in... -
Page 5: Orientation
Orientation Speaker Inputs (Rear) Stereo Rca audio Line In Inputs (auX In) Subwoofer output Dc Power Input optical Input Speaker controls (Front) Power Source Source Indicator Pairing Volume Lights Press to power Press to switch Press to begin Press to adjust the unit on or off. -
Page 6: Remote Layout
Remote Layout Power Mute Press to turn Press to mute the volume. the unit on or off. Press to switch to Bluetooth Mode. Line treble Press to switch Press to adjust the treble to Line In mode. up or down. optical Bass Press to switch... -
Page 7: Audio Inputs
Audio Inputs using the Stereo Rca Inputs When connecting two products using an RCA cable, match the colored ports with the same colored connection. 1. Connect the RCA cables to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on the television. -
Page 8: Using The Optical Input - Rear View
using the Stereo Rca Inputs - Rear View only use if connecting a detached subwoofer using the optical Input - Rear View using the Line In - Side View... -
Page 9: Bluetooth
Bluetooth Pairing a Bluetooth Device for the First time 1. Power on the unit by pressing the Power button. 2. Press the button on the remote to switch to Bluetooth Mode, indicated by a slowly flashing blue light. 3. Press the Pair button on the unit. The pairing indicator will flash blue quickly. -
Page 10: The Satellite Speakers
The Satellite Speakers the Satellite Speakers This unit is equipped with two detachable speakers that may be used to create a surround sound effect and lend an extra dimension to your listening experience. From the remote control, the speakers can be powered on or off, and change their volume independently of the main speaker. -
Page 11: Satellite Speakers (Left/Right)
Satellite Speakers (Left/Right) Power Plug Docking coupling DC IN DC IN Micro-uSB Power Switch charging Port CONNECT CONNECT LEFT SPEAKER COVER RIGHT SPEAKER COVER connect Button Main Speaker Dock (Left) Docking Housing Power Plug connect Button Customer Support: 1-888-999-4215... -
Page 12: Company Information
Company Information contact Information Website: www.iLiveElectronics.com Email Support: prodinfo@dpiinc.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 Warranty For Warranty Information and the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com...
