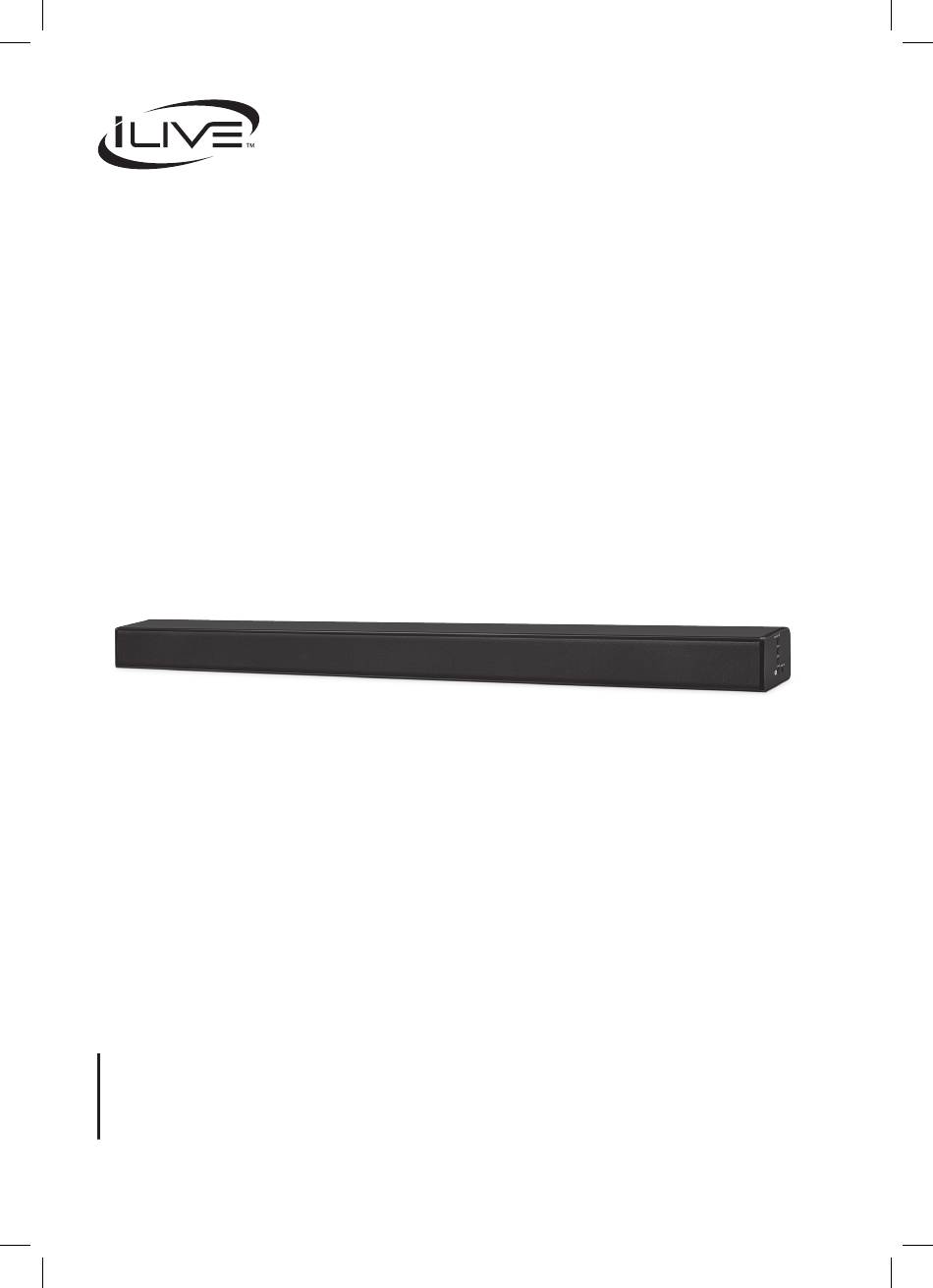

- Page 1 40" HD Soundbar Bluetooth Wireless with User’s Guide for Model ITB490B v2503-01 For the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com...
- Page 2 Safety Instructions & Warnings Important Safety Instructions FCC Warnings • Read these Instructions. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the • Keep these Instructions. user’s authority to operate the equipment. • Heed all Warnings. NOTE: This equipment has been tested and found to comply • Follow all instructions. with the limits for a Class B digital device, pursuant to Part • Do not use this apparatus near water. 15 of the FCC Rules. These limits are designed to provide • Clean only with a dry cloth. reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can • Do not block any ventilation openings. Install in accordance radiate radio frequency energy and, if not installed and used in with the manufacturer’s instructions. accordance with the instructions, may cause harmful interference • Do not install near any heat sources such as radiators, heat to radio communications. However, there is no guarantee that registers, stoves, or other apparatus (including amplifiers) interference will not occur in a particular installation. If this that produce heat. equipment does cause harmful interference to radio or television • Do not defeat the safety purpose of the polarized or reception, which can be determined by turning the equipment off...
- Page 3 Battery Warnings WArNINg: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN • WARNING: Do not ingest the battery, Chemical Burn user-serviceable parts inside. Refer servicing ATTENTION Hazard. to qualified service personnel. RISQUE D' ÉLECTROCUTION NE PAS OUVRIR • If the remote control supplied with this product contains a coin/button cell battery and the coin/button cell battery is The exclamation point within an equilateral swallowed, it can cause severe internal burns in just 2 hours triangle is intended to alert the user to and can lead to death. the presence of important operating and • Keep new and used batteries away from children. Iff the maintenance (servicing) instructions in the battery compartment does not close securely, stop using the literature accompanying the appliance. product and keep it away from children. • If you think batteries might have been swallowed or The lightning flash with arrowhead symbol, placed inside and part of the body, seek immediate medical within an equilateral triangle, is intended to...
-
Page 4: Table Of Contents
Table of Contents Setup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5 Features &... -
Page 5: Setup
Setup Features & Specifications Includes • 40" length • Remote control with 1 CR2025 battery • Supports Bluetooth • Optical cable • Wireless range: 60 ft. • AC/DC power adapter • 2.2 channel stereo sound • Wall-mount hardware and instructions • 2 stereo speakers • 2 woofer speakers • Digital volume control... -
Page 6: Orientation
Orientation Front View Function/Source Indicators: Power | Line In | Optical | RCA/Aux In | Bluetooth Remote Receiver StAtuS InDICAtOR Power Off Red Light Line In Mode Green Light Optical Mode Amber Light RCA/Aux In Mode White Light Bluetooth Pairing Flashing Blue Light Bluetooth Connected Blue Light... -
Page 7: Speaker Inputs Detail
Speaker Inputs Detail DC IN AUX IN R OPTICAL IN DC Power Input Optical Input Stereo RCA Audio Inputs (AuX In) Speaker Controls (Right Side) Source/Power Press to power the unit ON. SOURCE/ Press and hold to power the unit OFF. Press to switch between Optical, RCA/Aux In, Line In, and Bluetooth modes. -
Page 8: Remote
Remote Power Mute Press to turn Press to mute the unit on or off. the volume. POWER SOURCE MUTE Music Press to switch Press to switch to to Bluetooth Mode. the EQ optimized Line In for music. Press to switch LINE IN OPTICAL Movie... -
Page 9: Bluetooth Wireless
Bluetooth Wireless Initial Bluetooth Connection and Playing Audio 1. Power on the sound bar by pressing the Power button. A voice will say, "Bluetooth", and the LED indicator will slowly flash blue. When pairing, remain within 3 feet of the Bluetooth device. 2. -
Page 10: Audio Inputs
Audio Inputs Stereo RCA Inputs (Aux In) When connecting two products using an RCA cable (not included), match the colored ports to their corresponding plugs. 1. Connect the RCA cables (not included) to the RCA Stereo Inputs located on the back of the unit, and to the audio outputs on a television or other audio source. - Page 11 Stereo RCA Inputs (Aux In) - Detail DC IN AUX IN R OPTICAL IN Optical Input - Detail DC IN AUX IN R OPTICAL IN Line In Line In - Detail SOURCE/ – SOURCE/ PAIR LINE IN – PAIR LINE IN...
- Page 12 Customer Support Contact Information Made Website: www.iLiveElectronics.com Email Support: prodinfo@dpiinc.com Green Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 Warranty For Warranty Information and the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com International Support Protect for Today Sustain for Tomorrow To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com...
- Page 13 Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
