Ports and Cables

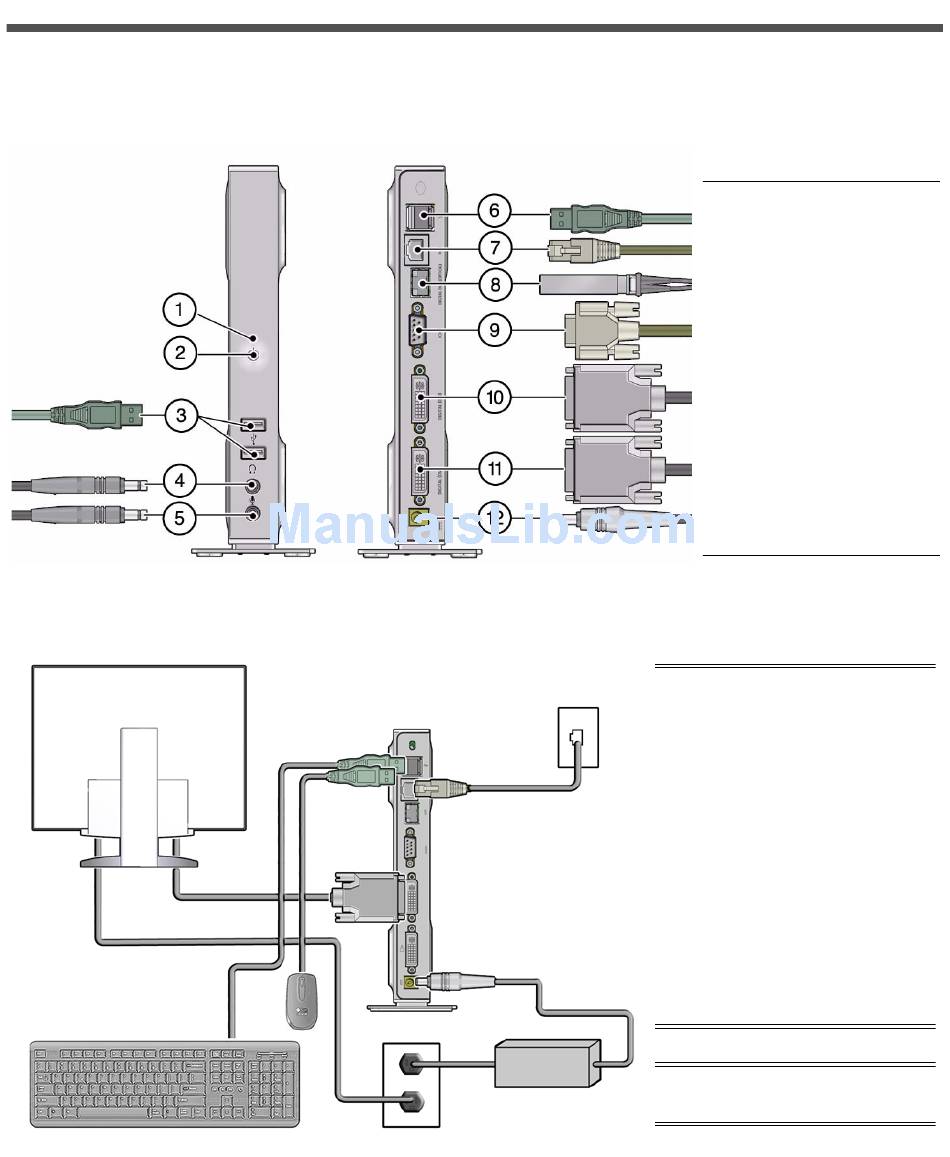

Sun Ray 3 Plus ports are labeled below.
Setup
Cables are not supplied with this unit.
Figure Legend
1 Status LED
2 Soft-touch Power Button
3 USB 2.0 Ports
4 Audio Out
5 Audio In
6 USB 2.0 Ports
7 Ethernet Port (10/100/1000)
8 SFP Module Socket
(1 Gigabit/SGMII only)
9 Serial Port
10 DVI-I Video Out (Primary)
11 DVI-I Video Out (Secondary)
12 Power (DC In)
Note: This unit supports two
single-link DVI-D or dual-link
DVI-D displays of up to 2560x1600
resolution. Analog displays can be
used with a DVI-I to HD-15 (VGA)
adapter into either video output port.
To assure best performance, however,
use DVI whenever possible.
Dual-link displays require dual-link
cables. If the cables are disconnected
or reconnected, power-cycle the unit
to ensure proper operation.
It is highly recommended that similar
displays be used on a given unit
when dual displays are used.
Note: To avoid glare, do not place
the unit in front of a display.**
