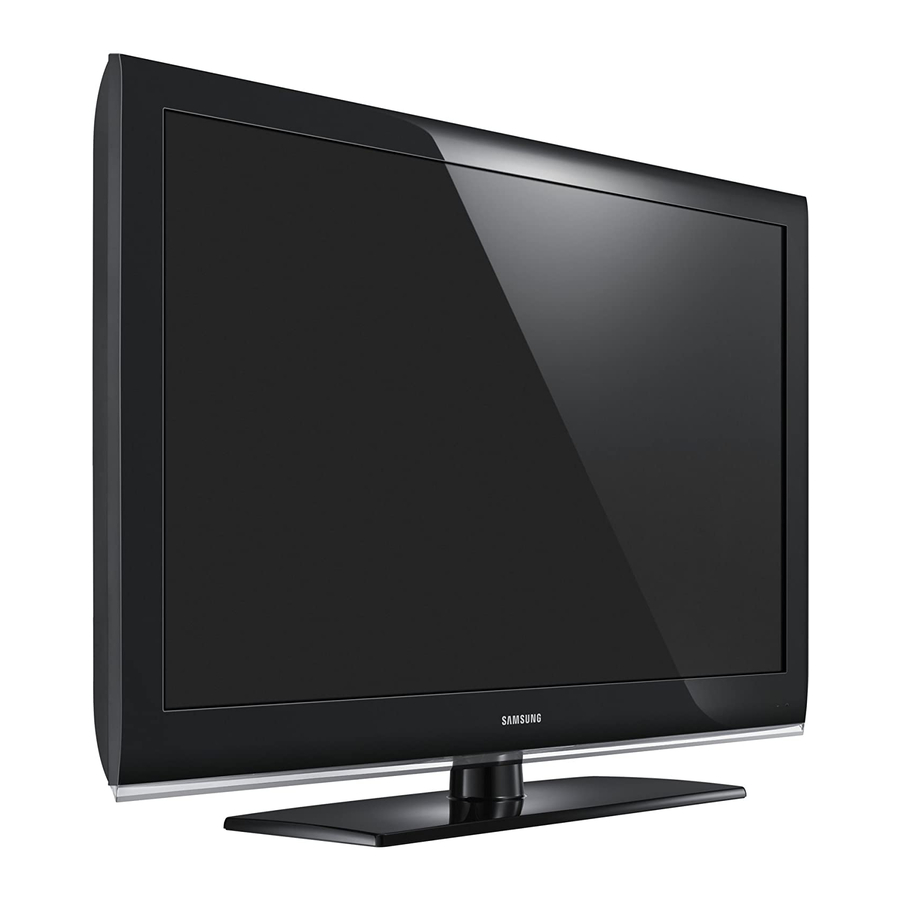

Samsung LN32B530 User Manual
Hide thumbs
Also See for LN32B530:
- User manual (101 pages) ,
- Quick setup manual (21 pages) ,
- Quick start manual (11 pages)
Related Manuals for Samsung LN32B530
Summary of Contents for Samsung LN32B530
- Page 53 55 Standish Court Mississauga, Ontario L5R 4B2 Call center hours of operation (Mon-Sun 9AM-12AM EST). To register this product please visit www.samsung.com/register Rear Panel (LN32B530, LN37B530, LN40B530, LN46B530) ANT IN DIGITAL AUDIO OUT (OPTICAL) KENSINGTON LOCK HDMI IN 1 (DVI), 2, 3 /...
- Page 54 Rear Panel / Side Panel Jacks (LN52B530) HDMI IN 1, 2, 3/ DIGITAL AUDIO OUT (OPTICAL) ANT IN DVI IN(HDMI1) [R-AUDIO-L] SERVICE COMPONENT IN 1, 2 / AV IN 1 EX-LINK POWER INPUT AV IN 2 PC IN [PC] / [AUDIO] KENSINGTON LOCK AUDIO OUT [R-AUDIO-L] Video Input Performance Comparison...
- Page 55 Press to select the picture mode. Use these buttons in the DMA Controls the caption decoder. and Anynet+ modes. (J: This remote can be used to control recording on Samsung Press to choose stereo, mono or recorders with the Anynet+ Separate Audio Program (SAP feature) broadcast).
- Page 56 Installing the Stand (LN32B530) Back Front Place the Guide Stand and Cover Neck onto the stand and fasten it using the three screws. Attach your LCD TV to the stand. Two or more people should carry the TV. Make sure to distinguish between the front and back of the stand when attaching it.
- Page 57 Connections (LN32B530, LN37B530, LN40B530, LN46B530) Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via HDMI Connect an HDMI Cable between TV Rear Panel the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the...
-
Page 58: Satellite Receiver (Set-Top Box) Via Component Cables
Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via Component cables Connect a Component Cable between the COMPONENT IN [Y, TV Rear Panel ] jacks on the TV and the COMPONENT [Y, P ] jacks on the DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box). -
Page 59: Connecting A Digital Audio System
Connecting a Digital Audio System Connect an Optical Cable TV Rear Panel between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input Digital Audio System jacks on the Digital Audio System. Optical Cable (Not supplied) When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack: Decrease the volume of the TV and adjust the volume level with the system’s volume control. -
Page 60: Connecting A Camcorder
Connecting a Camcorder Using a Video Cable Connect a Video Cable between TV Rear Panel the AV IN [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder. Connect Audio Cables between the AV IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder. -
Page 61: Connecting A Pc
Connecting a PC Using a D-Sub Cable Using a D-Sub Cable Connect a D-Sub Cable between TV Rear Panel PC IN [PC] connector on the TV and the PC output connector on your computer. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. -
Page 62: Connections (Ln52B530)
Connections (LN52B530) Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via HDMI Connect an HDMI Cable between TV Side Panel TV Rear Panel the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the DVD/Blu-ray Player or Cable Box / Satellite receiver (Set-Top Box). -
Page 63: Connecting A Vcr
Connecting a DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) via Component cables Connect a Component Cable TV Rear Panel between the COMPONENT IN (1 or 2) [Y, P ] jacks on the TV and the COMPONENT [Y, P ] jacks on the DVD / Blu-ray player / Cable Box /... -
Page 64: Connecting A Digital Audio System
Connecting a Digital Audio System Connect an Optical Cable TV Rear Panel between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input jacks on the Digital Audio Digital Audio System System. Optical Cable (Not supplied) When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack: Decrease the volume of the TV and adjust the volume level with the system’s volume control. -
Page 65: Connecting A Camcorder
Connecting a Camcorder Using a Video Cable Connect a Video Cable between TV Side Panel the AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the Camcorder camcorder. Connect Audio Cables between the Video Cable (Not supplied AV IN 2 [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder. -
Page 66: Connecting A Pc
Connecting a PC Using a D-Sub Cable Using a D-Sub Cable TV Rear Panel Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. -
Page 67: Turning The Tv On And Off
Turning the TV On and Off When selecting the Cable TV system: Press the ENTERE button to start the auto program. Press the POWER button on the remote control. Press the to select the correct analog You can also use the POWER button on the TV. -
Page 68: Changing The Picture Standard
Setting the Channel List Changing the Picture Standard You can delete or add a channel to display the channels You can select the type of picture which best corresponds you want. to your viewing requirements. Press the MENU button. Press the button to Press the MENU button to display the menu. -
Page 69: Customizing The Picture Settings
Customizing the Picture Settings Setting the Screen Size Your television has several setting options that allow you to Occasionally, you may want to change the size of the control the picture quality. image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of To select the desired picture mode, follow the video input. -
Page 70: To Select The Source
Available signal sources: TV, AV1, AV2, Component1, Component2, PC, HDMI1/DVI, HDMI2, HDMI3. (LN52B530) TV, AV, Component, PC, HDMI1/DVI, HDMI2, HDMI3. (LN32B530, LN37B530, LN40B530, LN46B530) You can choose only those external devices that are connected to the TV. In the “Source List”, connected inputs will be highlighted and sorted to the top. -
Page 71: Troubleshooting
Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG. (726-7864) Problem Possible Solution Poor picture Try another channel. / Adjust the antenna. / Check all wire connections. - Page 72 If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Comuníquese con SAMSUNG WORLDWIDE Si desea formular alguna pregunta o comentario en relación con los productos de Samsung, comuníquese con el centro de atención al cliente de SAMSUNG.
