Liliput FA1013 User Manual

Color tft lcd monitor
Hide thumbs

Advertisement

Table of Contents

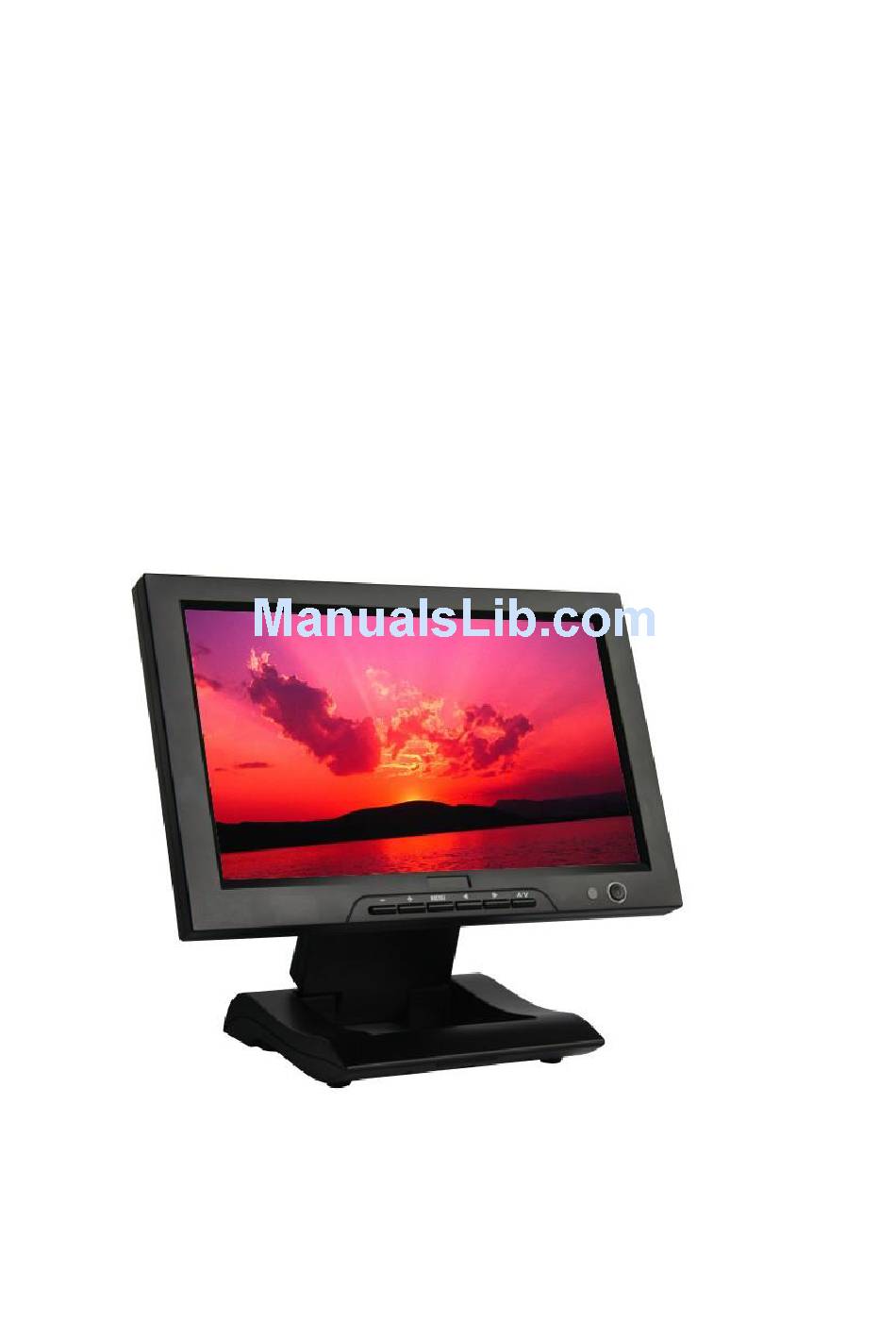

COLOR TFT LCD MONITOR

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA1013 and is the answer not in the manual?

Questions and answers

Related Manuals for Liliput FA1013

Summary of Contents for Liliput FA1013

  • Page 1: User Manual

    COLOR TFT LCD MONITOR User Manual...

  • Page 2: Table Of Contents

    CAUTIONS Please use the adapter attached in the accessories. 2. Please keep away from strong light while using this product in order to obtain the clearest and the most colorful pictures. 3. Please avoid heavy impact or drop onto the ground. 4.

  • Page 3: Product Description

    1. PRODUCT DESCRIPTION 1．Power: ON/OFF ；switch concurrence battery indicator light (red while standby; green while working)。 2．A/V: circularly switch among HDMI, YPbPr, Video 1, Video 2, and SDI (Note: SDI optional). 3．►: Right selection key, to select items on OSD menu. 4．◄: Left selection key, to select items on OSD menu.
  • Page 4 8．SDI signal output.（Optional） 9．Video 1 signal output. 10．Video 2 signal input. 11．Audio signal input. 12．SDI (Serial Digital Interface) signal input. （Optional） 13．Y signal input. 14．Pb signal input. 15．Pr signal input. 16．HDMI (High Definition Multimedia Interface) signal input. 17. Speakers 18．4-pin XLR DC power input. XLR signal description: Pin number Signal ①...

  • Page 5: Setting Menu

    SETTING MENU Before setting the menu functions, please make sure the device is connected correctly. When power on, press “MENU” on the device. The menu of function setting will display on the screen. Press ◄/► buttons on the device to select items on the display menu.

  • Page 6: Accessories

    ITEMS OPTIONS Language English /Chinese Input Format OSD 5s、10s、15s LOGO ON/ OFF Freeze Input ON/ OFF Manufacturer Default OK/Cancel For program upgrades (such as accidentally press to reboot your computer) LLP Ver 1.1 NO USE： 3. Accessories 1. 12V DC adapter 1 piece 2.

  • Page 7: Troubleshooting

    4. MAIN PARAMETERS 10.1’’ TFT LCD (16:9) Panel Size Screen Resolution 1024×600 Brightness 250cd/㎡ Contrast 500 : 1 Viewing Angle 140° / 110° (H/V) Input Voltage DC 12V (XLR DC Connection) Input Signal HDMI,YPbPr,AV2,SDI(Note:SDI optional) SDI/HDMI/YPbPr Mode 480i/p、576i/p、720p、1080i(50/60)、 1080p(50/60) Current 800mA ≤10W Power Consumption...

  • Page 8: Remark

    6. REMARK It is normal to see some bright lines appear on the screen when turn off the device. Note: due to constant effort to improve products and product features, specifications may change without notice.
