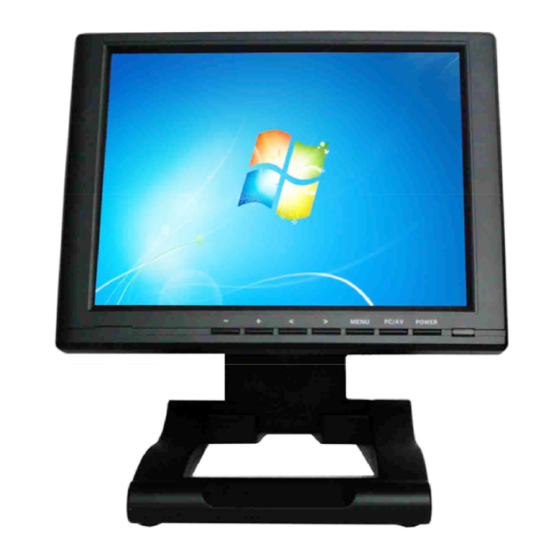

Liliput FA1046 Quick Start Manual

Tft lcd color monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TFT LCD COLOR
MONITOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA1046 and is the answer not in the manual?

Questions and answers

Related Manuals for Liliput FA1046

Summary of Contents for Liliput FA1046

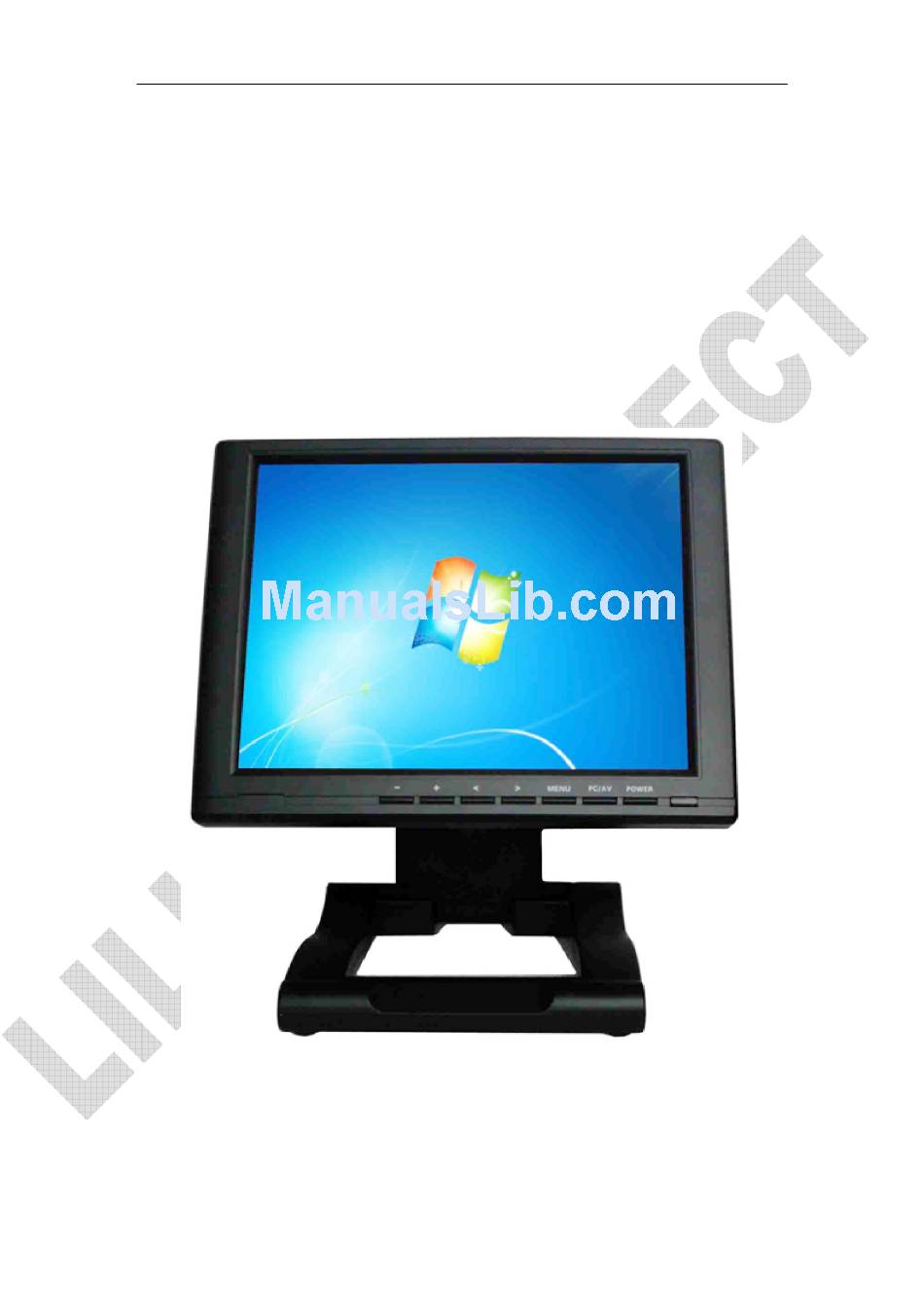

  • Page 1 TFT LCD COLOR MONITOR...
  • Page 2 DEAR CUSTOMERS Thank you for purchasing the liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with.

  • Page 3: Table Of Contents

    CONTENTS 1. PRODUCT DESCRIPTION -------------------- 2. REMOTE CONTROL---------------------------- 3. MENU OPERATION ---------------------------- IN AV MODE-------------------------------------- IN PC MODE-------------------------------------- IN DVI&HDMI&YPbPr MODE-------------- 4. MATCHED CABLES------------------------- 5. ACCESSORIES ------------------------------------ 6. PARAMETER -------------------------------------- 7. TROUBLESHOOTING --------------------------- 8. REMARK----------------------------------------...

  • Page 4: Product Description

    1. PRODUCT DESCRIPTION Picture 3 4 5 6 7 8 1. - : Volume down or to adjust the value of setting function 2. +: Volume up or to adjust the value of setting function 3. <: Selection key, to select item on the OSD or push the key in PC mode directly to adjust phase automatically 4.

  • Page 5: Remote Control

    （long press to zoom in/out pictures automatically when receiving HDMI (High-Definition Multimedia Interface) signals) 6. PC/AV: PC, AV，DVI，HDMI，YPbPr，S-video switch 7. POWER: Power on/off 8. Infrared signal receiver/ battery indicator light(red while standby) 9. USB touch connector （optional） 10. Audio L/R output / Earphone jack 11.
  • Page 6 Picture 2 1. MUTE 2. Display switch among Video 1, Video 2, PC， DVI， HDMI， YPbPr and S-video circularly : Left move，Volume down or to adjust the value of setting function : Down move, to select function on OSD (long press to zoom in/out pictures automatically when receiving HDMI (High-Definition Multimedia Interface) signals) 5.

  • Page 7: Menu Operation

    3. MENU OPERATION Before setting the menu functions, please make sure the device is connected correctly. When power on, press MENU on the device or on the remote control. The menu of function setting will display on the screen. Press >/< buttons on the device or ▼/▲ buttons on the remote control to select items on the left of the display.

  • Page 8: In Dvi&Hdmi&Ypbpr Mode

    3. IN DVI & HDMI & YPbPr MODE: (Note: DVI & HDMI optional) item to a new page. 4. Icon description: Icon Name Function Brightness Adjust the level of brightness Contrast Adjust the level of contrast Saturation Adjust the level of saturation Tint Adjust the tint of image OSD H-Position...

  • Page 9: Matched Cables

    Choose language between English and Language Chinese Japanese（optional） Enter to next page (See picture below) for Miscellaneous miscellaneous selections Select “Exit” to quit the on-screen-display Exit OSD menu. Sharpness Adjust the sharpness of picture Adjust the display duration of OSD from OSD Duration 5-100 seconds.

  • Page 10: Accessories

    5. ACCESSORIES Standard accessories: 1. S-video signal cable 1 piece 2. VGA15-pin cable 1piece 3. VIDEO&AUDIO input/output cable 3 piece 4. YPbPr signal cable 1 piece 5 12V/1.2A DC adapter 1piece 6. Remote control 1piece 7. Manual 1copy With touch screen accessories: 1.

  • Page 11: Parameter

    6. PARAMETER Panel TFT LCD 10.4’’ 800×600（up to 1920×1080） Physical Resolution Viewing Angle 130°/ 110°(H/V) Input Voltage DC 12V Input Signal AV 1, AV 1,YPbPr,S-video PC(VGA),HDMI,DVI Power Consumption ≤8W Contrast 400:1 226mm×200mm×39mm Size(LWD): 260mm×200mm×70mm（with bracket） Weight 902g / 1474g(with bracket) 7.

  • Page 12: Remark

    8. REMARK: If there are still any problems, you can connect with the related deals *If interruptive image occurs, it maybe that the VGA signal frequency isn’t matched with normal standard *It is a normal condition that some bright lines appear on the screen when you turn the unit.
