- Page 1 COLOR TFT LCD MONITOR User Manual +7 (495) 120-22-02 info@lilliput.pro...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways.
-
Page 3: Table Of Contents
Contents PRODUCT DESCRIPTION ----------------------3 INSTALLATION OF SUNSHADECOVER AND BATTERY PLATE---------------------------5 DV BATTERY MOUNT PLATE-----------------6 SETTING MENU ---------------------------------- 8 ACCESSORIES ----------------------------------- 10 PARAMETER ------------------------------------- 12 TROUBLESHOOTING ------------------------- 12 Official distributor in Russia – Lilliput.com.ru +7 (495) 120-22-02 info@lilliput.pro... -
Page 4: Product Description

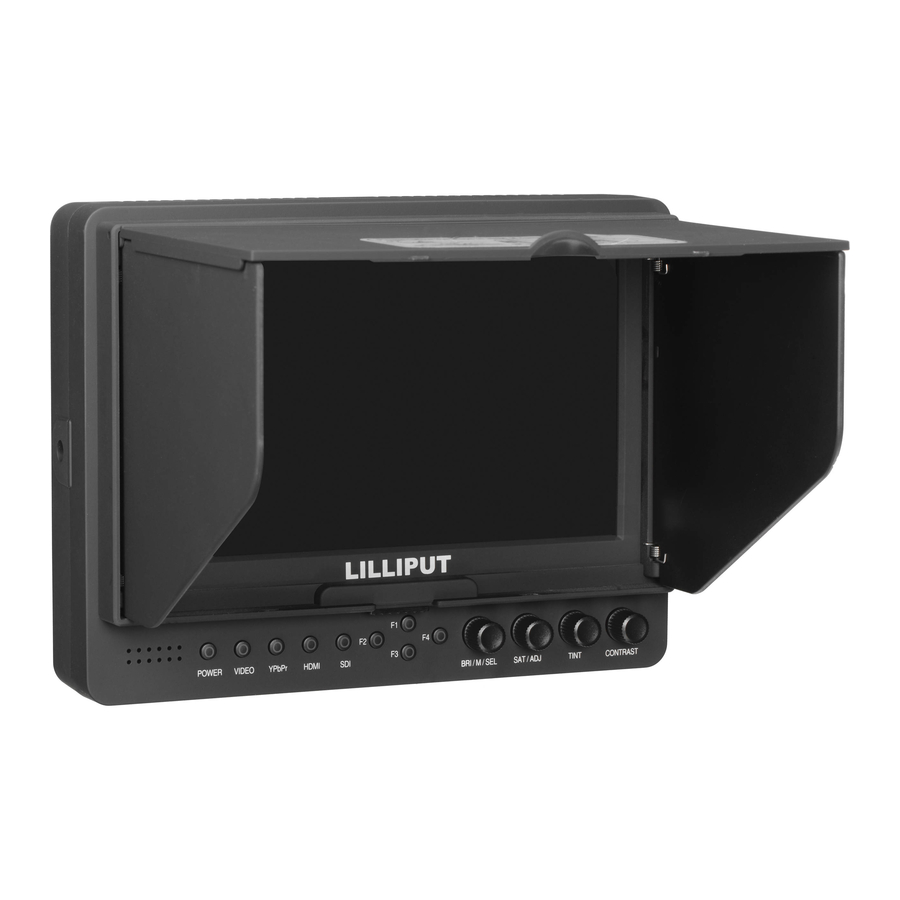

PRODUCT DESCRIPTION 1．POWER：ON/OFF (Light turns to red when power on.) 2．VIDEO: Indicator lights up when signal switch to video state. 3．YPbPr: Indicator lights up when signal switch to YPbPr state. 4．HDMI: Indicator lights up when signal switch to HDMI state. 5．SDI: Indicator lights up when signal switch to SDI state (optional). - Page 5 8． Knob SAT/ADJ： Press the knob to select main MENU options; rotate knob to confirm the selection and adjust parameter values. Default as Saturation function. 9．Knob TINT：Default as Tint function. 10．Knob CONTRAST: Default as Contrast function. 11. SDI signal output. (Optional) 12.
-
Page 6: Installation Of Sunshadecover
24. 4-pin XLR DC power input. Pin number Signal ① ……... ②③ +12V ④ 25. Battery power on/off switch. INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE Installation of sunshade cover： Installation steps Installation completed Disassembly of sunshade cover： Disassembly steps： Disassembly completed：... -
Page 7: Dv Battery Mount Plate
Steps of sunshade cover on / off: * Please follow the instructions steps, or may damage the cover. Open Step: Closed steps: * Do not press the edge in the under of the cover, otherwise it will result in open failure. DV BATTERY MOUNT PLATE: Standard mounts process Official distributor in Russia –... - Page 8 Following three types of battery plates are suitable for this device, model F970&QM91D are standard accessories, model DU21 is for optional. DV Battery Mount Plate: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W.
-
Page 9: Setting Menu
battery specifications. Anton Bauer mount battery plate (optional): Please refer to GP-L130B type battery specifications. SETTING MENU Before setting the functions, please make sure the device is connected correctly. When power on, press BRI/M/SEL knob on the device, function menus will pop-up on the screen. - Page 10 ITEMS OPTIONS 6500ºK/7500 ºK/9300 ºK/User Note: Only available under Color Temp Green “User” mode to meet the color value you need. Blue Check Field OFF，MONO，Red, Green and Blue Aspect Ratio Full Screen,4:3 and 16:9 Pixel-to-Pixel ON/OFF Camera 480P / 1080I (5DII Mode) (5DIII Mode) H/V delay...
- Page 11 ITEMS OPTIONS Language English /Chinese Small, Medium, Large, PBP, POP In small, medium and large interface can adjust the source, position, and swap; In PBP and POP interface can adjust the source and swap. ON/ OFF Input Format OSD 5s、10s、15s LOGO ON/ OFF Freeze Input...
-
Page 12: Accessories
Functions of R1-R4 buttons can also be customized: Contrast, Brightness, Saturation, Tint, Volume and Sharpness. ACCESSORIES: Standard accessories: 1. Flexible Folding Sun Shade Cover 1 piece 2. Battery Plate QM91D 1 piece Battery Plate F-970 1 piece 3. Manual 1 copy 4. -
Page 13: Parameter
1. Anton Bauer Mount Battery Plate 1piece 2. V-mount Battery Plate 1piece 3. Shoe Mount (for camera only) 1piece 4. Li-ion Battery 1piece 5. Battery Plate: DU21 1piece PARAMETERS: Panel Size 7’’ TFT LCD Resolution 1024×600, up to 1920×1080 Contrast 800:1 Viewing Angle 160°/ 150°(H/V) -
Page 14: Troubleshooting
TROUBLE SHOOTING 1. Only black-and-white display: Check whether the color saturation is properly setup. 2. Power on but no pictures: Check whether the cables of Video, HDMI, YPbPr and SDI are correctly connected. Please use the standard power adapter coming with the product package.
