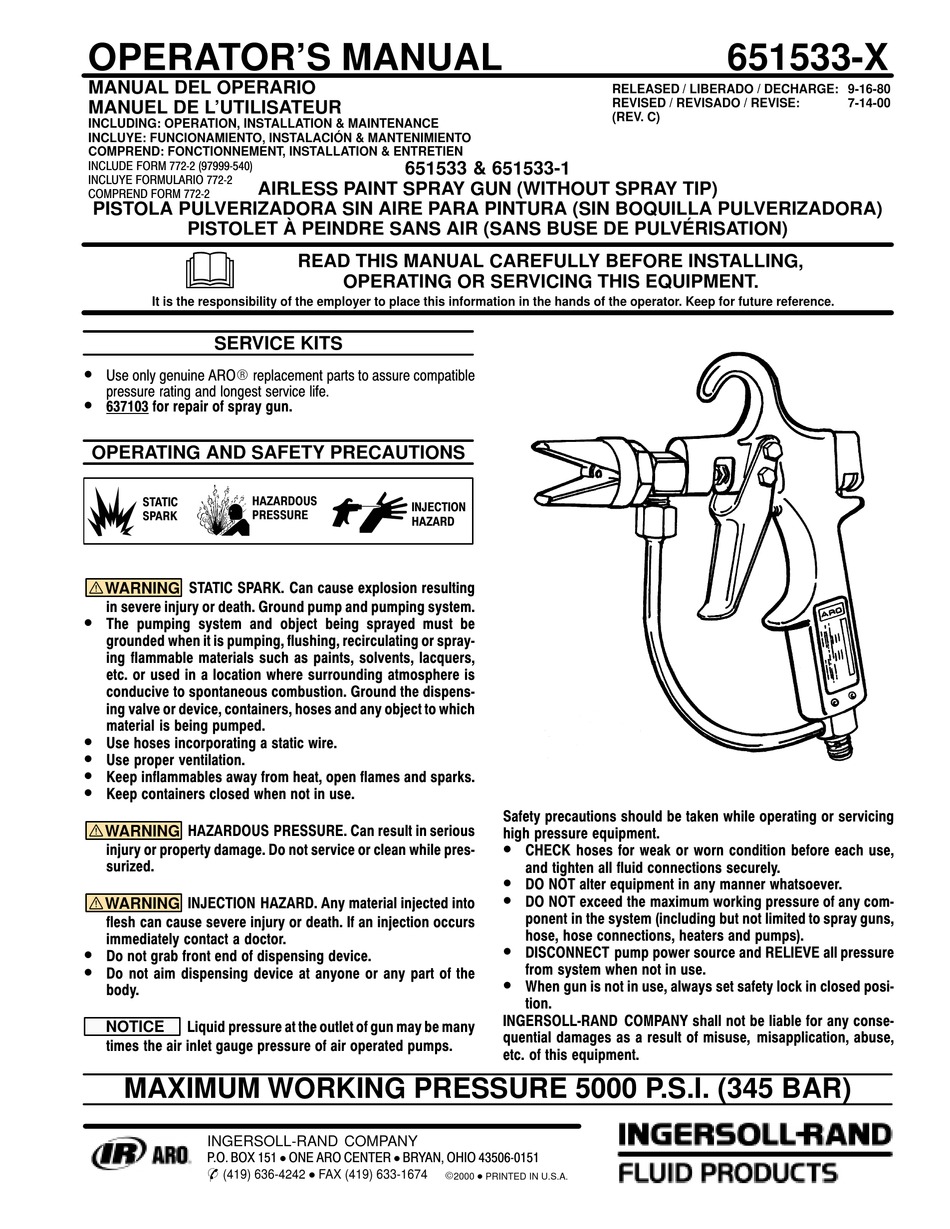

Ingersoll-Rand 651533-X Operator's Manual

OPERATOR'S MANUAL
MANUAL DEL OPERARIO
MANUEL DE L'UTILISATEUR
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
INCLUYE: FUNCIONAMIENTO, INSTALACIÓN & MANTENIMIENTO
COMPREND: FONCTIONNEMENT, INSTALLATION & ENTRETIEN
INCLUDE FORM 772 2 (97999 540)
INCLUYE FORMULARIO 772 2

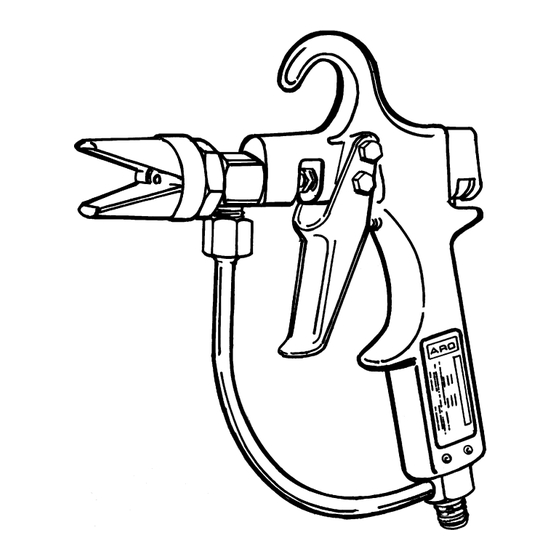

AIRLESS PAINT SPRAY GUN (WITHOUT SPRAY TIP)
COMPREND FORM 772 2
PISTOLA PULVERIZADORA SIN AIRE PARA PINTURA (SIN BOQUILLA PULVERIZADORA)
PISTOLET À PEINDRE SANS AIR (SANS BUSE DE PULVÉRISATION)
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

•
Use only genuine AROR replacement parts to assure compatible
pressure rating and longest service life.
•
637103 for repair of spray gun.
OPERATING AND SAFETY PRECAUTIONS
HAZARDOUS
STATIC
PRESSURE
SPARK
WARNING STATIC SPARK. Can cause explosion resulting
in severe injury or death. Ground pump and pumping system.
•
The pumping system and object being sprayed must be
grounded when it is pumping, flushing, recirculating or spray
ing flammable materials such as paints, solvents, lacquers,
etc. or used in a location where surrounding atmosphere is
conducive to spontaneous combustion. Ground the dispens
ing valve or device, containers, hoses and any object to which
material is being pumped.
•
Use hoses incorporating a static wire.
•
Use proper ventilation.
•
Keep inflammables away from heat, open flames and sparks.
•
Keep containers closed when not in use.
WARNING HAZARDOUS PRESSURE. Can result in serious
injury or property damage. Do not service or clean while pres
surized.
WARNING INJECTION HAZARD. Any material injected into
flesh can cause severe injury or death. If an injection occurs
immediately contact a doctor.
•
Do not grab front end of dispensing device.
•
Do not aim dispensing device at anyone or any part of the
body.
Liquid pressure at the outlet of gun may be many
NOTICE
times the air inlet gauge pressure of air operated pumps.
MAXIMUM WORKING PRESSURE 5000 P.S.I. (345 BAR)
INGERSOLL-RAND COMPANY
P.O. BOX 151
&
(419) 636-4242
651533 & 651533-1
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
INJECTION
HAZARD
ONE ARO CENTER BRYAN, OHIO 43506 0151
D D
D E
FAX (419) 633-1674
2000 D PRINTED IN U.S.A.
RELEASED / LIBERADO / DECHARGE: 9-16-80
REVISED / REVISADO / REVISE:
(REV. C)
Safety precautions should be taken while operating or servicing
high pressure equipment.
•
CHECK hoses for weak or worn condition before each use,
and tighten all fluid connections securely.
•
DO NOT alter equipment in any manner whatsoever.
•
DO NOT exceed the maximum working pressure of any com
ponent in the system (including but not limited to spray guns,
hose, hose connections, heaters and pumps).
•
DISCONNECT pump power source and RELIEVE all pressure
from system when not in use.
•
When gun is not in use, always set safety lock in closed posi
tion.
INGERSOLL RAND COMPANY shall not be liable for any conse
quential damages as a result of misuse, misapplication, abuse,
etc. of this equipment.
651533-X
7-14-00
