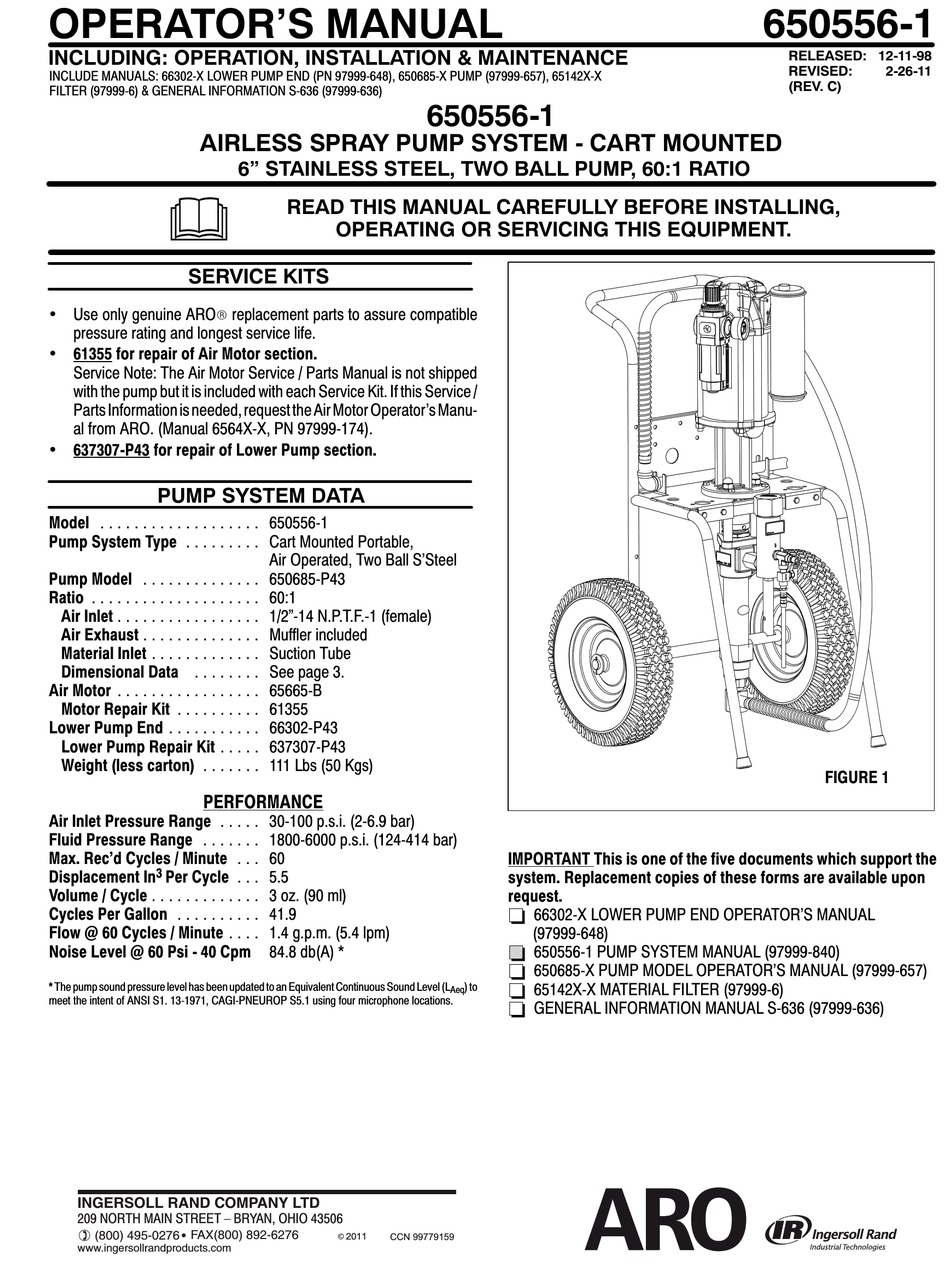

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
INCLUDE MANUALS: 66302-X LOWER PUMP END (PN 97999-648), 650685-X PUMP (97999-657), 65142X-X
FILTER (97999-6) & GENERAL INFORMATION S-636 (97999-636)
AIRLESS SPRAY PUMP SYSTEM - CART MOUNTED

SERVICE KITS

R
Use only genuine ARO
pressure rating and longest service life.
61355 for repair of Air Motor section.
Service Note: The Air Motor Service / Parts Manual is not shipped
with the pump but it is included with each Service Kit. If this Service /
Parts Information is needed, request the Air Motor Operator's Manu-
al from ARO. (Manual 6564X-X, PN 97999-174).
637307-P43 for repair of Lower Pump section.

PUMP SYSTEM DATA

Model . . . . . . . . . . . . . . . . . . .
Pump System Type . . . . . . . . .
Pump Model . . . . . . . . . . . . . .
Ratio . . . . . . . . . . . . . . . . . . . .
Air Inlet . . . . . . . . . . . . . . . . .
Air Exhaust . . . . . . . . . . . . . .
Material Inlet . . . . . . . . . . . . .
Dimensional Data . . . . . . . .
Air Motor . . . . . . . . . . . . . . . . .
Motor Repair Kit . . . . . . . . . .
Lower Pump End . . . . . . . . . . .
Lower Pump Repair Kit . . . . .
Weight (less carton) . . . . . . .

PERFORMANCE

Air Inlet Pressure Range . . . . .
Fluid Pressure Range . . . . . . .
Max. Rec'd Cycles / Minute
3
Displacement In Per Cycle
Volume / Cycle . . . . . . . . . . . . .
Cycles Per Gallon . . . . . . . . . .
Flow @ 60 Cycles / Minute . . . .
Noise Level @ 60 Psi - 40 Cpm
* The pump sound pressure level has been updated to an Equivalent Continuous Sound Level (L
meet the intent of ANSI S1. 13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
6" STAINLESS STEEL, TWO BALL PUMP, 60:1 RATIO
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
replacement parts to assure compatible
650556-1
Cart Mounted Portable,
Air Operated, Two Ball S'Steel
650685-P43
60:1
1/2"-14 N.P.T.F.-1 (female)
Muffler included
Suction Tube
See page 3.
65665-B
61355
66302-P43
637307-P43
111 Lbs (50 Kgs)
30-100 p.s.i. (2-6.9 bar)
1800-6000 p.s.i. (124-414 bar)
. . . 60
. . . 5.5
3 oz. (90 ml)
41.9
1.4 g.p.m. (5.4 lpm)
84.8 db(A) *
© 2011 CCN 99779159
650556-1
IMPORTANT This is one of the five documents which support the
system. Replacement copies of these forms are available upon
request.
- 66302-X LOWER PUMP END OPERATOR'S MANUAL
(97999-648)
= 650556-1 PUMP SYSTEM MANUAL (97999-840)
- 650685-X PUMP MODEL OPERATOR'S MANUAL (97999-657)
- 65142X-X MATERIAL FILTER (97999-6)
) to
Aeq
- GENERAL INFORMATION MANUAL S-636 (97999-636)
650556-1
RELEASED: 12-11-98
REVISED: 2-26-11
(REV. C)
FIGURE 1
