▲ In order to operate the Al-Ko braking system correctly adequate traction of caravan wheels
is required when reversing. Therefore surface conditions that would result in a lack of
traction should be avoided. Example: Peas, shingle/loose gravel.
▲ Care should be taken when traversing ramps or other obstacles in order to prevent damage
to the caravan under gear. When approaching such obstacles reduce towing speed
appropriately.

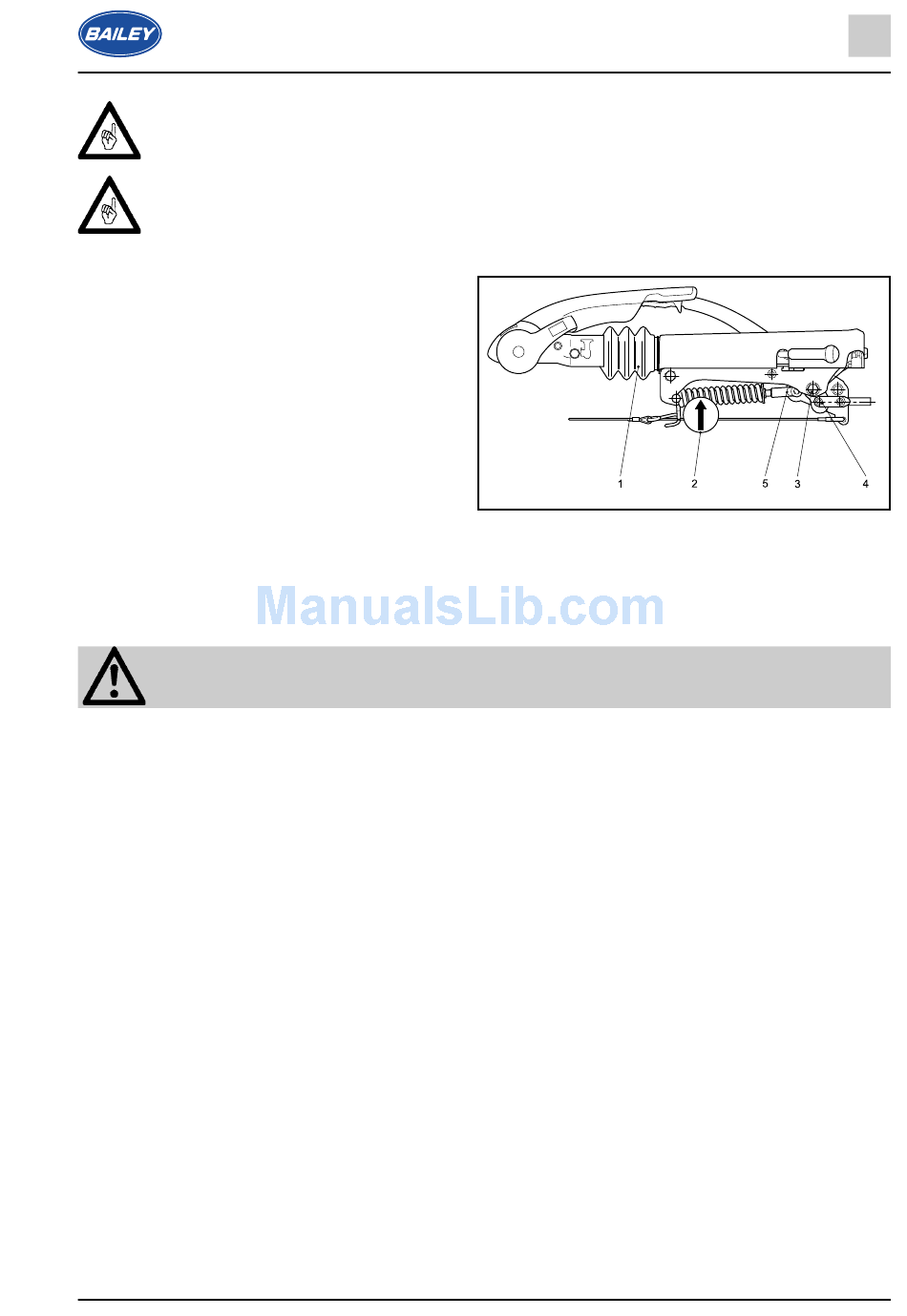

4.10.23 Chassis Lubrication Points

1. Grease the drawbar in the area of the bellows.
2. Grease the bearing bush through the grease
nipples on the housing and the cartridge.
3. Grease the pivot bolt of the overrun lever and
handbrake levers through the grease nipple.
4. Grease the joint of the brade rod and fitting.
5. Oil the joints of the spring cylinder in the
handbrake lever.
Lubricant type: Multi-purpose grease to DIN
51825 KTA 3K4.
4.11

HEKI 2 ROOFLIGHT

Operating Instructions
▲ Before commencing any journey always ensure that the Heki 2 rooflight is fully closed
and both handles are securely fastened.

4.11.1 To open in the tilted position

a) Press the knob in the toggle catches on either side of the glass and turn through approx. 90 deg.
b) Grasp the metal bar in the middle, snap it out of its holder, swivel down and press the glass dome
upwards. (Glass dome is held by the two gas springs after approx. 150mm).
c) Swivel the metal bar towards the glass down and snap into its holder.
To close the glass dome, proceed with steps (a - c) in reverse order.

4.11.2 To open in the intermediate position

a) Open the toggle catches on either side of the glass.
b) Grasp the metal bar in the middle, snap it out of its holder, swivel down and press the glass dome
outwards. (Glass dome is opened automatically after approx. 150 mm by the two gas springs).
c) Open both fasteners and swivel the metal strap toward the intermediate position and pull the glass
dome down until the metal strap is stopped by the fasteners.
d) Safeguard the metal strap with both fasteners.
To close Heki 2, proceed with steps (a - d) in reverse order.

4.11.3 To open in the ventilation position

a) Open the toggle catches on either side of the glass.
