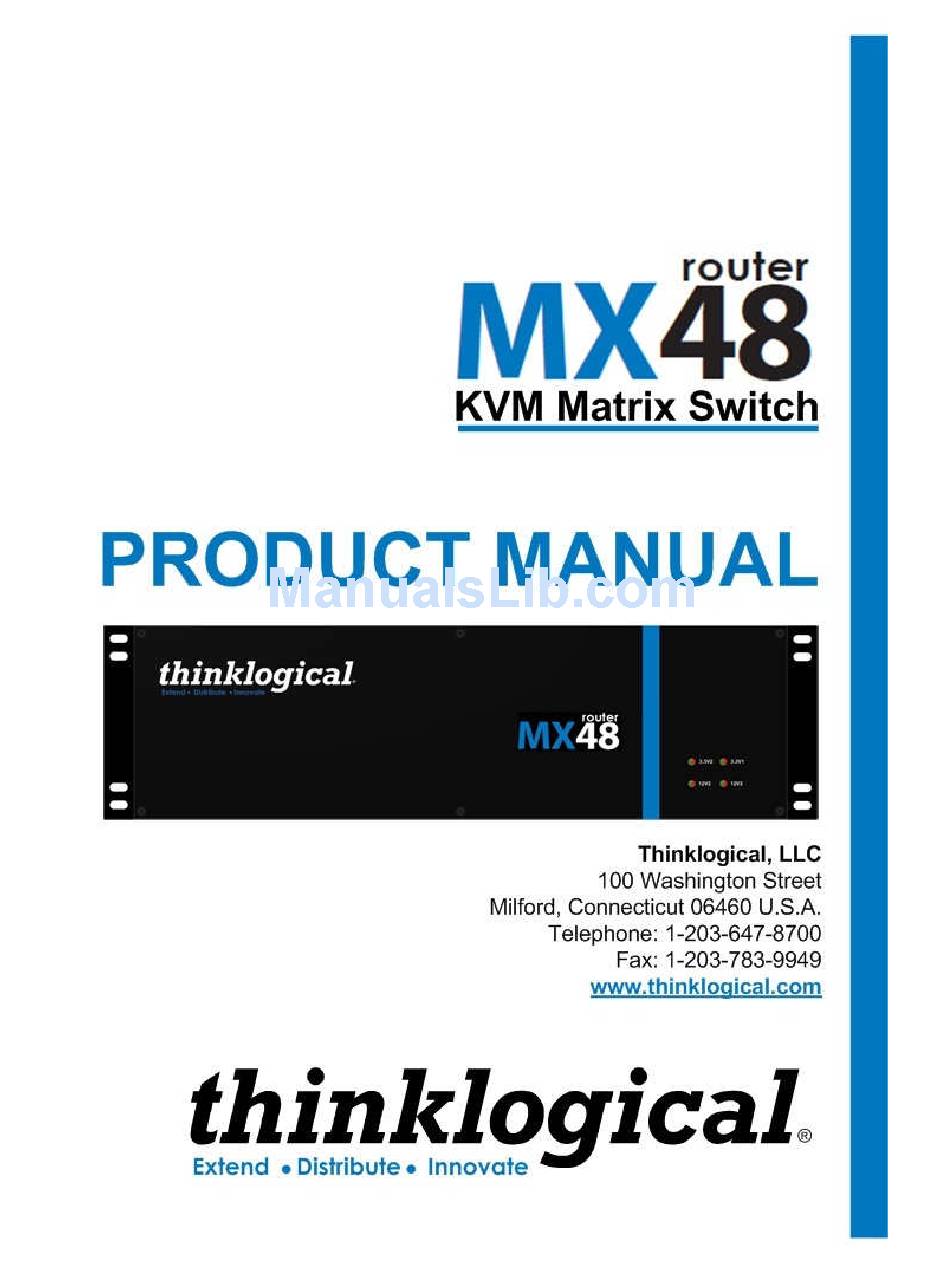

Thinklogical MX48 Product Manual

Kvm matrix switch
Hide thumbs Also See for MX48:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thinklogical MX48

Summary of Contents for Thinklogical MX48

  • Page 2 Copyright © 2011. All rights reserved. Printed in the U.S.A. Thinklogical ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: MX48 Router Product Manual Revision: A, December 2011 Revision A December 2011...

  • Page 3: Table Of Contents

    Input/Output Cards ......................... 13 2.4 Firmware ........................... 13 On Screen Display (OSD) - Firmware Option ................. 13 Upgrades ............................14 3 Connecting to the MX48 ........................14 3.1 Pluggable SFP+ ........................14 3.2 Fiber Optic Cable ........................15 Requirements ..........................15 Handling Fiber Optic Cable ......................
  • Page 4 6.3 Supplementary Information ..................... 22 Product Serial Number ........................23 Connection to the Product ......................23 7 How to Contact Us ........................... 24 7.1 Customer Support ........................24 Website ............................24 Email .............................. 24 Telephone ............................24 Fax ..............................25 7.2 Product Support ........................

  • Page 5: Preface

    PREFACE Conventions Used in this Manual Throughout this manual you will notice certain conventions that bring your attention to important information. These are Notes and Warnings. Examples are shown below. Note: Important Notes appear in blue text preceded by a yellow exclamation point symbol, like this.

  • Page 6: Introduction

    H: 3 RU-5.22” (133 mm) x D: 14.93" (379 mm) x W: 17.49" (437 mm), 200 Watts fully loaded 1.1 Product Overview The MX48 is a compact, high performance router and non-blocking matrix switch for complete, end-to- end routing of video and peripheral signals over multi-mode or single-mode fiber optic cable. Being protocol agnostic the router supports a variety of formats, DVI, Dual-link DVI, 3G, HD, SD SDI, Dual-link SDI, USB 1.0, USB 1.1, USB 2.0, FireWire 800, serial, and audio.

  • Page 7: Laser Information

    1.4 Theory of Operation MRTS Technology Thinklogical MX48 Router is used together as a system with our Thinklogical Velocity Extenders ® utilizing breakthrough, patent-pending technology for transmission and reception of DVI, keyboard, mouse, and high-speed data peripherals. This technology, known as Multi Rate Transmission System (MRTS), provides end-to-end data transmission with unparalleled performance.

  • Page 8: System Features

    Figure 1: MRTS Technology 2 System Features 2.1 General System Features Each MX48 Router System includes the following features: Configurations include: 16 x 16, 32 x 32, 48 x 48 • Fiber Optic Non-Blocking Matrix Router • Each Video Connection Supports 6.22 Gbps •...

  • Page 9: Mx48 Technical Specifications

    2.3 MX48 Modules The inspired modular approach of the MX48 allows for all critical system components including power supplies, cooling fans and pluggable optics (SFP+) to be hot-swappable, thus minimizing business impact in the unlikely event that a component should fail.

  • Page 10: Power Supplies

    (in case of failure) without interrupting the routers system functionality. Fan Tray The MX48 uses 3 DC fans all located conveniently in one modular fan tray. The tray is designed to move air horizontally through the enclosure. This hot-swappable fan tray allows for easy replacement of the module (in case of failure) without interrupting the system functionality.

  • Page 11: Controller Card

    20 Gig (minimum) hard drive If the MX48 Router is to be controlled via ethernet, it will require a static IP address. This value can be set via the DIP switch to the values listed below. Factory default setting will be 192.168.13.15.
  • Page 12 The simplest network connection is an isolated network with only the MX48, the control server, and any control clients using static IP addresses. The MX48 can be set to any of the above settings. The control server must be at 192.168.13.9, and the control clients could then be set to any other addresses in the 192.168.13.X family.

  • Page 13: Input/Output Cards

    Input/Output Cards The hot-swappable Input/Output (I/O) cards provide excellent in-service expansion capabilities in convenient sets of 16 ports per I/O card for the MX48, thus allowing re-configuration without interrupting signal processing. Each I/O card consists of one Transmit (T) and one Receive (R) optic per port. I/O Cards are available with LC-type fiber connectors and can be assembled with Single-mode or Multi-mode optics (SFP+).

  • Page 14: Upgrades

    Figure 8: SFP+ Module; it is good practice to install dust plugs in unused SFP+s Each I/O card can have as many as 16 SFP+s for an MX48, each mounted within a grounded metal enclosure. Each SFP+ module is locked into its enclosure with a built-in latch handle that can be opened for removal or locked for installation.

  • Page 15: Fiber Optic Cable

    3.2 Fiber Optic Cable Requirements Thinklogical recommends SX+ Laser Enhanced (50µm) fiber for your MX48 Router and Velocity Extension System. Multi-mode fiber has the ability to extend up to a maximum of 1000m, where Single- mode fiber has the ability to extend distances beyond 1000m.

  • Page 16: Connecting To A Control Computer

    Note: The Control Computer is supplied separately from the VX Router. The MX48 is controlled via a dedicated external Control module. This allows for customization as well as ease of control and administration with access provided via a network connection (browser).

  • Page 17: Set-Up And Installation

    Note: Insure that all thumb screws are finger tight so that all the modules are properly held in the chassis. 1. Carefully remove the MX48 Router from its shipping container. Inspect the router to make certain that no damage occurred during shipment.

  • Page 18: Order Of Installation Events

    Note: If mounting the chassis in a rack, insure that none of the fans have restricted air flow. 5. The temperature in the chassis is monitored in several locations. The power supply has an internal temperature sensor that is monitored constantly for any conditions that may indicate a problem.

  • Page 19: How To Install Or Replace A Controller Card

    If a blank panel is present, remove the blank panel from the desired location using the thumbscrews. Step 2 Place the new module upright so that the POWER LED is on the top. Grasp the module by the handles or by the outer edge of the aluminum housing. The card should slide freely until it reaches the backplane connector.

  • Page 20: How To Replace A Fan Tray

    5.3 How to Replace a Fan Tray The MX48 uses three DC fans to move air horizontally through the enclosure. Be sure not to block the air vents on the front and rear of the unit, and leave at least 2” of space on both sides.

  • Page 21: Regulatory & Safety Compliance

    Symbols found on the product Markings and labels on the product follow industry-standard conventions. Regulatory markings found on the products comply with domestic and many international requirements. Regulatory Compliance Thinklogical ’s Velocitykvm Desktop products are designed and made in the U.S.A. Velocitykvm ®...

  • Page 22: European Union

    European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical ® 100 Washington Street Milford, Connecticut 06460 USA Telephone 1-203-647-8700 These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. 6.2 Standards with Which Our Products Comply...

  • Page 23: Product Serial Number

    Warning! This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take corrective measures. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 24: How To Contact Us

    7.1 Customer Support Thank you for choosing a Thinklogical product for your application. We appreciate your business and ® are dedicated to helping you successfully use our product. Thinklogical is here to help you. ® Thinklogical is an engineering company and you will receive the information you require directly from ®...

  • Page 25: Fax

    Defect remedy shall be the repair or replacement of the product, provided that the defective product is returned to the authorized dealer within a year from the date of delivery. If you wish to return your device, contact the Thinklogical authorized dealer where you purchased the ®...

  • Page 26: Our Address

    Thinklogical , LLC ® Attn: RMA# 100 Washington Street Milford, CT 06460 USA PH: 1-800-291-3211 (USA only) Our Address If you have any issue with a product, have product questions or need technical assistance with your Thinklogical system, please call us at 1-800-291-3211 (USA only) or 1-203-647-8700 and let us help.

  • Page 27: Appendix A: Ordering Information

    Multi-Media 48 Router Data Input/Output Card, 16 Ports, SFP+, Single-Mode MXM-D00E16 Multi-Media 48 Router Data Input/Output Card, 16 Ports, No SFP+ MXM-D00C16 Multi-Media 48 Router Data Input/Output Card, 16 Ports, Coaxial MX48 – Redundant Configuration Components MXM-000001 Multi-Media 48 Router Controller MXM-000002 Multi-Media 48 Router Fan Module...

  • Page 28: Appendix B: Quick Start Guide

    APPENDIX B: QUICK START GUIDE MX48 Router Quick Start Guide Revision A December 2011...

  • Page 29: Appendix C: X4 Configurator Software

    IP address used to identify it. Router information is stored by IP Address so it should not change. A web browser is used to manage the MX48(s). One or more MX48 Routers can be controlled via a web-based software package running on a Control Rack Computer running Microsoft Windows or Linux.
  • Page 30 To make a Connection a. Click a source to select it b. Click one or more destinations to make a connection Figure C1: PC 01 has been selected as a source A connection is made when the name of the source appears in half of the destination box, and the 'X' becomes the same color as the stripe(s) above the source.
  • Page 31 To “take” control of the keyboard and mouse on a different connection right click mouse and select “Take Mouse”. Figure C3: Take control of keyboard and mouse To disconnect a source from a destination you simply click the 'X' on the destination to break the connection.
  • Page 32 You can also review log files and perform tests on the Administration page. STATIONS Stations are descriptions of signal sources or display devices that should be treated as a single entity. A computer is an example of a source station, and the monitor(s), keyboard, and mouse at a user's desk is one example of a destination station.
  • Page 33 Figure C4: View of Stations on the Administration Page The MX48 Router uses .csv formatted spreadsheet files as configuration files. Since the files can be created and modified with a spreadsheet, the interface is designed to mirror the experience of editing on a spreadsheet.
  • Page 34 Figure C5: How to edit a row on the Stations Page The viewable column in stations denotes which groups are able to view the connections. The administrator can view all sources and destinations. You can set up various groups (as seen in the next section) and restrict which pages are viewable by group.
  • Page 35 3. User names and Passwords a. Create/edit user names and passwords b. Select which group to which each user will be assigned when they successfully log in 4. Specific IP addresses which will automatically be assigned to a group without requiring login (touchpanels).
  • Page 36 Figure C8: Create a Macro from History TOUCHSCREENS The Touch Panel allows user-friendly access to the Thinklogical X4 Configurator software for simple actions to be made with the touch of the screen. The unit connects independently to a network and with a onetime configuration, the set-up is easily performed.
  • Page 37 Remote Configuration: Each touchpanel is shipped with DHCP enabled by default. 1. Attach one or more touchpanels to a network with a DHCP server 2. Use "ssh" to access each touchpanel in turn 3. When the login appears, type in the following- username: root password: emac_inc To set up the network:...
  • Page 38 Figure C9: View of Touch Screen TESTS The Test tab allows you to test the port connections of a VX Router. How to Perform a Test a. From the Router drop down list, select the router you want to test. b.
  • Page 39 Figure C10: Test Function SNAPSHOTS Snapshots are recorded and executed from the "Snapshot" tab of the ADMIN page. Snapshots are a way of recording and saving the connections of every single port on one or more routers, including whether or not they are connected at all. When a snapshot is played back or “executed” every port will be reset to the connections that were present when the snapshot was recorded.
  • Page 40 Figure C11: Snapshots STUDIO The Studio view is an alternate view for the Connections tab. Connecting ports in the Studio view is a different process and has additional options. To add this page see Groups section. To make a connection, select both a destination and a source (in any order). They will turn blue when selected.
  • Page 41 Figure C12: Studio View BLUEPRINT This function will allow you to add a .png or .jpeg file with your facility blueprint and make connections. To add this page see Groups section. Figure C13: Blueprint View LOGS To view a log of the activity of the switch you can click on the Logs tab under ADMIN. This will allow you view logins, operations, connections, errors and system updates.
  • Page 42 Figure C14: View of Log File CONFIGURATION FILE STRUCTURE The configuration files (stations, groups, router, macros) all share a similar structure. They are encoded in the .csv (comma separated values) format to allow easy access from spreadsheet programs, text editors, and the web-server program itself. Cells whose names end with a colon (:) are always interpreted as field names, and these field names will be applied to any cells below them in the same column.
  • Page 43 Source Name: Router Name: Primary Port: Port: Category: CPU 01 VX160 CPU 02 VX160 CPU 03 VX160 While each file uses a similar method to define and populate various objects, the kind of objects created by each file depends on the file name and the software module that reads it. 1.

  • Page 44: Appendix D: Mib File

    APPENDIX D: MIB FILE The MIB (Management Information Base) file contains information on the operational status of the MX48 Router hardware. The file is located on our FTP site and on the install disk included with your MX48 Router. Revision A...
