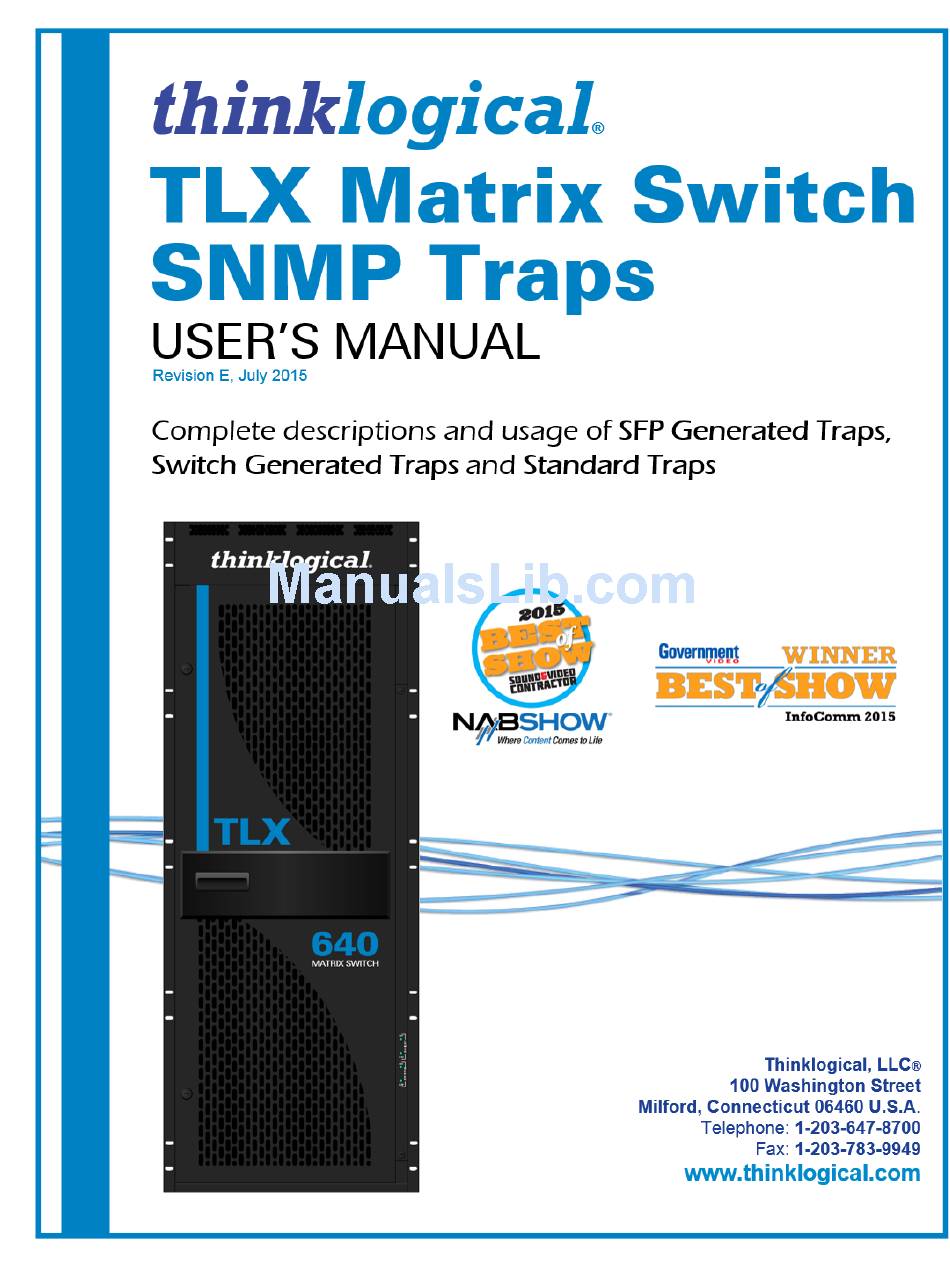

- Page 2 ® Copyright Notice Copyright © 2015. All rights reserved. Printed in the U.S.A. Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: TLX Matrix Switch SNMP Traps User’s Manual Revision: E, July 2015 ®...
-
Page 3: Table Of Contents
® Table of Contents PREFACE ............................1 About Thinklogical ........................1 ® About This Manual ........................2 Note and Warning Symbols ......................2 SECTION 1: SFP GENERATED TRAPS .................... 3 Alarms ............................3 High Temperature Alarm Begin and Clear .................. 3 Low Temperature Alarm Begin and Clear ................... - Page 4 Declaration of Conformity ......................19 Standards with Which Our Products Comply ................19 Supplementary Information ...................... 20 Product Serial Number ......................20 Connection to the Product ....................20 SECTION 5: THINKLOGICAL SUPPORT ..................21 ® Customer Support ........................21 Website ............................ 21 Email ............................
-
Page 5: Preface
Thinklogical offers the only fiber-optic KVM matrix switches in the world that are accredited to the Common Criteria EAL4, TEMPEST Level B, and NATO NIAPC Evaluation Scheme: GREEN information assurance standards. And Thinklogical Velocity products are the first system with both KVM and video matrix switching capabilities to be placed on the Unified Capabilities Approved Product List (UC APL) under the Video Distribution System (VDS) category. -
Page 6: About This Manual
(Matrix Switch). It contains sections for SFP Generated Traps, Switch Generated Traps and Standard Traps, as well as Regulatory & Safety Requirements and Thinklogical Support. Note and Warning Symbols In Sections 4 and 5 of this manual you will notice certain symbols that bring your attention to important information. -
Page 7: Section 1: Sfp Generated Traps
® ALARMS High Temperature Alarm Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low temperature reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 7 of byte 112 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 8: Low Vcc Alarm Begin And Clear
® Low Vcc Alarm Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low Vcc voltage reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 4 of byte 112 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 9: High Tx Power Alarm Begin And Clear
® High TX Power Alarm Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low TX laser power reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 1 of byte 112 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 10: Low Rx Power Alarm Begin And Clear
® Low RX Power Alarm Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low RX laser power reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 6 of byte 113 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 11: (Sfp) Warnings
® (SFP) WARNINGS High Temperature Warning Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low temperature reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 7 of byte 116 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 12: Low Vcc Warning Begin And Clear
® Low Vcc Warning Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low Vcc voltage reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 4 of byte 116 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 13: High Tx Power Warning Begin And Clear
® High TX Power Warning Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low TX laser power reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 1 of byte 116 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 14: Low Rx Power Warning Begin And Clear
® Low RX Power Warning Begin and Clear An SFP module has the ability to monitor and trigger an alarm on a high or low RX laser power reading. This ability is internal to the SFP and is part of the digital diagnostic interface common to many SFPs. This notification is sent when bit 6 of byte 117 in the real-time diagnostic registers changes from 0 to 1 (Begin) or from a 1 to a 0 (Clear). -
Page 15: (Sfp) Events
® (SFP) EVENTS Removed and Inserted An SFP module has been removed or inserted. Removed OID: 1,3,6,1,4,1,17658,2,2,2,0,41 Inserted OID: 1,3,6,1,4,1,17658,2,2,2,0,42 1: sfpLabel 2: sysContact 3: sysDescr Objects: 4: sysLocation 5: sysName TX Fault Begin and Clear An SFP module has entered into the TX Fault state (Begin) or has exited the TX Fault state (Clear). This state is determined by the TxFault status bit located in the SFP diagnostic registers. -
Page 16: Section 2: Switch Generated Alarms
® TLX48 HARDWARE ALARMS (Alarm Contacts) TLX48 Power Supply Failure Begin and Clear Contact 1 A Power Supply has failed (Begin) or is restored (Clear). Begin OID: 1,3,6,1,4,1,17658,3,14,0,27 Clear OID: 1,3,6,1,4,1,17658,3,14,0,28 1: sysContact 2: sysDescr Objects: 3: sysLocation 4: sysName TLX48 Fan Failure Begin and Clear Contact 2... -
Page 17: Tlx320 Hardware Alarms (Alarm Contacts)
® TLX320 HARDWARE ALARMS (Alarm Contacts) Power Supply 1 Failure Begin and Clear Contact 1 TLX320 Power Supply 1 has failed (Begin) or is restored (Clear). Begin OID: 1,3,6,1,4,1,17658,3,14,0,1 Clear OID: 1,3,6,1,4,1,17658,3,14,0,2 3: sysContact 1: tlxSwitchPSlabel 4: sysDescr Objects: 2: tlxSwitchPSstatus 5: sysLocation 6: sysName Power Supply 2 Failure... -
Page 18: High Temperature Begin And Clear Contact 5
® High Temperature Begin and Clear Contact 5 The system has detected a temperature that is above the preset alarm threshold (Begin) or is now below the preset alarm threshold (Clear). Begin OID: 1,3,6,1,4,1,17658,3,14,0,9 Clear OID: 1,3,6,1,4,1,17658,3,14,0,10 1: sysContact 2: sysDescr Objects: 3: sysLocation 4: sysName... -
Page 19: Tlx640 Hardware Alarms (Alarm Contacts)
® TLX640 HARDWARE ALARMS (Alarm Contacts) Power Supply 1 Failure Begin and Clear Contact 1 TLX640 Power Supply 1 has failed (Begin) or is restored (Clear). Begin OID: 1,3,6,1,4,1,17658,3,14,0,1 Clear OID: 1,3,6,1,4,1,17658,3,14,0,2 3: sysContact 1: tlxSwitchPSlabel 4: sysDescr Objects: 2: tlxSwitchPSstatus 5: sysLocation 6: sysName Power Supply 2 Failure... -
Page 20: Low Fan Speed Begin And Clear Contact 5
® Low Fan Speed Begin and Clear Contact 5 A fan in the Fan Tray has failed (Begin) or is restored (Clear). Begin OID: 1,3,6,1,4,1,17658,3,14,0,5 Clear OID: 1,3,6,1,4,1,17658,3,14,0,6 1: sysContact 2: sysDescr Objects: 3: sysLocation 4: sysName Temperature Warning Begin and Clear Contact 6 The system has detected a temperature that is above the preset warning threshold (Begin) or is now below the preset alarm threshold (Clear). -
Page 21: Events
® EVENTS I/O Card Removed or Inserted An I/O card has been removed or inserted. Removed OID: 1,3,6,1,4,1,17658,3,14,0,19 Inserted OID: 1,3,6,1,4,1,17658,3,14,0,20 3: sysContact 1: tlxSwitchBPlabel 4: sysDescr Objects: 2: tlxSwitchCTlabel 5: sysLocation 6: sysName Fan Tray Removed or Inserted The Fan Tray has been removed or inserted. Removed OID: 1,3,6,1,4,1,17658,3,14,0,21 Inserted OID: 1,3,6,1,4,1,17658,3,14,0,22... -
Page 22: Section 3: Standard Traps
® Network linkUp (1.3.6.1.6.3.1.1.5.4) A linkUp trap signifies that the SNMP entity has detected that one of its communication links has left the down state and transitioned into some other state (but not into the notPresent state). Network linkDown (1.3.6.1.6.3.1.1.5.3) A linkDown trap signifies that the SNMP entity has detected that one of its communication links is about to enter the down state from some other state (but not from the notPresent state). -
Page 23: Section 4: Regulatory & Safety Requirements
This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 USA These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. -
Page 24: Supplementary Information
Product Serial Number Thinklogical products have a unique serial number, which includes a date-code, printed on an adhesive label that is affixed to the unit. The format for the date-code is 2 digits for the month, dash, 2 digits for the year, plus at least four digits for a unique unit number. For example:... -
Page 25: Section 5: Thinklogical
Therefore, your questions or issues will be handled promptly by our in-house engineers who are most familiar with your products. Thank you for choosing Thinklogical products for your application. ® We appreciate your business and are dedicated to helping you successfully use our products. -
Page 26: Telephone
Defect remedy shall be the repair or replacement of the product, provided that the defective product is returned to the authorized dealer within a year from the date of delivery. If you wish to return your device, contact the Thinklogical, LLC authorized dealer where you ®... -
Page 27: Our Addresses
® Authorization. Our Addresses If you have any product issues or questions or need technical assistance with your Thinklogical ® system, please call us at 1-800-291-3211 (USA only) or 1-203-647-8798 and let us help. If you need to write us or return a product, please use the following address: Return address for products...
