Page 1: Quick Start Guide

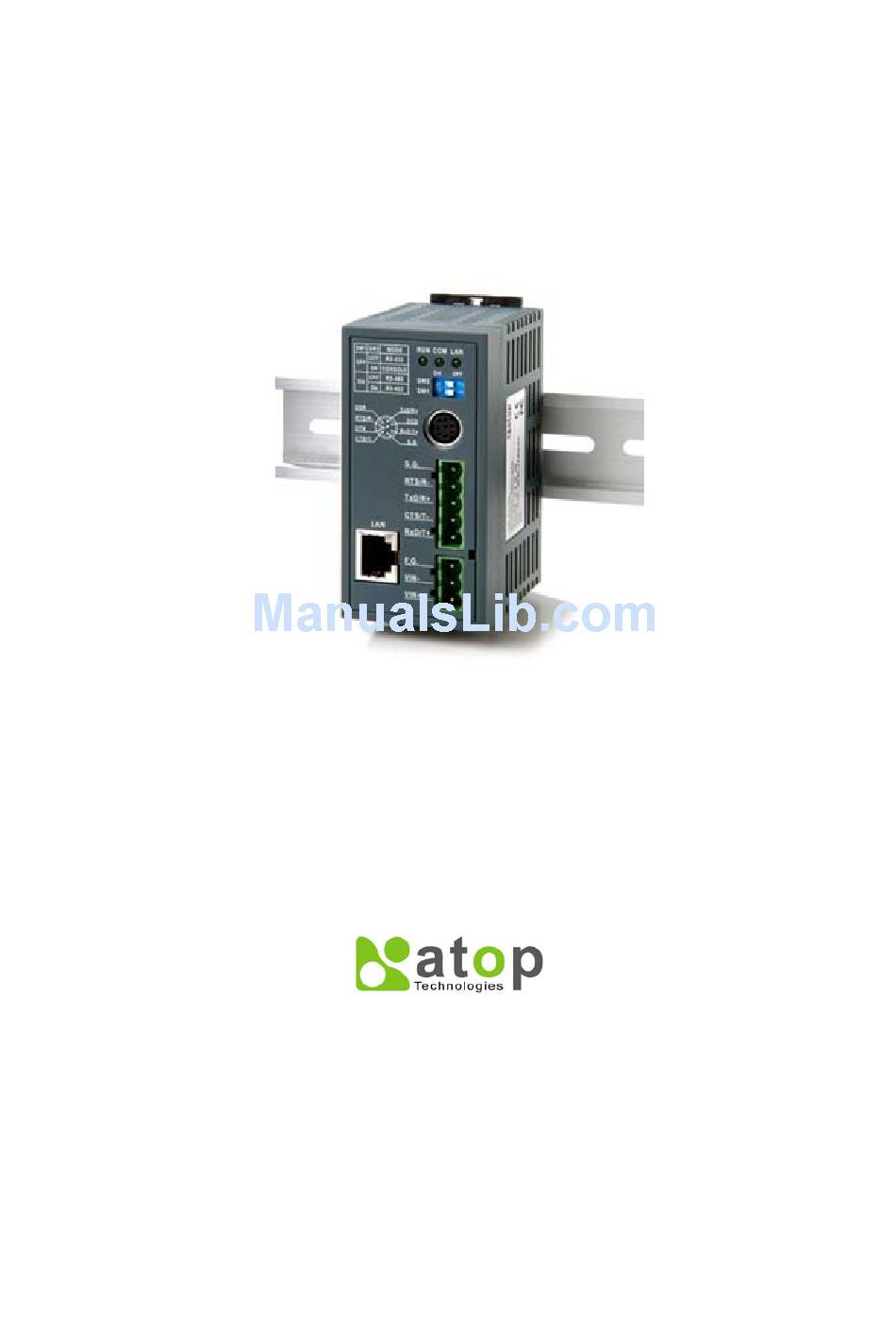

® ABLELink GW51C-MAXI Serial Server Quick Start Guide Version 1.2 Updated on September, 2007 TEL: 886-3-5508137 FAX: 886-3-5508131 http://www.atop.com.tw... -
Page 2: Hardware Description

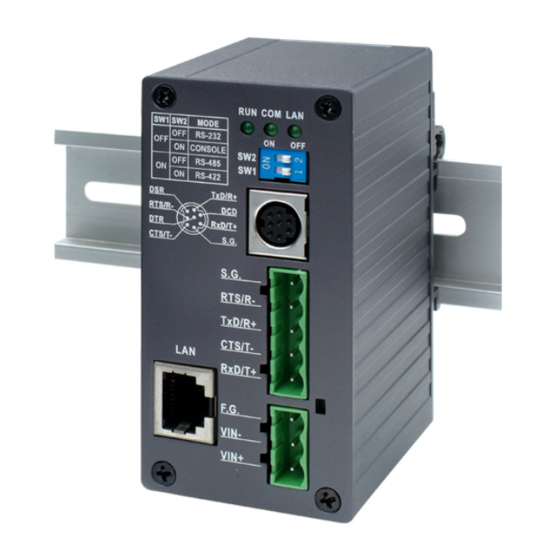

Quick Start Guide Version 1.2 GW51C-MAXI Serial Server This document is intended to provide customers with brief descriptions on the product and to assist customers to get started. For detail information and operations of the product, please refer to the user’s manual in the product CD. - Page 3 Quick Start Guide Version 1.2 GW51C-MAXI Serial Server Jumper JP1 pin1 and pin2 are short to disable AP firmware in LED on the flash memory. LED blinking (rate: 0.5Sec) AP firmware is running Installation Procedures MODE Switch This sets or initializes operating mode for the Serial Server. The factory default setting is that Switch 1 (SW1) and Switch 2 (SW2) are set to OFF.
- Page 4 SG (Signal Ground) DATA- RXD- N/A (reserved) TXD- Customer Services and Supports Contact your local dealers or ATOP Technical Support Center at the following numbers. +886-3-550-8137 (ATOP Taiwan) +86-21-6495-6232 (ATOP China) Report the errors via Atop’s Web site or E-mail account www.atop.com.tw...
