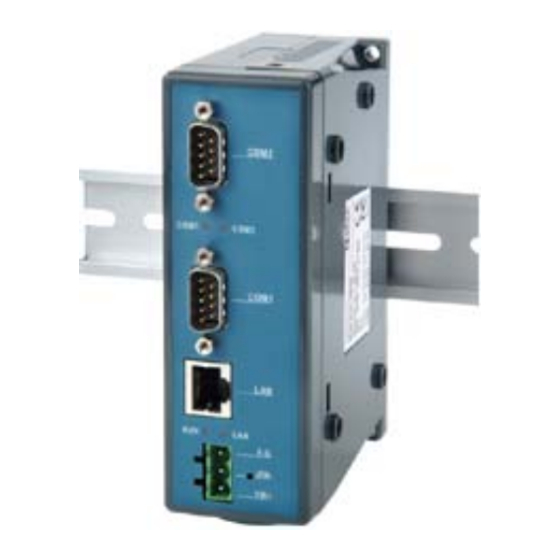

Atop ABLELink GW21R User Manual

Ethernet-serial server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

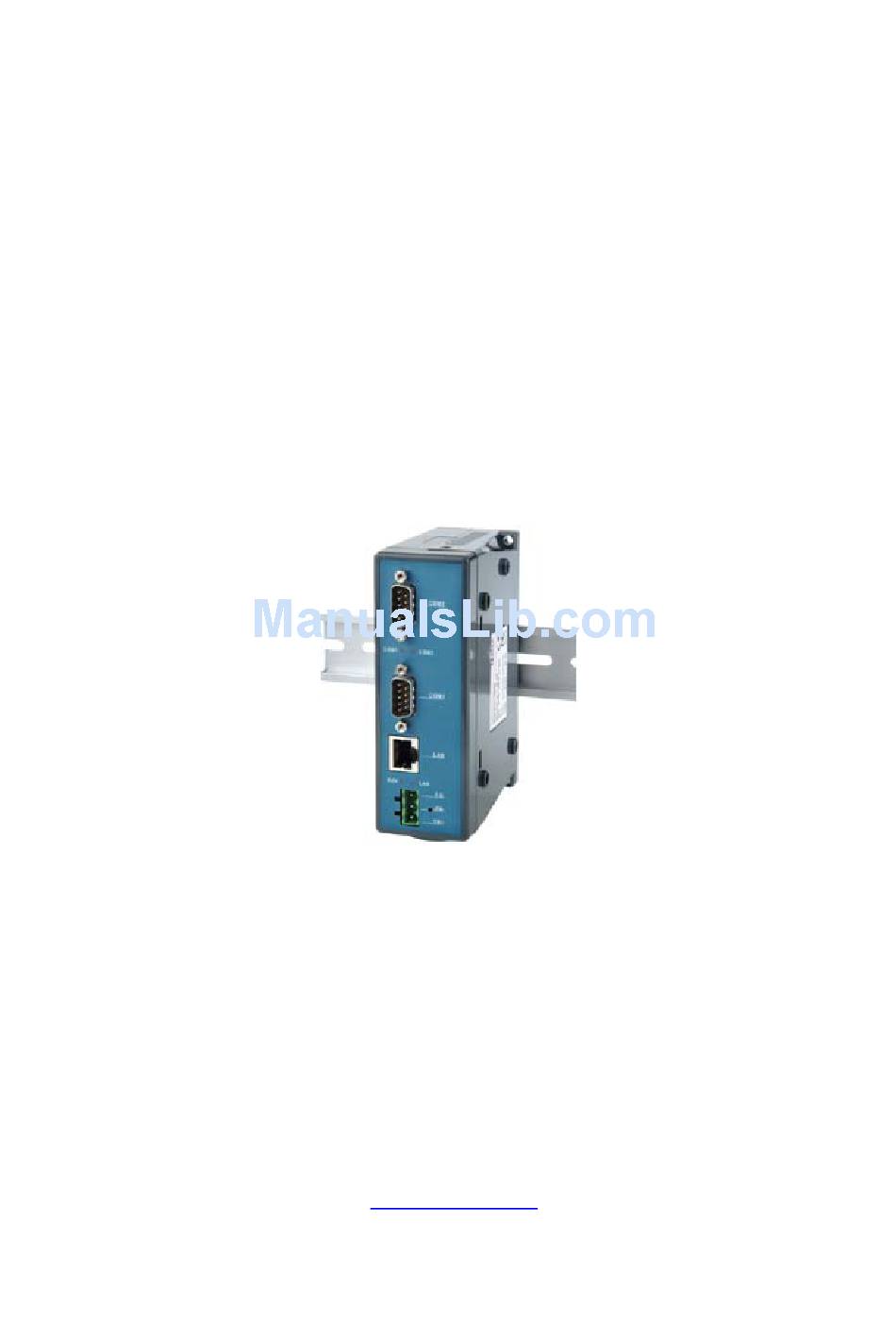

Atop ABLELink
Ethernet-Serial
®
Server GW21R
User Manual
Version 2.3
Updated on 2004/08/18
Tel: 886-3-5508137
Fax: 886-3-5508131
www.atop.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABLELink GW21R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atop ABLELink GW21R

Summary of Contents for Atop ABLELink GW21R

  • Page 1 Atop ABLELink Ethernet-Serial ® Server GW21R User Manual Version 2.3 Updated on 2004/08/18 Tel: 886-3-5508137 Fax: 886-3-5508131 www.atop.com.tw...

  • Page 2: Important Announcement

    The information contained in this document is the property of Atop Technologies, Inc. and is supplied for the sole purpose of the operation and maintenance of products of Atop Technologies, Inc. No part of this publication is to be used for any other purposes, and it is not to be reproduced, copied, disclosed, transmitted, stored in a retrieval system, or translated into any human or computer language, in any form, by any means, in whole or in part, without the prior express written consent of Atop Technologies, Inc.

  • Page 3: Fcc Warning

    Use only shielded cables to connect other devices to this equipment by RS-232 / RS-485 ports. Be cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 2 / 54...

  • Page 4: Table Of Contents

    TCPTEST2.EXE S ..........41 AMPLE ROGRAM APPENDIX A: GW21R ETHERNET-SERIAL SERVER SPECIFICATIONS ..42 A.1. H ....................42 ARDWARE PECIFICATIONS A.2. S ....................43 OFTWARE PECIFICATIONS Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 3 / 54...
  • Page 5 ORTS APPENDIX D CONFIGURATION UTILITY................51 D.1 R ......................... 51 UN THE UTILITY D.2 D ..................51 ETECT PERATIONAL EVICES D.3 C ......................51 ONFIGURE EVICES Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 4 / 54...

  • Page 6: Introduction

    RS-232/RS-485 serial communication has its limitations. For one, it is hard to transfer data through a long distance. With Atop GW21R, it is possible to communicate with a remote device in the Intranet environment or even in the Internet and thus, increases the communication distance dramatically.
  • Page 7 User manual Version 2.3 ABLELink Ethernet-Serial Server GW21R ® Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 6 / 54...

  • Page 8: Application Connectivity

    User manual Version 2.3 ABLELink Ethernet-Serial Server GW21R ® 2 Application Connectivity Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 7 / 54...
  • Page 9 User manual Version 2.3 ABLELink Ethernet-Serial Server GW21R ® Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 8 / 54...

  • Page 10: Configuration

    SysContact of SNMP SYSOP Note: Atop provides a default button to restore system settings including IP address, gateway IP address and subnet mask etc. to the defaults. Press and hold the default button for 5 seconds till the server reboots.

  • Page 11: Auto Ip

    IP address gateway address, and subnet mask. You may use Monitor.exe software to search network information automatically by putting a check on Auto IP on Dialog window. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.

  • Page 12: Tcp/Ip Port Number

    TCP port 4660 of GW21R, data being sent to this TCP connection from your application program are transparent to the COM1 of GW21R. Vice versa is also true. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.

  • Page 13: Software Configuration

    Note: You can press the default button of GW21R to reset the password to the default value. 2. After verifying the password, the following terminal screen appears. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 12 / 54...
  • Page 14 2. The changes of networking parameters will take effect only when you exit and restart GW21R. 3. Select “1” from “Input choice and enter (0~4):” to enter overview page as following: Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.
  • Page 15 AP version, and connection status of the device. Networking Select “2” from “Input choice and enter (0~4):” to enter Networking page as following: Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 14 / 54...
  • Page 16 Change the password 1. Select “3” from “Input choice and enter (0~4):” the following screen appears. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 15 / 54...
  • Page 17 The page gives you the opportunity to configure parameters of COM1 setting which include COM1 working mode, port parameters, enabling or disabling serial buffer’s data and setting packet delimiter. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.
  • Page 18 Note: IP filtering function is disabled if setting FILTER_IP to “0.0.0.0”. Configure GW21R as TCP client, the destination IP is 10.0.29.123, destination port is 666. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 17 / 54...
  • Page 19 User manual Version 2.3 ABLELink Ethernet-Serial Server GW21R ® Configure GW21R as UDP client, the local port is 4660, the destination IP is 10.0.29.254, destination port is 666. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 18 / 54...
  • Page 20 COM port alias name, set the baud rate and parity, determine number of data bit and stop bit, and decide if you want to use flow control and the type of flow control you want to use. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.
  • Page 21 TCP/IP Ethernet connection is broken, serial data collected from serial device will be kept in GW21R, once TCP/IP connection is resumed, the serial data will be sent through Ethernet connection, you can disable it if you wish. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 20 / 54...
  • Page 22 GW21R provides two ways of parameter setting as inter character timer and terminator. By default packet delimiter timer is 1 ms, you can change timer shown in the following figure: Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 21 / 54...
  • Page 23 User manual Version 2.3 ABLELink Ethernet-Serial Server GW21R ® You can also choose character pattern as the packet delimiter indicated in the following figure: Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 22 / 54...

  • Page 24: Configuration Set By Hyper Terminal Console Utility

    3.4 Configuration set by web browser It is also possible to modify various settings through the web server interface. To do so, please follow the steps below. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 23 / 54...
  • Page 25 OK. The user name is admin and password is null by default. 3. The following overview page appears. Change the password 1. Click on the “Security” link and the following screen appears. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 24 / 54...
  • Page 26 Password” and the “Verified Password” fields, and then click on “Save Configuration” to update the password. Note: You can press the default key of product to reset password to the default value. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 25 / 54...
  • Page 27 Enable SNMP by checking “Enable”, fill in network identification information under SNMP field and click on the “Save Configuration” button to save the changes, please notice that the setting will not become effective until you restart GW21R. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 26 / 54...
  • Page 28 Click on the “COM1” link and the following screen appears. Fill in COM1 parameter information under COM1 field then click on “Save Configuration” button to save the changes. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.
  • Page 29 Ethernet network, i.e. pair connection mode, you can choose “pair connection” which is indicated in the following figure to cope with any type of serial device. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 28 / 54...
  • Page 30 Configure GW21R as UDP mode. Local port is 4660, destination IP is 10.0.29.254 and destination port is 4660. 1.Click on “Save Configuration” to save the changes. 2.If the update is successful, the following screen appears. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 29 / 54...

  • Page 31: Virtual Com Mode

    Virtual COM driver mode for windows converts COM data to LAN data to control the RS-232C port on a GW21R via the LAN. By creating virtual COM ports on the PC, Atop Virtual COM redirects the communications from the virtual COM ports to an IP address and port number on a GW21R that connects the serial line device to the network.

  • Page 32: Virtual Com Communication

    Atop Virtual COM supports firmware AP v3.4 and above of ABLELink Serial-Ethernet Servers. Limitation Atop Virtual COM driver provides user to select up to 256 COM ports as Virtual COM ports in a monitoring PC. User can select them from a list of COM ports, which is from COM1 up to COM256.
  • Page 33 Or you can enable Virtual COM through telnet configuration by setting COM1 as TCP server, and type in the local port number for COM1, then enable virtual COM as shown in the following figure: Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.
  • Page 34 ® 3.5.2.2 Run Serial/IP for ATOP program on monitoring PC In the Window Start Menu, select the Serial/IP for ATOP program group and select Serial/IP for ATOP Configuration. The configuration window is shown as following: At right is a sample Virtual COM Control Panel window.
  • Page 35 For COM Port Options, the settings must match the COM port behavior expected by the PC application that will use this COM port. The Configuration Wizard will recommend a combination of settings. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 34 / 54...

  • Page 36: Snmp Setup

    4. SNMP Setup 4.1 SNMP Network Management Platform Atop GW21R is an SNMP device that allows many popular SNMP Network management platforms such as HP OpenView and SunNet Manager to conduct monitoring on the device. Depending on the network management tools you are using, device (GW21R) information can be collected from running the management tools including IP address, DNS name, system descriptions and NIC information etc.
  • Page 37 1. The NetworkView tool is limited to information extracting and viewing only. 2. To modify the configurations please use the web server, Telnet or monitor.exe configuration utilities. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 36 / 54...

  • Page 38: Start Writing Your Own Applications

    For more information, please press Help in the program to get detail explanation. Note: Please be sure the Microsoft visual studio family software is installed on the computer. Otherwise the sample program will not run. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 37 / 54...

  • Page 39: Tcptest2 In Visual C

    Status Status 5.2.2 TCPTEST2 in Visual C To start the program, please type in the following command in the command line prompt: TCPTEST2 IP_Address Port_Number Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 38 / 54...
  • Page 40 Always use '=' then Enter key to exit the program.6. Diagnostics There are several ways you can check on the status and availability of GW21R. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 39 / 54...

  • Page 41: Use Standard Tcp/Ip Utility Ping Command

    From Windows Start menu, select Run and type in “ping <TCP Server IP address>”. If the connection is established, the Reply messages are displayed, otherwise it will indicate Request timed out. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 40 / 54...

  • Page 42: Use Monitor Exe Configuration Utility Program

    Use sample programs TCPTEST.EXE and TCPTEST2.EXE that comes with the product CD or diskette to check on the status of GW21R. Please refer to chapter 6.2 to run the sample programs. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan.

  • Page 43: Appendix A: Gw21R Ethernet-Serial Server Specifications

    Power Requirement 9-30 V DC 350 mA@12V Temperature Operation: 0℃ to 50℃ Storage: -20℃ to 70℃ Humidity 20%~90% non-condensing Housing 140mm) x 82(mm) x 35(mm) Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 42 / 54...

  • Page 44: Software Specifications

    A.3 Connector Pin Assignments A.3.1 COM Port (1) 9 pin D-type connector COM ports may be either the RS-232 full duplex or the RS-485 2/4 wires. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 43 / 54...

  • Page 45: Ethernet Port (Rj-45)

    Definition Pin1 Green-White Orange-White Pin2 Green Orange Pin3 Orange-White Green-White Pin4 Blue Blue Pin5 Blue-White Blue-White Pin6 Orange Green Pin7 Brown-White Brown-White Pin8 Brown Brown Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 44 / 54...

  • Page 46: Buzzer/Led Message

    LED off No data is transmitting on COM port LED on blinking state Data is transmitting on COM port Table 3. COM Port LED Message Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 45 / 54...

  • Page 47: Run Led

    Jumper JP1 pin1 and pin2 are short to disable AP firmware in the flash memory. LED blinking (rate: 0.5Sec) AP firmware is running Table 4. RUN LED Message Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 46 / 54...

  • Page 48: Appendix B. Upgrade System Software

    ® Appendix B. Upgrade System Software After the new version of firmware is released, customers can download it from Atop web site at www.atop.com.tw. You can contact Atop sales person to request the newest product CD as well. You may decide to or not to upgrade the system’s firmware. To do so, please follow these instructions listed below.

  • Page 49: Critical Issues Of Upgrading

    GW21R handshaking problem GW21R ACK Start Address Error GW21R Length Error GW21R Response Command Error Remote IP not found Configuration file Open configuration file failure Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 48 / 54...

  • Page 50: Appendix C. Hardware Configuration

    JP9~14 to set COM2 as RS-232. 3.Close the case and continue your operation. Note: 1.To find the physical locations of these jumpers, please refer to Figure C.1 component side of Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 49 / 54...
  • Page 51 2. Monitor.exe utility can be used to demonstrate COM ports properties. COM2 COM1 JP9~JP14 JP3~JP8 For COM2 For COM1 Figure C.1 Component side of GW21R main board v1.4 Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 50 / 54...

  • Page 52: Appendix D Configuration Utility

    You may use monitor.exe configuration utility to configure the settings of devices on the network. To do so, please follow the steps below. 1. Repeat the steps in the section of D.2 to bring up the devices information. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 51 / 54...
  • Page 53 3. After you click the “Configure Now” button, the target device will return an ACK message indicating the modification is successful as shown in the following: Please note monitor.exe version 2.4 and above requires gw21le.dll library to function properly. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 52 / 54...
  • Page 54 Indicates the AP version of the responding device. Model Indicates the model number of the responding device. This field is only available for monitor.exe version 2.0 and above. Copyright © 2004 Atop Technologies, Inc. All rights reserved. Designed in Taiwan. 53 / 54...
