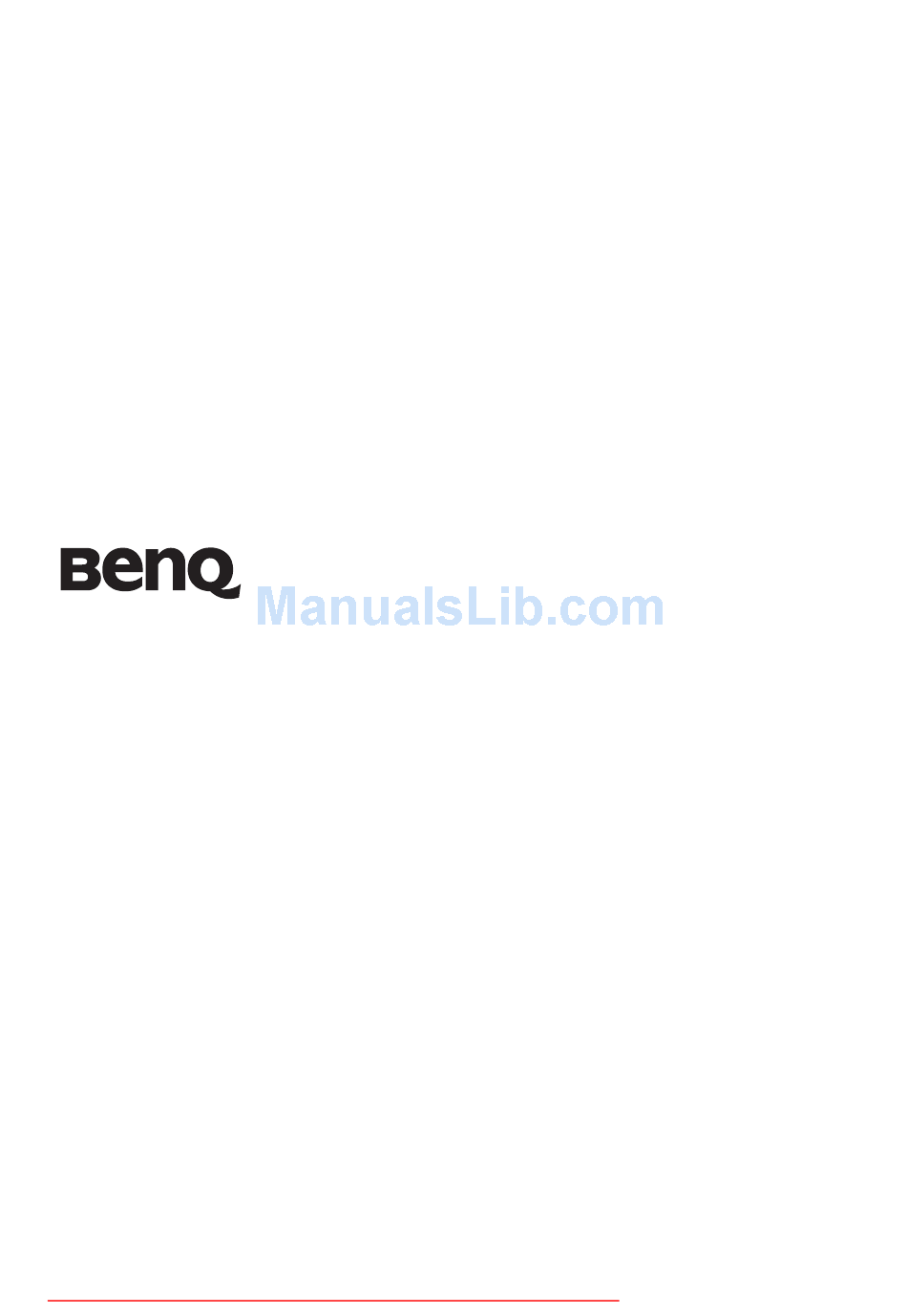

- Page 1 E1020 Digital Camera User Manual Welcome Downloaded from ManualsCamera.com Manuals...
- Page 2 Copyright Copyright 2008 by BenQ Corporation. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
-
Page 3: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 force majeure events as well as incorrect usage of electricity or use of non-original accessories. • It is the sole responsibility of the user if problems (such as data loss and system failure) occurred due to non-factory installed software, parts, and/or non-original accessories.
- Page 5 • The camera operating temperature is between 0 and 40 degrees Celsius. It is normal for the operating time to be shortened when the temperature is low. • Do not use or store your camera in the environments listed below: •...
- Page 6 adapter. Next, remove the foreign substance or water and send it to the maintenance center. • Whenever there is data in the internal memory or the external memory card, you should make a backup copy to a computer or disc. So, you can have a backup solution if data loss occurs.
-
Page 7: Table Of Contents
Table of Contents Table of Contents Touring the camera ..........1 Checking the package contents ........1 Camera: front view and bottom views ......... 1 Camera: rear view ................. 2 Preparing the camera for use ........2 Charging the battery ............3 Using multifunctional buttons ........4 Using a memory card ............4 Initial setting ............ - Page 8 Table of Contents White Balance ..............15 ISO ..................15 Metering .................16 Effect ................16 Setting Sharpness, Saturation and Contrast ....17 Setting menu ............17 Playback mode ............19 Options for playback and editing ........20 Enlarging an image ..............20 Viewing multiple files at a time ..........20 Deleting files ................
-
Page 9: Touring The Camera
Touring the camera 1 Touring the camera Checking the package contents Carefully unpack your kit box and ensure that you have the following items. 1. User Manual / Quick Guide 2. Digital camera 3. Battery 4. Hand strap 5. Pouch / leather case 6. -
Page 10: Camera: Rear View
2 Preparing the camera for use Camera: rear view 1. LCD display 2. W (Wide) - Zoom-out or thumbnail view (Playback mode) 3. T (Tele) - Zoom-in 4. Strap eyelet 5. Playback mode button - Toggle between Capture and Playback modes) 6. -
Page 11: Charging The Battery
Preparing the camera for use 3 To remove the battery: 1. Open the battery cover. 2. Press and hold the battery. 3. Release the battery lock lever. 4. When the battery has come out a little, gently pull it out the rest of the way. 5. -
Page 12: Using Multifunctional Buttons
4 Preparing the camera for use Using multifunctional buttons You can choose camera settings by pressing the 4-way control or the button. Left/Macro/Auto Focus: • Scrolls left in menus. • Activates Macro mode or Auto Focus mode. • Press to fast rewind video playback. Up/Flash: •... -
Page 13: Initial Setting
Initial setting 5 Initial setting You will be prompted to set up the language and the date and time when the camera is turned on for the first time. Setting language Language Selects the language version shown on the screen. English To select a language: Français... -
Page 14: Digital Zoom
6 Operating the camera If the focus frame color turns to red instead of yellow-green, then the automatic focus is not completed. This situation can happen for many reasons (for example, the subject is too dark). If you encounter this situation, release the shutter and see if you can find a better shooting environment. -
Page 15: Battery Status
Operating the camera 7 Battery status Icon Description Battery power is full. Battery power remains adequate. Battery power is low. Battery power is very low. You should replace the battery ASAP. Scene mode Select one of the following scene modes to fit your shooting condition. Icon Mode Description... - Page 16 8 Operating the camera Snow Used under a very bright light environment such as snow scenes. Fireworks Adds exposure time to shoot firework trails. Please keep the camera steady or use a tripod while using this mode. Night Portrait Shoots night scenes and portraits clearly. Please keep the camera steady or use a tripod while using this mode.
-
Page 17: Movie Record Mode Settings
Operating the camera 9 Movie Record mode settings Icon Description Video Format: VGA (640 x 480), QVGA (320 x 240) White balance: Auto, Daylight, Tungsten, Fluorescent, and Cloudy. See "White Balance" on page 15 for more details. Effect: Vivid, Normal, B&W, Sepia. See "Effect" on page 16 for more details. -
Page 18: Macro Mode
10 Operating the camera Macro mode Icon Mode Description Auto focus Adjusts focus automatically. Macro Used when capturing images at a close distance. To select Macro mode: 1. Go to the Capture mode. 2. Keep pressing to toggle between Auto focus and Macro modes. Drive mode Icon Mode... -
Page 19: Capture Mode
Capture mode 11 Capture mode OK: Select OK: Select OK: Select Item Description Page reference Scene mode Flash mode Focus mode Drive mode S.S.F. (available in the Auto mode only) Resolution Number of shots available Quality Zoom bar AF area Av (Aperture Priority) / Tv (Shutter Priority) selection (available in the Av / Tv mode only) Battery status... -
Page 20: Resolution
12 Capture mode • The above screen is for illustrations only. Actual items showing on the screen may vary depending on the scene mode you select. • In the Capture mode, press to toggle among 4 display modes (standard, complete, none, and rule of thirds). Use the rule of thirds display mode to improve your composition by placing subjects on at least one of the intersections of these 4 imaginary lines. -
Page 21: Af Area
Capture mode 13 4. Press to confirm setting. 5. Press AF Area Icon Mode Description Multi Focuses on a wide range of multiple objects. Center Focuses on the center area of the objects. Selected Area (available in Focuses on the region you selected. the Program mode only) To select an automatic focus area: 1. -
Page 22: Face Tracking
14 Capture mode Face Tracking While Face Tracking is on, point the camera to where the people (your subjects) are located. Focus frames of face tracking will automatically detect faces (maximum 10) and show on the LCD screen. Then press the shutter to capture the image. To turn on/off Face Tracking: 1. -
Page 23: White Balance
Capture mode 15 White Balance Compensates for color temperatures in different lighting conditions, so white and other colors can display properly when you capture images. Icon Mode Description Auto Adjusts white balance automatically. Daylight Used in bright daylight conditions. Tungsten Used when subjects lit by tungsten (incandescent) lighting. -
Page 24: Metering
16 Capture mode 4. Press to confirm setting. 5. Press Metering Icon Mode Description Matrix Detects the exposure based on multiple points in the subject area. Spot Detects the exposure based on the center spot in the subject area. Average Detects the exposure based on the average reading in the subject area. -
Page 25: Setting Sharpness, Saturation And Contrast
Setting menu 17 Setting Sharpness, Saturation and Contrast Adjusts how colors appear in the pictures by setting sharpness, saturation, and contrast. To set sharpness, saturation, or contrast: 1. Press > , and then select Sharpness, Saturation, or Contrast. 2. Press 3. - Page 26 18 Setting menu USB Mode Sets the transfer method between the camera and a computer. • PTP: Used when the camera is connected to a Pictbridge-compatible printer via a USB cable. • MSDC (default): The camera acts as a mass storage device providing file transfer between the camera and a computer.
-
Page 27: Playback Mode
Playback mode 19 Playback mode Press to enter the Playback mode. 24/131 2008/08/06 2008/08/06 2008/08/06 17:48:44 17:48:44 17:48:44 24/131 24/131 IMGOO24.JPG IMGOO24.JPG IMGOO24.JPG 2.37 MB 2.37 MB 2.37 MB 1/40 1/40 1/40 F2.9 F2.9 F2.9 • The above screen is for illustrations only. Actual items showing on the screen may vary depending on the file type and the settings you chose while capturing. -
Page 28: Options For Playback And Editing
20 Playback mode Options for playback and editing When the camera is in the Playback mode, press , or to move to different files. You can also select any of the following options. Enlarging an image Magnifies an image, so more details can be seen. To enlarge an image: 1. -
Page 29: Slideshow
Playback mode 21 Slideshow Presents a series of captured image and video files. To play a slideshow: 1. Press > > > Slideshow > 2. Press > > Interval > to set the interval between 3 ~ 30 seconds, and then press 3. -
Page 30: Divide (For Videos Only)
22 Playback mode Divide (for videos only) This video trimming function, available in the playback mode when a video file is selected, extracts a portion from the original video. To use the Divide function: 1. Press > to move to the video you want to divide. 2. -
Page 31: Startup Image
Working with computer and AV system 23 Startup Image Sets the welcome image when the camera is powering on. To select a startup image: 1. Press > > > Startup. 2. Press and then select one of the following options: •... -
Page 32: Connecting The Camera To An Av System
24 Working with computer and AV system Connecting the camera to an AV system You can play files in your camera from an AV system such as TV or projector. To connect the camera to an AV system: 1. Connect the end of the smaller plug of the 2-in-1 USB and AV cable to the camera. 2. -
Page 33: Troubleshooting And Service Information
Troubleshooting and service information 25 Troubleshooting and service information If your camera cannot operate normally, see the frequently encountered problems and solutions listed below. If the problem persists, contact your nearest service center or technical support. Problem Cause Solution The camera There is no battery or the battery is Insert the battery correctly. -
Page 34: Technical Support
PictBridge- powered off. compliant printers. Technical support For technical assistance, free driver updates, product information, and news releases, visit the following web site: http://www.BenQ.com Downloaded from ManualsCamera.com Manuals... -
Page 35: Specifications
Specifications 27 Specifications Sensor Sharp 10 Mega Pixels CCD Size: 1/2.33 inch Zoom Optical: 3X (not available in the Movie Record mode) Digital: 5X (capture) / 8X (playback; 2X for VGA images) Lens f = 5.7 (W) ~ 17.1 (T) mm (35mm film equivalent: 32 ~ 96 mm) F/2.9 (W) ~ 5.2 (T) Focus range... - Page 36 28 Specifications Accessories User Manual / Quick Guide Li-ion battery Hand strap Pouch / leather case Software & User Manual CD Power adapter 2-in-1 USB and AV cable Battery retail pack: DLI-215 (optional) All information, designs, and specifications are subject to change without prior notice. Downloaded from ManualsCamera.com Manuals...
