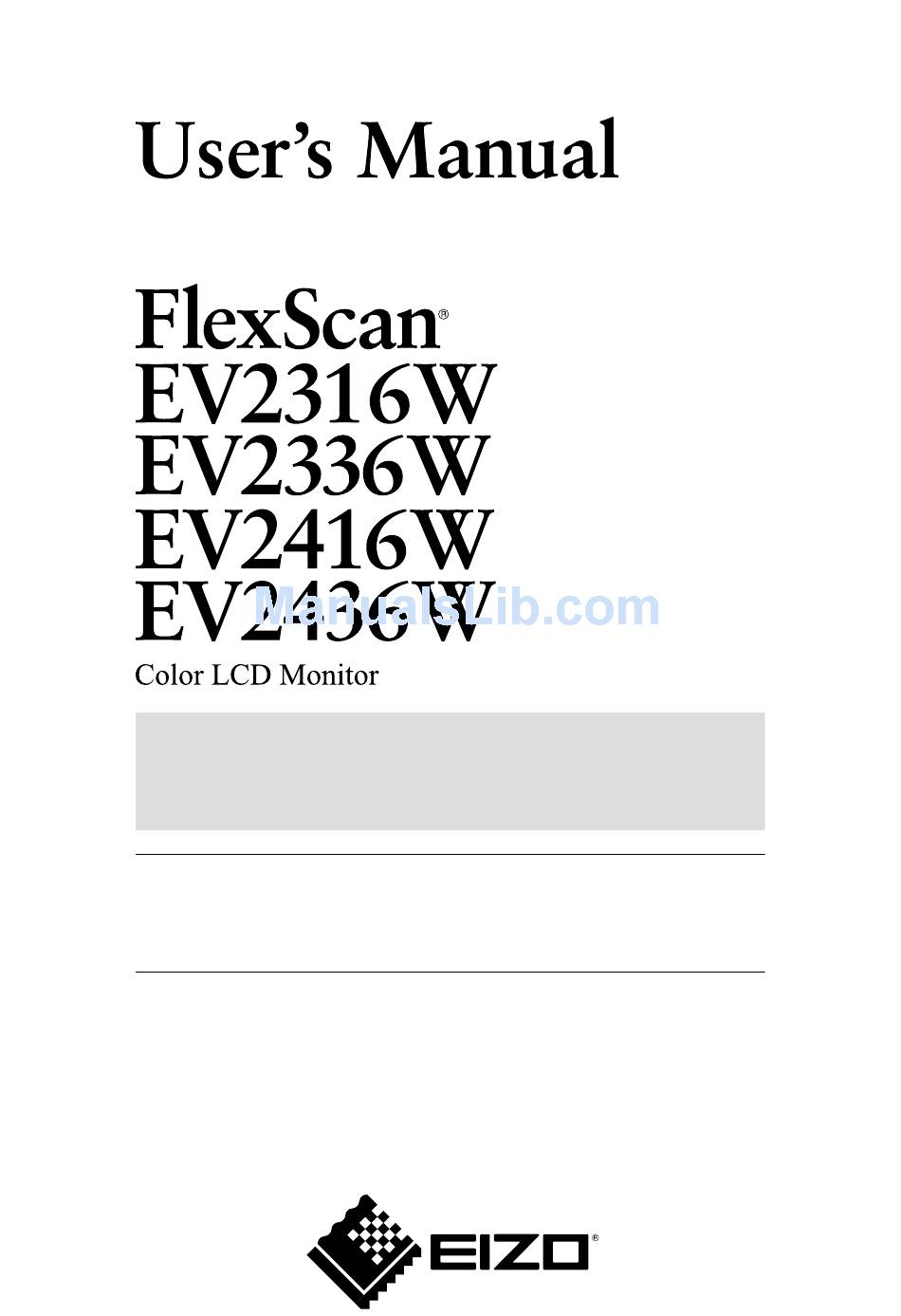

Eizo FlexScan EV2316W User Manual

Color lcd monitor
Hide thumbs Also See for FlexScan EV2316W:
Table of Contents

Advertisement

Quick Links

Important
Please read PRECAUTIONS, this User's Manual, and the Setup Guide
(separate volume) carefully to familiarize yourself with safe and
effective usage.
• Please refer to the Setup Guide for basic information ranging from
connection of the monitor to a PC to using the monitor.
• The latest User's Manual is available for download from our web site:
http://www.eizoglobal.com
