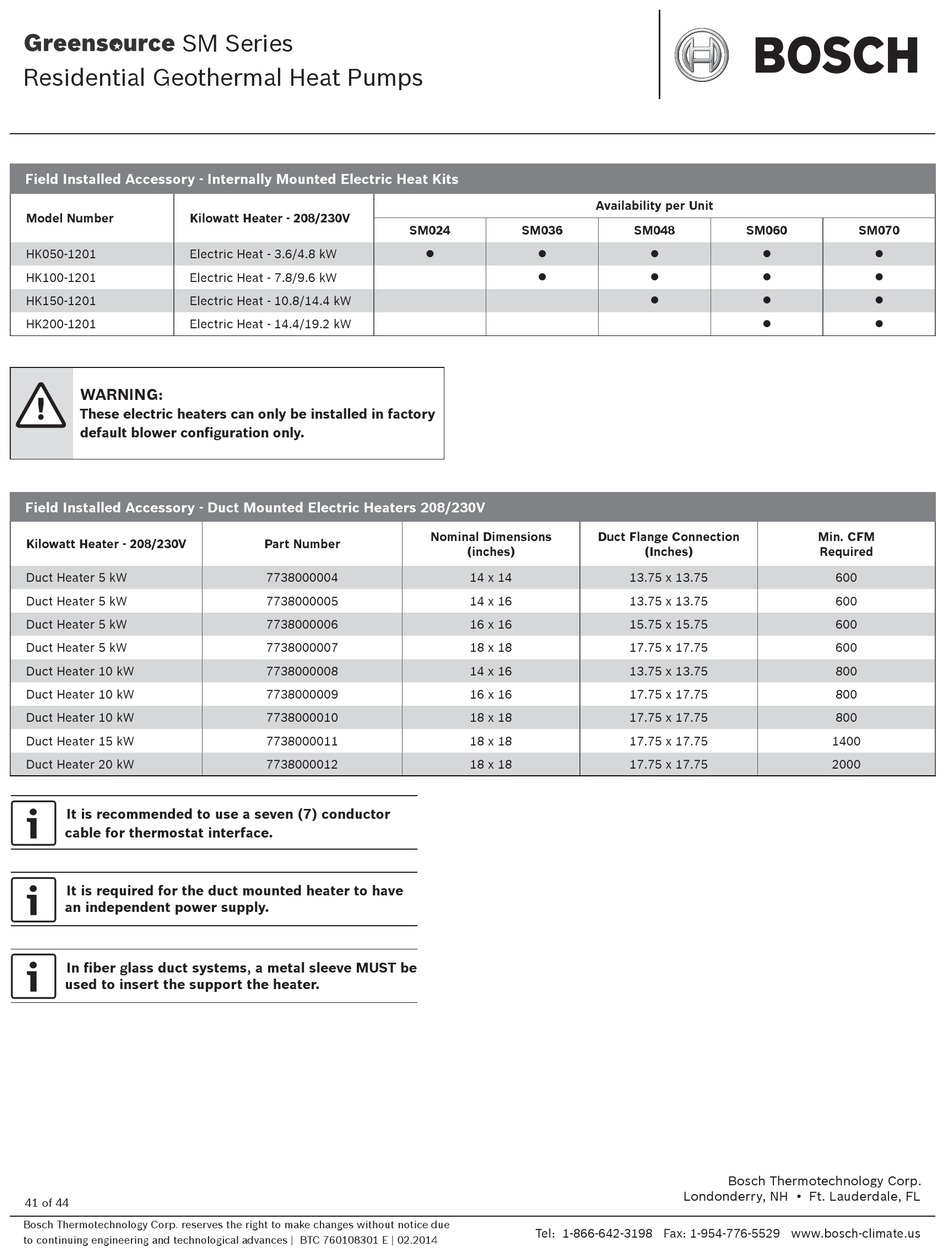

Bosch SM024 Manual page 41

SM Series
Residential Geothermal Heat Pumps
Field Installed Accessory - Internally Mounted Electric Heat Kits
Model Number Kilowatt Heater - 208/230V
HK050-1201 Electric Heat - 3.6/4.8 kW
HK100-1201 Electric Heat - 7.8/9.6 kW
HK150-1201 Electric Heat - 10.8/14.4 kW
HK200-1201 Electric Heat - 14.4/19.2 kW
WARNING:
These electric heaters can only be installed in factory
default blower confi guration only.
Field Installed Accessory - Duct Mounted Electric Heaters 208/230V
Kilowatt Heater - 208/230V
Duct Heater 5 kW
Duct Heater 5 kW
Duct Heater 5 kW
Duct Heater 5 kW
Duct Heater 10 kW
Duct Heater 10 kW
Duct Heater 10 kW
Duct Heater 15 kW
Duct Heater 20 kW
It is recommended to use a seven (7) conductor
cable for thermostat interface.
It is required for the duct mounted heater to have
an independent power supply.
In fi ber glass duct systems, a metal sleeve MUST be
used to insert the support the heater.
41 of 44
Bosch Thermotechnology Corp. reserves the right to make changes without notice due
to continuing engineering and technological advances | BTC 760108301 E | 02.2014
SM024

Nominal Dimensions
Part Number
7738000004
7738000005
7738000006
7738000007
7738000008
7738000009
7738000010
7738000011
7738000012
Availability per Unit
SM036 SM048


Duct Flange Connection
(inches) (Inches)
14 x 14 13.75 x 13.75
14 x 16 13.75 x 13.75
16 x 16 15.75 x 15.75
18 x 18 17.75 x 17.75
14 x 16 13.75 x 13.75
16 x 16 17.75 x 17.75
18 x 18 17.75 x 17.75
18 x 18 17.75 x 17.75
18 x 18 17.75 x 17.75
Tel: 1-866-642-3198 Fax: 1-954-776-5529 www.bosch-climate.us
Engineering Submittal Sheet
SM060
 
 
 

Min. CFM
Required
Bosch Thermotechnology Corp.
Londonderry, NH • Ft. Lauderdale, FL
SM070




600
600
600
600
800
800
800
1400
2000
