Aurora Multimedia ASP-CATX1 User Manual

Aurora multimedia asp-catx1 hdmi 1.3c over single cat extender with auto edid learning
Hide thumbs Also See for ASP-CATX1:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

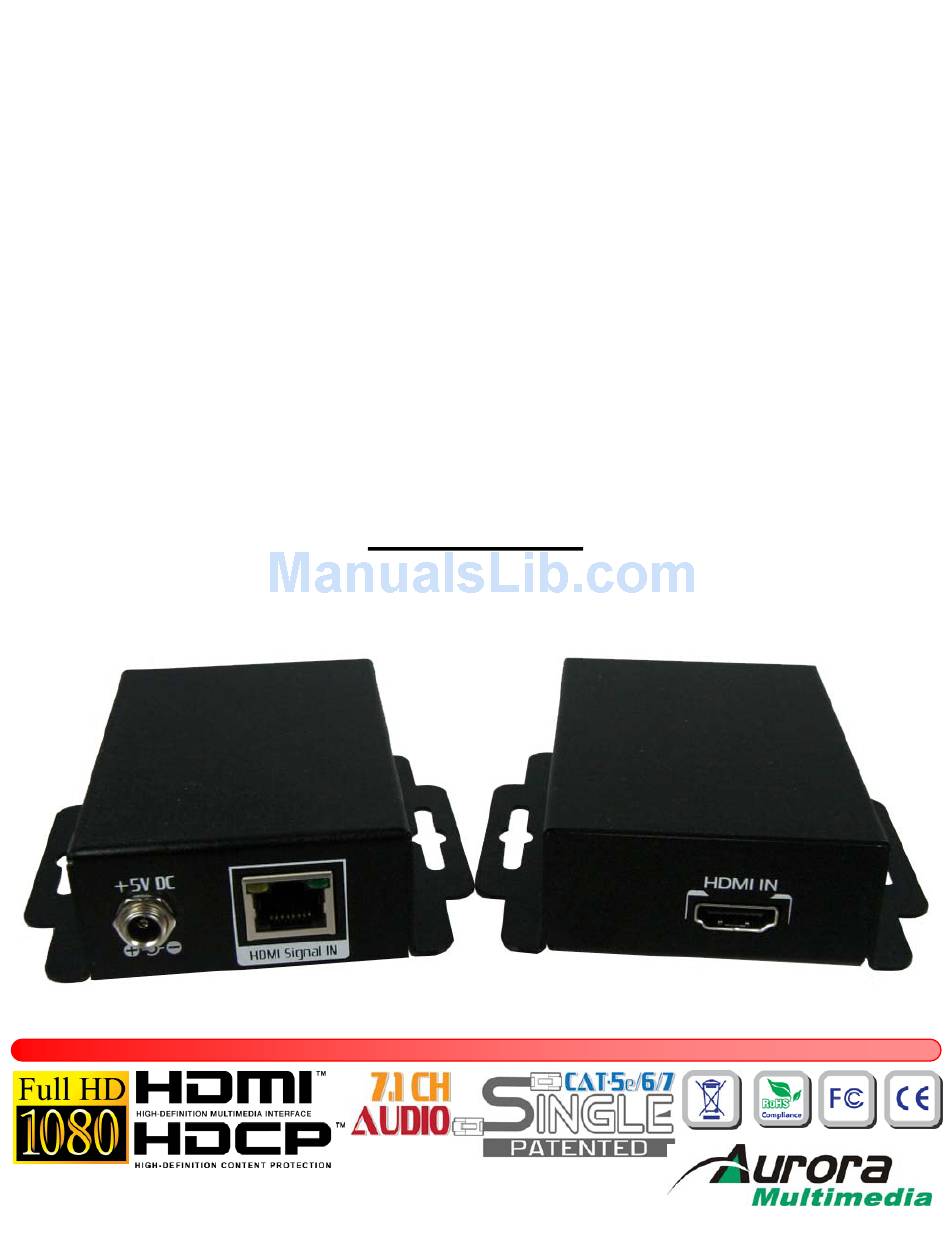

ASP-CATX1



HDMI 1.3c over Single CAT Extender
with Auto EDID Learning
User Manual
Manual Number: 090701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP-CATX1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aurora Multimedia ASP-CATX1

Summary of Contents for Aurora Multimedia ASP-CATX1

  • Page 1   ASP-CATX1       HDMI 1.3c over Single CAT Extender with Auto EDID Learning User Manual  Manual Number: 090701...

  • Page 2: Safety And Notice

    Safety and Notice  The ASP-CATX1 HDMI 1.3 has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the ASP-CATX1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction The ASP-CATX1 HDMI boosts HDMI transmission distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. With only one cost effective UTP cable, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS standard to distant display monitors including HDMI/DVI supported TV sets or LCD PC monitors.

  • Page 4: Specifications & Package Contents

    Power supply 5V 2A DC Power consumption 1 Watt [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-CATX1 [TX & RX] Package Contents 2x 5V power adapter 1x User Manual ~ 3 ~...

  • Page 5: Panel Descriptions

      3.  Whenever you use the ASP‐CATX1 to connect to any other HDMI display different from previously  connected one. The auto EDID learning procedure will take up to 20 seconds.  Rear View — Transmitting Unit    ASP‐CATX1‐TX  +5V DC: Connect to 5V DC power supply. HDMI Signal OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the receiving unit ASP-CATX1-RX. ~ 4 ~...
  • Page 6 [long to short]. It is recommended to switch from 7 to 0 to find the optimal visual experience. Rear View — Receiving Unit    ASP‐CATX1‐RX  HDMI Signal IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the transmitting unit ASP-CATX1-TX. +5V DC: Connect to 5V DC power supply. ~ 5 ~...

  • Page 7: Hardware Installation

    Hardware Installation 1. Connect the HDMI/DVI source (such as a Blu-ray Disc player) to the transmitting unit ASP-CATX1-TX. 2. Connect the HDMI/DVI display (such as a LCD TV) to the receiving unit ASP-CATX1-RX. 3. Connect one Cat-5/5e/6 cable between the transmitting and receiving units.
  • Page 8 Notice 1. All HDMI over CAT5 transmission distances are measured using Belden Cat-5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the transmitting unit (TX) and the receiving unit (RX). 2.

  • Page 9: Limited Warranty

    Limited Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
