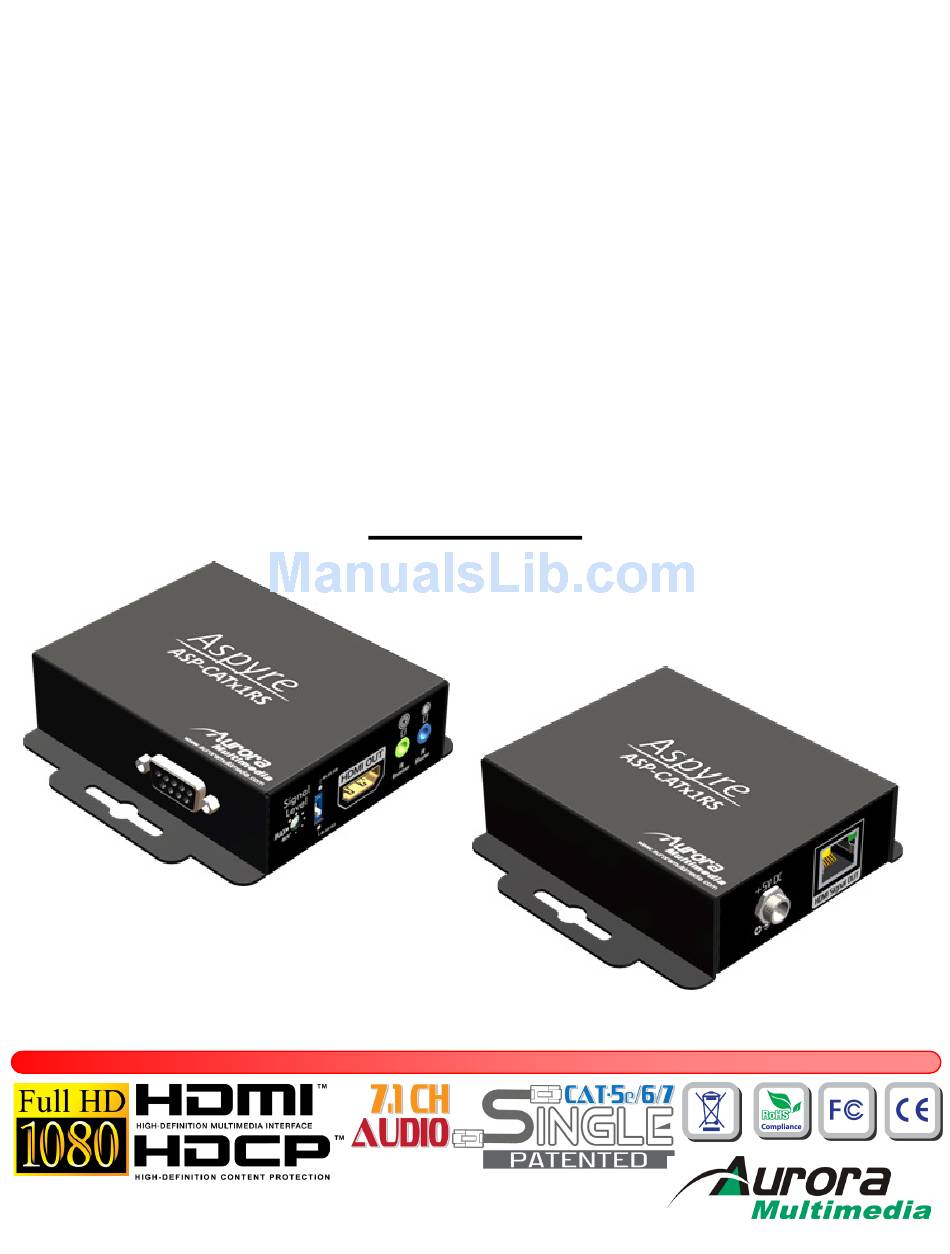

- Page 1 ASP-CATx1RS HDMI Single CAT Extender with Bi-Directional IR & RS-232 User Manual Manual Number: 120625...
- Page 2 The ASP-CATX1RS HDMI has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the ASP-CATX1RS should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 The ASP-CATX1RS includes two units: transmitting unit ASP-CATX1RS-TX and receiving unit ASP-CATX1RS-RX. The transmitting unit is used to capture the input HDMI / DVI signals with IR control packets and carry the signals via one cost effective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals.
- Page 4 Features • HDMI 3D & Deep Color • Extend the transmission up to 60m (200ft) from the HDMI source at HD 1080i or 720p 24-bit • Extend the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit •...
- Page 5 1.5 Watt [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-CATx1RS [TX & RX] 1x IR blaster Package Contents 1x IR receiver 2x 5V power supply unit 1x User Manual ~ 4 ~...
-
Page 6: Panel Descriptions
IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster Rear View — Transmitting Unit ASP-CATX1RS-TX +5V DC: Connect to 5V DC power supply. HDMI Signal OUT: Plug in a Cat-5/5e/6 cable to be linked to the transmitting unit ASP-CATX1RS-TX. ~ 5 ~... - Page 7 IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster Rear View — Receiving Unit ASP-CATX1RS-RX +5V DC: Connect to 5V DC power supply. HDMI Signal IN: Plug in a Cat-5/5e/6 cable to be linked to the receiving unit ASP-CATX1RS-RX. DIP Switch Position Description TX &...
-
Page 8: Hardware Installation
1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit ASP-CATX1RS-TX. 2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit ASP-CATX1RS-RX. 3. Connect IR Blaster/Receiver to both TX and RX units and or RS-232 connections. -
Page 9: Ir Pass-Through
IR Pass-through IR Extenders IR Blaster IR Receiver IR Sockets IR Blaster: Plug in the IR blaster here to emit all IR command signals received from the IR receiver to control the HDMI source devices. IR Receiver: Plug in the IR receiver here to receive all IR command signals from the IR remote controls of the HDMI source devices. -
Page 10: Pin Definition
Pin Definition HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield Pin 18... - Page 11 Notice 1. All HDMI over CAT5 transmission distances are measured using Belden Cat-5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the transmitting unit (TX) and the receiving unit (RX). 2.
-
Page 12: Limited Warranty
Limited Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
