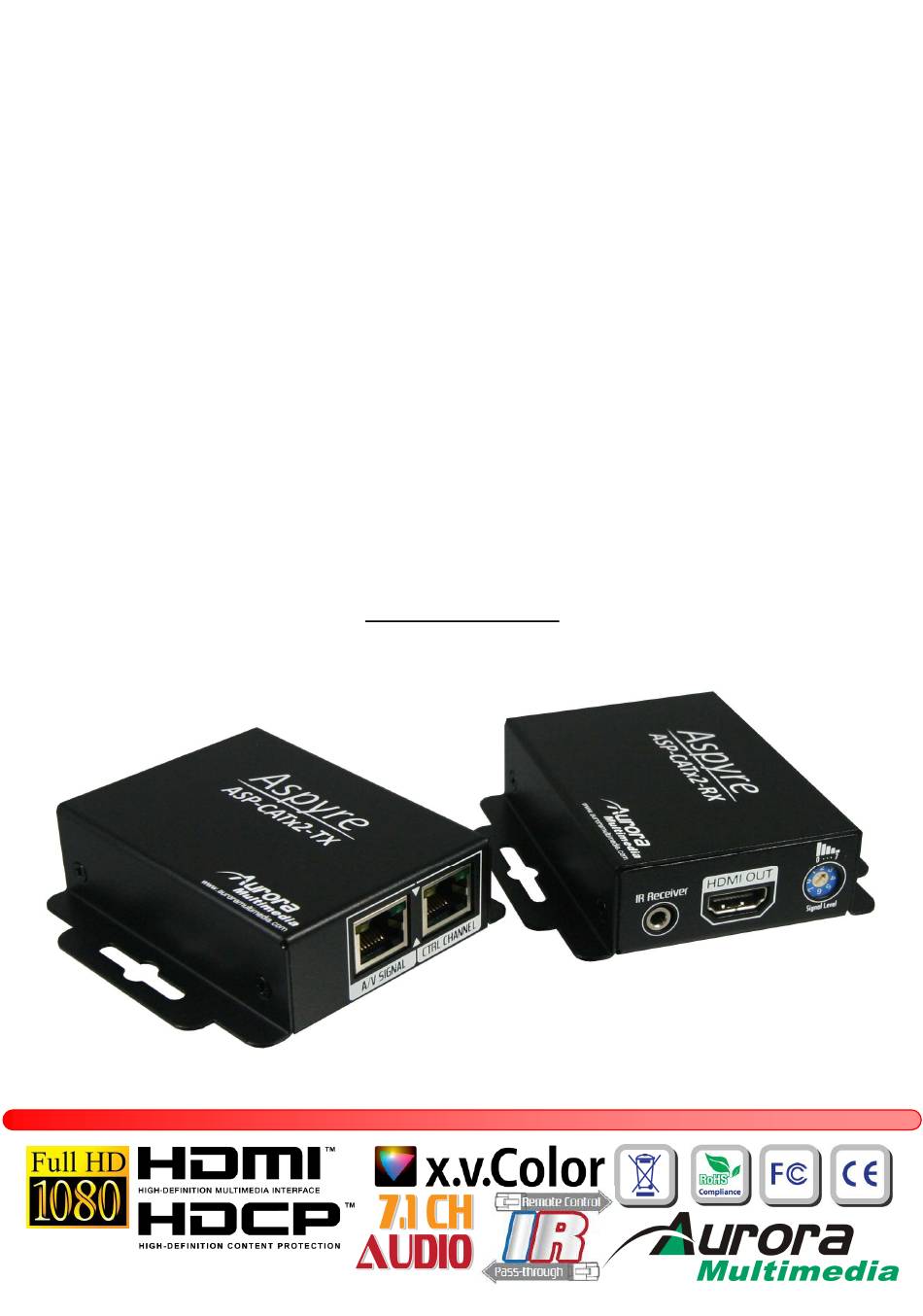

- Page 1 ™ ASP-CATx2 HDMI 1. 3 c over CAT Extender with IR Pass-Through User Manual Manual Number: 090701...
-
Page 2: Safety And Notice
However, like all electronic equipments, the ASP-CATx2 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction The ASP-CATx2 boosts up your HDMI transmission distance up to 60m (200ft) in HDTV 720p/1080i format. With two low cost Cat-5/5e/6 cables, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to remote HDMI displays such as HDTV, LCD PC monitors, or projectors.
-
Page 4: Connection Diagram
Connection Diagram ~ 3 ~... -
Page 5: Specifications & Package Contents
1 Watt [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-CATx2 [TX & RX] 1x IR blaster Package Contents 1x IR receiver 1x 5V power adapter 1x User Manual ~ 4 ~... -
Page 6: Panel Descriptions
A/V SIGNAL: Plug in a Cat-5/5e/6 cable that needs to be linked to the A/V SIGNAL port of the receiving unit ASP-CATx2-RX. CTRL CHANNEL: Plug in a Cat-5/5e/6 cable that needs to be linked to the CTRL CHANNEL port of the receiving unit ASP-CATx2-RX. ~ 5 ~... - Page 7 A/V SIGNAL: Plug in a Cat-5/5e/6 cable that needs to be linked to the A/V SIGNAL port of the transmitting unit ASP-CATx2-TX. CTRL CHANNEL: Plug in a Cat-5/5e/6 cable that needs to be linked to the CTRL CHANNEL port of the transmitting unit ASP-CATx2-TX. +5V DC: Connect to 5V DC power supply. ~ 6 ~...
-
Page 8: Ir Pass-Through
IR Extender IR Blaster IR Receiver IR Sockets ASP-CATx2-TX IR Blaster: Plug in the IR blaster here to emit all IR command signals received from the IR receiver to control the HDMI source devices. ASP-CATx2-RX IR Receiver: Plug in the IR receiver here to receive all IR command signals from the IR remote controls of the HDMI source devices. - Page 9 Definition of IR Earphone Jack IR Blaster IR Receiver You can buy any IR extension cables in the market that are compatible to the definition of the IR sockets for the matrix if necessary for replacement use. However, IR cables longer than 2m (6ft) may not work. Supported IR Data Format Data Format Suitable...
-
Page 10: Hardware Installation
6. Make sure your Cat-5/5e/6 cables are tightly connected and not loose. 7. Plug in 5V DC power cord to the power jack of the receiving unit ASP-CATx2-RX. 8. If you see flickering or blinking image on the display, please adjust the rotary control switch to improve the cable skew. - Page 11 Notice 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2.
-
Page 12: Limited Lifetime Warranty
Limited Lifetime Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are covered for a period of 1 year.
