CS 3T • Setup Guide (Continued)
Attach secondary support lines (CS 120P configuration).
10.
NOTE: Skip this step if the speaker is to be used in the open back configuration and proceed to step 11)
Insert the free end of the zip tie, located inside of the CS 120P (see figure 1 below), through the secondary attachment
a.
point of the speaker (see figure 2 below).
Insert the free end of the zip tie into the locking connector on the opposite end of the zip tie (see figure 3 below).
b.
NOTE: Leave enough slack in the zip tie so that the speaker can be securely installed in the enclosure.
Tighten the zip tie.
c.
Mount the CS 3T.
11.
Insert the CS 3T through the bottom of the hole in the ceiling tile that was cut in
a.
Tighten the four screws (clockwise) until the speaker is securely clamped to the ceiling.
b.
Mounting the Speaker
with the CS 120P
Mounting the Speaker
without the CS 120P
If using the CS 120P, proceed to
c.

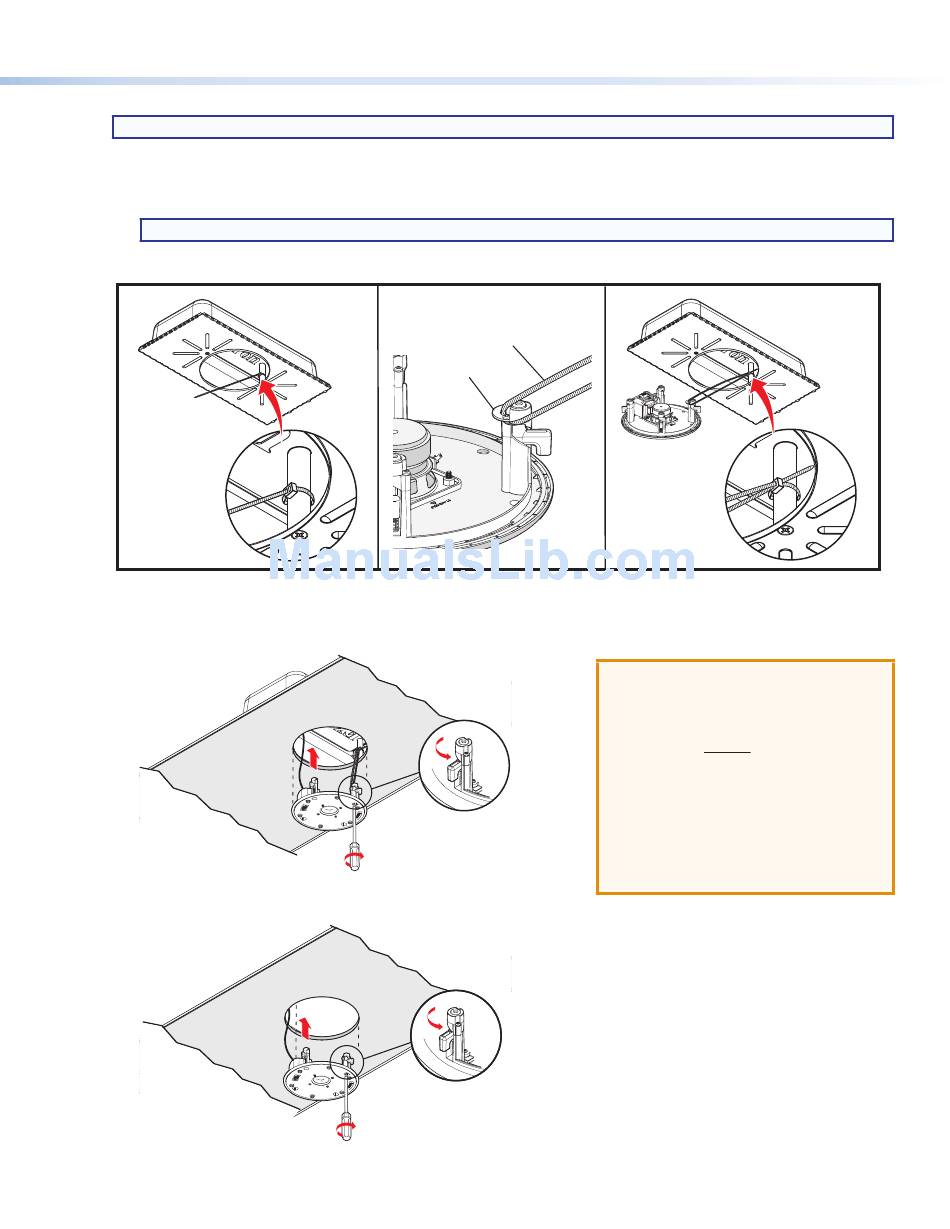

Figure 1
Zip Tie
Secondary
Tie off Point
step 13
on page 4.
Figure 2
step 2
on page 1.
ATTENTION:
•
To avoid damaging the speaker, do
not overtighten the four screws. Use
a manual screwdriver to tighten the
screws. Do not use a cordless drill or
electric screwdriver.
•
Pour éviter d'endommager l'enceinte,
ne serrez pas trop les quatre vis.
Utilisez un tournevis manuel pour
serrer les vis. N'utilisez pas de
perceuse-visseuse ou de tournevis
électrique.
Figure 3
