CSI TwinSplit User Manual

Introduction

Intr Intr oduction oduction oduction
Intr Intr oduction
Thank you for purchasing this fine distribution amplifier (splitter)
for VGA-based computers. Depending on which model you
purchased, this splitter will allow you to display your VGA computer
video on up to 10 monitors simultaneously. Each monitor can be
located up to 250 feet away from the computer.
This product is supplied with the following components:
1 TwinSplit, QuadSplit, HexiSplit, OctoSplit or DeciSplit for VGA
1 6 ft. input VGA cable
1 Power Supply
(a power cord may also be included on all models except
North American TwinSplit and QuadSplit models)
1 User's Manual and Product Registration card
Key features of these splitters are:
• 300 MHz bandwidth
• Supports H & V sync, composite sync, sync-on-green, sync-
on-RGB and 75 ohm sync loads.
TwinSplit, QuadSplit, HexiSplit, OctoSplit and DeciSplit are registered trademarks of Communications Specialties, Inc.

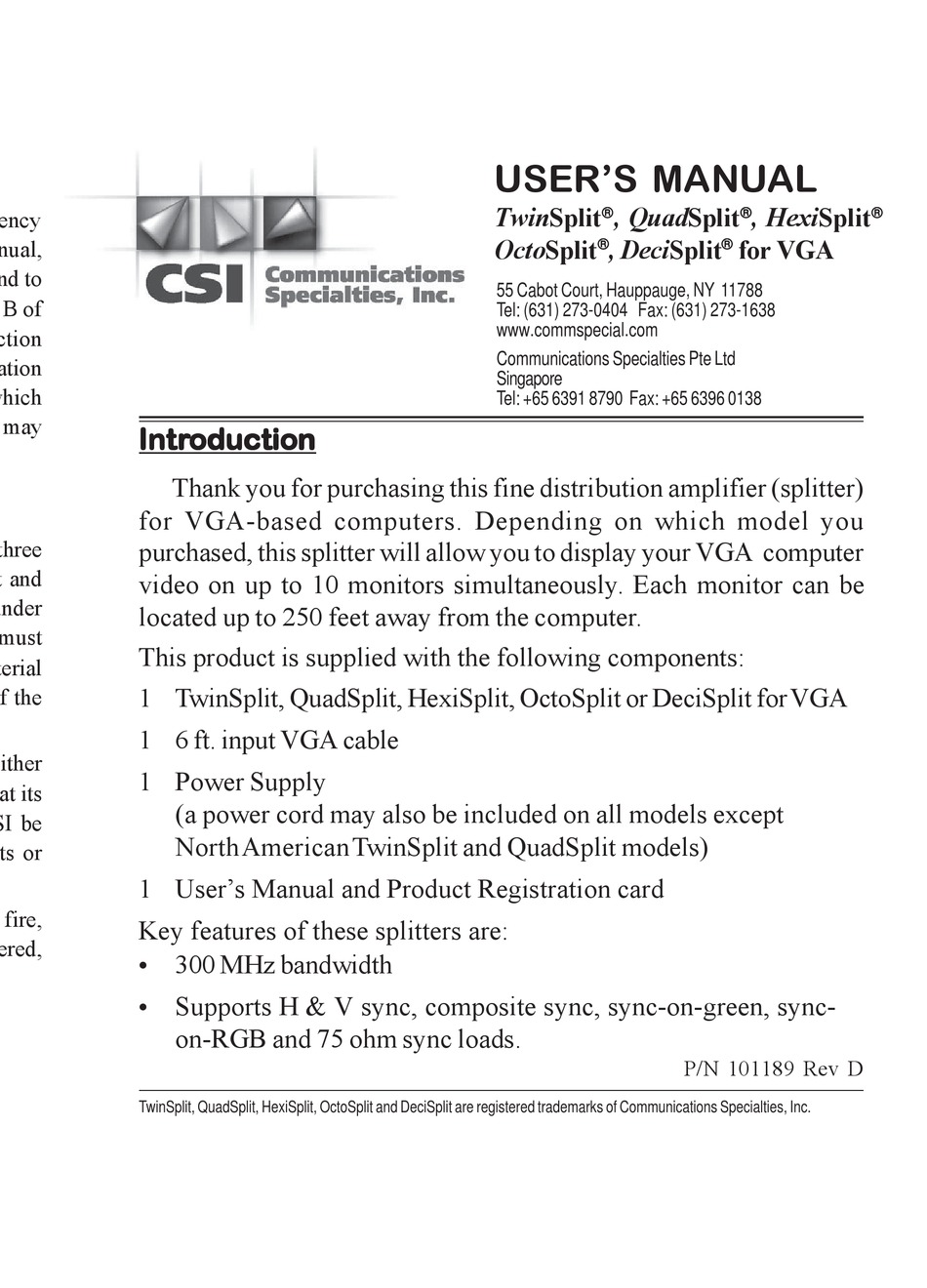

USER'S MANUAL
    
TwinSplit , QuadSplit
    
OctoSplit , DeciSplit
55 Cabot Court, Hauppauge, NY 11788
Tel: (631) 273-0404 Fax: (631) 273-1638
www.commspecial.com
Communications Specialties Pte Ltd
Singapore
Tel: +65 6391 8790 Fax: +65 6396 0138
    
, HexiSplit
    
for VGA
P/N 101189 Rev D
    
