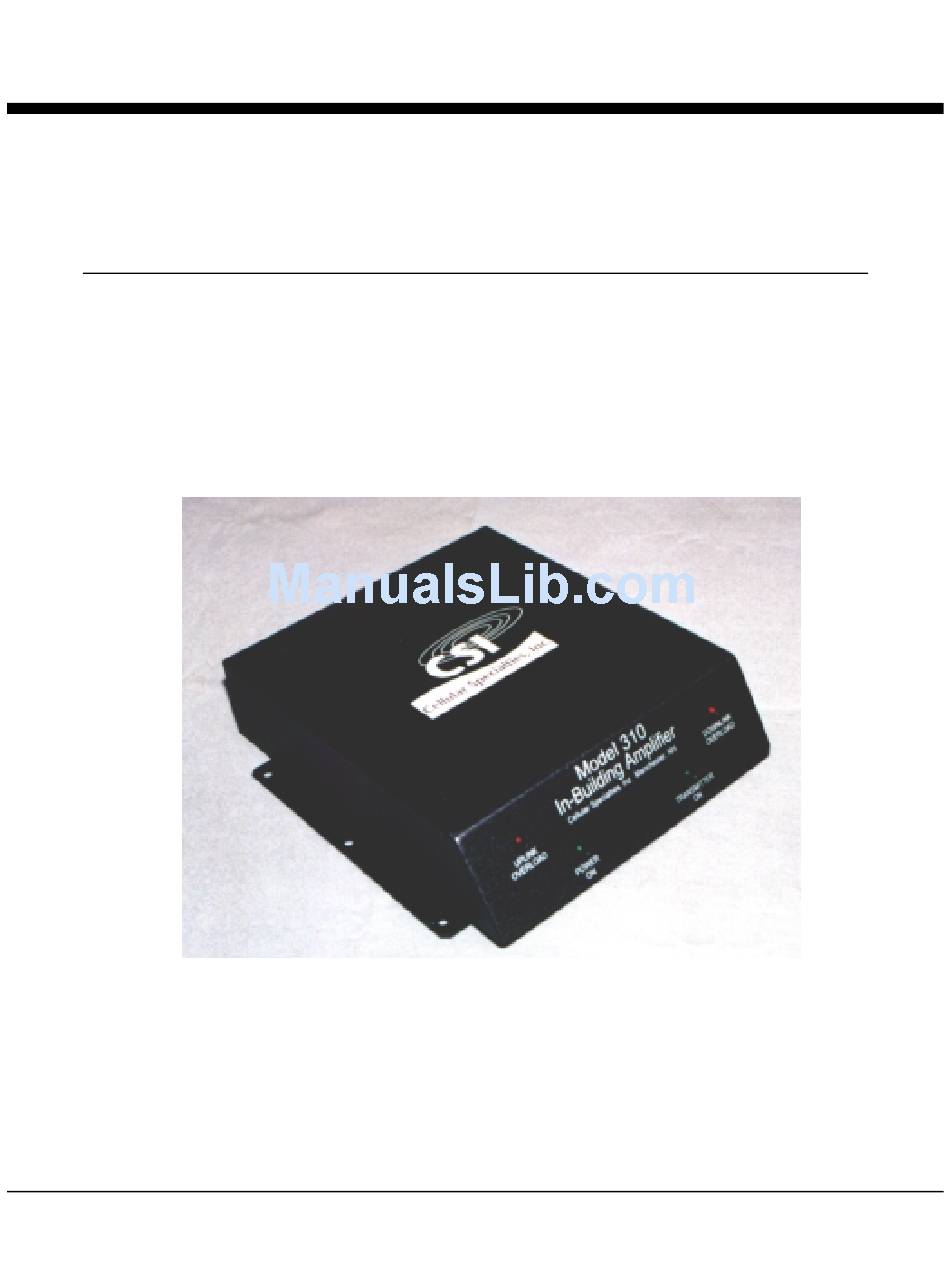

- Page 1 Cellular Specialties, Inc. Model 310 Model 310 Model 310 Model 310 In-Building Amplifier In-Building Amplifier In-Building Amplifier In-Building Amplifier Plus Installation and Users Manual...
- Page 2 The serial number may be found on the label on the rear panel of the unit. For your convenience, note this number below, and retain this manual, along with proof of purchase , to serve as a permanent record of your purchase in the event of a theft, or for future reference. MODEL NUMBER DATE OF PURCHASE SERIAL NUMBER...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 SAFETY GUIDELINES 2.0 PRODUCT DESCRIPTION MECHANICAL OUTLINE DRAWING 3.0 GENERAL SPECIFICATIONS 4.0 INSTALLATION 5.0 AMPLIFIER ADJUSTMENT 6.0 TROUBLESHOOTING MANUAL110+ REV A... -
Page 4: Safety Guidelines
SAFETY GUIDELINES The general safety information in this guideline applies to both operating and service personnel. Specific warnings and cautions will be found in other parts of this manual where they apply, but may not appear in this summary. Failure to comply with these precautions or specific warnings elsewhere in the manual violates safety standards of design, manufacture, and intended use of equipment. -
Page 5: Product Description

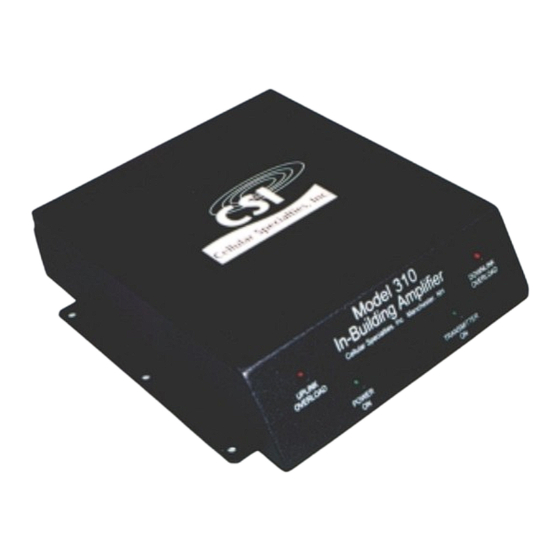

PRODUCT DESCRIPTION Cellular Specialties, Inc. developed the Model 310 In-Building Amplifier (IBA) for use in enclosed Plus structures where sufficient signal from local cell sites to operate cell phones was unavailable within the building. It is, of course, necessary that sufficient signal be available on the roof of the structure. The IBA is connected to an external antenna, usually on the roof, and to one or more internal antennas placed strategically throughout the area where phone service is desired. -
Page 6: Mechanical Outline Drawing
10.25 TRANSMITTER ON INDICATOR POWER INDICATOR DOWNLINK OVERLOAD INDICATOR UPLINK OVERLOAD INDICATOR 11.875 MOUNTING HOLE (6 - PLACES) 8.50 DOWNLINK ATTENUATOR AND AGC SWITCHES UPLINK ATTENUATOR 2.675 AND AGC SWITCHES SCALE: 1/2 TO 1 FCC ID POWER ON LABEL ALL DIMENSIONS SWITCH ARE IN INCHES POWER CORD... -
Page 7: General Specifications
GENERAL SPECIFICATIONS All specifications stated as typical unless otherwise noted. Cellular Specialties, Inc. reserves the right to change these specifications at any time without notice. Uplink (Phone to Tower) Downlink (Tower to Phone) Frequency 806-821MHz 851-866MHz ± 1.5dB ± 1.5dB Pass Band Ripple Gain @ Zero Attenuation +57dB+3dB... -
Page 8: Installation
INSTALLATION Pre-installation Survey Note: The Installer should refer to the Safety Precautions, in the following section, for proper antenna selection and installation A pre-installation survey should be performed prior to commitment to installation. Measurement of Received Signal Strength Indication (RSSI) should be recorded throughout the building in all areas where cell phone coverage is desired. - Page 9 800 MHz of approximately 3.5 dB per 100 feet is used. The coax used should be a nominal RG-8 type with a flame retardant rating except when installed in space where moving air (heating and/or cooling) exists. In which case the coax must be “plenum”...
- Page 10 ! ! ! ! For OUTDOOR use, a Directional Antenna up to a maximum gain of 11dBd is authorized for use with this unit. The Outside antenna must be positioned to observe minimum separation of 120 cm. (~ 4 ft.) from all users and bystanders. For the protection of personnel working in the vicinity of outside (uplink) antennas, the following guidelines for minimum distances between the human body and the antenna must be observed.
-
Page 11: Amplifier Adjustment
AMPLIFER ADJUSTMENT In most cases the IBA will need very little adjustment. After connecting the coax and powering up the IBA, the signal levels within the previously surveyed areas should be checked for adequate RSSI and Signal Quality Equivalent (SQE) levels. Measurements should be made at the perimeter of the building both inside and outside. -
Page 12: Troubleshooting
TROUBLESHOOTING All external cables should be carefully checked for “shorts” and “opens”. The rooftop antenna, if directional, should be checked for proper alignment along the calculated compass heading. Typically, the directional antenna should be aimed at the same sight that your handset uses in the area where the outside antenna is to be placed.
