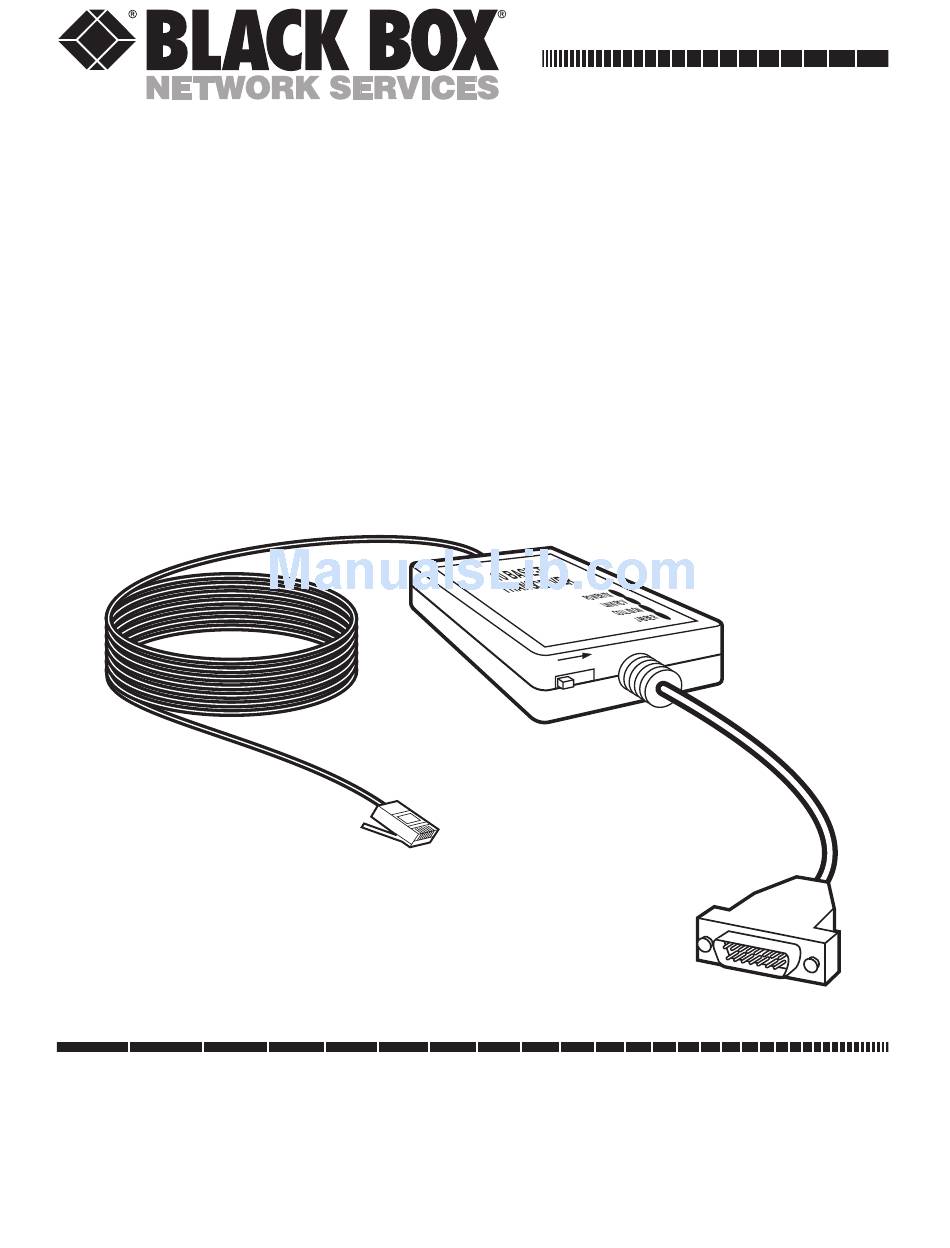

Mini 10BASE-T Transceiver
w/Cable (Slidelock or
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Screwlock)
NOVEMBER 1992
O N
S Q E
LE3010A
LE3011A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Black Box LE3010A
Summary of Contents for Black Box LE3010A
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
-
Page 2: Federal Communications Commission Radio Frequency Interference Statement
MINI 10BASE-T TRANSCEIVER W/CABLE FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. - Page 3 MINI 10BASE-T TRANSCEIVER W/CABLE This digital apparatus does not exceed the Class A limits for Radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique édicté...
-
Page 4: Specifications
MINI 10BASE-T TRANSCEIVER W/CABLE 1.0 Specifications — IEEE 802.3 10BASE-T Standards — (4) LEDs: Power/TX, LINK/RCV, Indicators Collision, Jabber — (1) AUI 15-pin male, (1) RJ-45 Connectors female — 32 to 131° F (0 to 55° C) Temperature — 10-90% (non-condensing) Humidity —... - Page 5 The Mini 10BASE-T Transceiver w/Cable connects a host to a 10BASE-T network using your existing standard Ethernet adapter card. Two models are available: • LE3010A, Mini 10BT Transceiver w/Cable (Slidelock) • LE3011A, Mini 10BT Transceiver w/Cable (Screwlock) Both models include the following: •...
- Page 6 MINI 10BASE-T TRANSCEIVER W/CABLE 3.0 Configuration 3.1 Set SQE Switch SQE is the Signal Quality Error function that provides “heartbeat” for network data collision detection setting. If the host to which the transceiver is connected is a computer, set the SQE switch to ON.
- Page 7 CHAPTER 3: Configuration 3.2 RJ-45 Pinout Assignment Fig. 3-2 shows the pinouts of the RJ-45 connector. RX - RX + TX - TX + Fig. 3-2. RJ-45 Pinout Assignment.
-
Page 8: Installation
MINI 10BASE-T TRANSCEIVER W/CABLE 4.0 Installation 4.1 Connect the Transceiver to the Host and to the Hub 1. Plug the DB15 connector of the AUI cable into the host’s DB15 port. 2. Plug the RJ-45 connector of the UTP cable into the 10BASE-T hub. -
Page 9: Led Indicators
CHAPTER 5: LED Indicators 5.0 LED Indicators The LED indicators on the transceiver show the following: • —The indicator should be POWER/TX constantly ON, once you connect the transceiver to the host and the hub. When this indicator blinks, data is being transmitted. •... - Page 10 MINI 10BASE-T TRANSCEIVER W/CABLE • —This indicator should be OFF JABBER most of the time. When it is ON, the data transmission function is being interrupted because of an abnormally long output data stream. The function is interrupted to prevent the corrupted data from being sent over the network.
- Page 11 NOTES...
- Page 12 © Copyright 1992. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
