© 2006. All rights reserved. Black Box Corporation.

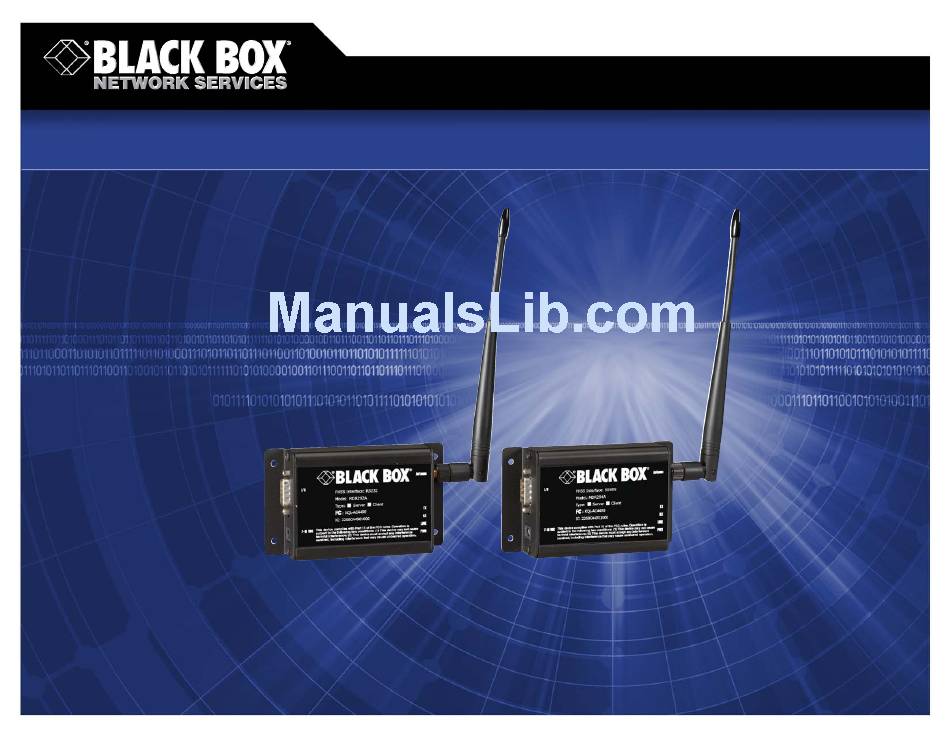

900-MHz or 2.4-GHz Serial Transceiver Client/Server
Go wireless! Replace thousands of feet of serial cable
Go wireless! Replace thousands of feet of serial cable
with these wireless transceiver client/servers.
with these wireless transceiver client/servers.
FREE 24-hour Tech Support: 724-746-5500
blackbox.com
Advertisement
Related Manuals for Black Box MDR292A
Summary of Contents for Black Box MDR292A
- Page 1 © 2006. All rights reserved. Black Box Corporation. 900-MHz or 2.4-GHz Serial Transceiver Client/Server Go wireless! Replace thousands of feet of serial cable Go wireless! Replace thousands of feet of serial cable with these wireless transceiver client/servers. with these wireless transceiver client/servers.
- Page 2 • Offers reliable communication up to 115.2 kbps. 11/1/2006 724-746-5500 #26544 A typical point-to-multipoint application using 5 MDR292A units links 1 server to 4 clients. (4) 900-MHz RS-232 Serial Transceiver Client/Servers configured as clients OVERVIEW The Serial Transceiver Client/Server is a Frequency-Hopping Spread Spectrum (FHSS) transceiver designed for license-free operation in the 900-MHz or 2.4-GHz ISM band.
- Page 3 Temperature Tolerance — Operating: -40 to +176°F (-40 to +80°C) Humidity Tolerance — 10 to 90%, noncondensing Physical Connectors — MDR292A, MDR242A: (1) DB9 male; MDR294A, MDR244A: (1) RS-485 terminal block; 900-MHz USB Host: (1) USB Type B Indicators — (4) LEDs: Pwr, Link, Rx, and Tx Size —...
- Page 4 At Black Box, we guarantee the best value and the best support. You can even consult our Technical Support Experts before you buy if you need help selecting just the right component for your application.
