NETWORK SERVICES
AUI cable to an Ethernet 10BASE-T device. The Ethernet device is connected to the
transceiver through an unshielded or shielded twisted-pair copper cable with RJ-45
connector ends.
Various System Configurations

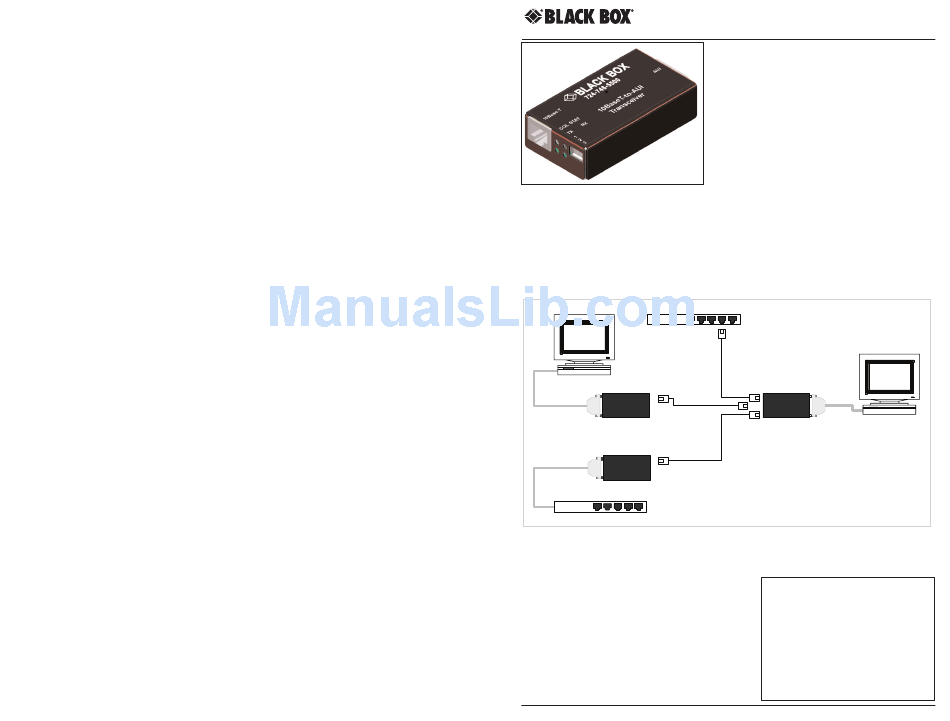

Figure 1 shows various examples of transceiver system configurations.
10-Base-T Hub
Workstation
Black Box
Transceiver
Black Box
Transceiver
HUB with AUI Port
Figure 1: Transceiver System Configurations

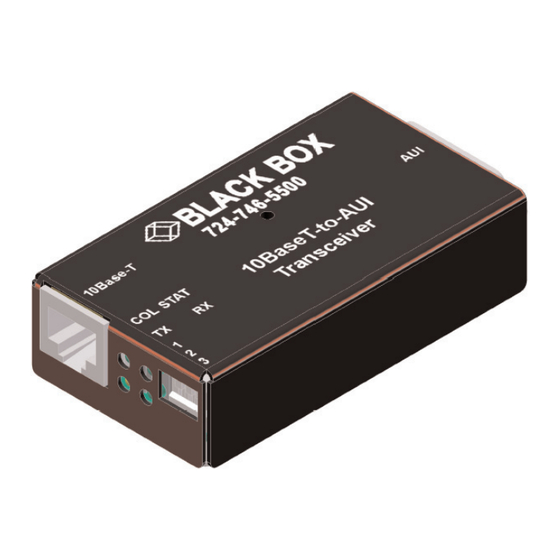

LE180A 10Base-T Transceiver
•
Stand-Alone model
• Attached Unit Interface (AUI) to
Ethernet RJ-45 connectors
• No external power requirement
The LE180A transceiver is a media access unit
(MAU) that connects the AUI port of data
terminal equipment, repeaters, or other
network devices either directly or through an
Or
Black Box
Transceiver
Or
Workstation
General Description . . . . . . .2
Connectors & Cables . . . . . . .3
Installation . . . . . . . . . . . . . .6
Operations . . . . . . . . . . . . . .8
Cable Specifications . . . . . .10
Troubleshooting . . . . . . . . .10
Contact Us . . . . . . . . . . . . .11
