CITROËN C3 Handbook
Hide thumbs Also See for C3:
Table of Contents

Advertisement

Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C3 and is the answer not in the manual?

Questions and answers

Johny
February 20, 2025

I have a citroen c3 2010 and i open the care with remote from outside and i dont open the dor!!after 30 or 40 seconds he lock agein automatic!!how to fix this problem?thanx

1 comments:
Mr. Anderson
February 20, 2025

To fix the automatic locking issue on a 2010 Citroën C3 when the door is not opened after using the remote, check the following:

1. Wiring Check – Inspect the wiring between the door and the door pillar for any damage.
2. Remote Key Test – Try using a spare remote key. If the issue occurs only with one key, the lock button on the faulty remote may be stuck.
3. Manual Unlock Test – Use the key in the door lock instead of the remote. If the car does not relock, the issue is likely with the remote key.
4. BSI Reset – Perform a BSI reset, as this can sometimes resolve locking issues.
5. Battery Check – Ensure the car battery and the key fob battery are fully charged.
6. Child Lock Inspection – If the child lock button is illuminated, check if it is affecting the central locking system.
7. Lock/Unlock Cycle – Try locking and unlocking the car manually using the key to reset the system.

If these steps do not resolve the problem, further diagnosis of the locking relays or the BSI may be required.

This answer is automatically generated

Summary of Contents for CITROËN C3

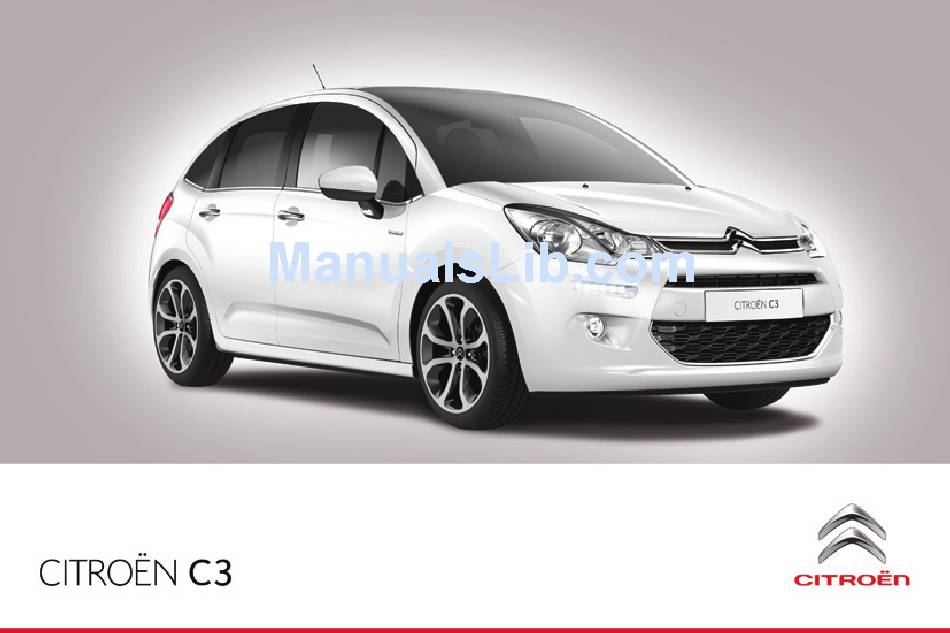

  • Page 1 Handbook...
  • Page 2 On-line handbook Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with this symbol: Find your handbook on the CITRoËn website, under "MyCITROËN". This personal and customisable space allows you to establish direct and special contact with CITRoËn.
  • Page 3 We draw your attention to the following... Reading the detailed sections is essential to make the most of your vehicle, in complete safety. Your vehicle is fitted with only some of the equipment described in this document, CITRoËn has a presence on every continent, depending on the trim level, version and the a complete product range, specifications for the country in which it is...
  • Page 4 Overview Exterior Temporary puncture repair kit Zenith windscreen This kit is a complete system consisting of a This large windscreen provides incomparable compressor and sealant cartridge, to allow the visibility and light in the passenger temporary repair of a tyre. compartment.
  • Page 5 Overview Interior Interior mood lighting Scented air freshener This subdued passenger compartment lighting The scented air freshener diffuses the improves visibility inside the vehicle in low selected fragrance throughout the passenger lighting conditions. It comprises several lamps, compartment from its location in the ventilation located in the automatic day/night mirror system.
  • Page 6: Instruments And Controls

    Overview Instruments and controls Cruise control / speed limiter controls. 2. Headlamp height adjustment. 3. Steering wheel adjustment control. 4. Lighting and direction indicator control stalk. 5. Instrument panel. 6. driver's airbag. Horn. Gear lever. 8. 12 V accessory socket USb port / auxiliary socket.
  • Page 7 Overview Instruments and controls Steering lock and ignition. 2. Audio equipment steering wheel controls. 3. Wiper / screenwash / trip computer control stalk. 4. Microphone. 5. Scented air freshener. 6. Central locking switch. Multifunction screen. 8. Hazard warning lamps switch. Central adjustable air vents.
  • Page 8 Eco-driving Eco-driving Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO emissions. Optimise the use of your gearbox Control the use of your electrical equipment With a manual gearbox, move off gently and change up without waiting. Before moving off, if the passenger compartment is too warm, ventilate it during acceleration change up early.
  • Page 9 Eco-driving Limit the causes of excess consumption Observe the recommendations on maintenance Spread loads throughout the vehicle; place the heaviest items in the Check the tyre pressures regularly, when cold, referring to the label in bottom of the boot, as close as possible to the rear seats. the door aperture, driver's side.
  • Page 10 Monitoring Instrument panels with manual gearbox Panel grouping together the vehicle operation indication dials and warning lamps. Dials Screen A. Ambient temperature. (°Celsius or °Fahrenheit) B. Gear shift indicator. Rev counter. 5. Display management button C. Time. Indicates the speed of rotation of the Servicing information.
  • Page 11 Monitoring Instrument panels for electronic or automatic gearboxes Panel grouping together the vehicle operation indication dials and warning lamps. Depending on the version, the instrument panel may have permanent back-lighting. Dials Screen A. Speed limiter (mph or km/h) or Cruise control. Servicing information.
  • Page 12: Indicator And Warning Lamps

    Monitoring Indicator and warning lamps Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occurrence of a fault (warning lamp). When the ignition is switched on Associated warnings Certain warning lamps may come on in one of two different modes.
  • Page 13 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed. The lighting stalk is in the "dipped Dipped beam beam headlamps" position. headlamps fixed. The lighting stalk is pulled towards Pull the stalk to return to dipped beam headlamps. Main beam you.
  • Page 14 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed blue on starting the engine, it indicates After a few minutes driving, it swiches off to indicate Engine coolant that the engine is cold. that the engine temperature is normal. temperature In order to protect your engine, avoid driving too hard until the warning lamp has switched off.
  • Page 15 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed. The brake pedal must be pressed. With an electronic gearbox, press the brake pedal to Foot on the start the engine (lever in position N). brake pedal With an automatic gearbox, with the engine running, press the brake pedal before releasing the parking brake, to unlock the lever and come out of position P.
  • Page 16 Monitoring Deactivation indicator lamps If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally. This is may be accompanied by an audible signal and a message on the multifunction screen. Warning/indicator lamp is on Cause...
  • Page 17: Warning Lamps

    Monitoring Warning lamps Any fault resulting in the illumination of a warning lamp must be investigated further by When the engine is running or the vehicle is reading the associated message in the multifunction screen. being driven, the illumination of one of the If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified workshop.
  • Page 18 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed, associated with The braking system fluid level is too You must stop as soon as it is safe to do so. Braking the STOP warning low. Top up with brake fluid recommended by CITROËN. lamp.
  • Page 19 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed. When it first comes on there remains You must refuel as soon as possible to avoid running Low fuel level approximately 5 litres of fuel in the out of fuel. tank.
  • Page 20 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed if the speed is a door or the boot is still open. Close the door or boot. Door(s) open below 6 mph (10 km/h). fixed and accompanied by an audible signal if the speed is above 6 mph (10 km/h).
  • Page 21 Monitoring Warning/indicator lamp is on Cause Action / Observations fixed. The Diesel fuel filter contains water. Risk of damage to the injection system on diesel Water in Diesel engines. Contact a CITROËN dealer or a qualified workshop without delay. fixed, accompanied by This indicates that the particle As soon as driving conditions allow, regenerate the Particle...
  • Page 22: Service Indicator

    Monitoring Service indicator System which informs the driver when the Between 600 miles (1 000 km) Less than 600 miles (1 000 km) next service is due, in accordance with the and 1800 miles (3 000 km) remain remain before the next service is due manufacturer's servicing schedule.
  • Page 23 Monitoring Service overdue For a few seconds after the ignition is switched on,the spanner flashes to indicate that the Following this operation, if you wish to service must be carried out as soon as possible. disconnect the battery, lock the vehicle Example: the service is overdue by 180 miles and wait at least five minutes for the (300 km).
  • Page 24: Engine Oil Level Indicator

    Monitoring Engine oil level indicator* Oil level correct Oil level indicator fault This is signaled by the flashing of "OIL--". Contact a CITRoËn dealer or a qualified workshop. In the event of a fault with the electric oil level Oil level low indicator, the engine oil level is no longer monitored.
  • Page 25 Monitoring Distance recorders Clock The total and trip distances are displayed for thirty seconds when the ignition is switched off, when the driver's door is opened and when the vehicle is locked or unlocked. When traveling abroad, you may Adjusting the time - Choice of have to change the units of distance: units the display of road speed must be in...
  • Page 26: Lighting Dimmer

    Monitoring Lighting dimmer Black panel System for manual adjustment of the System allowing certain displays to be switched brightness of the instruments and controls in off for night driving. relation to the exterior brightness. The instrument panel remains illuminated with only the vehicle speed and cruise control or Activation speed limiter information, if in use.
  • Page 27: Trip Computer

    Monitoring Trip computer System that gives you information on the distance travelled, current journey (range, fuel consumption…). Screen in the instrument panel average fuel consumption, Information displays F Press the button, located at the end of the wiper stalk, to display the various items of average speed.
  • Page 28: Monochrome Screen C

    Monitoring Monochrome screen C the current information tab with: ● the range, ● the current fuel consumption, ● the distance remaining to 16/9 colour screen be travelled or the Stop & (eMyWay) Start time counter. the trip "1" tab with: ●...
  • Page 29 Monitoring Trip computer, a few definitions Range Current fuel consumption Distance travelled (miles or km) (mpg or l/100 km or km/l) (miles or km) The distance which can still be Calculated over the last few seconds. Calculated since the last trip travelled with the fuel remaining computer reset.
  • Page 30: Main Menu

    Multifunction screens Monochrome screen a Displays in the screen Controls Main menu F Press the "MENU" button to gain access to the main menu, then press the "5" or "6" buttons to scroll through the various menus: - radio-Cd, This displays the following information: From the control panel of your audio system, - vehicle configuration, time,...
  • Page 31: Vehicle Configuration

    Multifunction screens Display settings once the "display settings" menu has been selected, Setting the date and time F Press the MENU button. you can gain access to the following settings: F Select "display settings" using the "5" or year, "6" button. month, F Press "OK"...
  • Page 32 Multifunction screens Languages once the fuel consumption units have once the "Languages" menu has been been set to mpg, the information in the selected, you can change the language used instrument panel screen on speed and by the display, by choosing a new language distance will also be in mph and miles.
  • Page 33 Multifunction screens Monochrome screen C Displays in the screen Controls Main menu F Press the "MENU" button to gain access to the main menu: - audio functions, - the trip computer, - personalisation-configuration, This displays the following information: From your audio system control panel, you can: - telephone (hands-free kit).
  • Page 34 Multifunction screens F Press the "MENU" button to gain access "Trip computer" menu Status of functions to the general menu. This summarises the status (active or inactive) F Press the arrows, then the "OK" button to of the vehicle's functions. select the "Trip computer"...
  • Page 35 Multifunction screens "Personalisation- Configuration" menu F Press the "5" or "6" buttons, then the "OK" button to select the "OK" box and confirm or press the "Back" button to cancel. once this menu has been selected, you can Example: setting of the duration of the guide- gain access to the following functions: me-home lighting define the vehicle parameters,...
  • Page 36 Multifunction screens "Telephone" Menu Display configuration With audio system on, once this menu is Choice of language selected you can configure your bluetooth once this menu has been selected, you can once this menu has been selected, you can hands-free system (pairing), view the various gain access to the following settings: change the language used by the display, by telephone directories (list of calls, services...)
  • Page 37 Multifunction screens 16/9 colour screen (eMyWay) Displays in the screen Controls "SETUP" menu It displays the following information To select one of the applications, from the F Press the "SETUP" button to gain access automatically and directly: eMyWay control panel: to the configuration menu.
  • Page 38 Multifunction screens Display configuration Language Trip computer This menu allows you to choose a colour This menu allows you to choose the language This menu allows you to see information on the scheme for the screen, adjust the brightness, used by the display from a defined list. state of the vehicle.
  • Page 39: Control Panel

    Comfort Ventilation Air intake The air circulating in the passenger compartment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode. Air treatment The incoming air follows various routes depending on the controls selected by the driver: direct arrival in the passenger...
  • Page 40: Air Conditioning

    Comfort Recommendations for ventilation and If after an extended stop in sunshine, the interior temperature is very air conditioning high, first ventilate the passenger compartment for a few moments. In order for these systems to be fully effective, follow the operation and maintenance Put the air flow control at a setting high guidelines below: enough to quickly change the air in the...
  • Page 41 Comfort Heating / Ventilation Manual air conditioning The heating / ventilation or air conditioning Manual control panel Manual control panel systems operates with the engine running, as well as in STOP mode with Stop & Start. 1. Temperature adjustment F Turn the dial from blue (cold) to red (hot) to adjust the temperature to your requirements.
  • Page 42 Comfort 3. Air distribution adjustment 4. Air intake / Air recirculation 5. Air conditioning On / Off Windscreen and side windows. The intake of exterior air avoids the formation The air conditioning is designed to of mist on the windscreen and side windows. operate effectively in all seasons, The recirculation of interior air insulates the with the windows closed.
  • Page 43 Comfort Front demist - defrost These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows. With the heating / With the manual air ventilation system conditioning system F Put the temperature and air flow controls to F Put the temperature and air flow controls to the dedicated marked position.
  • Page 44: Digital Air Conditioning

    Comfort digital air conditioning The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start. 3. Automatic "visibility" For your comfort, when the engine is programme switched off, the settings are retained until the engine is switched on again.
  • Page 45 Comfort 7. Air flow adjustment Press this button again or press the "AUTO" For maximum cooling or heating of the button to resume automatic management of Press the "full fan" button to cabin, it is possible to go beyond the the intake of air.
  • Page 46: Switching Off

    Comfort Rear screen demist - defrost The control button is located on the heating or air conditioning system control panel. Switching on Switching off If the engine is switched off before the demisting/defrosting is switched off The rear screen demisting/defrosting can only The demisting/defrosting switches off automatically, demisting/defrosting will operate when the engine is running.
  • Page 47: Scented Air Freshener

    Comfort Scented air freshener System permitting the diffusion of a fragrance in the passenger compartment in accordance with your requirements, by means of the adjustment dial and the various fragrance cartridges available. Adjustment dial Fragrance cartridge This cartridge can be removed easily. The Removing the cartridge first time it is used, replace the plug with a real F Press the dial and turn it a quarter of a turn...
  • Page 48: Front Seats

    Comfort Front seats Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort. Adjustments Forwards-backwards Height Seat backrest angle F Raise the control and slide the seat F Pull the control upwards to raise or push F Push the control rearwards.
  • Page 49 Comfort Additional adjustments Head restraint height Heated seats control The head restraint is fitted with a frame with notches which prevents it from F To raise the head restraint, pull it forwards With the engine running, the front seats can be lowering;...
  • Page 50: Rear Head Restraints

    Comfort Rear seats Bench seat with fixed one-piece cushion and split backrest (right hand 2/3, left hand 1/3) to adjust the load space in the boot. Rear head restraints Folding the backrest Repositioning the seat backrest These have one position for use (up) and a stowed position (down).
  • Page 51: Door Mirrors

    Comfort Mirrors Door mirrors Folding F From outside: lock the vehicle using the remote control or the key. F From inside: with the ignition on, with the control A in the central position, pull it downwards. If the mirrors are folded using control A, they will not unfold when the vehicle is unlocked.
  • Page 52: Steering Wheel Adjustment

    Comfort Steering wheel adjustment Rear view mirror Adjustable mirror providing a central rearward Automatic day/night model view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles... Manual day/night model F When stationary, pull the control lever to release the adjustment mechanism.
  • Page 53: Remote Control Key

    Access Remote control key System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft. Unlocking the vehicle Unlocking is confirmed by rapid flashing of If one of the doors or the boot is still the direction indicators for approximately...
  • Page 54: Ignition Switch

    Access Anti-theft protection Ignition switch Electronic engine immobiliser The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not...
  • Page 55 Access Switching the vehicle off Remote control problem Following disconnection of the vehicle battery, F Immobilise the vehicle. replacement of the remote control battery or F Turn the key fully towards you to in the event of a remote control malfunction, position 1 (Stop).
  • Page 56: Remote Control

    Access Do not throw the remote control Lost keys batteries away, they contain metals Go to a CITROËN dealer with the vehicle's registration document, your personal which are harmful to the environment. identification documents and if possible the key code label. Take them to an approved collection The CITROËN dealer will be able to look up the key code and the transponder code point.
  • Page 57: Window Controls

    Access Window controls System which opens or closes a window manually or automatically. It is fitted with a system which provides protection if an obstacle is detected on the one-touch models and a deactivation system to prevent misuse of the rear switches on all models. One-touch electric The electric window switches remain operational for approximately...
  • Page 58 Access Reinitialisation In the event of a malfunction you have to Safety anti-pinch reinitialise the operation of the electric windows: The one-touch front electric windows are fitted F release the switch and pull it again until the with a safety anti-pinch function. window closes completely, When the window rises and meets an obstacle, F hold the switch for approximately...
  • Page 59 Access doors Opening Closing When a door or the boot is not closed correctly: When the engine is running, this warning lamp comes on, accompanied by a message in the multifunction screen for a few seconds, When the vehicle is moving (speed higher than 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message in the...
  • Page 60: Automatic Central Locking

    Access Manual central locking Automatic central control locking System which provides full manual locking or System which provides full automatic locking Unlocking unlocking of the doors from the inside. or unlocking of the doors and the boot while F Press button A again to unlock the vehicle. driving.
  • Page 61: Emergency Control

    Access Emergency control System allowing the doors to be locked and Locking the front and rear unlocked manually in the event of a fault with passenger doors the central locking system or a battery failure. Check that the rear doors child lock is not on.
  • Page 62: Tailgate Release

    Access boot Opening Closing Tailgate release System for mechanical unlocking of the boot F Lower the tailgate using the interior grab in the event of a battery or central locking handle. malfunction. If the tailgate is not closed correctly: when the engine is running, this warning lamp comes on, accompanied by a message on the multifunction screen for a few seconds,...
  • Page 63: Fuel Tank

    Access Fuel tank To fill the tank safely: Fuel tank capacity: approximately F the engine must be switched off, 50 litres (petrol) or 46 litres (Diesel) or F open the fuel filler flap, 37 litres (LPG); (Depending on version: F insert the key in the cap, then turn it to approximately 30 litres (petrol or Diesel)).
  • Page 64 Access Fuel used for petrol Fuel used for Diesel engines engines The petrol engines are compatible with The Diesel engines are perfectly with biofuels E10 bio-petrol (containing 10 % ethanol), which conform to current and future European conforming to European standards En 228 standards (Diesel fuel which complies with and En 15376.
  • Page 65 Access Misfuel prevention (diesel)* Operation When a petrol filler nozzle is introduced into the fuel filler neck of your diesel vehicle, it comes into contact with the flap. The system remains closed and prevents filling. Do not persist but introduce a Diesel type filler nozzle.
  • Page 66: Lighting Controls

    Visibility Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting. A. Main lighting mode selection ring: turn it Main lighting Manual controls to position the symbol required facing the The various front and rear lamps of the vehicle The lighting is controlled directly by the driver mark.
  • Page 67 Visibility C. Foglamp selection ring. When the lighting is switched off automatically Model with rear foglamp only The foglamps operate with the dipped and main (with AUTO model) or when the dipped beam headlamps. headlamps are switched off manually, the foglamps and sidelamps will remain on.
  • Page 68 Visibility Manual guide-me-home lighting Lighting on audible warning The temporary illumination of the dipped beam When the ignition is switched off, all headlamps after the vehicle's ignition has been of the lamps switch off automatically, switched off makes the driver's exit easier unless guide-me-home lighting is when the light is poor.
  • Page 69: Automatic Illumination Of Headlamps

    Visibility Automatic illumination of headlamps The sidelamps and dipped beam headlamps Association with the automatic are switched on automatically, without any "Guide-me-home" lighting action on the part of the driver, when a low level Association with the automatic illumination of of external light is detected or in certain cases headlamps provides "guide-me-home"...
  • Page 70: Led Lamps

    Visibility LEd lamps Headlamp adjustment Allowing the signature of the vehicle to be identified, this daytime external lighting comprises two sets of six light emitting diodes (LEDs), located below each front lamp unit. Programming For countries where exterior lighting by day is not a legal requirement, you can activate or deactivate the function via the multifunction screen configuration menu.
  • Page 71: Wiper Controls

    Visibility Wiper controls System for selection and control of the various Model with intermittent wiping Manual controls front and rear wiping modes for the elimination The wiper commands are issued directly by the of rain and cleaning. driver by means of the stalk A and the ring B. The vehicle's front and rear wipers are designed to improve the driver's visibility progressively according to the climatic...
  • Page 72 Visibility B. Rear wiper selection ring: Rear wiper Windscreen wash Pull the wiper stalk towards you. The windscreen wash, then the windscreen wipers, operate for a pre-determined time. park, intermittent wipe, wash-wipe (set duration). Reverse gear If a significant accumulation of snow or When reverse gear is engaged, the rear wiper ice is present, or when using a tailgate will come into operation if the windscreen...
  • Page 73 Visibility Automatic rain sensitive Vertical windscreen wiper windscreen wipers position The windscreen wipers operate automatically, It is accompanied by the indicator lamp without any action on the part of the driver, if in the instrument panel going off and a rain is detected (sensor behind the rear view message in the multifunction screen.
  • Page 74: Courtesy Lamps

    Visibility Courtesy lamps Selection and control of the various passenger compartment lamps. Central or rear courtesy lamps In this position, the courtesy lamp In permanent lighting mode, the lighting duration comes on gradually: varies, according to the circumstances: with the ignition off, approximately ten minutes, when the vehicle is unlocked, in energy economy mode, approximately when the key is removed from the ignition,...
  • Page 75: Interior Mood Lighting

    Visibility Interior mood lighting boot lamp The dimmed passenger compartment lighting improves visibility in the vehicle when the light is poor. Switching on at night, the illumination of the central dashboard storage compartment comes on automatically when the sidelamps are switched on.
  • Page 76: Interior Fittings

    Fittings Interior fittings Sun visor 2. Illuminated glove box (see details on following page) 3. Door pockets 4. Upper storage compartment 5. Lower storage compartment with non-slip mat 6. USB port / Auxiliary socket (see details on following page) Coin holder 12 V accessory socket (see details on following page) 8.
  • Page 77: Sun Visors

    Fittings Zenith Windscreen Blind Sun visors System comprising a panoramic tinted glass F To open the blind, take it by its central F Lower the sun visors to avoid dazzle. area to increase lighting and vision in the cabin. grip A, then pull it backwards and guide it Fitted with a manual blind to improve thermal to the desired position.
  • Page 78: Sun Visor

    Fittings Sun visor Illuminated glove Centre armrest Comfort and storage system for the driver and Component which protects against sunlight front passenger. from the front or the side. Storage This can be used to hold a water bottle. Version without Zenith windscreen Its lid has a location for storing the vehicle's The sun visors are fitted with a courtesy mirror, F For access to the closed storage box, lift...
  • Page 79: Auxiliary Socket

    Fittings auxiliary socket USb Player 12 V accessory socket The auxiliary socket is located in the "AUX" box The USb port is located in the "AUX" box on on the centre console. the centre console. It permits the connection of a portable device, It permits the connection of a portable device, such as a digital audio player of the iPod type,...
  • Page 80 Fittings Storage drawer Mats Removable carpet protection. Refitting To refit the mat on the driver's side: F position the mat correctly, F refit the fixings by pressing, F check that the mat is secured correctly. The storage drawer is located under the driver's seat.
  • Page 81: Boot Fittings

    Fittings Boot fittings Rear parcel shelf (see following page for details) 2. Hooks (see following page for details) 3. Location for Hi-Fi amplifier 4. Stowing rings 5. Storage box (version equipped with a temporary puncture repair kit) (see following page for details) Tool box (version equipped with a spare wheel) (refer to section "Practical Information -...
  • Page 82: Storage Box

    Fittings Rear parcel shelf Hooks Storage box To remove the shelf: The hooks can be used to hold shopping bags. F Raise the boot carpet by pulling the strap F unhook the two cords, upwards to gain access to the storage box. F raise the shelf slightly, then unclip it on This has areas for storing a temporary puncture each side.
  • Page 83 Child safety General points relating to child seats Although one of CITROËN main criteria when designing your vehicle, the safety of your children also depends on you. For maximum safety, please observe the CITROËN recommends that children following recommendations: should travel on the rear seats of your in accordance with European regulations, vehicle: all children under the age of 12 or less...
  • Page 84 Child safety Child seat at the rear "Rearward facing" "Forward facing" Centre rear seat A child seat with a support leg must never be installed on the centre rear passenger seat. When a "rearward facing" child seat is installed When a "forward facing" child seat is installed on a rear passenger seat, move the vehicle's on a rear passenger seat, move the vehicle's front seat forwards and straighten the backrest...
  • Page 85 Child safety Child seat in the front* "Rearward facing" "Forward facing" When a "rearward facing" child seat is installed When a "forward facing" child seat is installed Passenger seat adjusted to the intermediate on the front passenger seat, adjust the seat to on the front passenger seat, adjust the longitudinal position.
  • Page 86 Child safety deactivating the passenger's front airbag The warning label present on both sides of the Never install a rearward facing child passenger's sun visor repeats this advice. In restraint system on a seat protected by line with current legislation, the following tables an active front airbag.
  • Page 87 Child safety bG НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това може да причини СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето. CS NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí nebezpečí...
  • Page 88 Child safety MT Qatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla nL Plaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de airbag kan het KIND LEVENSGEVAARLIJK GEWOND RAKEN no Installer ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE, baRnET risikerer å...
  • Page 89 Child safety Installing child seats attached using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) in accordance with the weight of the child and the seat in the vehicle. Weight of the child and indicative age Under 13 kg From 9 to 18 kg...
  • Page 90: Isofix Mountings

    Child safety "ISoFIX" mountings Your vehicle has been approved in accordance To secure the child seat to the top tether: with the latest ISOFIX regulation. remove and stow the head restraint before The seats, represented below, are fitted with installing the child seat on this seat (refit it regulation ISoFIX mountings: once the child seat has been removed), pass the child seat strap over the top of...
  • Page 91: Rear Seats

    Child safety Installing ISoFIX child seats In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with ISoFIX mountings. In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter between A and G, is indicated on the child seat next to the ISoFIX logo.
  • Page 92: Installing A Booster Seat

    Child safety advice on child seats The incorrect installation of a child seat in a For optimum installation of the "forward- Installing a booster seat vehicle compromises the child's protection in facing" child seat, ensure that the back of the event of an accident. the child seat is as close as possible to the Ensure that there is no seat belt or seat belt backrest of the vehicle's seat, in contact if...
  • Page 93 Child safety Manual child lock Electric child lock Mechanical system to prevent opening of the Remote control system to prevent opening of Deactivation rear door using its interior control. the rear doors using their interior controls and F Press the button again. The control is located on the edge of each rear use of the rear electric windows.
  • Page 94: Direction Indicators

    Safety direction indicators Hazard warning lamps Selection of the left or right direction indicators A visual warning by means of the direction Automatic operation of to signal a change of direction of the vehicle. indicators to alert other road users to a vehicle hazard warning lamps breakdown, towing or accident.
  • Page 95: Emergency Or Assistance Call

    Safety Horn Emergency or assistance call Audible warning to alert other road users to an imminent danger. This system allows you to make an emergency F Press one of the spokes of the steering or assistance call to the emergency services or wheel.
  • Page 96 Safety Tyre under-inflation detection System which automatically checks the pressure of the tyres while driving. The system monitors the pressures on the four The under-inflation detection system The inflation pressures defined for tyres, once the vehicle is moving. your vehicle can be found on the tyre does not replace the vigilance or the It compares the information given by the four pressure label.
  • Page 97 Safety Under-inflation alert Reinitialisation This is given by fixed illumination of F In the event of a puncture, use the It is necessary to reinitialise the system every this warning lamp, accompanied by temporary puncture repair kit or the spare time one or more tyre pressure is adjusted, and an audible signal and, depending on wheel (depending on equipment),...
  • Page 98 Safety Reinitialisation of the system must be done with the ignition on and the vehicle stationary: in the vehicle configuration menu for vehicle fitted with a display screen, using the button on the dashboard, for vehicles without display screen. Monochrome screen A Monochrome screen C Colour screen F Press the MENU button for access to the...
  • Page 99 Safety Operating fault The under-inflation alert is only dependable if the system has been reinitialised with all four tyres inflated to The flashing and then fixed illumination of the the correct pressures. under-inflation warning lamp accompanied by illumination of the Service warning lamp indicates a fault with the system.
  • Page 100: Braking Assistance Systems

    Safety braking assistance systems Group of supplementary systems which help Emergency braking assistance you to obtain optimum braking in complete System which, in an emergency, enables you Operating fault safety in emergency situations: to obtain the optimum braking pressure more anti-lock braking system (abS), If this warning lamp comes on, quickly, thus reducing the stopping distance.
  • Page 101: Trajectory Control Systems

    Safety Trajectory control systems Anti-slip regulation (ASR) Operating fault and dynamic stability If this warning lamp comes on, control (DSC) accompanied by an audible signal and a message in the screen, this The anti-slip regulation (also known as traction indicates a fault with these systems. control) optimises traction to prevent skidding Have it checked by a CITRoËn of the wheels, by acting on the brakes of the...
  • Page 102: Seat Belts

    Safety Seat belts Front seat belts Rear seat belts The front seat belts are fitted with a The rear seats are each fitted with a three-point Fastening pretensioning and force limiting system. inertia reel seat belt. F Pull the strap, then insert the tongue in the This system improves safety in the front buckle.
  • Page 103 Safety The driver must ensure that passengers use In order to be effective, a seat belt must: Recommendations for children the seat belts correctly and that they are all be tightened as close to the body as Use a suitable child seat if the passenger is restrained securely before setting off.
  • Page 104: Glove Box

    Safety airbags System designed to contribute towards Front airbags improving the safety of the occupants (with System which protects the driver and front Impact detection zones the exception of the rear centre passenger) passenger in the event of a serious front impact in the event of violent collisions.
  • Page 105 Safety Deactivation Operating fault only the passenger's front airbag can be If this warning lamp comes on in the To assure the safety of your child, deactivated: instrument panel, accompanied by the passenger's front airbag must F with the ignition off, insert the key in the an audible warning and a message be deactivated when you install a passenger airbag deactivation switch,...
  • Page 106: Lateral Airbags

    Safety Lateral airbags Curtain airbags System which protects the driver and front System which contributes towards improving Impact detection zones passenger in the event of a serious side impact the protection of the driver and passengers in order to limit the risk of injury to the chest, (with the exception of the rear centre between the hip and the shoulder.
  • Page 107 Safety Front airbags For the airbags to be fully effective, observe the following Do not drive holding the steering wheel by its spokes or resting your hands on the centre part safety rules: of the wheel. Sit in a normal upright position. Passengers must not place their feet on the dashboard.
  • Page 108: Parking Brake

    Driving Parking brake 6-speed manual gearbox Engaging 5 or 6 gear Engaging reverse gear F Move the lever fully to the right to engage or 6 gear. Failure to follow this advice may cause permanent damage to the gearbox Applying (engagement of 3 or 4 gear by...
  • Page 109: Electronic Gearbox

    Driving Electronic gearbox Five or six-speed electronically controlled Gear lever Steering mounted controls gearbox which offers a choice between the comfort of automated operation or the pleasure of manual gear changing. Two driving modes are offered: automated mode for automatic control of the gears by the gearbox, without any action by the driver, manual mode for the sequential changing...
  • Page 110: Display In The Instrument Panel

    Driving Display in the instrument panel Moving off F Select position N. F Accelerate away. F Press the brake pedal fully. do not press the brake and clutch F Start the engine. pedals simultaneously. This can cause rapid clutch wear. You must keep your foot on the brake pedal while starting the engine.
  • Page 111: Manual Mode

    Driving Automated mode Manual mode F Select position A. F Select position M. Temporary control of gear changing AUTO and the gear engaged appear The gears engaged appear in in the instrument panel. succession in the instrument panel. You can temporarily take over control of gear changes using the steering mounted "+"...
  • Page 112 Driving Reverse To engage reverse, the vehicle must be When immobilising the vehicle with the In exceptional circumstances, the immobilised with your foot on the brake. engine running, you must put the gear gearbox may need an automatic F Select position R. lever into neutral (position N).
  • Page 113: Automatic Gearbox

    Driving automatic gearbox Four-speed automatic gearbox which offers a Gear lever Displays in the instrument panel choice between the comfort of fully automatic operation, enhanced by sport and snow programmes, or manual gear changing. There are therefore four driving modes: automatic operation for electronic management of the gears by the gearbox, sport programme for a more dynamic style...
  • Page 114: Automatic Operation

    Driving Moving off Automatic operation Sport and snow programmes F apply the parking brake. F Select position D for automatic changing These two special programmes supplement the F Select position P or N. of the four gears. automatic operation in very specific conditions F Start the engine.
  • Page 115: Manual Operation

    Driving Return to automatic Manual operation operation F at any time, press the button selected F Select position M for sequential changing Invalid value during manual again to quit the programme engaged and of the four gears. operation return to auto-adaptive mode. F Push the lever towards the + sign to This symbol is displayed if a gear change up a gear.
  • Page 116 Driving Stopping the vehicle Operating fault Before switching off the engine, you can engage When the ignition is on, the lighting There is a risk of damage to the position P or N to place the gearbox in neutral. of this warning lamp, accompanied gearbox: In both cases, apply the parking brake to by an audible signal and a message in the...
  • Page 117: Gear Shift Indicator

    Driving Gear shift indicator* System which reduces fuel consumption by advising the driver to change up. Example: With an electronic or automatic In the case of driving which makes You are in third gear. gearbox, the system is only active in particular demands on the performance manual mode.
  • Page 118: Stop & Start

    Driving Stop & Start The Stop & Start system puts the engine temporarily into standby - SToP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently. Perfect for urban use, the Stop &...
  • Page 119 Driving Deactivation Going into engine START Special cases: START invoked mode automatically For reasons of safety and for your comfort, The "ECO" warning lamp goes off START mode is invoked automatically when: and the engine starts: with a manual gearbox, when you you open the driver's door, depress the clutch pedal, you unfasten the driver's seat belt,...
  • Page 120 Driving Reactivation Operating fault Maintenance Press the "ECO OFF" switch again. before doing anything under the The system is active again; this is confirmed bonnet, deactivate the Stop & Start by the switch warning lamp going off, system to avoid any risk of injury accompanied by a message in the screen.
  • Page 121: Hill Start Assist

    Driving Hill start assist System which holds your vehicle temporarily Operation (approximately 2 seconds) when starting on a slope, the time it takes to move your foot from the brake pedal to the accelerator pedal. This function is only active when: the vehicle is completely stationary, with your foot on the brake pedal, certain conditions on a slope are met,...
  • Page 122: Speed Limiter

    Driving Speed limiter System which prevents the vehicle from Steering mounted controls Displays in the instrument panel exceeding the speed programmed by the driver. When the programmed speed limit is reached, pressing the accelerator pedal in the normal manner no longer has any effect. The speed limiter is switched on manually: it requires a programmed speed of at least 20 mph (30 km/h).
  • Page 123 Driving Programming Operating fault F Turn thumb wheel 1 to the "LIMIT" In the event of a speed limiter fault, the speed position: the speed limiter mode is cleared resulting in flashing of the dashes. is selected but is not switched Have it checked by a CITRoËn dealer or a on (PaUSE).
  • Page 124: Cruise Control

    Driving Cruise control System which automatically maintains the Steering mounted controls Displays in the instrument panel speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal. The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h), as well as the engagement of: fourth gear on a manual gearbox,...
  • Page 125 Driving Programming Operating fault F Turn thumb wheel 1 to the "CRUISE" In the event of a cruise control malfunction, position: the cruise control mode the speed is cleared resulting in flashing of the is selected but is not switched dashes.
  • Page 126: Rear Parking Sensors

    Driving Rear parking sensors System consisting of four proximity sensors, Activation located in the rear bumper. The system is activated as soon as reverse gear is engaged, accompanied by an audible This detects any obstacle (person, vehicle, signal. The proximity information is given by: tree, gate, etc.) behind the vehicle, except an audible signal, which becomes more obstacles located just below the bumper.
  • Page 127: Operating Faults

    Driving Programming Operating faults You can activate or deactivate the system by means of the multifunction screen configuration If there is an operating fault, when menu. The system state is memorised when reverse gear is engaged this switching off the ignition. warning lamp comes on in the For more information on access to the parking instrument panel, accompanied...
  • Page 128: Reversing Camera

    Driving Reversing camera a reversing camera is activated automatically The space between the blue lines represents The blue lines represent the general direction when reverse gear is engaged. the width of your vehicle except for the door of the vehicle. The colour image is provided in the navigation mirrors.
  • Page 129 Checks bonnet Protects the components of the engine and provides access for checking levels. Opening Closing F Unclip the bonnet stay C from its housing, F Take the stay out of the support notch. before doing anything under the holding it by its foam protection. F Clip the stay in its housing.
  • Page 130: Running Out Of Fuel

    Checks Running out of fuel (diesel) If your vehicle is fitted with an HDI engine, the fuel system must be primed if you run out of fuel. This system consists of a priming pump and a transparent pipe under the bonnet. F Fill the fuel tank with at least five litres of diesel.
  • Page 131: Petrol Engines

    Checks Petrol engines Screenwash fluid reservoir. 2. Coolant header tank. 3. air filter. 4. brake fluid reservoir. 5. battery. 6. Fusebox. Engine oil dipstick. 8. Engine oil filler cap.
  • Page 132: Diesel Engines

    Checks diesel engines Screenwash fluid reservoir. 2. Coolant header tank. 3. air filter. 4. brake fluid reservoir. 5. battery. 6. Fusebox. Engine oil dipstick. 8. Engine oil filler cap. Priming pump (on fuel filter).
  • Page 133: Checking Levels

    Checks Checking levels Check all of these levels regularly, in line with the maintenance and warranty guide. Top them up if necessary, unless otherwise indicated. If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop. Checking using the dipstick Take care when working under the bonnet, as certain areas of the engine...
  • Page 134: Brake Fluid Level

    Checks Brake fluid level The brake fluid level should be close Topping up the engine oil level Engine oil change to the "MaX" mark. If it is not, check Refer to the "Petrol engine" or "diesel engine" Refer to the maintenance and warranty guide the brake pad wear.
  • Page 135: Coolant Level

    Checks Coolant level Screenwash fluid level Used products Top up the level when necessary. avoid prolonged contact of used oil or The coolant level should be close fluids with the skin. to the "MaX" mark but should never Most of these fluids are harmful to exceed it.
  • Page 136: Oil Filter

    Checks Checks Unless otherwise indicated, check these components in accordance with the maintenance and warranty guide and according to your engine. Otherwise, have them checked by a CITROËN dealer or a qualified workshop. 12 V battery Air filter and passenger compartment filter Particle emission filter (Diesel) The battery does not require any maintenance.
  • Page 137: Manual Gearbox

    Checks Manual gearbox Brake pads only use products recommended by CITRoËn or products of equivalent The gearbox does not require any Brake wear depends on the style quality and specification. maintenance (no oil change). of driving, particularly in the case In order to optimise the operation of Refer to the maintenance and of vehicles used in town, over short...
  • Page 138: Temporary Puncture Repair Kit

    Practical information Temporary puncture repair kit Complete system consisting of a compressor Access to the kit Composition of the kit and a sealant cartridge which permits temporary repair of a tyre so that you can drive to the nearest garage. It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder.
  • Page 139: Repair Procedure

    Practical information Repair procedure F Switch off the ignition. F Uncoil the pipe stowed under the F Remove the valve cap from the tyre to be F Secure the speed limit sticker inside the compressor. repaired, and place it in a clean area. vehicle.
  • Page 140 Practical information If after around 5 to 7 minutes the pressure is not attained, this indicates that the tyre is not repairable; contact a CITRoËn dealer or a qualified workshop for assistance. F Check that the compressor switch is at the F Start the compressor by placing the switch Take care, the sealant product "O"...
  • Page 141: Checking / Adjusting Tyre Pressures

    Practical information Checking / adjusting tyre pressures You can also use the compressor, without F Place the switch in the "O" position. F Check that the compressor switch is at the injecting sealant, to check and if necessary F Remove the kit. "O"...
  • Page 142 Practical information Tyre under-inflation detection After repair of the tyre, the warning lamp will remain on until the system is reinitialised. For more information, refer to the "Under-inflation detection" section. F Start the compressor by placing the switch Should the pressure of one or more at the "I"...
  • Page 143: Changing A Wheel

    Practical information Changing a wheel Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle. Access to the tools List of tools all of these tools are specific to your vehicle. do not use them for other purposes. Wheelbrace.
  • Page 144 Practical information Access to the spare wheel Wheel with trim Fitting the steel or "space- saver" type spare wheel When removing the wheel, first If your vehicle is fitted with alloy wheels, detach the trim using the wheelbrace 1 it is normal to notice, when tightening pulling at the valve passage hole.
  • Page 145 Practical information Taking out the wheel Putting the wheel back in place F Unscrew the yellow central bolt. F Put the wheel back in its housing. F Put the box back in place in the centre of the wheel and clip it. F Raise the spare wheel towards you from F Unscrew the yellow central bolt by a few F Put the polystyrene storage box back in...
  • Page 146: Removing A Wheel

    Practical information Removing a wheel Parking the vehicle Immobilise the vehicle where it does not block traffic: the ground must be level, stable and not slippery. Apply the parking brake, switch off the ignition and engage first gear* to lock the wheels.
  • Page 147 Practical information F Position the foot of the jack 2 on the F Raise the vehicle until there is sufficient Ensure that the jack is stable. If the ground, ensuring that it is directly below the space between the wheel and the ground ground is slippery or loose, the jack front A or rear B jacking points provided on to admit the spare (not punctured) wheel...
  • Page 148: Fitting A Wheel

    Practical information Fitting a wheel After changing a wheel To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" type temporary use spare wheel, do not exceed 50 mph (80 km/h). Have the tightening of the bolts and the pressure of the spare wheel checked by a CITRoËn dealer or a qualified workshop without delay.
  • Page 149 Practical information F Lower the vehicle fully. F Tighten the security bolt (if your vehicle has F Fold the jack 2 and detach it. them) using the wheelbrace 1 fitted with the security bolt socket 4. F Tighten the other bolts using the wheelbrace 1 only.
  • Page 150: Snow Chains

    Practical information Snow chains In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking. Use only the chains designed to be fitted to the Advice on installation The snow chains must be fitted only type of wheel fitted to your vehicle: to the front wheels.
  • Page 151: Changing A Bulb

    Practical information Changing a bulb Front lamps The headlamps are fitted with Changing a bulb should only be done polycarbonate glass with a protective after the headlamp has been switched coating: off for several minutes (risk of serious burns). F do not clean them using a dry F Do not touch the bulb directly with or abrasive cloth, nor with a your fingers, use a lint-free cloth.
  • Page 152 Practical information Changing direction indicator Changing dipped beam headlamp bulbs bulbs F Remove the protective cover by pulling the amber coloured bulbs, such as the Rapid flashing of the direction indicator tab. direction indicators, must be replaced warning lamp (right or left) indicates the F disconnect the bulb connector.
  • Page 153 Practical information Changing main beam headlamp Changing sidelamp bulbs bulbs F Remove the protective cover by pulling on F Remove the protective cover by pulling on the tab. the tab. F Pull the bulb holder pressing on the tabs on F disconnect the bulb connector.
  • Page 154 Practical information Changing integrated direction Changing front foglamp bulbs indicator side repeaters F access to the front foglamp is through the F Insert a screwdriver towards the centre of aperture below the bumper. To obtain a replacement module, the repeater between the repeater and the F disconnect the black bulb holder contact your CITRoËn dealer or a base of the door mirror.
  • Page 155: Rear Lamps

    Practical information Rear lamps Brake / sidelamps (P21/5W). Changing bulbs 2. Direction indicators (PY21W amber). These four bulbs are changed from inside the 3. Foglamp, right-hand side (PR21W red) boot: Reversing lamp, left-hand side (P21W). F open the boot, F spread the four tabs and remove the bulb F remove the access flap from the holder, corresponding side trim panel,...
  • Page 156 Practical information Changing the number plate lamp Third brake lamp bulbs (W5W) (4 W5W bulbs) F Insert a thin screwdriver into one of the F open the boot. outer holes of the lens. F Remove the plugs A on the inner panel. F Push it outwards to unclip.
  • Page 157: Interior Lighting

    Practical information Interior lighting Boot lamp (W5W) Central storage lamp (W5W) Interior lamp (1 / W5W) Unclip the unit by pushing it from the rear. Unclip the cover of the interior lamp 1 with a Unclip the lamp to access the bulb. thin screwdriver, close to the button, to access the faulty bulb.
  • Page 158: Changing A Fuse

    Practical information Changing a fuse Procedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function. Access to the tools Changing a fuse Installing electrical before changing a fuse, the cause of the failure accessories must be identified and rectified.
  • Page 159 Practical information Dashboard fusebox The fusebox is located in the lower dashboard (left-hand side). Fuse tables Fuse N° Rating Functions Trailer relay unit. FH36 not used. FH37 Hi-Fi amplifier. FH38 20 A Heated seats. FH39 20 A Trailer relay unit. FH40 40 A Fuse N°...
  • Page 160 Practical information Fuse N° Rating Functions Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm 20 A siren, audio system (after-market), 12 V socket, portable navigation carrier power supply. Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm 30 A siren, audio system (after-market), 12 V socket, portable...
  • Page 161 Practical information Engine compartment fusebox The fusebox is located in the engine compartment near the battery (left-hand side). Access to the fuses F Unclip the cover. F Change the fuse (see corresponding paragraph). F When you have finished, close the cover carefully to ensure correct sealing of the All work on the fuses in the fusebox fusebox.
  • Page 162 Practical information Fuse table Fuse N° Rating Functions Engine control unit supply, cooling fan unit control relay, 20 A multifunction engine control main relay, injection pump (diesel). Horn. 15 A Front / rear wash-wipe. 10 A daytime running lamps, LEd daytime running lamps. 20 A diesel heater (diesel), particle filter additive pump (diesel), air flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater...
  • Page 163 Practical information Fuse N° Rating Functions Windscreen wipers slow / fast speed. 30 A built-in systems interface supply (ignition positive). 40 A Valvetronic supply (VTi). 30 A Right-hand main beam headlamps. 10 A Left-hand main beam headlamps. 10 A Left-hand dipped beam headlamps. 15 A Right-hand dipped beam headlamps.
  • Page 164 Practical information Table of maxi-fuses Fuse N° Rating Functions Fan assembly. MF1* 60 A abS / ESP pump. MF2* 30 A abS / ESP electrovalves. MF3* 30 A built-in Systems Interface (bSI) supply. MF4* 60 A built-in Systems Interface (bSI) supply. MF5* 60 A not used.
  • Page 165 Practical information battery Procedure for charging your battery when it is flat or for starting the engine using another battery. Access to the battery after refitting the battery by a CITRoËn dealer or a qualified workshop, the Stop & Start system will only be active after a continuous period of immobilisation of the vehicle, a period which depends on the climatic...
  • Page 166: Starting Using Another Battery

    Practical information Starting using another Charging the battery using battery a battery charger When the battery on your vehicle is discharged, F Follow the instructions for use provided by the engine can be started using a slave battery the manufacturer of the charger. (external or on another vehicle) and jump leads.
  • Page 167 Practical information Protect your eyes and face before do not push the vehicle to start the handling the battery. engine if you have an electronic all operations on the battery must be gearbox or automatic gearbox. carried out in a well ventilated area away from naked flames and sources of sparks, so as to avoid the risk of explosion and fire.
  • Page 168: Energy Economy Mode

    Practical information Load reduction mode Energy economy mode System which manages the use of certain System which manages the period of use of Exiting economy mode functions according to the level of charge certain functions to conserve a sufficient level These functions are reactivated automatically remaining in the battery.
  • Page 169 Practical information Changing a front or rear wiper blade Procedure for replacing a worn wiper blade with a new one without the use of tools. Before removing a front Fitting wiper blade F At the front, check the size of the wiper blade as the shorter blade is fitted to the F Within one minute after switching off the passenger side of the vehicle.
  • Page 170: Towing The Vehicle

    Practical information Towing the vehicle Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye. Access to the tools General recommendations observe the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
  • Page 171: Towing Your Vehicle

    Practical information Towing your vehicle Towing another vehicle F on the front bumper, unclip the cover by F Unlock the steering by turning the key one F on the rear bumper, unclip the cover by pressing at the bottom. notch in the ignition switch and release the pressing at the bottom.
  • Page 172: Towing A Trailer

    Practical information Towing a trailer Your vehicle is primarily designed for Driving advice transporting people and luggage, but it may also be used for towing a trailer. Distribution of loads F distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted without exceeding...
  • Page 173 Practical information Cooling Braking Towing a trailer on a slope increases the Towing a trailer increases the braking distance. temperature of the coolant. To avoid overheating of the brakes on a long as the fan is electrically controlled, its cooling mountain type of descent, the use of engine capacity is not dependent on the engine speed.
  • Page 174 Practical information audio pre-equipment Your vehicle is equipped with certain factory- Fitting an audio unit Fitting speakers fitted audio equipment: The audio unit is fitted in place of one of the It is possible to fit: a dual-function aerial at the rear of the roof, storage boxes located below the heating and 165 mm diameter speakers in the front a coaxial aerial cable,...
  • Page 175 Practical information Connector lines Never use a separate wire to connect (+) Right hand rear speaker the (+) of your audio equipment (risk of (+) Right hand front speaker and tweeter discharging of the battery). (+) Left hand front speaker and tweeter (+) Left hand rear speaker (-) Right hand rear speaker (-) Right hand front speaker and tweeter...
  • Page 176 Technical data dimensions (in mm)
  • Page 177: Identification Markings

    Technical data Identification markings Various visible markings for the identification of your vehicle. D. Tyre/paint label. This label is affixed to the left hand centre pillar. It bears the following information: the tyre pressures, laden and unladen, the tyre sizes (including the load index and speed rating for the tyre), the tyre pressure for the spare wheel, the paint colour code.
  • Page 178: Table Of Contents

    Visual search Exterior Remote control key 53-56 Wiper controls 71-73 opening/closing anti-theft protection Changing a wiper blade starting battery accessories 179-180 boot door mirrors Temporary puncture repair kit 141-145 Changing a wheel 146-152 tools removing/refitting Lighting controls 66-70 Headlamp adjustment Changing bulbs 154-157 front lamps...
  • Page 179 Visual search Interior Front seats 48-49 boot fittings 81-82 rear parcel shelf hooks stowing rings airbags 106-109 ISoFIX mountings 91-93 audio pre-equipment 177-178 Rear seats Interior fittings 76-80 auxiliary sockets centre armrest Child seats 83-90 Glove box deactivating the passenger's airbag 86, 107 Seat belts...
  • Page 180 Visual search Instruments and controls Rear view mirror Zenith windscreen blind Scented air freshener Instrument panels 10-11 Sun visor Warning lamps 12-21 Indicators 22-24 adjustment buttons 25-26 Wiper controls 71-73 trip distance recorder /clock Trip computer 27-29 lighting dimmer/ black panel Multifunction screens 30-38 Hazard warning lamps...
  • Page 181 Visual search Technical data - Maintenance Petrol engines 181-183 LPG engines 184-185 diesel engines 186-189 dimensions Identification markings Running out of diesel battery 168-170 Energy economy mode Checking levels 136-138 brake fluid coolant screenwash fluid additive (Diesel with particle emissions filter) Engine compartment fuses 161, 164-167...
  • Page 182 This handbook describes all of the equipment For any work on your vehicle, use a qualified available in the whole range. workshop that has the technical information, competence and equipment required, which a Your vehicle will be fitted with some of this CITRoËn dealer is able to provide.
  • Page 183 14.C3.0040 anglais 2014 – DOCUMENTATION DE BORD 4Dconcept Diadeis Entagos CRÉATIVE TECHNOLOGIE...

Table of Contents

Save PDF
