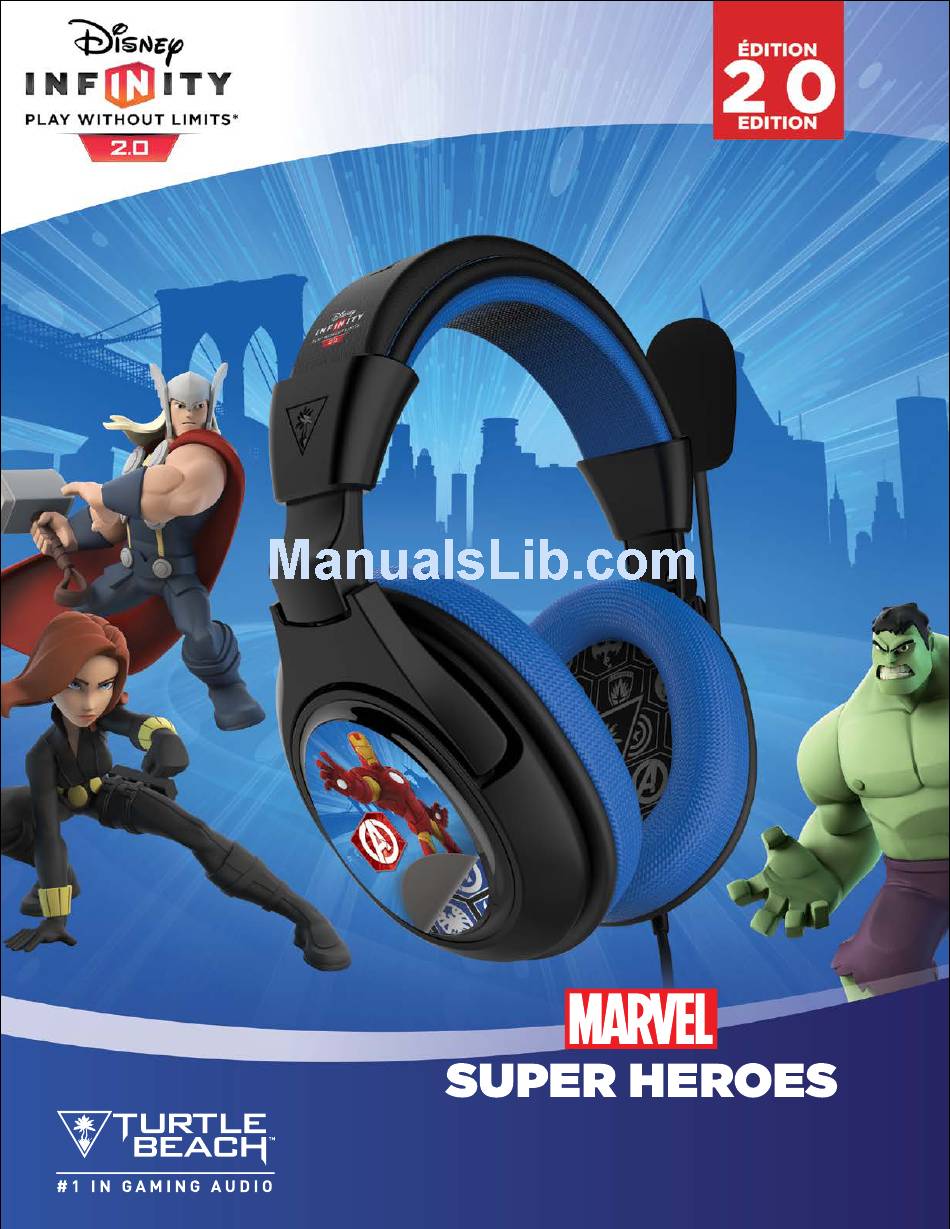

- Page 1 Officially Licensed Stereo Gaming Headset FOR / POUR: Xbox 360 | PS4™ | Wii U™ | PC | Mac | Mobile Gaming USER GUIDE...
- Page 2 DISNEY INFINITY: MARVEL SUPER HEROES MULTIPLATFORM STEREO GAMING HEADSET Power Up your sound with the Disney Infinity: Marvel Super Heroes Multiplatform Stereo Gaming Headset! Get massive sound from 50mm speakers to match the huge levels and incredible gameplay along with clear chat and unmatched comfort for a heroic gaming experience.
- Page 3 Package Contents For our Knowledgebase and Technical Support please visit turtlebeach.com/support Marvel Super Heroes Headset In-line Amplifier RCA Splitter Cable with In-line Amplifier Xbox 360 Chat Cable Turtle Beach Sticker Decals ® Go to Table of Contents...
-
Page 4: Table Of Contents
Table of Contents About the Marvel Super Heroes Using the In-Line Amplifier Xbox 360 Setup PS4 Setup Wii U Setup PC Setup Mac Setup Mobile Setup Using your Decals Troubleshooting Tips Specifications... -
Page 5: About The Marvel Super Heroes P5
About the Marvel Super Heroes Super power your sound with the Disney Infinity: Marvel Super Heroes Stereo Gaming Headset! Get massive sound to match the huge levels and incredible gameplay along with clear chat and unmatched comfort for a heroic gaming experience. -
Page 6: Using The In-Line Amplifier P6
Using the In-Line Amplifier Chat Volume Control Game Volume Control Headset Connection Xbox 360 Chat Connection BASS BOOST MUTE-MIC-ON Mic Mute Indicator LED Bass Boost Control Mic Mute Switch Chat Volume Control Controls the level of incoming chat audio from your Xbox 360. Game Volume Control Controls the level of game audio from your Xbox 360. -
Page 7: Xbox 360 Setup P7
Xbox 360 Setup The Disney Infinity Marvel Super Heroes Headset can be set up a variety of ways to match different Xbox 360 Console Versions and A/V Connections. Check the following pages for the set-up that most closely resembles your home gaming system. -
Page 8: Go To Table Of Contents
Xbox 360 Setup Xbox 360® A/V Setup Audio In White White Yellow Yellow Xbox 360® AV Cable Pink (not used) Green BASS BOOST MUTE-MIC-ON Go to Table of Contents... - Page 9 Xbox 360 Setup Xbox 360 E HDMI Setup HDMI HDMI Cable Pink (not used) Green BASS BOOST MUTE-MIC-ON Go to Table of Contents...
-
Page 10: Go To Table Of Contents
Xbox 360 Setup Xbox 360 E RCA Setup Audio In White White Yellow Yellow Green Pink (not used) Xbox 360® AV Cable BASS BOOST MUTE-MIC-ON Go to Table of Contents... -
Page 11: Go To Table Of Contents
Xbox 360 Setup Xbox 360® Chat Setup BASS BOOST MUTE-MIC-ON Voice Press Xbox Guide button Voice volume Game volume Mute Kinect Voice Output Play Through Headset Play Through Speakers Play Through Both Select Settings > Preferences > Voice. Set Voice Volume to 10. Set Game Volume to 10. -
Page 12: Ps4 Setup P12
PS4 Setup Connect your headset directly to the PS4 Controller. Make sure the connection is secure for best performance. If prompted on-screen, select the PSN Account you are currently using, otherwise certain chat functions will not work correctly. 1. Go to Settings » Sound and Screen » Audio Output Settings »... -
Page 13: Go To Table Of Contents
PS4 Setup 3. Go to Settings Audio Devices » Devices » Audio Devices Volume Control (Headphones) » Headsets and Headphones Microphone Level » Volume Control (Headphones) 4. Turn up the volume level to your preference. Enter Back User 1 5. Go to Settings Microphone Level »... -
Page 14: Wii U Setup P14
Wii U Setup Connect your headset directly to the Wii U Gamepad. Make sure the connection is secure and the Wii U will automatically detect your headset, no setup necessary! Front View Top View Go to Table of Contents... -
Page 15: Pc Setup P15
PC Setup The Disney Infinity Marvel Super Heroes Headset with In-Line Amplifier is compatible with Windows PCs that have separate Green (Audio) and Pink (Microphone) Headset connections. The USB is used for power only. If your PC uses a single Headset Jack, we suggest connecting your headset directly without the In-Line Amplifier. (See Mac Setup for connection Diagram) BASS BOOST MUTE-MIC-ON... -
Page 16: Mac Setup P16
Mac Setup Connect your headset directly to the Headset Jack on your Mac. Make sure the connection is secure and your Mac will automatically detect your headset, no setup necessary. Note: When using a headset in third-party Applications it may be necessary to configure additional settings. Go to Table of Contents... -
Page 17: Mobile Setup P17
Mobile Setup Make sure the headset is connected firmly to your Mobile Device. All audio will be routed to your headset automatically and the mic will be used for all voice apps/phone calls. Go to Table of Contents... - Page 18 Decals Note: Just place your chosen character decal right onto your earcups here. Be sure to remove any previous decal before applying a new one. Go to Table of Contents...
- Page 19 Troubleshooting Tips If.. Then.. • Connect the USB plug from the in-line amplifier to a USB port on your console. • Make sure the headset is plugged all the way into the device it is being used with. The headset’s metal plug should not be showing when it is connected firmly.
- Page 20 Specifications · Speakers 50mm with Neodymium Magnets (32Ω) · Frequency Response 20Hz – 20KHz 120dB @ 1KHz · Headphone Amplifier Stereo (35mW/Ch) · Earpad Design Over-Ear (Closed) · Earpad Material Fabric (Black) with Foam Cushion · Bass Boost Variable up to +12dB@150Hz Go to Table of Contents...
- Page 21 Important Safety Information To avoid potential damage to the device, always disconnect all cables before transporting it. WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing.
- Page 22 Regulatory Compliance Statements for the Disney Infinity Federal Communications Commission (FCC) Compliance Notices Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 23: Declaration Of Conformity
Declaration of Conformity Marking by this symbol: indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11 + A1 + A12 (T-Mark License) Also Licensed for Standards: IEC 60950-1: 2005 + A1: 2009, (CB Scheme Report/Certificate), UL60950-1 (NRTL License), CSA22.2, 60950-1 (SCC License) - Page 24 WARRANTY SERVICE: In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local Interna- tional Distributors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor’s policy.
- Page 25 EXCLUSIONS FROM LIMITED WARRANTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - is modified or tampered with;...
- Page 26 © 2014 Voyetra Turtle Beach, Inc. (VTB, Inc) All rights reserved. TURTLE BEACH, The Palm Tree, Voyetra and Ear Force are either trademarks or registered trademarks of VTB, Inc. Skype is a trademark owned by its respective company. This service may not be available in some countries where this product is sold.
