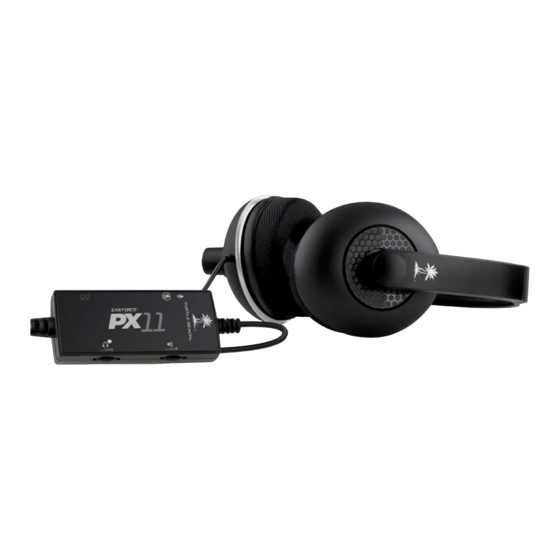

Turtle Beach Era force PX 11 User Manual

Universal stereo gaming headset

Hide thumbs

Table Of Contents

WIRED

For: PS3

I Xbox 360

™

PC I Mac

Universal stereo GaminG Headset

User Guide

Table of Contents

Need help?

Do you have a question about the Era force PX 11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Turtle Beach Era force PX 11

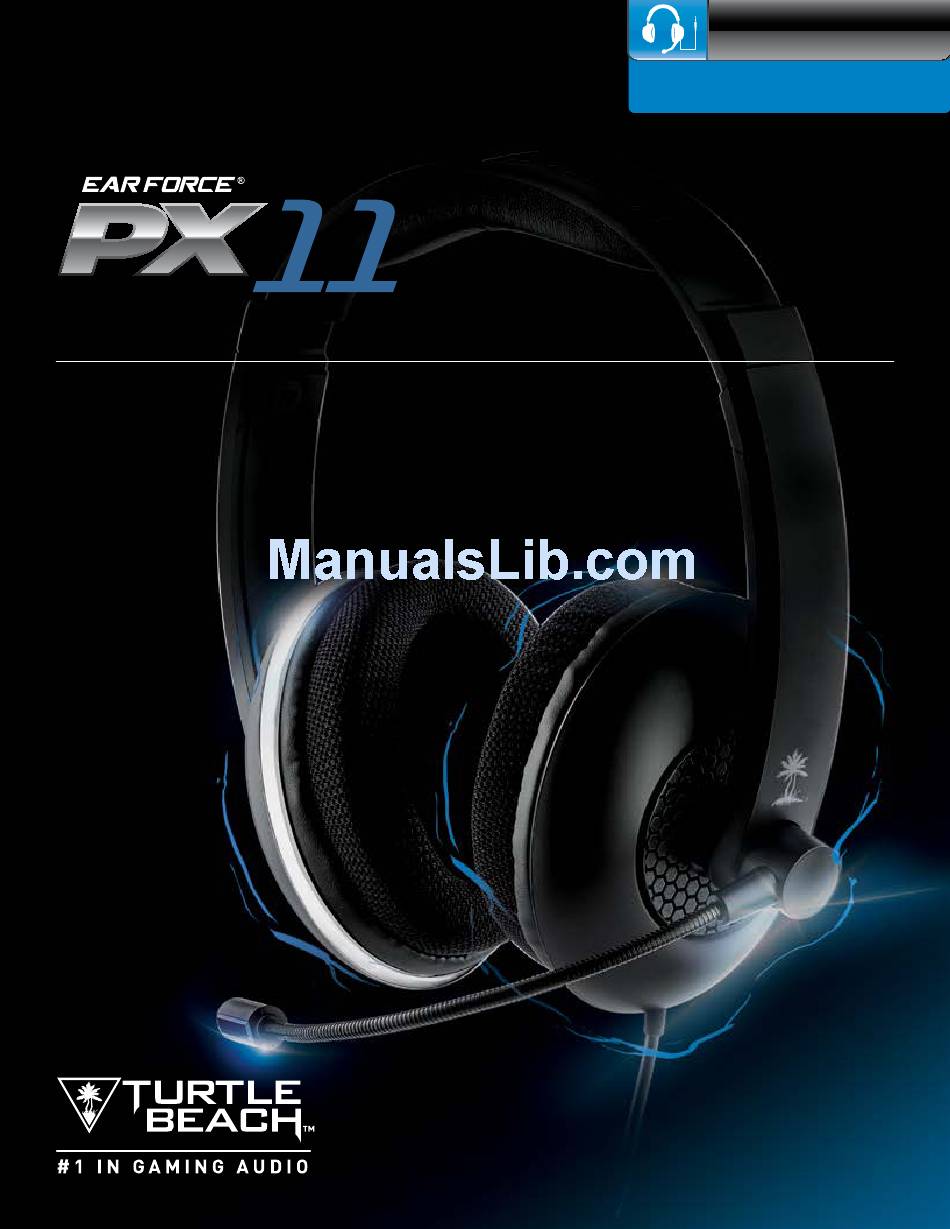

Page 1 WIRED For: PS3 I Xbox 360 ™ ® PC I Mac ® Universal stereo GaminG Headset User Guide...
Page 2 Congratulations on your purchase of the Ear Force PX11 headset from Turtle Beach. The PX11 works with your consoles, PC or Mac . Welcome to the Turtle Beach Audio Advantage! For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support...
Page 3: Table Of Contents
table of Contents Package Contents Features Amplifier Function Map / Use Hardware Setup (HDMI / RCA) ™ Using your PX11 Headset on PS3 ™ Xbox 360 Hardware Setup (HDMI / RCA) ® Using your PX11 Headset on Xbox 360 ® PC / Mac Hardware Setup ®...
Page 4: Package Contents P4
# 1 I N G A M I N G A U D I O Quick Start Guide For the full user guide please go to www.turtlebeach.com/products/PX11 Turtle Beach Stickers Quick Start Guide RCA Splitter Cable *For best Xbox chat performance, use with official Microsoft Xbox 360 products.
Page 5: Features P5
Features Features · Bass Boost: Bumped-up bass guarantees you feel every bone-jarring thud. · Independent Volume Controls: Adjust incoming chat audio separately from game audio. · Microphone Monitor: Lets you hear what you’re saying while communicating with others. · USB Powered: No need for batteries.
Page 6: Amplifier Function Map / Use P6
amplifier Function map / Use Inline Amplifier mic switch: mic on mic mute Game volume Control mic indicator Green=on red=mute Chat volume Control Xbox 360® talkback Cable Jack...
Page 7: Ps3 ™ Hardware Setup (Hdmi / Rca) P7
Hardware setup Hdmi / rCa ™ Setup (HDMI) ™ Inline Amplifier USB Power Headset Green RCA Splitter Cable (Green) Audio: Red / White...
Page 8 Hardware setup Hdmi / rCa ™ Setup (HDMI) ™ Headset Inline Amplifier USB Power *PS3 AV Cable (Green) **HDMI RCA Splitter Cable Audio: Red / White *PS3 AV cable is included with your console. It’s not necessary to connect the PX11 RCA Splitter Cable to the TV itself, since the HDMI **HDMI cable sold separately.
Page 9 Hardware setup Hdmi / rCa ™ Setup (RCA) ™ Inline Amplifier USB Power Headset Green RCA Splitter Cable (Green) Audio: Red / White...
Page 10 Hardware setup Hdmi / rCa ™ Setup (RCA) ™ Headset Inline Amplifier (Green) USB Power (Green) PS3 AV Cable* RCA Splitter Cable Audio: Red / White You need to connect Video: Yellow to the TV’s audio and video input jacks. *PS3 AV cable is included with your console.
Page 11: Using Your Px11 Headset On Ps3
1. Go to PS3 Settings - Choose “Accessory Settings” - Choose “Audio Device Settings” Microphone Level - Set “Input Device” to “TURTle BeACH Input Device TURTLE BEACH PX11 CHAT PX11 CHAT” Output Device TURTLE BEACH PX11 CHAT - Set “Output Device” to “TURTle BeACH PX11 CHAT”...
Page 12 Xbox 360 Hardware setup Hdmi / rCa ® Xbox 360 Setup (HDMI) ® Xbox 360 Talkback Cable Inline Amplifier USB Power Headset RCA Splitter Cable (Black) Audio: Red / White...
Page 13 Xbox 360 Hardware setup Hdmi / rCa ® Xbox 360 Setup (HDMI) ® Xbox 360 Talkback Cable Inline Amplifier Headset USB Power (Green) (Green) RCA Splitter Cable Xbox 360 Audio Adapter* Audio: Red / White *All Xbox 360 models require an Xbox 360 Audio Adapter for audio output when used with an HDMI connection available from turtlebeach.com. note: If your HDMI TV has a red/white AUDIO OUT RCA Jack, you can use them.
Page 14 Xbox 360 Hardware setup Hdmi / rCa ® Xbox 360 Setup (HDMI) ® Xbox 360 Talkback Cable Inline Amplifier Headset (Black) USB Power RCA Splitter Cable Xbox 360 Audio Adapter Cable* Audio: Red / White HDMI *All Xbox 360 models require an Xbox 360 Audio Adapter for audio output when used with an HDMI connection available from turtlebeach.com. note: If your HDMI TV has a red/white AUDIO OUT RCA Jack, you can use them.
Page 15 Xbox 360 Hardware setup Hdmi / rCa ® Xbox 360 Setup (RCA) ® Xbox 360 Talkback Cable Inline Amplifier USB Power Headset RCA Splitter Cable (Green) (Green) Audio: Red / White...
Page 16 Xbox 360 Hardware setup Hdmi / rCa ® Xbox 360 Setup (RCA) ® Xbox 360 Talkback Cable Inline Amplifier USB Power Headset (Green) (Green) RCA Splitter Cable Audio: Red / White RCA plugs need to connect to the HDTV’s input jacks.
Page 17: Using Your Px11 Headset On Xbox 360 ® P17
Using your PX11 Headset on Xbox 360 ® Xbox 360 Configuration ® Voice Voice Volume Game Volume Mute Kinect Voice Output Play Through Headset Go to Xbox Settings Play Through Speakers - Choose “Preferences” Play Through Both - Choose “Voice” - Set both Voice Volume and Game Volume to ”10”...
Page 18: Pc / Mac ® Hardware Setup P18
When used as a PC/Mac gaming headset, the PX11 functions as an Amplified USB Stereo Headset. When connected to a PC or Mac, the PX11 appears in Windows and Mac operating systems as “TURTle BeACH PX11 CHAT.” This allows the PX11 microphone to be assigned for chat use in game software as a USB audio device.
Page 19: Pc Setup P19
1. Right-click the speaker icon in your task bar 2. Right-click on “Speakers” and select “Set as Default and select “Playback Devices”. Device”. Next, right-click on “TURTle BeACH PX11 CHAT” and select “Set as Default Communication Device”. 3. Click on the “Recording Tab” , then right-click “TURTle BeACH PX11 CHAT”...
Page 20: Mac Setup P20
1. Click on the Apple Menu and select System Preferences » Sounds. 2. On Output tab, select “Headphones”. 3. On Input tab, select “TURTle BeACH PX11 CHAT”. NOTe: In order to maintain independent volume controls for chat and game, please make sure to set “TURTle BeACH PX11 CHAT”...
Page 21: Specifications
specifications · Console Audio Connection: RCA (analog) · PC/Mac Audio Connection: USB and stereo 3.5mm · PC/PS3 Mic Connection: USB · Xbox 360 Mic Connection: 2.5mm Talkback Cable · Power: USB...
Page 22 regulatory Compliance statements for the PX11 models Federal Communications Commission (FCC) Compliance notices Class B interference statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 23: Declaration Of Conformity
declaration of Conformity Heading Marking by this symbol: indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: safety: EN 60950-1: 2006 + A11 + A1 + A12 (T-Mark License), IEC 60950-1: 2005 + A1: 2009, (CB Scheme Report/Certificate), UL60950-1 (NRTL License), CSA22.2, 60950-1 (SCC License) emissions:...
Page 24 WARRANTY SERVICE: In the USA and CANADA Warranty Service is provided by our Turtle Beach USA offices and in all other Countries it is provided by our local International Distributors when available. Refurbished/Recertified products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each ven- dor’s policy.
Page 25 From limited WarrantY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - is modified or tampered with;...
Page 26 Copyright © 2013 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. Turtle Beach, the Turtle Beach Logo, Voyetra, and Ear Force are either trademarks or registered trademarks of VTB, Inc. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. PlayStation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment, Inc.
