I.D. AL MicroPlayer Quick Start Manual

I . D . A L I . D . A L - - M i c r M i c r o P l a y e r
I . D . A L I . D . A L I . D . A L - - - M i c r M i c r M i c r o P l a y e r o P l a y e r

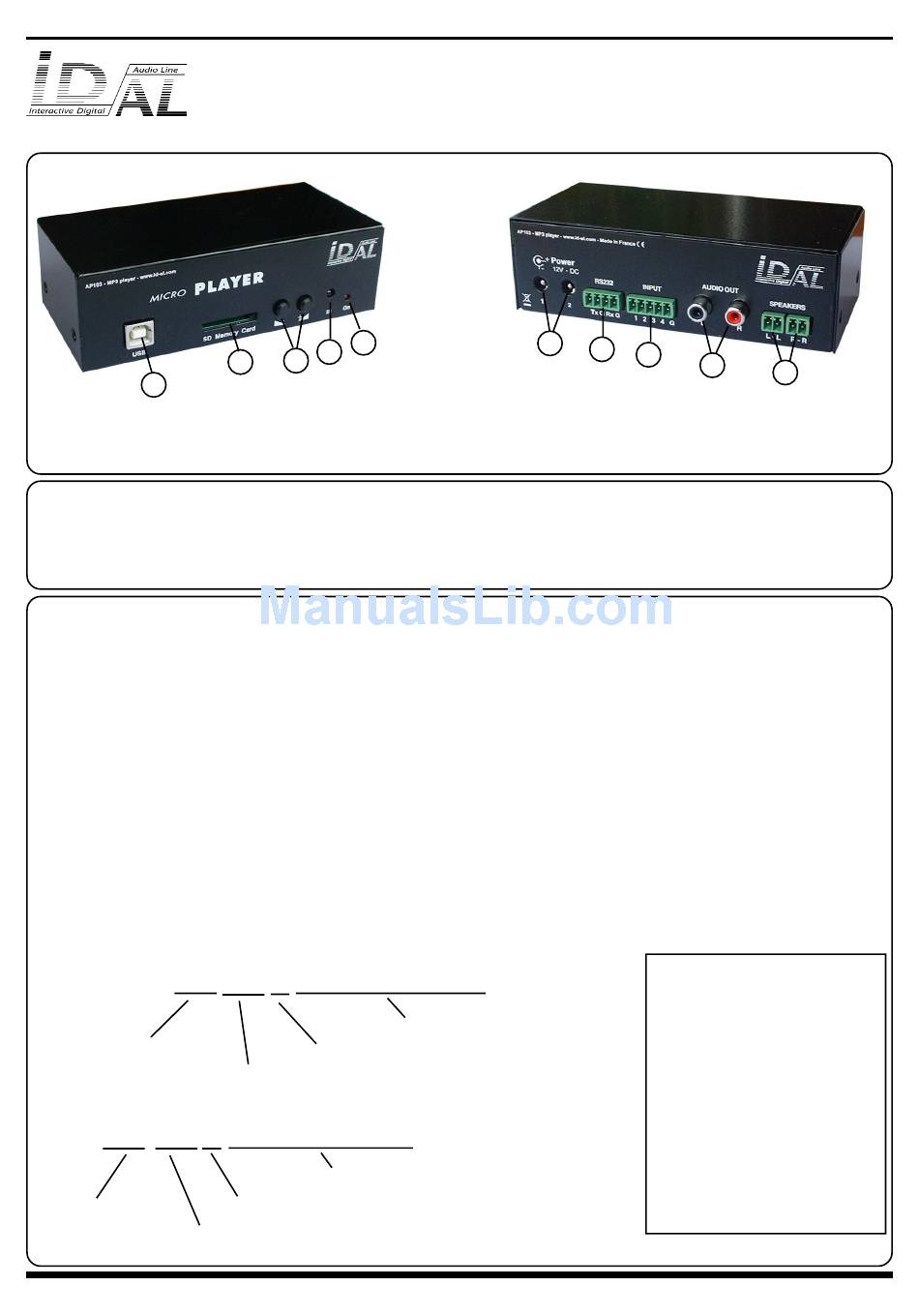

1 - Connections
1
1 - USB socket - To update the SD card
2 - SD memory card slot
3 - Volume setting + / -
4 - Infrared sensor
5 - Luminous indicator
2 - SD memory card
Choose a quality memory card of
New cards are usually pre-formatted in «FAT» and will need to be reformatted in FAT32
3 - Operation of the MicroPlayer
The MicroPlayer reads MP3 FILES ONLY. Operation of the player, the way the files are broadcast and how, is fully defined by:
- The configuration file to specify settings of the player and advanced functions (RS232, Infrared...) - See overleaf
- The names allocated to directories and files - See hereafter
3.1 - Basic mode
Files are copied into the memory card directly at the root - no directory is created. Files are read in loop on powering on, except if a configuration file
is instructing otherwise. The files are read in the order they have been copied into the card (first copied, first read). Inputs are configured as follows:
Input 1: Pevious file
Input 2: Stop
Input 3: Play
Input 4: Next file
3.2 - Advanced mode
When used in advanced mode, the MicroPlayer becomes an interactive automated player and the broadcast scenario is determined by the way files
and directories are named. Names are made of 6 NUMBERS + 1 LETTER followed by a chosen name. Use the meaningful 7 digits in front of the
chosen file name to play in a specific order or/and to automatically «jump» to a directory after playing. When loop random play is required, any file
name can be used (no special characters).
Directory: 001002R directory name
001 = Directory Number
002 = Jump to directory
File: 001002T file name.mp3
001 = File Number
002 = Jump to directory
® Waves System - La Ville en Bois - 44830 BOUAYE - FRANCE - Tel : +33 (0) 2 40 78 22 44 - www.id-al.com - V1.0/2007
o P l a y e r - - I n t e r a c t i v e I n t e r a c t i v e
o P l a y e r - - - I n t e r a c t i v e I n t e r a c t i v e I n t e r a c t i v e
MicroPlayer -
5
4
3
2
minimum size 512Mo
!!! the SD card MUST be formatted in FAT32 !!!
Playback mode - R=Random / S=Sorted in file number order
Any chosen name
T = Interrupt feature - T : interruptible / N : Non interruptible
M P 3 M P 3 P l a y e r P l a y e r
M P 3 M P 3 M P 3 P l a y e r P l a y e r P l a y e r
Quick start guide
6
6 - Power supply - 2 sockets
7 - RS232 serial link
8 - Inputs on dry contacts
9 - Audio output on line level
10 - Amplified output for speakers
Any chosen name
- - Q u i c k Q u i c k s t a r s t a r
- - - Q u i c k Q u i c k Q u i c k s t a r s t a r s t a r t
7
8
9
Special directory names:
- Directory 000: default directory played
on powering on.
- Directory 001 to 015: allocated to the
15 input contacts.
- Loop in a directory: 001001R = loop in
directory 001.
- Play a directory and then stop:
001###R = play directory 001 and wait.
Special file names:
- Play next file without jump: 001###T
= play next file in the current directory.
t t g u i d e g u i d e
t t g u i d e g u i d e g u i d e
10
