Tamron IP3D02 User Manual

Tamron ip3d02 3m d&n auto-iris wdr indoor & outdoor box ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

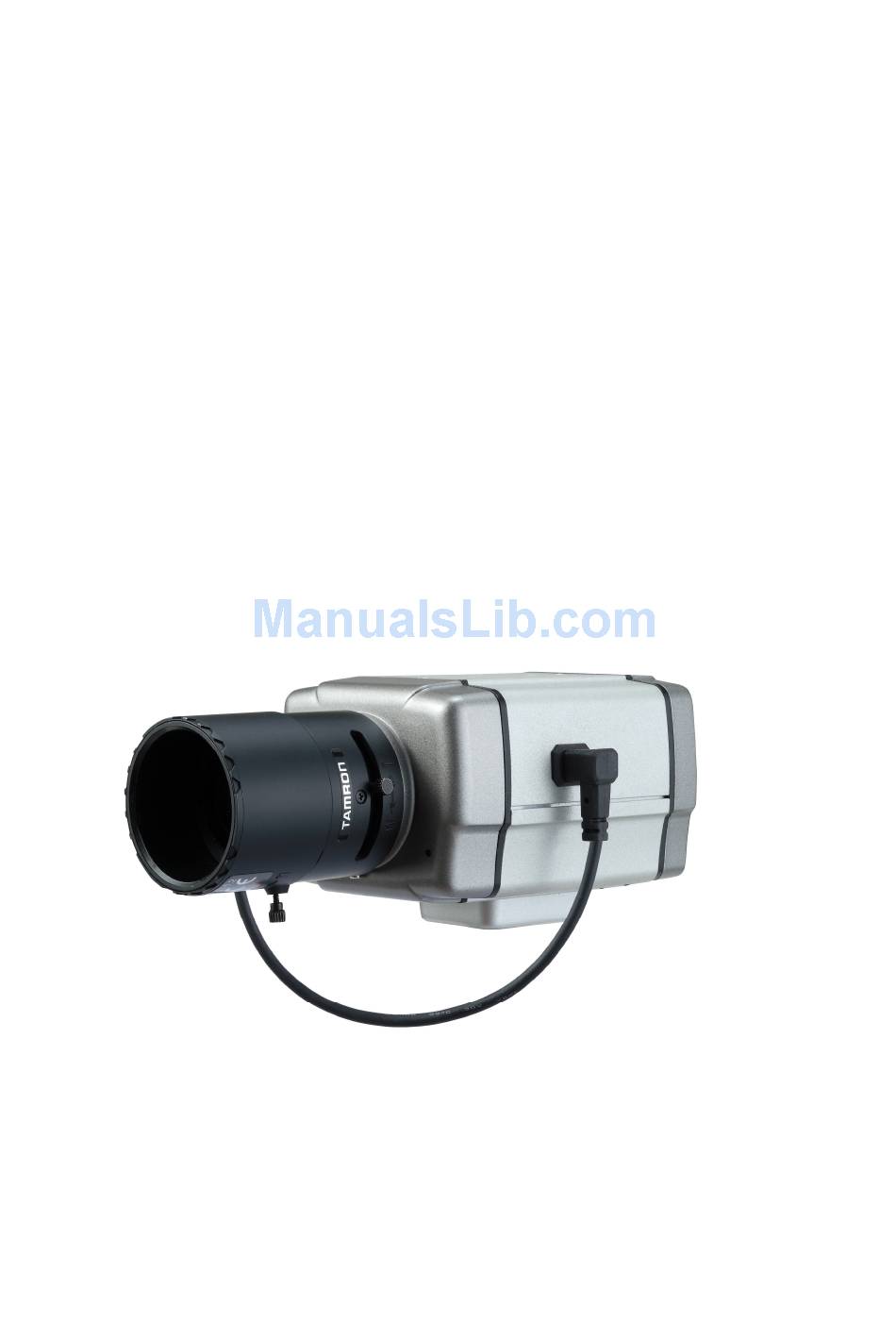

3M D&N Auto-Iris WDR
Indoor&Outdoor
BOX IP Camera
User Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP3D02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tamron IP3D02

  • Page 1 3M D&N Auto-Iris WDR Indoor&Outdoor BOX IP Camera User Manual - 1 -...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, prevent any possible danger.

  • Page 3: Table Of Contents

    Table of Contents Physical Description ..................... - 5 - Quick Installation......................- 8 - Software Installation ....................- 12 - 1. User Login ....................... - 15 - 2. Live View Page......................- 16 - 2.1 Video Type......................- 16 - 2.2 Source ........................

  • Page 4: Product Feature

    Product Feature 3 Megapixel image; resolution is up 2048x1536. Support True WDR image processing. Support H.264 / MJPEG codec, video quality is adjustable, video type can be divided into H.264_1 、 H .264_2(3GPP) and MJPEG Support G.711 codec, two ways audio is supported. Support high performance network transmission algorism, provide low-latency video and audio stream.

  • Page 5: Physical Description

    Physical Description Front/Rear Panel Description Lens Auto IRIS vari-focal lens is recommended to go with the camera. To fit in different lens, please adjust the ring screw accordingly to set correct focus. Light Sensor Detect incoming light sensor. While the incoming light is too low, image will display in monochrome automatically.
  • Page 6 Alarm I/O & RS485 To connect external alarm I/O devices, please refer to below for Alarm I/O pin definition. User can find a 4 pin and 2 pin connectors in product package. G: ground wire. IN: connect to alarm in device. N.O: connect to N.O(normal open) alarm out device.
  • Page 7 Side Panel Description Auto IRIS Lens Socket Connect to DC drive auto IRIS lens. When user switches to different lens, please check the pin definition first. DC Level Adjustment DC Level adjustment knob is used to adjust the aperture size of the level; to + (clockwise) direction to adjust the aperture becomes large, to –...

  • Page 8: Quick Installation

    Quick Installation Basic Connection (1) Connect the 12V DC adaptor to the power jack of the IP camera. (2) Use Ethernet cable to make connection from the Ethernet 10/100 RJ45 socket of IP camera to the PC. Network Setting After completing the basic hardware connection, make sure that the PC and the IP camera IP address are both in the same network segment.
  • Page 9 SecuUtility (1) Please install SecuUtility from the product CD. (Please refer to chapter 3.3.1 for installation procedures.) (2) Start SecuUtility. (3) After starting SecuUtility, the program will automatically search and display supportive devices in local LAN. (4) Choose which device you would like to access, the default IP address on the device is 192.168.100.100 (5) Double click on the IP address, will automatically open the selected device web image.
  • Page 10 Please fill in username and password. (Default username and password is admin/ admin) User can manually modify system setting: connection type and web port. Please click “Save” button before complete change. SecuUtility provides firmware upgrade, please click on firmware upgrade checkbox, and select new firmware (.img) in pop-up window.
  • Page 11 After Active control has been successfully installed, website login page appears on the screen. Login device with default username and password: admin / admin. Live view image after successfully login. If user cannot see video stream with H.264 format, please install FFDshow decode software from installation CD.

  • Page 12: Software Installation

    Software Installation Please install following software from installation CD. Install SecuUtility (1) Click Install SecuUtility Tool (2) Click Next. - 12 -...
  • Page 13 (3) Select Installation Folder. (4) Confirm Installation, please click Next. - 13 -...
  • Page 14 (5) Installation complete, please click Close to exit. Recommended Computer Equipment Intel® Core 2 Due E7200 or above 1GB or above Audio Card Needed Windows 2000, Windows XP SP2 and Operation System above, Windows Vista, Windows 7 Browser IE6 SP2 and above - 14 -...

  • Page 15: User Login

    System Configuration 1. User Login One minute after the device is powered on, please start SecuUtility. The program will automatically search and display supportive devices in local LAN. Please click on the device you would like to access, and then enter login page of the device. Login device with default username and password: admin / admin.

  • Page 16: Live View Page

    2. Live View Page 2.1 Video Type 、 Video type can be divided into H.264_1 H .264_2(3GPP) and MJPEG. 2.2 Source Device receive single camera source. This item is unchangeable. 2.3 Protocol Type Select image streaming transmission protocol. RTSP/ TCP Choose this item while the network is under low bandwidth.

  • Page 17: Utility

    2.4 Utility Zoom In Click on the button to zoom in image. Image can zoom 8 times for maximum. To return back to normal image size, please click on zoom out button. Zoom Out Click on the button to zoom out image. The button has no effect when the image has back to original size.

  • Page 18: Light Status

    Click on the button to start PTZ control panel, click again to hide the panel. Before operating this panel, please make sure that the DigitalZoom function is enabled and RS485 has been set correctly; please refer to chapter 3.1.3 、 3 .2.1 、...

  • Page 19: Setting

    3. Setting Click on Setting” on the top right corner of the web page to configure the device, click on “LiveView” to return back to live view image. Click Setup Click LiveView - 19 -...

  • Page 20: Network Setting

    3.1 Network Setting 3.1.1 Basic Setting IP Address Setting User can setup device IP address. DHCP Click on enable to activate DHCP; the device will get IP address from DHCP server. IP Address Enter IP address for the device. Subnet Mask Enter a subnet mask of the device, If IP address of this device is changed, adjust the subnet mask accordingly.

  • Page 21: Advanced Setting

    Web Port Setting Setup device web port number, default is 80. To change to another port number, take 8080 for instance, set hyperlink format as below: http://192.168.100.100:8080 Do not duplicate web port with advanced ports. Recommended setting range is from 1000 to 65535.

  • Page 22: Service Setting

    Event Port Port for sending event message (alarm and motion detection). Broadcast Port Port for broadcasting audio stream. FTP Port Port for transferring files to client PC. Video H.264 RTP Port RTP port for sending video stream of H.264 media session. Video H.264 RTCP Port RTCP port for sending video stream of H.264 media session.
  • Page 23 DDNS Setting DDNS Enable this item to activate DDNS function. Server Select DDNS service system: dyndns.org or dhs.org, please access the DDNS websites below to apply for DDNS service. http://www.dyndns.com http://www.dhs.org Host Name Host name that user register for the device in DDNS website. User Name Username that user register in DDNS website.
  • Page 24 Sender Address Fill in sender E-mail address. Number Select a sequence number to identify recipient e-mail address. Recipient Address Fill in recipient E-mail addresses. User Name Username that user uses to access SMTP server. Password Password that user uses to access SMTP server. Mail Server Address Fill in SMTP server address.
  • Page 25 RTSP/UDP, RTSP/TCP RTSP Port RTSP streaming port, port number is 554(unchangeable). RTSP/UDP Multicast Status Enable this item to start multi-cast streaming. Due to system limitation, live view can only see multicast streaming when this function enable. Notice that if more than one network device in LAN use multi-cast function, please change multi-cast IP address or port numbers to prevent network package conflict.
  • Page 26 RTP port for sending video stream of MJPEG media session. Video MJPEG RTCP Port RTCP port for sending video stream of MJPEG media session. Audio MJPEG RTP Port RTP port for sending audio stream of MJPEG media session. Audio MJPEG RTCP Port RTCP port for sending audio stream of MJPEG media session.
  • Page 27 Digital Zoom Enable digital zoom function, image resolution will be 1920x1080, image size default value is 352x240. To modify the image size, please follow the setup as follow: [camera] → [Digital Zoom] Notice: When digital zoom enables, multicast and 3GPP service will disable at the same time.
  • Page 28 ※ In above path fields, [/] means root directory path that provided by remote FTP server; [pathname] means saving files under ‘pathname’ folder. If the folder hasn’t existed, system will create it automatically. Utility Protocol Define which protocol that device uses for sending message to SecuUtility. Default is set as Bonjour mode.
  • Page 29 Multi-cast Port Multi-cast port for ONVIF. This value is unchangeable. HTTPS Setting Select “Enable” to open the HTTPS protocol. Web connection is mandatory to HTTPS protocol. Default port is 443. Connection applying HTTPS protocol, the connection address is as follows: https://IP address When modifying a non-443 HTTPS port number, please add the port number to the connection address field, address format as shown below:...
  • Page 30 WLAN Click Enable to active wireless function. Communication Mode Set communication mode as infrastructure. SSID Enter SSID of wireless AP router. Wireless Mode Wireless mode is 802.11b/g/n, system will select automatically. Wireless Encryption Select wireless encryption type: Open System, WEP(Shared key), and WPA-PSK. WEP(Shared key) Mode WEP Mode Select 64bit or 128 bit for WEP encryption encoding.
  • Page 31 Default Key ID Select Key ID from 1 to 4. Key1~Key4 Enter Key 1~4 that correspond to wireless AP setting. WPA-PSK Mode WPA Encryption Select encryption type: TKIP, AES. Pre-shared Key Enter pre-shared key that corresponds to wireless AP setting. - 31 -...

  • Page 32: Camera Setting

    3.2 Camera Setting 3.2.1 Camera Setting Title Define the camera name, the characters can be Arabic alphabet 0~9, capitalized or non-capitalized English alphabet, and symbol“-”, “_”and“.”. The maximum inputs are 20 characters. Sound Record Enable audio function while recording. Audio Source Select audio source is Line-in or Microphone.
  • Page 33 Status Enable this item to activate motion detection. Sensitivity Select motion detective sensitivity. Adjustable range is from 0 to 10, insensitive to sensitive. Alarm out Enable to trigger alarm out while motion is detected. Enable to store log in backup device while motion is detected. E-mail Enable to send E-mail with snapshot while motion is detected.
  • Page 34 takes 10 seconds to overwrite the new setting into system file; any operation needs to wait for 10 seconds. Privacy Area Define privacy area to hide blocks from monitoring. Please notice that motion in privacy area can’t be triggered. Privacy Rect. Select rectangle color and select range on image to define privacy area.
  • Page 35 Image Image Color Select image color in color or memo. Brightness Adjust image brightness parameter; the higher the value, the brighter the image. Saturation Adjust image saturation parameter; the higher the value, the more saturate the image. Contrast Adjust image contrast parameter; the higher the value, the higher the contrast of image. Adjust video hue parameter, the smaller the value, the bluer the video is;...
  • Page 36 Adjust video exposure value, the smaller the value, the lower exposure of video is; reversely, the higher the value is, the higher exposure of video is. Sharpness Adjust image sharpness parameter; the higher the value, the shaper the image. Scene Mode Select scene mode to choose ICR(IR Cut Filter Removable) switch mode.
  • Page 37 Default Click the button to restore default value of image parameters. Please notice this setting applies without click “Save” button. ※ P lease click on “Save” button to save settings and click on “Close” button to finish. OSD (On Screen Display) Real Time OSD Display OSD on live view image.

  • Page 38: Streaming Setting

    Date/Time Enable to display system date and time on recording OSD. ※ P lease click on “Save” button to save settings and click on “Close” button to finish. Digital Zoom Enable digital zoom viewing mode, and adjust image size of the digital zoom. Digital Zoom Setup Width When digital zoom is applied, the width of the screen is adjustable (Setup Range: 352...
  • Page 39 System provides three video type streams: H.264_1, H.264_2 and MJPEG. Resolution H.264 and MJPEG each have corresponding adjustable resolution, please refer to below table. H.264 MJPEG 3GPP 640 x 480 640 x 480 320 x 192 720 x 480 720 x 480 320 x 240 1280 x 720 1280 x 720...

  • Page 40: Event Record

    Image quality of MJPEG video type. Setting range is from 1 to 5; the higher the value is the better image quality would be. Base on different resolution, using bandwidth, bitrates and quality, the image FPS may be different. The following chart is giving a reference FPS value for single connection of device.

  • Page 41: Alarm

    3.3 Alarm Alarm setting is similar to motion detection setting. The difference is that alarm doesn’t repeat trigger action for the same event. Alarm trigger duration is about 10 seconds, after system completes trigger actions, which takes 3 seconds, alarm will back to original status till next event happens.

  • Page 42: User Management

    3.4 User Management Change Password Enter the original password and new password, click on “change” button to finish password change. Password of operator and guest accounts are not changeable, if user wants to change the password of operator and guest accounts, please login as administrator or supervisor, and delete operator or guest account, and create new accounts.

  • Page 43: Backup Device

    3.5 Backup Device The system backup device supports Micro SD memory card and external USB storage media. System doesn’t support hot swapping, please power off camera when insert or remove micro SD card and USB storage media. Total Capacity Display the total capacity of the backup device. Used Capacity Display the used space of the backup device.
  • Page 44 Alarm Out Enable to trigger alarm out while backup device is full. Enable to store log in backup device while backup device is full. E-mail Enable to send E-mail with snapshot while backup device is full. ※ P lease click on “Save” button to save settings and click on “Close” button to finish. It takes 10 seconds to overwrite the new setting into system file;...

  • Page 45: Peripheral

    3.6 Peripheral Protocol Select Protocol type for PTZ camera. Available choices are Palco D and Palco P. Address Enter PTZ address. The value should be set between 0 and 255. Tilt Speed Select tilt speed for PTZ. The bigger the value is, the faster the camera zoom. Pan Speed Select pan speed for PTZ.

  • Page 46: System

    3.7 System 3.7.1 Basic Setting Host Name Define the device name. After UPnP function is enabled, the device can be found in My Network Places. The modified host name will simultaneously display in the SecuUtility. The input characters can be Arabic alphabet 0~9, capitalized or non-capitalized English alphabet, and symbol“-”, “_”and “.”.
  • Page 47 Reboot Click on the button to reboot the device. Factory Default Click on the button to reset the device back to factory default settings. Default Path Recording Select to change saving path of web recording files. Default is at “My Documents”. Snapshot Select to change saving path of web snapshot files.

  • Page 48: Time Setting

    3.7.3 Time Setting Date Fill in system date, the format should be: yyyy/mm/dd. Time Fill in system time, the format should be: hh:mm:ss (24-hour clock). Time Zone Define time zone of current area. Synchronization Enable to synchronize time with NTP server every hour. NTP Server Fill in NTP server address.

  • Page 49: Dst (Daylight Saving Time)

    3.7.4 DST (Daylight Saving Time) Enable this item to activate day light saving function. Start Date Fill in the start date of DST, the format should be: mm/dd. Start Time Fill in the start time of DST, the format should be: mm/dd. End Date Fill in the end date of DST, the format should be: mm/dd.

  • Page 50: Appendix A - Upgrade Firmware At Local Device

    Appendix A – Upgrade Firmware at Local Device Upgrade newer version firmware to the device, there is another method that you can do at local device besides the firmware upgrade on website. During the processing, you can tell the status by lighting.

  • Page 51: Appendix B - Iphone 3Gpp View

    Appendix B – 3GPP on iPhone ※ Before using this function, please enable 3GPP service, set path : [Setup] → → → → [ Network] → → → → [ Service]. (1) Please click on the main screen of the App Store icon. (2) Click "Search"...
  • Page 52 (3) Please search "Streamer" application, shown as below picture. (4) Click "Free" button. - 52 -...
  • Page 53 (5) Please click "INSTALL" button to install the software. (6) After installation, please click "Streamer" icon. - 53 -...
  • Page 54 (7) Select “Bookmarks” in main menu. (8) Click ”+” to add 3GPP connection web page to bookmark. - 54 -...
  • Page 55 (9) Type 3GPP connection RTSP URL, then click “Save”. Please make sure RTSP port is correct. To check RTSP port number, please refer to setting page: [Setup] → [Network] → [Service] → [RTSP Setting] → [RTSP Port]. (10) Select the bookmark that you create before. - 55 -...
  • Page 56 (11) Live stream will appear in your screen. (12) Click on the image to see streaming connecting URL. - 56 -...

  • Page 57: Appendix C - Android Phone 3Gpp View

    Appendix C – 3GPP on Android Phone ※ Before using this function, please enable 3GPP service, set path : [Setup] → → → → [ Network] → → → → [ Service]. (1) Click “Market” application icon. (2) Search "RockPlayer" application. - 57 -...
  • Page 58 (3) Click “RockPlayer Lite”. (4) Click "Free" button and to install the software. (5) After installation, start “Internet” application. - 58 -...
  • Page 59 (6) Type 3GPP connection RTSP URL, then click go to icon. RTSP URL format is rtsp://cmera IP address:rtsp port number/3gpp. For example, rtsp://220.128.212.189:3800/3gpp. Please make sure RTSP port is correct. To check RTSP port number, please refer to setting page: [Setup] → [Network] → [Service] → [RTSP Setting] → [RTSP Port]. (7) Media player will ask for proper streaming player for RTSP streaming, please choose - 59 -...
  • Page 60 “ RockPlayer Lite”. (8) Live stream will appear in your screen. (9) Click on the screen to access control tool bar. - 60 -...

  • Page 61: Appendix D - Specifications

    Appendix D – Specifications GENERAL Image Sensor 1/2.8” Progressive CMOS Lens Vari-focal, f=4–10mm, F=1.6 Shutter Time 1/2–1/10000 Minimum Illumination 0.5Lux @ F1.2 (Color), 0.01Lux @ F1.2(B/W) VIDEO Video Compression H.264 & M-JPEG Video Streaming Triple streaming 2048 x 1536 (QXGA) @ 18fps Frame Rate 1920 x 1080 (Full HD) @ 30fps 1280 x 720 (720p) @ 30fps...
  • Page 62 Product FAQ A. Web snapshot and recording doesn’t work in windows 7? Due to windows authority limitation, please use following procedure to fix this problem. Right click on “Internet Explorer” icon and choose “Run as administrator”. All operations on camera web page can work normally then. B.
  • Page 63 C. Unable to see image because of ActiveX unsuccessful installation 1. Disable memory protection of IE8, WinXP (1) Open an IE window and click “Tools”→”Internet Options”. (2) Click on “Advanced” tag and disable “Enable memory protection to help mitigate online attacks" option”. Click “Apply” to exit. (3) Restart IE to affect setting.
  • Page 64 2. Disable IE protected mode of IE8, Win7 (1) Open an IE window and click “Tools”→”Internet Options”. (2) Click on “Security” tag, disable “Enable Protected Mode (requires restarting Internet Explorer)”. (5) Click on “Advanced” tag and disable “Enable memory protection to help mitigate online attacks"...
  • Page 65 (6) Restart IE to affect setting. (7) Reconnect IP camera web page, ActiveX control plug-in is ready to install. D. Web page does not display correctly after firmware upgrade. This problem may cause by temporary internet cache, please follow procedures to fix. (1) Open an IE window and click “Tools”→”Internet Options”.
  • Page 66 (2) Click “General” tag and click “Delete…” in browsing history field. (3) Delete “Temporary Internet files” and “Cookies” both items. - 66 -...
  • Page 67 (4) Restart IE to affect setting. (5) Reconnect IP camera web page. E. Unable to open camera web page but SecuUtility could search IP camera information under direct connection between PC and IP camera. This problem may cause by following reasons: 1.
  • Page 68 (2) Switch to “Connection” tag, and click “LAN settings”. (3) Disable "Use a proxy server for your LAN", then click [OK] button. - 68 -...
  • Page 69 (4) Restart IE to affect setting. (5) Reconnect IP camera web page. ※ ※ ※ ※ To connect IP camera without through proxy server in LAN, please follow procedures: (1) Click “Advanced”. (2) Fill in “192.168 .*.*” in exceptions, then click “OK” to exit. - 69 -...
  • Page 70 (3) Restart IE to affect seeting. (4) Reconnect IP camera web page. - 70 -...
