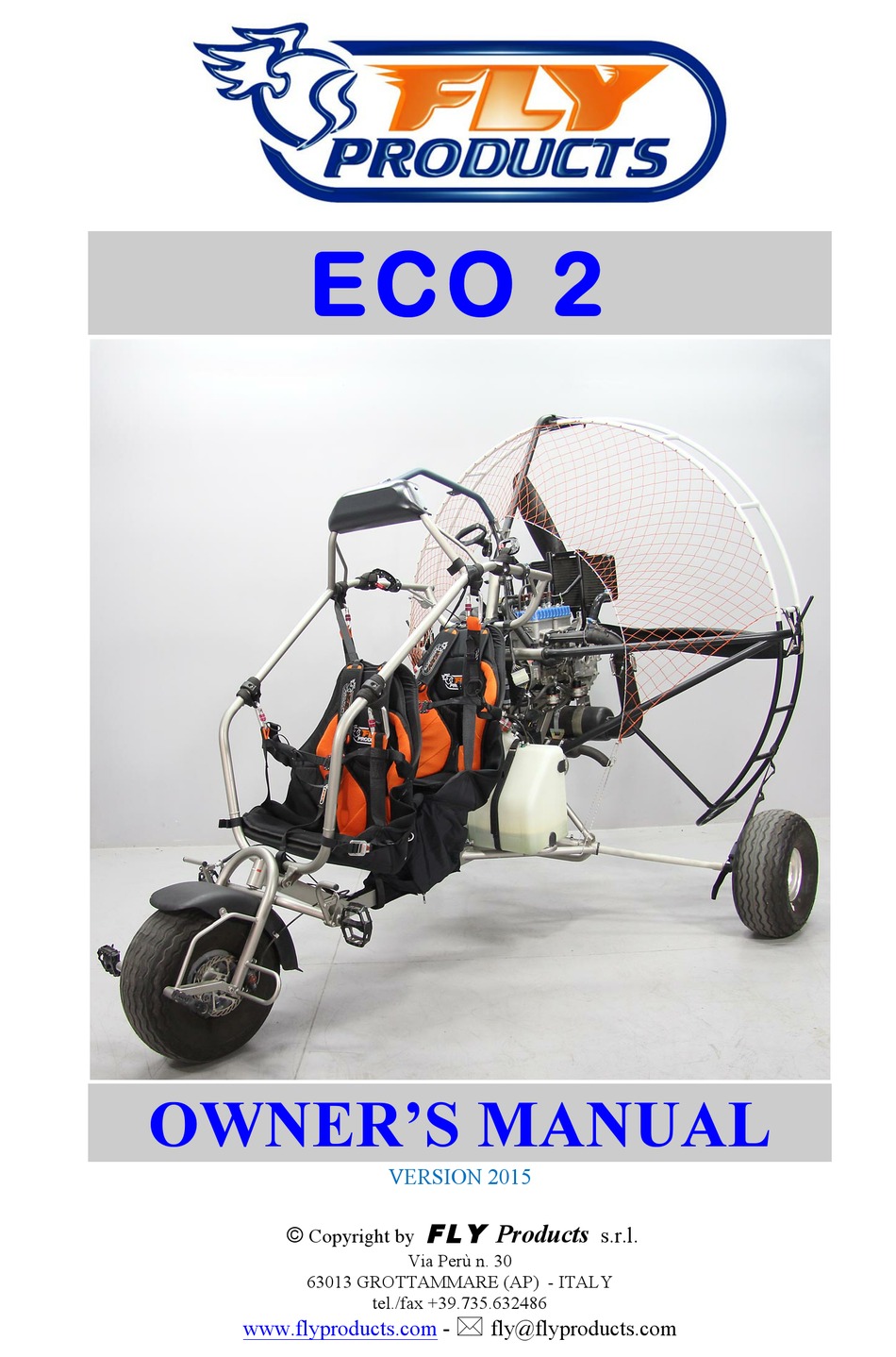

ECO 2
OWNER'S MANUAL
VERSION 2015
FLY Products
©
s.r.l.
Copyright by
Via Perù n. 30
63013 GROTTAMMARE (AP) - ITALY
tel./fax +39.735.632486
*
www.flyproducts.com
-
fly@flyproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fly Products Eco 2

  • Page 1 ECO 2 OWNER’S MANUAL VERSION 2015 FLY Products © s.r.l. Copyright by Via Perù n. 30 63013 GROTTAMMARE (AP) - ITALY tel./fax +39.735.632486 * www.flyproducts.com fly@flyproducts.com...
  • Page 2 TRIKE ECO2 OWNER’S MANUAL REL . 2.0 Index Chapter Description INTRODUCTION GENERAL INFORMATION UNPACKING AND ASSEMBLING YOUR “XENIT” PREPARING YOUR FLIGHT FLYING YOUR NEW “XENIT” MAINTENANCE TROUBLESHOOTING SPECIFICATION AND PERFORMANCE MISCELLANEOUS _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 3: Notation Used

    WARNING provides supplemental information to help clarify an area where personal injury or death could occur from negligence. Disregarding a warning” could result in serious injury or death. _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 4 TRIKE ECO2 OWNER’S MANUAL REL . 2.0 ECO2 features Easy assembly and disassembly • Electric Starter • Power Ignition • Reduction drive • Dimensions _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 5 TRIKE ECO2 OWNER’S MANUAL REL . 2.0 UNPACKING AND ASSEMBLING “ECO2” Assembling your Trike “ECO2” Frame assembly and disassembly is very fast and easy. _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 6 TRIKE ECO2 OWNER’S MANUAL REL . 2.0 _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 7 ) from the engine support beam to the legs supports. Mount the tanks ( ), lock them with the straps and connect on the fuel line through the quickly joints in place. _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 8 - Secure the elastic straps to the wheel axis as picture - Fix the rollbar ( ) to the outer frame with the screw that holds the pulley. Fix the pulley _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 9 Mount the passenger harness ( Joint the two harness with the prepared straps Fix the passenger harness to the front part of the cradle. _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page ©...
  • Page 10 TRIKE ECO2 OWNER’S MANUAL REL . 2.0 Fixing pilot harness Harness passenger Harness pilot _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page...
  • Page 11 TRIKE ECO2 OWNER’S MANUAL REL . 2.0 Fixing pilot harness Emergency Shutdown to hold together the brake _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page...
  • Page 12: Propeller Mounting

    12 Nm. In the operation, make sure to attach the prop in the correct side with the edges in the position shown in the picture. _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page...
  • Page 13: Fuel And Oil

    PREPARING FOR YOUR FLIGHT Fuel and oil FLY PRODUCTS recommends the use of a premium unleaded automotive gasoline of 92 octane or higher, and the use of premium synthetic 2-cycle oil. Mix fresh gas and oil before each flying session.
  • Page 14: Starting The Engine

    - set the switch “B” in a side position and verify a fall about 100 RPM of engine speed. - set the switch “B” in the other side position and verify the same fall of engine speed. _____________________________________________________________________________ FLY Products © Copyright by s.r.l.
  • Page 15: Preflight Inspection

    It is highly recommended that you use one of the examples, or create your own, print it out, laminate it, and use it whenever you fly. Also note that these Checklists are examples only, FLY PRODUCTS is not responsible for their use or for their completeness. The following checklists are provided only as EXAMPLES.
  • Page 16 • Reserve parachute handle in sight • Risers hooked up correctly • Karabiners locked • Nothing loose to get in prop • Radio for volume, clearness • Helmet on, tight, fastened • _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page...
  • Page 17: Maintenance

    For the part regarding the engine consult the manual Rotax 503 – 582 engine. Remember… …that YOU are ultimately responsible for your motor and it’s proper care, FLY PRODUCTS and it’s dealers assume NO responsibility for any engine problem resulting from improper use! Before leaving the factory each motor has been tested for up to 30 minutes to insure that it is in proper running order and all FLY PRODUCTS units are guaranteed of one year after purchase.
  • Page 18: Maintenance Overview

    TRIKE ECO2 OWNER’S MANUAL REL . 2.0 Maintenance overview. Make a note on this summary table of all maintenance operation for a detailed maintenance overview refer. Operation Date check Inspector Remarks time (h) _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page...
  • Page 19: Long Term Storage

    Repairs Minor repairs can be performed on the prop, cage, cage guard, and harness. Major repairs should be performed by a trained service technician, or by FLY PRODUCTS. Caution! Repairs to the harness or any stress-carrying areas of the ECO2 should only be performed by a certified parachute rigger.
  • Page 20: Troubleshooting Chart

    Fouled Spark Plug or replace with a new plug Incorrect Spark Plug Gap Gap the plug to 0.025” (0.635mm) Excessive Check and tighten engine mounting bolts, Loose fasteners Vibration muffler bolts, prop bolts, etc. _____________________________________________________________________________ FLY Products © Copyright by s.r.l. Page...
  • Page 21: Specifications And Performance

    TRIKE ECO2 OWNER’S MANUAL REL . 2.0 SPECIFICATIONS AND PERFORMANCE Specification and Performance Summary Chart Parte ECO 2 Engine Make and Model ROTAX 503 - 582 Engine Type TWO cylinders air cooled Displacement cc. 503 - 580 cc 54-64 HP...
  • Page 22: Warranty

    MISCELLANEOUS Warranty FLY PRODUCTS will warrant their product to be free from defects in materials and workmanship for a period of one year from the date of purchase. This warranty applies to the product in normal usage situations only. The dealer, from whom you purchased the product, or FLY PRODUCTS, will repair the product free- of-charge.
