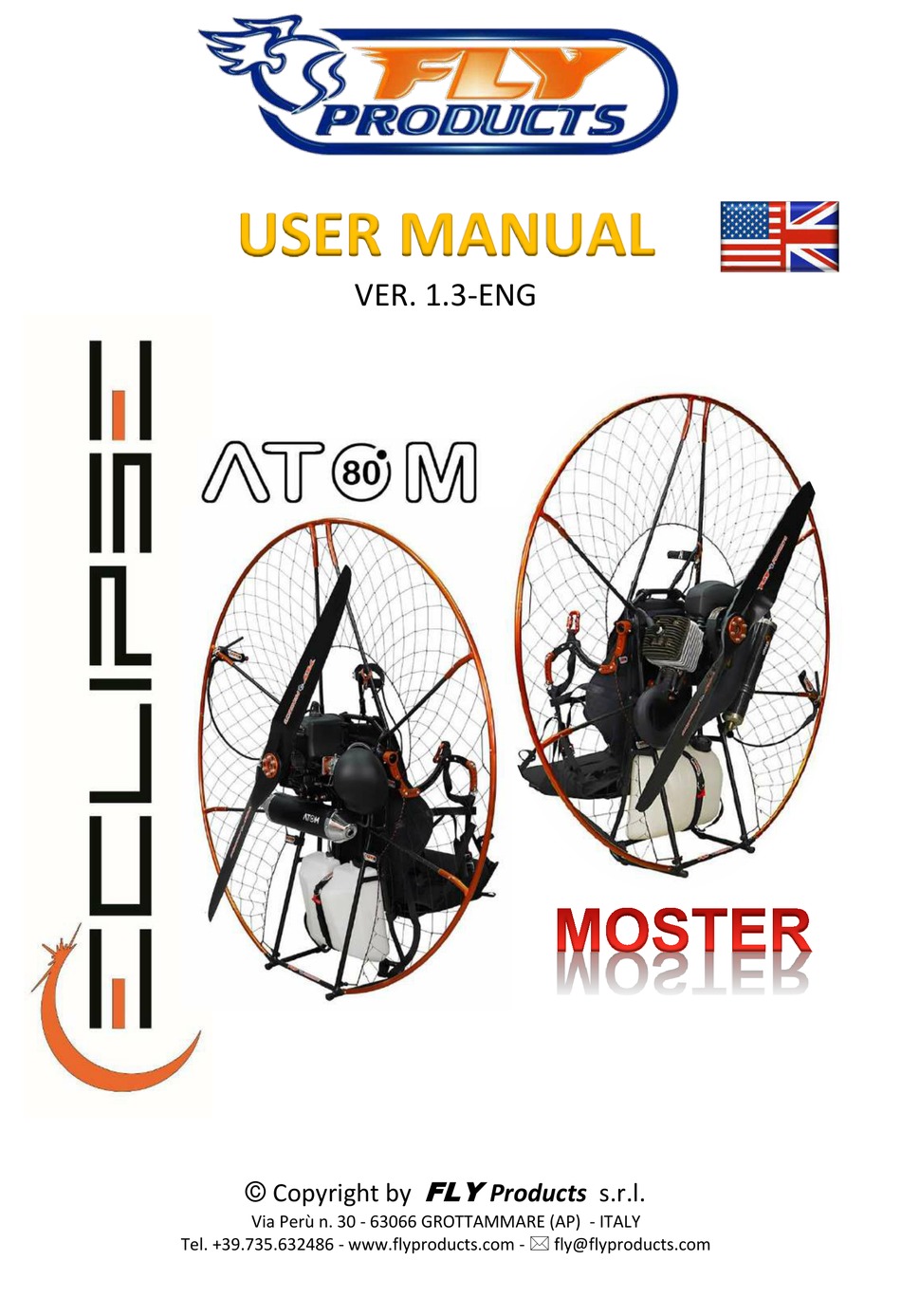

- Page 1 VER. 1.3-ENG © Copyright by Products s.r.l. Via Perù n. 30 - 63066 GROTTAMMARE (AP) - ITALY Tel. +39.735.632486 - www.flyproducts.com - fly@flyproducts.com...
- Page 2 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG WARRANTY FRAME PAGE 29 PAGE 5 USER HARNESS OPTIONALS MANUAL PAGE 13 PAGE 28 PROPELLER SETTINGS PAGE 27 PAGE 16 Products © Copyright s.r.l. PAGE 2...

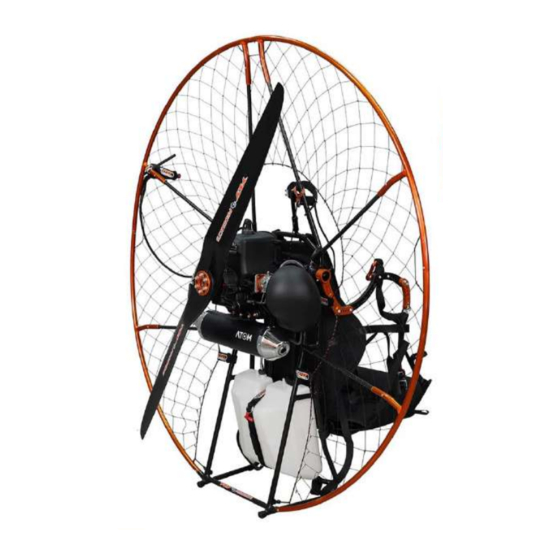

- Page 3 WARNING can result in serious injury or even death. ECLIPSE features FLY PRODUCTS presents this very light, but robust, Paramotor whose features are great versatility and ease in disassembly and assembly. Products © Copyright s.r.l.
-
Page 4: Overall Dimensions
ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Overall dimensions H: (ATOM/MOSTER) = 142 cm (56 In) S: (ATOM) = 45 cm (17.7 In) L: (ATOM/MOSTER) = 142 cm (56 In) S: (MOSTER) = 42 cm (16.5 In) The Paramotor can be disassembled, folded and inserted into the special trolley (optional) to be easily stored, transported or even shipped. -
Page 5: Frame Assembly
ECLIPSE – USER MANUAL ____ VER. 1.3 ENG FRAME ASSEMBLY The engagement system used "detent button" or snap button, greatly simplifies the assembly procedure. For a correct use, keeping the button pressed, engage the two parts and rotate them slightly until the clicking button comes out of the hole. - Page 6 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG To start: - (1) Insert the turret “D” on the central engine frame first. - (2) Hook the starting pulley on the turret as shown in the figure. NOTE: Pay attention to the correct positioning inside the support. - (3) Insert the two LONG upper rods (A) in the central engine frame.
- Page 7 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG After having inserted and joined the upper parts of the rim, insert the MEDIA rods (B) first on the outer frame and then on the central frame, pushing it well to ensure correct engagement.
- Page 8 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG For the last, join the two side parts of the rim, always checking that the seal button has come out of its hole correctly and the coupling is actually firm. This operation ends the assembly on this side.
- Page 9 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG To terminate the net locking, it is sufficient to fasten and close the two upper and two lower velcro without doing excessive tension that is not necessary for holding purposes. The upper velcro straps also perform the "stroke end"...
- Page 10 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Unhook the two terminal eyelets of the net and then move on to dismantling the cage by opening the upper ends. Products © Copyright s.r.l. PAGE 10...
- Page 11 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Unhook the two lateral semicircles. Unhook the lower part of the cage. Remove the lower rod (S) from the central frame side and then from the external side. Products © Copyright s.r.l. PAGE 11...
- Page 12 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Remove the middle rod(M) from the central frame side then the side of the rim. Repeat the same operations on the opposite side in the same sequence and mode. Complete the disassembly of the cage by removing the upper part from the rods. With this operation the disassembly of the cage ends.
-
Page 13: Harness Assembly
ECLIPSE – USER MANUAL ____ VER. 1.3 ENG HARNESS ASSEMBLY Fit the harness by hooking it to the central frame using the two upper straps which have TWO different colored indicators to adapt it to the different sizes as shown in the photo: Indicator FOR SIZES Indicator... - Page 14 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Recap the straps stopping them under the loops as shown in the photo. Hook the middle side straps of the harness having as a reference the red seam as shown in the photo. Hook the lower harness anchoring straps taking care to pass behind the...
- Page 15 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Put the pivots in position and, taking care to keep the holes in axis, lock them with the push pins keeping the button pressed and releasing it only after it has completely entered. ATTENTION When mount the pivot arms, always be careful...
- Page 16 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG To avoid possible entanglement when disassembling the pivot arms, we recommend placing them in the appropriate slots. OPTIMAL ADJUSTMENTS It is possible to adjust the seat deep by removing or adding the extension blocking it on the prepared velcro.
- Page 17 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Adjust the vertical position of the paramotor on the shoulders. Harness height adjustment to facilitate the takeoff run. Products © Copyright s.r.l. PAGE 17...
- Page 18 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG ADJUSTMENTS TO THE SIMULATOR Adjustments are very important for safety and comfort. Test the position before making the first flight. Hang the paramotor and check the inclination that must be between 25 ° and 30 °. Check that you are comfortably seated, the harness has many adjustments through which...
- Page 19 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG The basic settings concern three parameters: 1) Pilot weight 2) Pilot size 3) Torque generated by the propeller rotation SETTING # PILOT WEIGHT Pilot weight adjustment it is obtained by moving the point of attachment of the paraglider of one or more holes forward for heavy pilots...
- Page 20 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG This adjustment also intervenes on the inclination of the paramotor so it is FUNDAMENTAL to make it on the simulator !! The optimal position of the paramotor By moving the paraglider in the simulator is between degrees;...
- Page 21 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG For size (extra small) or to lift the seat you can move backwards the front support "B" with the possibility of raise further the cricket "C" of 1 hole up. SETTING # THE TORQUE A very important setting concerns the contrast to the torque generated by the rotation of the propeller which can be:...
- Page 22 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG To correctly assemble the paraglider coupling belt, first insert the end "C" in the loop of the belt hooked to the shackle and then pass the entire belt from the "A" side into the loop "C": Products ©...
- Page 23 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG Tighten the low anchor "C" well, then proceed by inserting the end "A" upwards coming out of the support "D": Products © Copyright s.r.l. PAGE 23...
- Page 24 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG To finish the assembly, pass the end "A" in the Loop "B", pull hard to free the Loop "A" to which hook the carabiner: This operation performed on both sides, ends assembly of the pivot arms Products ©...
- Page 25 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG To further increase the anti-torque effect, the “A” belt can be inserted from the external side of the attachment, effectively shifting the paraglider's hooking point: Products © Copyright s.r.l. PAGE 25...
- Page 26 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG WARNING: Do not over tighten these nuts to avoid weakening the structure and therefore the seal! Preferably use a torque wrench calibrated at N-m (Newton / meter) which correspond to about 1 Kg. (2.2 lb). Products ©...
-
Page 27: Propeller Assembly
ECLIPSE – USER MANUAL ____ VER. 1.3 ENG PROPELLER ASSEMBLY When preassembling the fiber propeller, be careful not to reverse the direction of the blades! Propeller mounting on motors with mechanical reduction (CLOCKWISE ROTATION) for the ATOM 80 engine. Screw all the propeller bolts without forcing. Tighten them gradually following the correct sequence as indicated. - Page 28 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG EMERGENCY LIGHT PARACHUTE (OPTIONAL) It is a very light and resistant parachute designed specifically to avoid overloading the weight of the paramotor. Easy to assemble and disassemble in no time. The emergency can be mounted very simply in the front position on the left or right side depending on your needs.
-
Page 29: Warranty
Fly Products, will repair the product free-of-charge. In no event shall Fly Products be liable to the Purchaser or any other person for any loss or damage whether direct or indirect or consequential or incidental, including without limitation, any damages or claims by third parties caused by defective products or otherwise arising from the incorrect or otherwise improper use of this product. This... - Page 30 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG NOTE Products © Copyright s.r.l. PAGE 30...
- Page 31 ECLIPSE – USER MANUAL ____ VER. 1.3 ENG NOTE Products © Copyright s.r.l. PAGE 31...
- Page 32 © Copyright by Products s.r.l. Via Perù n. 30 - 63066 GROTTAMMARE (AP) - ITALY tel./fax +39.735.632486 www.flyproducts.com - fly@flyproducts.com...
