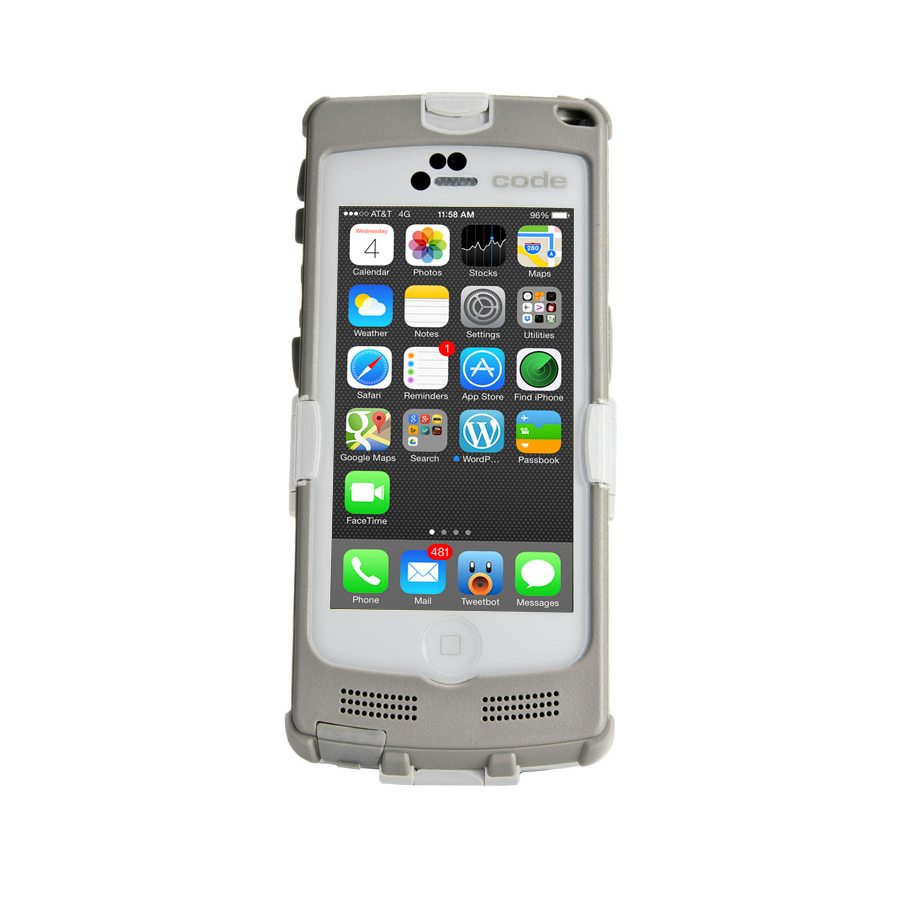

Code cr4405 barcode reader
Hide thumbs Also See for CR4405:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual

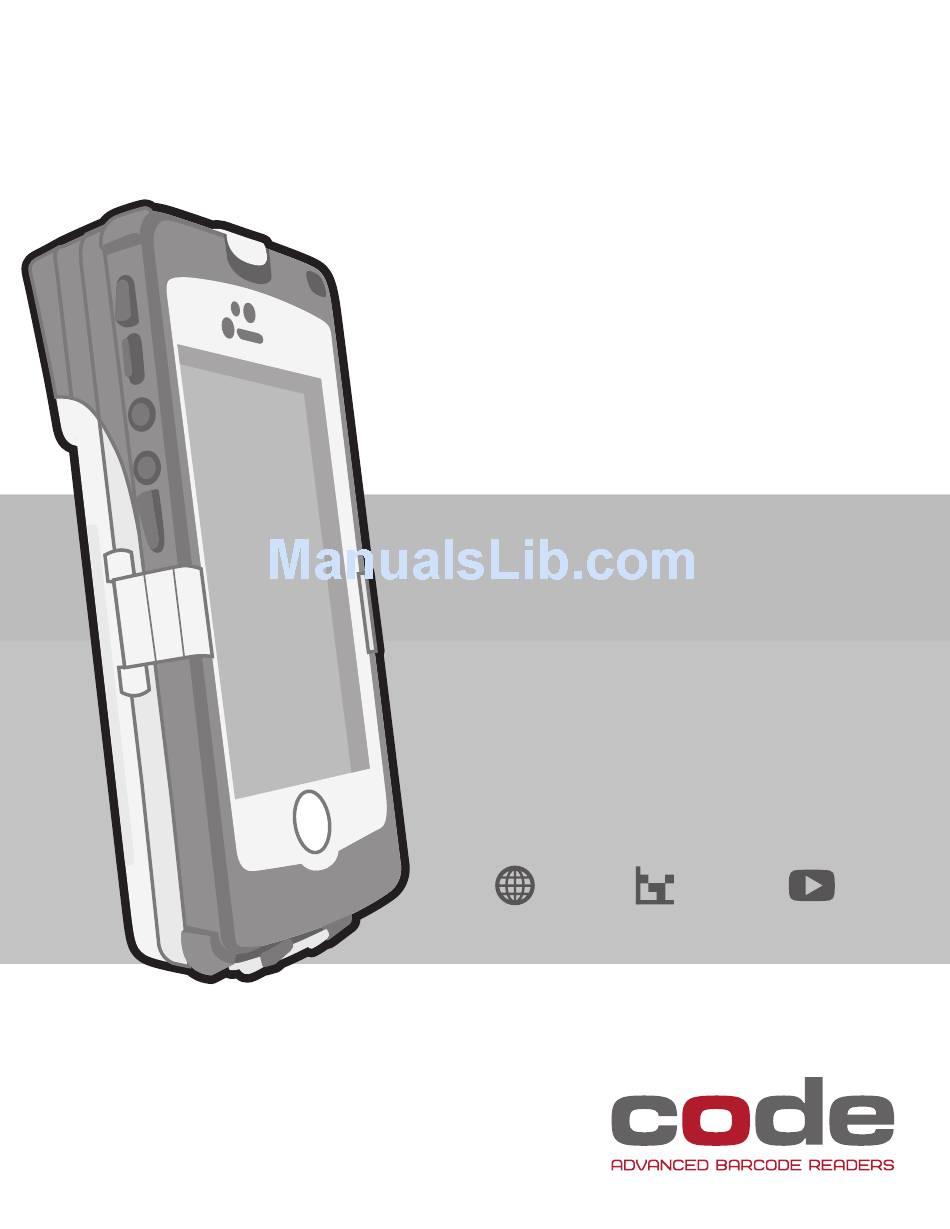

USER MANUAL
NORTH AMERICA: ENGLISH
CR4405
Compatible with Apple
iPhone
5 and 5s
®
®
MANUAL VERSION 02
RELEASE DATE: JANUARY 2015
www.codecorp.com
Configuration Guide
YouTube.com/codecorporation
Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR4405 and is the answer not in the manual?

Questions and answers

Related Manuals for Code CR4405

Summary of Contents for Code CR4405

  • Page 1 USER MANUAL NORTH AMERICA: ENGLISH CR4405 Compatible with Apple iPhone 5 and 5s ® ® MANUAL VERSION 02 RELEASE DATE: JANUARY 2015 www.codecorp.com Configuration Guide YouTube.com/codecorporation Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

  • Page 2: Statement Of Agency Compliance

    The CR4405 has been tested for compliance to CE standards and guidelines and was found to conform to applicable CE standards, specifically the EMC requirements EN 55024, ESD EN 61000-4-2, Radiated RF Immunity EN 61000-4-3, ENV 50204, EFT EN 61000-4-4, Conducted RF Immunity EN 61000-4-6, EN 55022, Class B Radiated Emissions, and Class B Conducted Emissions.
  • Page 3 The software described in this manual may only be used in accordance with the terms of its license agreement. No part of this publication may be reproduced in any form or by any means without written permission from Code Corporation. This includes electronic or mechanical means such as photocopying or recording in information storage and retrieval systems.

  • Page 4: Table Of Contents

    2.0 - Battery Installation and Removal ..............6 3.0 - Phone Installation ..................6 4.0 - Charging the CR4405 Sled and Spare Battery ..........7 5.0 - USB Direct Connection to Sled ..............7 6.0 - Powering On the iPhone and Sled Reader ............7 7.0 - Sled Battery Status Indication ..............

  • Page 5: Included If Ordered

    1.0 - Included if Ordered USB 2.0 Cable 5VDC Power Supply CR4405 (Model #: CR44X5) Battery Cartridge Charging Station Torx™ T6 Screws D018433_02_CR4405_User_Manual...

  • Page 6: Battery Installation And Removal

    2.0 - Battery Installation and Removal Insert Battery Remove Torx Screw from Latch Secure Latch Turn Latch and with Torx Screw Remove Battery 3.0 - Phone Installation D018433_02_CR4405_User_Manual...

  • Page 7: Charging The Cr4405 Sled And Spare Battery

    4.0 - Charging the CR4405 Sled and Spare Battery Sled Battery Status While Charging Sled LED Behavior 100% - 96% Solid Green 4 Hrs. 95% - 31% Flashes Green 30% - 11% Flashes Yellow Hrs. 10% - 0% Flashes Red Note: Charge battery fully before use.

  • Page 8: Sled Battery Status Indication

    The following are symbologies that have a default of OFF. To turn symbologies on or off, scan the symbology barcodes located in symbologies on or off, scan the symbology barcodes located in the CR4405 Configuration Guide on our website at the CR4405 Configuration Guide on our website at http://www.codecorp.com.

  • Page 9: Reading Ranges

    10° angle. Default AGC settings were used. Accuracy= +/- 10%. 12.0 - CR4405 Sled Reader Configuration The CR4405 can be configured for specific tasks, data manipulation, or operational modes by scanning configuration barcodes found in the CR4405 Configuration Guide at http://www.codecorp.com.

  • Page 10: Cr4405 Communication Modes

    * It should be noted that certain third party apps do not allow data to be “tabbed” even though such configurations may be set in the CR4405 reader. For example, some spreadsheet programs require human touch on a new cell in which to enter new data, rather than Prefix-Tab or Suffix-Tab configuration to prompt the cursor to automatically move to a new cell.

  • Page 11: Using Cortexmobile

    5/5s software application developed by Code to demonstrate the capabilities of the CR4405. This software app can serve as a reference for programmers who use Code’s SDK to build other apps which can be downloaded to the iPhone from the App Store.

  • Page 12: Cortexmobile Used For Demonstration

    To accomplish Intelligent Charging, CR4405 firmware settings have been created to define key thresholds, which are: • “Sled Battery Reserve Level.” This default sled battery threshold is 40%, which means that 40% of the CR4405 battery charge (if available) will be allocated to scanning for approximately 12 hours, assuming 100 scans per hour.

  • Page 13: Cr4405 Dimensions

    19.0 - CR4405 Dimensions 6.25" (156 mm) 2.8" 1.25" (75 mm) (30 mm) 20.0 - Charging Station Dimensions 2.7" (69 mm) 4.6" (117 mm) 4.5" (114 mm) D018433_02_CR4405_User_Manual...

  • Page 14: Sled Reader Id And Firmware Version

    22.0 - Upgrading the CR4405 Firmware The CR4405 sled’s firmware can be updated by: 1) Downloading firmware files wirelessly to the sled via CortexMobile, and 2) Downloading firmware to a PC from http://www.codecorp.com/downloads.php. The firmware can then be loaded on the sled via the provided USB cable con- nected directly to the PC running CortexTools.

  • Page 15: Cr4405 Maintenance

    Cleaning the CR4405 The CR4405 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Avoid touching the window. Your CR4405 uses CMOS technology that is much like a digital camera. A dirty window may stop the CR4405 from reading barcodes.
  • Page 16 Code’s maximum liability related to its performance, or failure to perform, as described herein shall be limited to the amount paid by Customer for the Code product that is subject to the claim. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages.
