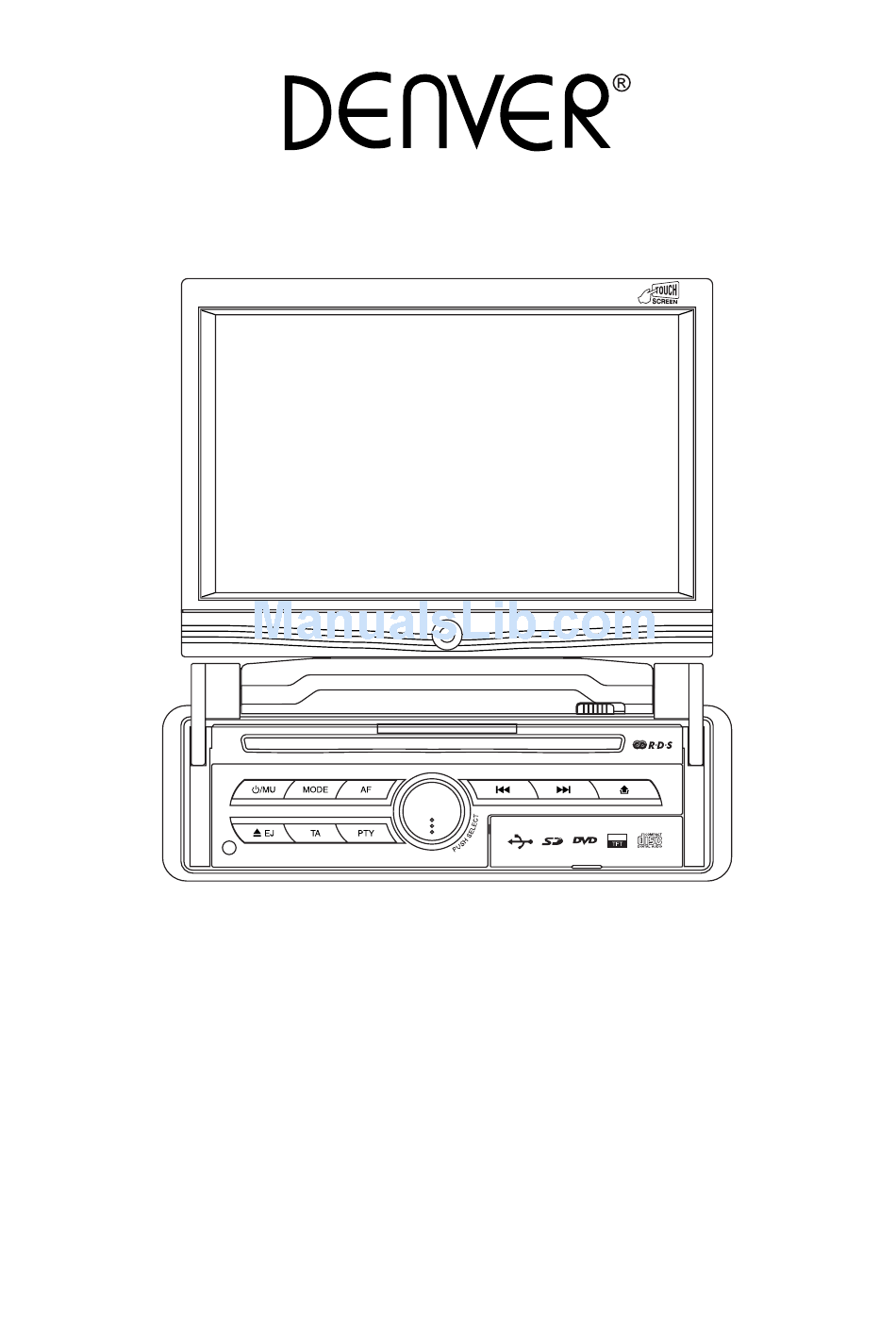

- Page 1 CAT-730 7 inch INSTRUCTION MANUAL Car Stereo DVD/SVCD/VCD/CD/MP3/MP4 Player with PLL FM Stereo Radio Radio Data System 7” (17,8cm) TFT-LCD Display Touch Screen Control Front AUX IN / USB / SD / MMC Card Input Detachable Front Panel...
-
Page 2: Before You Begin
BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture. -
Page 3: Installation
INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. NOTE :Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open. Release screw and bracket 182mm 53mm Bend these claws, if necessay NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car. Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. Before detaching the front panel, be sure to press the button (1) OFF first. Then press the button and detach the panel by pulling it towards you as illustrated. Notes: •... -
Page 4: To Support The Unit
Moving the screen forward Depending on vehicles’s dashboard design, there might be case where the display screen might collide or bump into the dashboard’s control knobs. UNLOCK Follow the steps below to move the screen forward. LOCK 1. Slide the switch to UNLOCK position. 2. Hold it in UNLOCK position then move the screen forward. The unlock switch will move to LOCK position automatically when in place. CLEANING THE CONNECTOR The unit may not function properly if the connectors between the unit and the front panel are contaminated with dirt. In order to prevent this from happening, detach the front panel by press- ing the button and clean the connector from time to time. Rear of Main unit Clean the connector with a cotton swab together with contact front panel cleaner as illustrated. Be sure to clean them carefully pin by pin and make sure not to damage the connecting points. TO SUPPORT THE UNIT Cotton Swab 1. UNIT 2. RELEASE CASE 3. DASH BOARD Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY... -
Page 5: Maintenance
Top view To Hand brake switch Note: - Only sound can be heard when car is in motion. - Refer and follow your country’s law regarding driving with video. Top view Caution: To Hand brake switch Front side - Do not attempt to install it by yourself if the instruction is not clear to you. Consult you dealer concerning the instal- lation procedures. Top view To Hand brake switch Front side Steps: Front side 1. Connect the Rear Camera IN plug to the rear camera’s video out plug. 2. Connect the RED wire to “REVERSE” gear control switch. 3. Check your gear control switch and make sure it is connected to +12V. Top view DRIVING WITH VIDEO DISPLAY By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not. - Page 6 7 inch LOCATIONS OF PARTS (MAIN UNIT) 1. POWER ON/OFF ( 2. SELECT FUNCTION BUTTON 3. ‘AF’ FUNCTION BUTTON (ALTERNATIVE FREQUENCIES) 4. ‘TA’ FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT) 5. ‘PTY’ FUNCTION (PROGRAM TYPE) 6. MODE BUTTON (MODE) 7. DVD/CD TRACK / SEARCH BUTTON 2 17 11 16 8. AUTO SEEK TUNING 9. MUTE BUTTON (MU) 10. PANEL RELEASE BUTTON ( 11. TFT DISPLAY PANEL RELEASE BUTTON 12. TFT-LCD DISPLAY 13. CD EJECT BUTTON ( 14. DISC SLOT 15. SD/MMC CARD SLOT 16. USB PORT 17. FRONT AUX IN...
-
Page 7: General Operations
Use and care of the remote control Installing the battery Slide the tray out on the back of the remote control and insert the battery with the (+) and minus (-) poles pointing in the proper direction. • When use for the first time, pull out the film protruding the tray. CAUTIONS • Remove the battery if the remote control is not used for a month or longer. • Do not recharge, disassemble, heat or dispose the battery on fire. • Do not store the battery with metallic materials. • In the event of battery leakage, wipe the remote control completely clean and install a new battery • When disposing of used batteries, please comply with government regulations or environmental public institution’s rule that apply in your country/area. • Always check carefully that you are loading the battery with plus (+) and minus (-) poles facing the proper directions. -
Page 8: Listening To Radio
How to Set Clock 1. Press CLOCK on main menu 2. Press ( ) to set the time. 3. Press X to save and exit. DUAL SETTINGS DUAL is a feature that lets user listen to radio while the passenger at the back can watch video. This unit supports connection of external AV device such as portable TV through the AUDIO OUT and VIDEO OUT port. 1. Connect the AUDIO OUT and VIDEO OUT port at the back of head unit to the LINE IN of external AV device. 2. Press and hold MODE. Select DISC, USB or SD/MMC source. 3. Press DUAL key on remote control to select which mode you want to control. T = TUNER, C = CARD, U = USB Note: You will need to connect an external portable TV or monitor when using this feature. After selecting the function (T/C/U), adjust the volume through volume knbo (2). VIEWING PHOTO 1. Insert disc, USB memory stick or SD/MMC card containing picture file format. - Page 9 ‘AF’ Function (Alternative Frequencies) - When pressed short, AF switching mode is selected. - The radio checks the signal strength of the AF all the time, when it becomes too weak, the unit detects f from the AF signal on which frequencies it must search for a better transmitter. ‘TA’ Function (Traffic Announcement) When pressed short, it is activated as TA mode on or off. When TA mode is on and traffic announcement is transmitted. – When the unit is it CD/MP3 mode, it will switch to radio mode temporarily. – If the volume level was under the threshold point, it will be raised to the threshold point. ‘PTY’ Function (Program Type) 1. Press and hold PTY button to turn ON Program type. 2. Rotate VOL knob to select program type. 3. Once desired program shows, simply press PTY button once more and unit start searching for available stations. Note: Program type will flash when searching for stations. OPERATIONS COMMON FOR CD/MP3/WMA/VCD/DVD/MP4 Search Previous / Next Folder During MP3 playback, press and hold FL-/FL+ button to go to previous /next folder.
- Page 10 Displaying information (OSD) During playback, you can see all DVD disc information and current play settings. Display will show related playback time, elapse time, title number, chapter number and other information. 1. Press OSD on the remote control once. Unit will display the play time and the disc elapse time. 2. Press it once more and all other settings information will be displayed. LISTENING TO CD/MP3/WMA Player File Info Folder Name Track file names Tips: When folder menu is activated, pressing button on front panel will toggle between MUSIC / PHOTO / VIDEO options while pressing SEEK-/SEEK+ on remote will display the files found on next page.
- Page 11 CAUTION: Make sure that the Video TV system settings is set correctly according to your disc your playing. If you are not sure, leave it set to “Auto”. Improper setup of TV system might cause the video to stop/skip/pause playing although audio might continue to play. You can setup video TV settings using the SETUP feature of the remote control. Refer to “SETTING UP THE DVD PLAYER” section. DVD menu Press , , to select the desired item, then press Enter. Video CD menu Use the number keys (“0” to “9”) to select the desired number, then press Enter. The menu screen does not appear when the PBC function is turned off. In this case, press and hold button to turn on PBC feature. Turning PBC ON/OFF (VCD only) PBC (Playback Control) is a feature found on VCD 2.0 and SVCD 1.0. PBC allows control of the playback of play items and the possibility of interaction with the user through the remote control or some other input device available. If it’s on, the player won’t auto start after inserting the disc because it will take time to select program on disc; if it’s off, the player will auto playback the program on disc one by one. 1. To turn ON PBC function, press PBC on the remote control. To turn OFF, press the button again. Note: Not all VCD/SVCD disc have PBC functions. Repeat Playback FOR VCD 1. Press RPT on the remote control during playback.
- Page 12 Title (DVD only) During DVD playback, press Title on remote control to return to FIRST title. Return to Root Menu (DVD only) During DVD playback, press and hold MENU on head unit or remote control to return to root menu. Note: Some DVD may not contain root menu. Slow motion playback This feature lets you slow down playback. 1. Press Slow on the remote control during playback. 2. Pressing it repeatedly will switch you to the following steps: 1\2 - 1\3 - 1\4 - 1\5 - 1\6 - 1\7. Note: • To resume normal playback, press PLAY/PAUSE ( • There is no sound during slow motion playback. •...
-
Page 13: Setting Up The Dvd Player
SETTING UP THE DVD PLAYER You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings. Important: 1. Load any disc into the unit before you can access the setup. 2. Press Setup on the remote control. 3. Use ( ) to return / enter category. Settings Category Options TV System NTSC, PAL, AUTO Auto Play ON, OFF TV Type 4:3PS, 4:3LB, 16:9 System Setup Password Setup password Rating Setup rating level Default Restore to factory settings OSD Language Audio Language Language Setup Subtitle Language Select preferred options appear on screen Menu Language MPEG4 Language Brightness Contrast Use navigation keys on remote control to setup Video Setup desired level. -
Page 14: Technical Specifications
All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com EN14...
