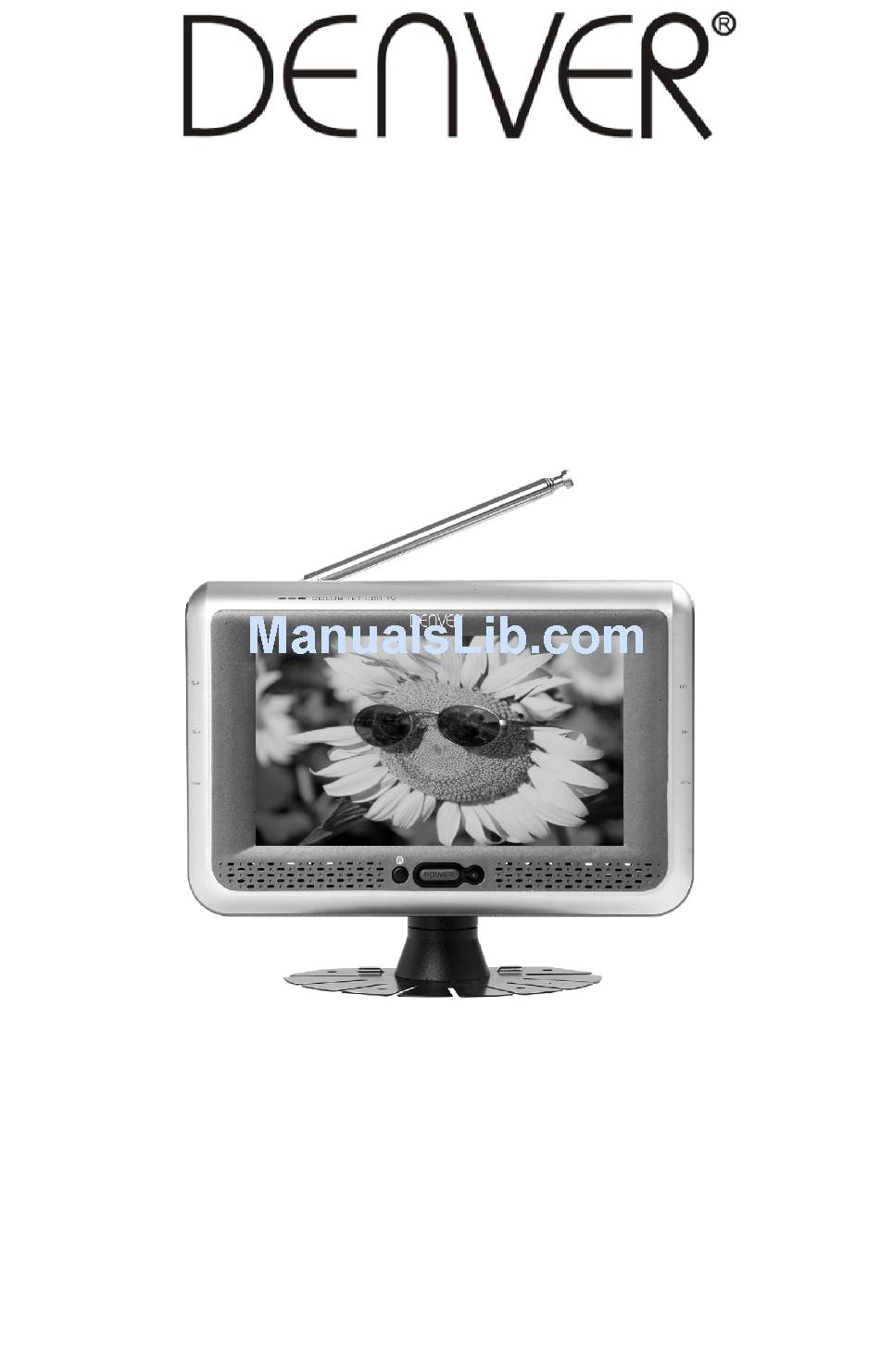

- Page 1 DFT-709 Operation Instructions LCD Color TV Receiver...
-
Page 2: Table Of Contents
Table of Contents 1.Precautions 2.Accessories 3.Appearance 4.Remote Controller Application 5.Basic Operation Methods 6.Menu Operation 6.1 Picture 6.2 Option 6.3 Clock 6.4 System 6.5 Preset 7.In order to receiver clearer picture 8.Before you request for repair 9.Technical Parameters... -
Page 3: Precautions
1. Precautions Storage and Keeping Keep this machine Never use this away from too hot machine near or too cold places. bathtub, The storage washbasin, and temperature of this kitchen, etc places machine is -20~ with water or at 60 , the damp basement, application swimming pool or... - Page 4 Operation Precautions 1. Only the attached AC adapter and the automobile adapter (12V) are suitable. 2. For the sake of safety, when you do not intended to use the display, please plug off the AC adapter or automobile adapter. Earphone Operation Precautions 1.Please don't tune your headphone / earphone to too high volume, otherwise, it may lead inconvenience and danger to yourself and other people.
-
Page 5: Accessories
2. Accessories Double-side adhesive tape Base support for base support Car adapter AC adapter Remote Battery controller compartment Earphone... -
Page 6: Appearance
3. Appearance Telescopic antenna TFT-LCD screen Volume+ Channel+ selection + option Volume - Channel - selection - option AV / TV Shift Menu Remote receiving Power ON/OFF Power indicator window External antenna jack Loudspeaker Earphone jack 12V DC IN AUDIO IN VIDEO IN... -
Page 7: Remote Controller Application
4. Remote Controller Operation Channel Selection Menu Volume Adjust Power ON/OFF Exit Game Mute Call Mode Timer Language Channel keys Calendar AV / TV Shift Channel Shift Return Flip Horizontal Auto Search Flip Vertical Picture Mode Caution 1) Please align the remote controller with the infrared-receiving window on TV set in operation. - Page 8 (Channel selection): Press CH , the number of TV channel increases. Press CH , the number of TV channel decreases. VOL - / + (Volume adjust) Press VOL - , the volume of TV set decreases. Press VOL + , the volume of TV set increases. MODE (Mode): By pressing this button, users can realize the five picture mode of Standard, Soft, Vivid ,Light and personal.
-
Page 9: Basic Operation Methods
5.Basic Operation Methods Basic interface connection 5.1 Installation Method of Base Support: Align the hardware piece on base support with the bottom groove on hardware piece of rear TV cover before moving upward and rotating the fixation button till fix the TV set onto the support. - Page 10 5.4.Connection Method of Earphone: Align the earphone plug with the earphone jack on the TV set, and just plug in till its end is OK. Caution If earphone is applied, the sound only transmits through the earphone, and no sound is available from the TV set. 5.5.Connection Method of AV Input Just insert the external video line into the yellow video jack, and audio line...
-
Page 11: Menu Operation
6.Menu Operation Press MENU to display options as follows: PICTURE OPTION CLOCK SYSTEM PRESET 6.1 Picture Contrast, bright, color, Sharp and TINT displays on the screen as illustrated below: Picture Contrast Bright Color Sharp Select Adjust / CH Select VOL + / VOL - : Adjust Press CH+ or CH- to select the item Contrast. - Page 12 Press VOL - / VOL + can realize selection of English,Russian,Chinese, Italian,Spanish,Potuguese,German and Arabic OSD menu. Press CH-or CH+ to select the item Calendar: Option Language English Calendar Game Select Adjust / CH Select VOL + / VOL - : Adjust Press VOL-/VOL+ adjust calendar, then press CH+/CH- adjust year, and press VOL-/VOL+adjust month.
-
Page 13: Clock
6.3 Clock Time, ON Time, OFF Time, Attention, CH- Time, and Position will display on the screen as illustrated below: Press VOL-/VOL+ to set up clock, then press CH- / CH+ to choose ON Time. Clock Time - - : - - ON Time - - : - - OF F Time... - Page 14 System Color system AUTO Sound system 6.5M Blue back Horizontal Vertical Zoom / CH Select VOL + / VOL - : Adjust Then press VOL or VOL+ to revolve the screen in the order of AUTO, PAL , N3.58, N4.43 and SECAM. Please choose carefully this system correctl y.
- Page 15 Press CH- or CH+ to select the item Blue back: System Color system AUTO Sound system 6.5M Blue back Horizontal Vertical Zoom / CH Select VOL + / VOL - : Adjust Press VOL- / VOL+ can realize the ON / OFF of Blue Back under no signal. Press CH-or CH+ to select the item Horizontal: System Color system...
-
Page 16: Preset
Press CH- or CH+ to select the item Zoom: System Color system AUTO Sound system 6.5M Blue back Horizontal Vertical Zoom / CH Select VOL + / VOL - : Adjust Press VOL - / VOL + can realize the selection of picture modes: 0. - Page 17 Press CH- or CH+ to select the item Auto Search: Preset Position Remember Band Swap Fine Search Auto Search / CH Select VOL + / VOL - : Adjust Press VOL- or VOL+ to start Auto Search, and put into automatic memory and storage upon completion of A uto Search.
-
Page 18: In Order To Receiver Clearer Picture
7. In order to receive clearer picture Adjust the length, angle and direction of the telescopic antenna to obtain optimum image. Draw back the antenna from the butt end after usage. Notice In case the signal intensity is too weak, the image will remain inferior whatever you adjust the antenna, and cause loud noise wave, shaking image and inferior sound, etc., which is not TV fault. -
Page 19: Before You Request For Repair
8. Before you request for repair Phenomena below does not necessarily mean failure with TV set. Please check following before you request for repair. Phenomena Possible Causes Improper connection with AC adapter or Care adapter. Use of unauthorized power No picture, no sound supply. -
Page 20: Technical Parameters
9. Technical Parameters Product Name: LCD Color TV Receivere: Display Device: Color TFT-LCD Receiving Channel: BG: VHF-L: CH2~4 48.25MHZ~62.25MHZ; VHF-H: CH 5~12 175.25MHZ~224.25MHZ; UHF: CH 21~69 471.25MHZ~855.25MHZ; DK:VHF-L: CH1~5 49.75MHZ~85.25MHZ; VHF-H: CH 6~12 168.25MHZ~216.25MHZ UHF: CH 13~57 471.25MHZ~863.25MHZ Sound System: DK Screen Size: 7 inches Audio Output: 0.3W (Max) Loudspeaker: one 4cm round loudspeakers. - Page 21 No repairable components exist in the machine. Don't try to dismantle and improve the TV set, and the high voltage in the machine may cause danger. Maintenance and adjustment of the TV set is subject to professionals. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
- Page 22 Instruction of Automatic battery power-supplying box for LCD TV The automatic power supplying box for TV makes up Product picture 1 of the box with 10 pcs of AA batteries and with fixed parts (bracket and bolts) and wires leading to the jacks of TV set.
