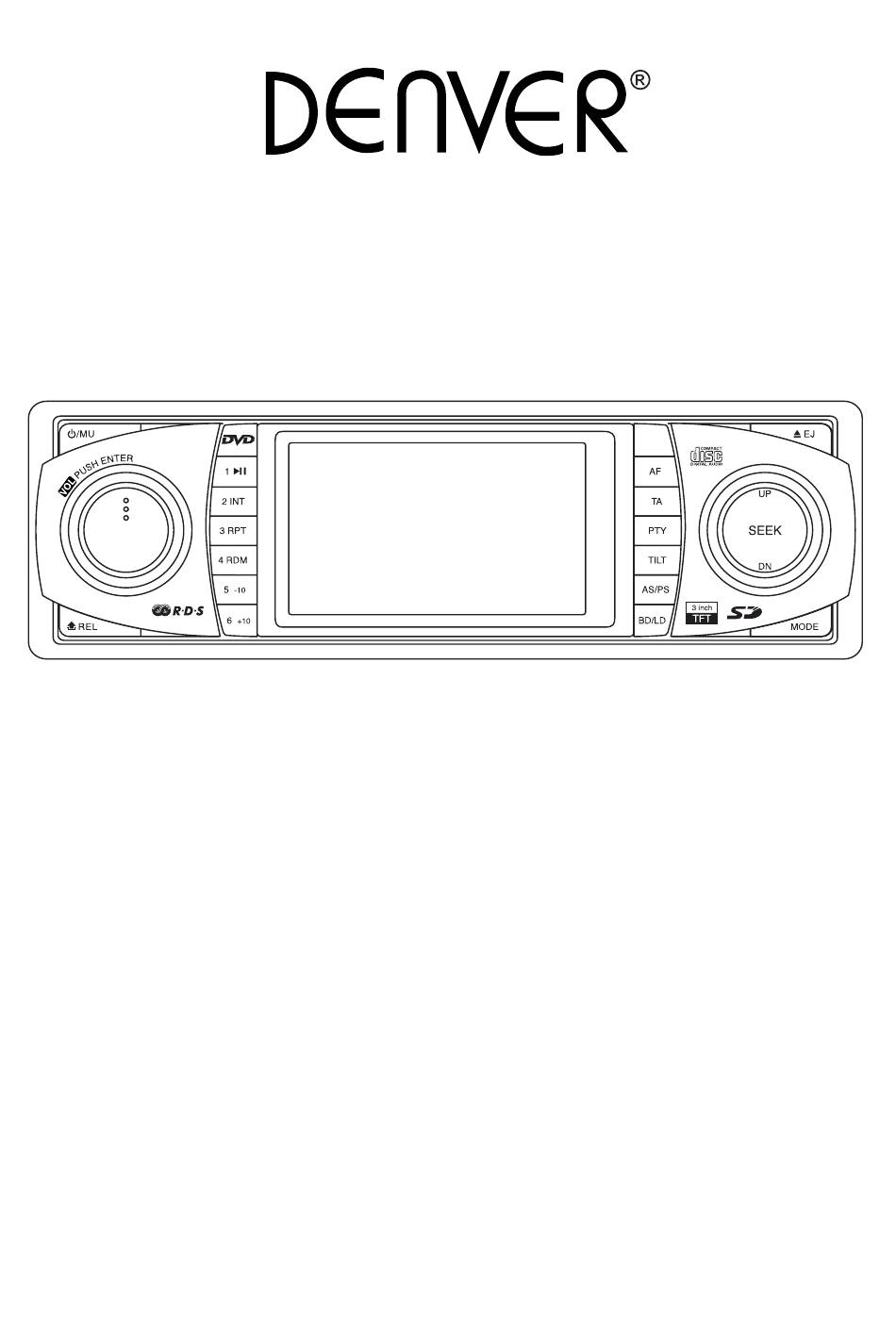

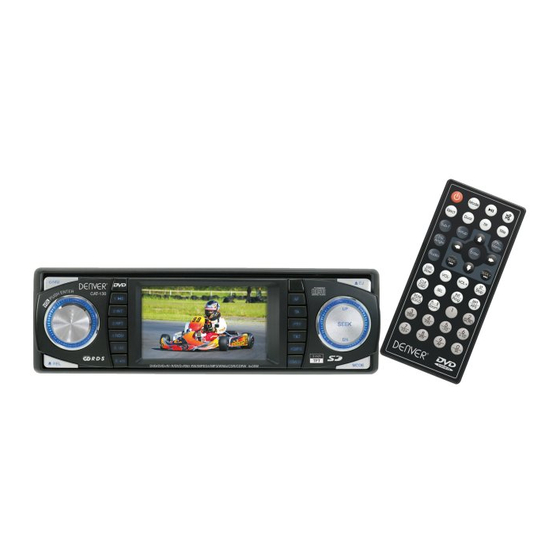

CAT-130



4
6
5
4
0

5
INSTRUCTION MANUAL
Car Stereo
DVD/SVCD/VCD/CD/MP3/MP4 Player
with PLL FM Stereo Radio
Radio Data System
3 Inch TFT-LCD Display
3


0 9 8
6 7
9
7
8
SD/MMC Card Input
3
(-6)
Slide Down/Detachable Front Panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAT-130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Denver CAT-130

  • Page 1 CAT-130 INSTRUCTION MANUAL Car Stereo DVD/SVCD/VCD/CD/MP3/MP4 Player with PLL FM Stereo Radio Radio Data System 3 Inch TFT-LCD Display 0 9 8 6 7 SD/MMC Card Input (-6) Slide Down/Detachable Front Panel...
  • Page 2: Before You Begin

    BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture.
  • Page 3: Installation

    INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
  • Page 4: To Support The Unit

    . UNIT TO SUPPORT THE UNIT . RELEASE CASE 3. DASH BOARD Dashboard 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 0. M5 X 5 HEX BOLT WIRE CONNECTION IN / OUT CONNECTOR Video Out (Yellow) : Yellow (Plug) DVD Audio Out (GRAY) Rear : White (L) Red (R)
  • Page 5: Fuse Replacement

    DRIVING WITH VIDEO DISPLAY By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not. Steps: Connect the GRAY wire to the WHITE wire. INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver.
  • Page 6 LOCATIONS OF PARTS (MAIN UNIT) 0 9 8 6 7 (-6) 1. POWER ON/OFF ( ) / MUTE 2. SELECT FUNCTION BUTTON 3. PRESET STATIONS (1,2,3,4,5,6) 4. ‘AF’ FUNCTION BUTTON (ALTERNATIVE FREQUENCIES) 5. ‘TA’ FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT) 0 9 8 6 7 6. ‘PTY’ FUNCTION (PROGRAM TYPE) 7. LOUDNESS BUTTON (LD) RESET (-6) 8. MODE BUTTON (MODE) 9. BAND BUTTON (BD) 10. CD TRACK / SEARCH BUTTON 11. AUTO SEEK TUNING 12. MUTE BUTTON (MU) 13. PANEL RELEASE BUTTON ( 14. TFT-LCD DISPLAY 15. CD EJECT BUTTON (...
  • Page 7: Power On/Off

    LOCATIONS OF PARTS (REMOTE CONTROL) 1. POWER ON/OFF 2. MODE 3. PLAY/PAUSE 4. TITLE 5. SELECT 6. SEEK+/SEEK- / CD TRACK/SEARCH Mode 7. VOL +/VOL- 8. GOTO Eject Dual Tilt Title 9. EJECT 10. AUDIO 11. ENTER Sub-T Setup Menu 12. NAVIGATION 13. AUTO SEEK / PRESET SCAN / REPEAT Enter Angle 14. RANDOM / BAND / LOUDNESS 15. DUAL...
  • Page 8: General Operations

    GENERAL OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on unit. To turn off, press and hold the button again. Selecting a source (MODE) Press MODE repeatedly to switch between TUNER, AUX, SD/MMC and CD/DVD mode. Loading a Disc 1. Press EJ to open the front panel 2. Insert a disc into the disc loading slot Ejecting a Disc Press EJ button to eject disc Adjusting Volume • Head Unit: Rotate VOL knob right or left to increase or decrease volume.
  • Page 9: Listening To Radio

    4. Refer to Radio and DVD sections on how to operate other features applicable to each mode. Note: You will need to connect an external portable TV or monitor when using this feature. RESET Reset button is placed on the housing. To reset, use a sharp point object and press and hold the RESET button for 2 seconds. The reset button is to be activated for the following reason: • Initial installation of the unit when all wiring is completed. • All the function buttons does not operate. • Error symbol on the display. LISTENING TO RADIO Preset Memory Preset Memory Station 1-6 Station 1-6 Currently Tuned Currently Tuned Station Station Band (BD) Pressing this key repeatedly will toggle cyclically between each band. FM1---FM2---FM3.
  • Page 10: Using The Rds Function

    USING THE RDS FUNCTION What is RDS? The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos. In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. ‘AF’ Function (Alternative Frequencies) - When pressed short, AF switching mode is selected. - The radio checks the signal strength of the AF all the time, when it becomes too weak, the unit detects f from the AF signal on which frequencies it must search for a better transmitter. ‘TA’ Function (Traffic Announcement) When pressed short, it is activated as TA mode on or off. When TA mode is on and traffic announcement is transmitted.
  • Page 11 Pause Playback During playback, press . Press again to resume playback. A-B Repeat Playback This feature allows you to loop playback a section of the movie starting from Point A to B. 1. Press the button to play the movie. 2. Once you have located the section you wish to playback on loop repeat, press and hold A-B button. You will see “Rep-A” on the screen. 3. Let the movie play on until you have reached the end of the section you wish to watch on continuous loop. Once you have reached this point, press and hold A-B button again. “Rep-A-B” will appear on your screen. Playback will now start from Point A –B. 4. To stop A-B repeat playback, press and hold A-B button once more until “Rep-A-B” disappears and normal playback resumes. Displaying information (OSD) During playback, you can see all DVD disc information and current play settings. Display will show related playback time, elapse time, title number, chapter number and other information.
  • Page 12: Playing Dvd/Video Cd/Mp4

    3. When all tracks have been programmed, select PLAY and press Enter. Program playback will start. 4. To clear all program entries, press Prog and select CLEAR. 5. To stop program playback, press Stop button twice. SD/MMC Card Input 1. Power off head unit. 2. Press button to open the front panel. 3. Insert the SD/MMC card into the card slot (25). 4. Attach front panel back to the head unit. Turn on unit. Playback starts automatically. PLAYING DVD/VIDEO CD/MP4 Playback 1. Insert a disc. When the disc offers a menu, the menu is displayed. When a disc already inserted, press MODE to switch to disc mode. 2. On DVDs and video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback. CAUTION: Make sure that the Video TV system settings is set correctly according to your disc your playing. If you are not sure, leave it set to “Auto”. Improper setup of TV system might cause the video to stop/skip/pause playing although audio might continue to play. You can setup video TV settings using the SETUP feature of the remote control. Refer to “SETTING UP THE DVD PLAYER”...
  • Page 13 Searching for particular track using GOTO You can use the GOTO function to search for a desired track number or particular point of a track to play. 1 Press GOTO on the remote control during playback. Time and track number search appears. 2 Enter the minutes and seconds for the currently played track if you want to search by time. Press Enter. 3 Enter track number if you want to search by tracks. Press Enter. Changing audio language during playback (Multi-audio) DVDs can provide audio playback with different languages and different systems (Dolby Digital, DTS etc.). With DVDs featuring multi-audio recordings, you can switch between languages/audio systems during playback. VCD can provide different audio languages usually divided into left and right channels. 1. To choose different audio, simply press Audio on the remote control repeatedly during playback. Note: - With some DVDs, switching between languages/audio systems may only be possible using a menu display.
  • Page 14: Customizing Audio / Video Settings

    3. When all tracks have been programmed, select PLAY and press Enter. Program playback will start. 4. To clear all program entries, press Prog and select CLEAR. 5. To stop program playback, press Stop button twice. Frame-by-frame playback This lets you move ahead one frame at a time during playback. 1 Each time you press and hold Step button on remote control, you move ahead one frame. To return to normal playback, press PAL / NTSC (P/N) Press and hold P/N button to switch between PAL, NTSC, AUTO system. CUSTOMIZING AUDIO / VIDEO SETTINGS AUDIO SETUP 1. Press VOL knob to enter AUDIO setup. Selected item will be highlighted. You can set BASS, TREBLE, BALANCE, FADER, SUBWOOFER, TA VOLUME. 2. Press UP / DN button to select item. Rotate VOL knob to make adjustments. 3. Press VOL knob to exit settings. VIDEO SETUP 1. Press and hold VOL knob to enter VIDEO setup. Selected item will be highlighted. You can set BRIGHTNESS, CONTRAST, SATURATION, HUE, SHARPNESS. 2. Press UP / DN button to select item. Rotate VOL knob to make adjustments. 3. Press and hold VOL knob to exit settings.
  • Page 15: Setting Up The Dvd Player

    SETTING UP THE DVD PLAYER You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings. Important: 1. Load any disc into the unit before you can access the setup. 2. Press Setup on the remote control. Settings Category Options TV System NTSC, PAL, AUTO Auto Play ON, OFF TV Type 4:3PS, 4:3LB, 16:9 System Setup Password Setup password Rating Setup rating level Default Restore to factory settings OSD Language Audio Language Language Setup Subtitle Language Select preferred options appear on screen Menu Language MPEG4 Language Audio Out Analog Audio Setup Key Setup key level Brightness Contrast Use navigation keys on remote control to Video Setup...
  • Page 16: Technical Specifications

    The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location. ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S E 13 024174 www.denver-electronics.com...
