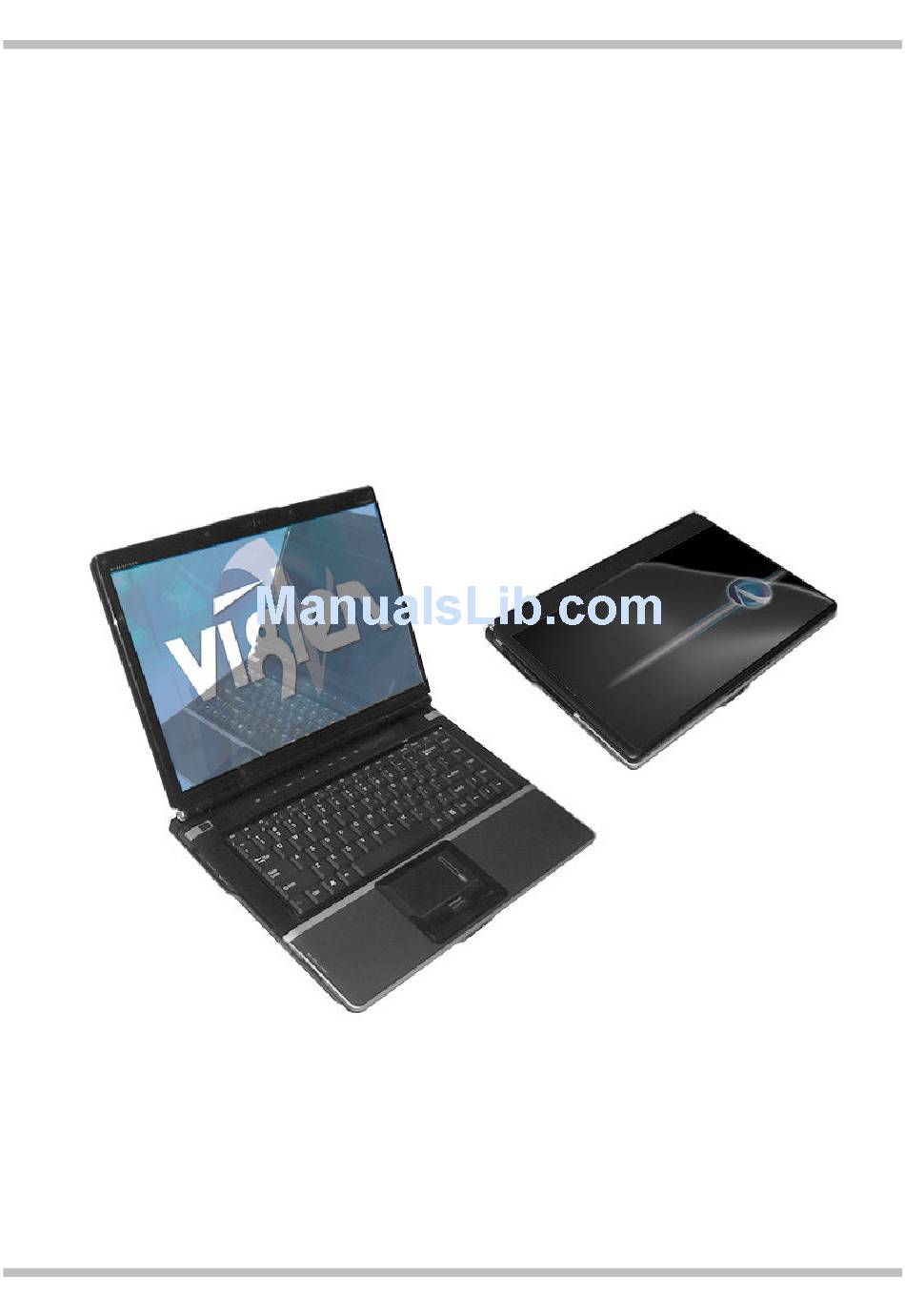

- Page 1 Dossier D100 User’s Guide W651UI Model: First Edition: December 2007...
- Page 2 User's Guide NOTICE Specifications and information found in this guide are subject to change without notice. Any changes therefore will be incorporated in future editions. The manufacturer assumes no responsibility for errors or omissions in this document. TRADEMARKS Windows™ is the trademark of Microsoft Corporation. Intel®...
- Page 3 User's Guide Standards The following standards are adopted throughout this guide: Notebook in boldface (with or without capitalization) refers to the notebook computer that you have purchased. Boldface type is also used to highlight important information in this document.
- Page 4 User's Guide This page is left blank intentionally. Page IV...
-
Page 5: Table Of Contents
User’s Guide Contents CONTENTS CHAPTER 1 BEFORE YOU BEGIN ................1 ................. 1 HECKING ECEIVED ................2 XAMINING OMPUTER ..................7 OWER ..................8 TATUS ..................... 9 OWER UTTON ................10 YSTEM UTTONS PCI E ......12 TTENTION XPRESS EDIA OCKETS ................. - Page 6 Contents User's Guide ..................30 YSTEM PECIFICATION CHAPTER 7 BIOS SETUP..................31 7.1 C ..................31 ONFIGURATION OFTWARE ................32 UNNING THE ETUP TILITY ......................33 ETUP ....................35 DVANCED ETUP ....................37 ECURITY ETUP ......................39 ETUP ......................40 ETUP APPENDIX A - AGENCY REGULATORY NOTICES..........41 Page VI...
-
Page 7: Chapter 1 Before You Begin
Dossier D100 User’s Guide Chapter 1 Before You Begin Please read this section before you start using your computer. Checking What You Received Your notebook package should contain the following items: The Notebook. AC Adapter. AC Power Cord. ... -
Page 8: Examining Your Computer
Dossier D100 User's Guide Examining Your Computer Before you start using your computer, you need to get acquainted with your notebook's main features and interfaces: Panoramic View Internal Microphone (Optional) LCD Screen Web Cam Lens (Optional) Power Button Web Cam LED (Optional) Keyboard Two Speakers Fingerprint Reader (Optional) -
Page 9: Front View
Dossier D100 User’s Guide Front View Two Power LEDs Microphone Jack Headphone Jack (SPDIF) Rear View VGA Connector Battery Pack RJ11 Fax/Modem Connector DC-In Jack Kensington Lock... -
Page 10: Left View
Dossier D100 User's Guide Left View Media Card Slot (for MMC/ SD/ MS/ MS-Pro RJ45 LAN Connector Cards) Two USB Connectors Ventilation Holes HDMI Connector (Optional) PCI Express Card Slot Right View USB Connector ODD Drive Eject Button Emergency Hole... -
Page 11: Bottom View
Dossier D100 User’s Guide Bottom View Compartment Door (for Mini-PCI Express and Compartment Door (for Memory Modules, HDD Modules) Heatsink, and CPU) Ventilation Holes Battery Pack Two Battery Latches Note: Some external USB devices consume more power than this system unit can provide. - Page 12 Dossier D100 User's Guide Mono Jack: Stereo Jack: Your microphone jet should Your headphone jet should have this type of connector have this type of connector as shown here. as shown here. Two Types of Audio Jack...
-
Page 13: The Two Power Leds
Dossier D100 User’s Guide The Two Power LEDs The Power LED Below is how the LED would behave in different situations: System is powered off, or in Hibernate mode. System is in full operation. Blinking System is in Standby mode. The Battery LED Below is how the LED would behave in different situations: Purple... -
Page 14: The Five Status Leds
Dossier D100 User's Guide The Five Status LEDs The Wireless LAN LED This LED would be lit when the Wireless LAN is powered on. For details on how to power on and power off the Wireless LAN, please refer to Chapter 1.9 The Caps Lock LED The LED would be lit when the keyboard is in Caps Lock mode. -
Page 15: The Power Button
Dossier D100 User’s Guide The Power Button The Power Button This Power Button is programmable by user. For detail on how to program this button, please refer to the Power Options of Control Panel in Windows System. Note: The Power Button is located near the top left of keyboard. For exact location, please refer to the Panoramic View diagram in Chapter 1.2. -
Page 16: The Nine System Buttons
Dossier D100 User's Guide The Nine System Buttons Email Button Press this button to activate the email function. If you press this button while system is powered off or in hibernation, system would power on or resume from hibernation first before launching into the “Windows Mail” application program. Internet Button Press this button to activate the internet function. - Page 17 Dossier D100 User’s Guide Note: The Nine System Buttons are located near the top of keyboard. For exact location, please refer to the Panoramic View diagram in Chapter 1.2. In order for the Email Button ( ) to function properly in Windows™ Vista operating system, first you need to perform the below one-time registration procedure: ...
-
Page 18: Attention O Npci Express And Media Card Sockets
Dossier D100 User's Guide Attention On PCI Express And Media Card Sockets The PCI Express Card slot door is The Media Card slot door is now now inserted into the system unit. inserted into the system unit. Arrow on topside of Media Card The Media Card slot door is slot door. - Page 19 Dossier D100 User’s Guide When no card (MMC/ SD/ MS/ MS-Pro Cards) is inserted into the media card slot, make sure this card slot is covered by the “media card slot door” as supplied together with this notebook. The purpose of this “media card slot door” is to prevent foreign matters from entering into the system unit through this card slot, when no card is inserted.
-
Page 20: Operating Temperature
Dossier D100 User's Guide Operating Temperature Operating Temperature : 10ºC to 35ºC. -
Page 21: The
Dossier D100 User’s Guide The <Fn> Key The <Fn> Function Key is located near the bottom-left corner of the keyboard. This key is used together with other keys to activate certain pre-defined functions. To activate these functions, press and hold down <Fn> together with the keys described below: Wireless LAN Switch Press this key combination (Fn+F2) to power on and power off the Wireless LAN module.Key - Page 22 Dossier D100 User's Guide Brightness Increasing Press this key combination (Fn+F7) to increase brightness of LCD display. Brightness Decreasing Press this key combination (Fn+F8) to decrease the brightness of LCD display. Touch Pad Switch Press this key combination (Fn+F9) to switch off and to switch on the touch pad function.
- Page 23 Dossier D100 User’s Guide Note: The proper way to activate Wireless LAN, and Bluetooth® is as below: 1) Press this key combination (Fn+F2) to power on Wireless LAN. 2) Press this key combination (Fn+F6) to power on Bluetooth®. 3) Activate the application programs in Windows™. The effective range of the system Bluetooth®...
-
Page 24: The Scroll Area On Touch Pad
Dossier D100 User's Guide 1.10 The Scroll Area On Touch Pad The scroll area The system touch pad has a scroll area immediately to the right of the vertical bar. Design of traditional touch pads requires end-users to push their fingertips upward or downward on the scroll area to respectively scroll up and scroll down. -
Page 25: Chapter 2 Battery
Dossier D100 User’s Guide Chapter 2 Battery Battery Pack Your notebook is equipped with a high-energy rechargeable Lithium Ion (Li-Ion) battery pack. Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. -
Page 26: Questions And Answers
Dossier D100 User's Guide Questions And Answers I can feel a mild heat next to the battery pack during recharge. Is it normal? The battery will generate heat during recharging and discharging. There is a protection circuit inside the notebook to prevent overheating. User needs not to worry. -
Page 27: Battery Maintenance
Dossier D100 User’s Guide Battery Maintenance To maintain the battery pack's maximum capacity, you should occasionally let the notebook deplete its battery power completely before recharging. To carry out a complete depletion of the battery, disconnect the AC adapter and let your notebook consume the remaining battery power. -
Page 28: Reducing Power Consumption
Dossier D100 User's Guide Reducing Power Consumption Although your notebook (together with the operating system) is capable of power conservation, there are measures you can take to reduce the power consumption: Use the AC power whenever possible. Lower the intensity of the LCD backlight. A very bright screen translates to higher power usage. -
Page 29: Chapter 3 Memory
Dossier D100 User’s Guide Chapter 3 Memory Your notebook is equipped with a configurable memory unit. The industry standard JEDEC DDR2 S.O.DIMM memory module sockets are available for memory upgrade to 4096MB. The table below illustrates all the possible ways system memory can be configured. -
Page 30: Removing Memory Module
Dossier D100 User's Guide Removing Memory Module Below is the procedure on how to remove the memory module. Make sure the system is properly Memory shutdown. Modules Flip the system upside down as shown. Remove the battery pack as shown in Chapter 2. - Page 31 Dossier D100 User’s Guide Press the spring-locks sideways as shown by #1. The second memory module would pop up as shown by #2. Remove the second memory module as shown by #3. To insert the memory modules, reverse the steps above.
-
Page 32: Chapter 4 Mini-Pci Express Module
Dossier D100 User's Guide Chapter 4 Mini-PCI Express Module Depending on model, your notebook may be equipped with an optional Mini-PCI Express module. The Mini-PCI Express module supports wireless LAN function. Removing Mini-PCI Express Module Below is the procedure on how to remove the Mini-PCI Express module. ... - Page 33 Dossier D100 User’s Guide Note: Depend on the different types of mini-PCI Express module, some modules are with two cables, while some modules are with three cables.
-
Page 34: Chapter 5 The Hard Disk Drive
Dossier D100 User's Guide Chapter 5 The Hard Disk Drive Your notebook is equipped with an industry standard 2.5”/9.5mm hard disk drive. Removing The Hard Disk Drive Below is the procedure on how to remove the hard disk drive. Make sure the system is properly shutdown. - Page 35 Dossier D100 User’s Guide Tilt up the HDD module as shown by Remove the HDD module as shown by Remove the four screws as shown by Remove the HDD drive as shown by To insert the HDD drive, reverse the steps above.
-
Page 36: Chapter 6 System Overview
Dossier D100 User's Guide Chapter 6 System overview System Specification Intel® Merom Processor Core™2 Duo (Santa Rosa Platform) Intel® Celeron® Processor (Santa Rosa Platform) 35 watts 800/533MHz Intel® GM965 North Bridge Intel® GM965 Integration Shared system memory (default), supports up to 256 MB Memory Dual DDR2-SODIM, 667 MHz, Max: 4GB (Dual Channel) Integrated in ICH-8M... -
Page 37: Chapter 7 Bios Setup
Dossier D100 User’s Guide Chapter 7 BIOS Setup 7.1 Configuration Software The notebook can easily be configured to suit your personal needs. The built-in SETUP program allows you to setup various system parameters. The information is stored in a battery-backed CMOS memory; so when the power is turned off, your setup is retained. -
Page 38: Running The Setup Utility
Dossier D100 User's Guide 7.2 Running the Setup Utility There are five major sub-menus in the SETUP program: Main Setup, Advanced Setup, Security Setup, Boot Setup, and Exit Setup. Details on the five major sub-menus are described on the following pages. Movement within the SETUP Utility To move between the different item fields, use the cursor keys ... -
Page 39: Main Setup
Dossier D100 User’s Guide 7.3 Main Setup You will be greeted by this screen when you enter the Main Setup menu: System Time: Current time. Use <Tab>, <Shift-Tab>, or <Enter> keys to move around these fields. To change the value, press <> or <> key. System Date: Today date. - Page 40 Dossier D100 User's Guide CPU Speed: This is for display only. This shows the speed of CPU you have in the system. Cache Ram: This is for display only. This shows the memory of cache Ram you have in the system.
-
Page 41: Advanced Setup
Dossier D100 User’s Guide 7.4 Advanced Setup You will be greeted by this screen when you enter the Advanced Setup menu: Summary Screen: There are two options to this field: Enabled, and Disabled. This field allows the system to display (enabled) or hide (disabled) the system configuration during system boot-up. - Page 42 Dossier D100 User's Guide Internal Bluetooth Power State: There are three options to this field: On, Off, and Restore. If set to On, the bluetooth LED would be on after system boot-up or resume from hibernation. If set to Off, the bluetooth LED would be off after system boot-up or resume from hibernation.
-
Page 43: Security Setup
Dossier D100 User’s Guide 7.5 Security Setup You will be greeted by this screen when you enter the Security Setup menu: Supervisor Password Is: This is for display only. This shows the system’s supervisor password has been set (Set) or not (Clear). User Password Is: This is for display only. - Page 44 Dossier D100 User's Guide Password On Boot: There are two options to this field: Enabled and Disabled. If the option is set to Enabled and when Supervisor Password and/or User Password have been set, system would prompt for password during system boot up. In order to access the system, you need to enter either the Supervisor Password or User Password.
-
Page 45: Boot Setup
Dossier D100 User’s Guide 7.6 Boot Setup You will be greeted by this screen when you enter the Boot Setup Menu: This menu is for determining the priority of which the system would boot from. This version of BIOS supports the following boot devices: 1: IDE CD, 2: SATA HDD, 3: USB CD-ROM, 4: USB Key, 5: USB HDD, 6: USB FDC, and 7: Boot to LAN. -
Page 46: Exit Setup
Dossier D100 User's Guide 7.7 Exit Setup You will be greeted by this screen when you enter the Exit Setup Menu: Exit Saving Changes: Save the changes that you have just made, and then exit the SETUP. Exit Discarding Changes: If you do not want to save the changes you have just made, choose this to reject all the changes and exit the SETUP. -
Page 47: Appendix A - Agency Regulatory Notices
Dossier D100 User’s Guide Appendix A - Agency Regulatory Notices Safety Instructions CAUTION: Please read these safety instructions carefully. CAUTION: Please keep this User's Manual for future reference. CAUTION: Please disconnect this equipment from AC outlet before cleaning. DO NOT use liquid or sprayed detergent for cleaning. Use a clean moistened cloth. - Page 48 Dossier D100 User's Guide CAUTION: Verify the voltage of the power source before connecting the unit to any power outlet. WARNING: DO NOT step on or place anything over the power cord. CAUTION: All cautions and warnings on the equipment should be noted. WARNING: If the equipment is not used for a long period of time, disconnect the equipment from the power source to avoid damage from power...
- Page 49 Dossier D100 User’s Guide CAUTION: DO NOT LEAVE THE EQUIPMENT IN TEMPERATURES BELOW -20ºC(-4ºF) OR ABOVE 60ºC(140ºF). IT MAY CAUSE DAMAGE TO THE EQUIPMENT. WARNING: Never install modem/telephone wiring during a lightning storm. WARNING: Never install modem/telephone jacks in wet locations unless the jack is specially designed for wet locations.
- Page 50 Dossier D100 User's Guide WARNING: THE CD-ROM/DVD-ROM IN THIS NOTEBOOK EMPLOYS A LASER SYSTEM. a. To ensure proper use of this product, please read the relevant instructions carefully and retain for future reference. b. Should the unit ever require maintenance, contact your local dealer. c.
- Page 51 Dossier D100 User’s Guide WARNING: Handle the battery pack very carefully. Avoid touching the metal leads on the connector of the battery case. CAUTION: Use only approved AC Adapter with your notebook. Using the wrong type of AC Adapter may cause serious damage to your notebook. CAUTION: The AC Adapter can accept a line voltage ranging from 100V to 240V and is compatible with most international power sources.
-
Page 52: Federal Communications Commission Notice
Dossier D100 User's Guide Agency Notice Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 53 Dossier D100 User’s Guide FCC RF Radiation Exposure Statement This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
-
Page 54: Canadian Notice
Dossier D100 User's Guide Explosive Device Proximity Warning Warning: Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use. Use On Aircraft Caution Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. -
Page 55: European Union Notice
Dossier D100 User’s Guide European Union Notice Product with the CE Marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community and if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC). Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): EN55022 (CISPR 22)... -
Page 56: Japanese Notice
Dossier D100 User's Guide The wireless LAN device can currently be used indoors only in the following departments of mainland France. Indre Rhône Aisne Indre et Loire Haute Saône Allier Jura Saône et Loire Hautes Alpes Loir et Cher Sarthe Ardennes Loire Paris... - Page 57 Dossier D100 User’s Guide DGT Statement U.S. Regulations Governing the Use of Modems This equipment complies with Part 68 of the FCC Rules. On this equipment is a label that contains, among other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment.
- Page 58 Dossier D100 User's Guide Japanese Modem Notice U.K. Modem Compliance Information This modem is approved by the secretary of state at the Department of Trade and Industry for connection to a single exchange line of the public switched telephone network run by certain licensed public telecommunication operators or system connected there to (Direct exchange lines only, not shared service or 1-1 carrier systems).
- Page 59 Dossier D100 User’s Guide Storage of telephone numbers for retrieval by a predator mined code. Initial proceed indication detection. Automatic calling / automatic answering. Tone detection. Loud-speaking facility. This modem is not approved for connection to U.K./private speech-band services. This modem does not support an automatic re-dial function.
