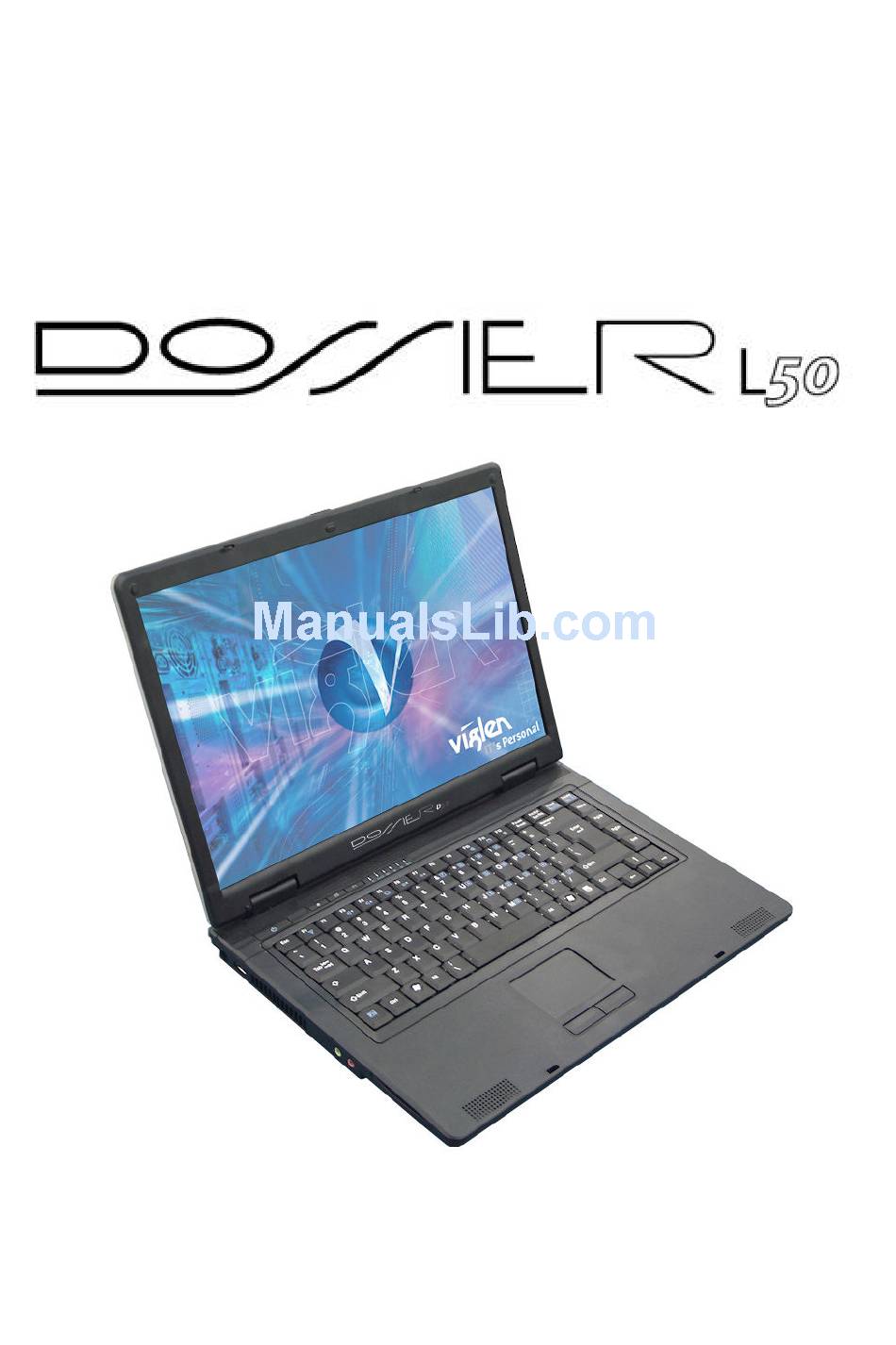

  • Page 1 User’s Guide (December 2007)
  • Page 2 International Business Machines Corporation. Pentium and Pentium Pro are registered trademarks of Intel Corporation. AMI BIOS is a registered trademark of American Megatrends. All other trademarks are acknowledged. JAC-UP, Genie, Contender, Dossier, Vig, Viglen, and Envy are trademarks of Viglen Limited. Copyright and Patents This manual and all accompanying software and documentation are copyrighted and all rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Preface ..................v Notational Conventions............vi Chapter 1 Getting Started...........1-1 Getting the Computer Running ..........1-2 Unpacking ................ 1-2 Connecting to AC Power ..........1-2 Opening the Cover ............1-4 Turning On and Off the Computer........1-4 Taking a Look at the Computer..........1-6 Right-Side Components ...........
  • Page 4 Function Keys ..............2-9 Fn Key................2-9 Hot Keys ................ 2-10 Using the Touchpad ............2-11 Configuring the Touchpad ..........2-13 Using the DVD Drive............2-14 Inserting and Removing a Disc ........2-15 Using the Video Features ........... 2-16 Configuring the Display Modes ........2-16 Using the Audio Features...........
  • Page 5 Internal Components Upgrade ..........4-6 Chapter 5 Using BIOS Setup ..........5-1 When and How to Use BIOS Setup ........5-2 When to Use..............5-2 Starting BIOS Setup............5-2 Moving Around and Making Selections ......5-4 Main Menu ................5-5 Advanced Menu ..............5-6 Boot Menu................
  • Page 6 Hardware Device Problems..........8-7 Hard Disk Drive Problems ..........8-7 Keyboard, Mouse, and Touchpad Problems ....8-7 LAN Problems ..............8-8 WLAN Problems.............. 8-8 Modem Problems ............8-10 Power Management Problems........8-10 Software Problems ............8-11 Sound Problems ............. 8-11 Startup Problems ............

  • Page 7: Preface

    Preface This manual contains information that will help you operate the computer. It is divided into 8 chapters, 2 appendices, and an index. Chapter 1, Getting Started, takes you through the process of setting  up the computer and identifying its external components. Chapter 2, Operating Your Computer, tells you how to use the ...

  • Page 8: Notational Conventions

    Notational Conventions Throughout this manual, the following conventions are used to distinguish elements of text. NOTE: identifies additional information that requires special attention. CAUTION: identifies important information that, if not followed, may result in loss of data or damage to the computer. Keyboard keys are shown in a bold typeset.

  • Page 9: Chapter 1 Getting Started

    Chapter 1 CHAPTER Getting Started Congratulations on purchasing this computer. Your computer incorporates desktop computer capabilities into a compact notebook-sized package. It can greatly enhance your productivity either in the office or at home. And, of course, wherever you need it, the computer is ready and easy “to go.” This chapter first tells you step by step how to get the computer up and running.

  • Page 10: Getting The Computer Running

    Getting the Computer Running This section guides you through the procedures for getting the computer ready for operation. Unpacking After unpacking the shipping carton, you should find these standard items: Notebook computer  Accessories:   AC adapter  AC power cord ...
  • Page 11 3. Plug the female end of the AC power cord to the AC adapter and the male end to an electrical outlet (  ). 4. When the AC adapter is connected, power is being supplied from the electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer.

  • Page 12: Opening The Cover

    Opening the Cover CAUTION: Be gentle when opening and closing the cover. Opening it vigorously or slamming it shut could damage the computer. Open the top cover by sliding the cover latch toward the right () and lifting up the cover (). You can tilt the cover forward or backward for optimal viewing clarity.
  • Page 13 2. Press the power button. 3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start. Turning Off To turn off the computer power, use the “Shut Down” command of your operating system.

  • Page 14: Taking A Look At The Computer

    Taking a Look at the Computer This section identifies the external components of the computer and briefly describes the function of each component. NOTE: Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this manual. Right-Side Components Component Description...

  • Page 15: Left-Side Components

    Left-Side Components Component Description See Also  Power Connector Connects the AC adapter. P. 1-2  USB Port Connects a USB device, such as a USB flash P. 4-3 disk, printer, digital camera, joystick, and more.  Audio Output Connects a set of headphones, external P.

  • Page 16: Rear Components

    Rear Components Component Description See Also  USB Ports Connect a USB device, such as a USB flash P. 4-3 disk, printer, digital camera, joystick, and more.  Kensington Lock Locks the computer to a stationery object for P. 7-3 security.

  • Page 17: Bottom Components

    Bottom Components Component Description See Also  Supplies power to your computer when P. 3-3 Battery Pack external power is not connected.  Inside is the optional Mini PCI-E WLAN P. 2-21 WLAN Card Slot card.  Memory Slot Inside is the memory slot for expanding the memory size.

  • Page 18: Top-Open Components

    Top-open Components Component Description See Also  Top Cover Latch Locks the top cover.  Allows you to use your computer’s optional CMOS Camera Lens (Optional) camera function.  Displays the output of the computer. P. 2-16 LCD Screen Getting Started 1-10...
  • Page 19 Component Description See Also  Indicators Show the current status of the computer’s devices. WLAN Glows in green when the P. 2-22 indicator WLAN radio is on. Power status Glows in green when the indicator computer is turned on. Blinks green the computer is in Sleep mode.

  • Page 20: Where To Go From Here

    Where to Go from Here As your computer is ready for operation, you may want to do any of the following now: For this purpose... Do this... To know more about the computer... Go on to the next chapter. To install the operating system if your See the operating system manual.

  • Page 21: Chapter 2 Operating Your Computer

    Chapter 2 CHAPTER Operating Your Computer This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user but are new to notebook computers, you may choose to read only the parts containing information unique to your computer.

  • Page 22: Starting And Stopping The Computer

    Starting and Stopping the Computer There are a number of ways to start and stop the computer. Starting the Computer You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the storage device such as the hard disk and optical disc.
  • Page 23 To stop in Do this... To start up or this mode... resume again Hibernation Depending on your settings in Windows, Press the power you can place the computer in button. Hibernation mode by:  Closing the display cover  Pressing the power button If you choose to stop in Sleep or Hibernation mode, you can return to where you left off the next time you start up the computer.

  • Page 24: Using The Easy Start Buttons

    Using the Easy Start Buttons NOTE: To take advantage of the Easy Start buttons feature, the ESB driver supplied with your computer must be installed. (See chapter 6 for details.) The Easy Start buttons are three pre-defined buttons located on the left above the keyboard.

  • Page 25: Using The Keyboard

    Using the Keyboard Your keyboard has all the standard functions of a full-sized computer keyboard plus an key added for specific functions. The standard functions of the keyboard can be further divided into four major categories: Typewriter keys  Cursor-control keys ...

  • Page 26: Cursor-Control Keys

    Description Pressing Fn and this key toggles the Num Lock on and off. When on light on), the Num Lock activates the numeric keys. Pressing Fn and this key toggle Scroll Lock on and off. When on the screen moves one line up or down when you press  or  arrow key. Scroll Lock does not work for all programs.
  • Page 27 Cursor-control keys are generally used for editing purposes. They are: Description Moves the cursor left one space. Moves the cursor right one space. Moves the cursor up one line. Moves the cursor down one line. Moves the page up. Moves the page down. Moves the cursor to the beginning of the line or document.

  • Page 28: Numeric Keypad

    Numeric Keypad A 15-key numeric keypad is embedded in the typewriter keys as shown next: Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated, which means you can use these keys to enter numerals. NOTE: When the numeric keypad is activated and you need to type the English letter in the ...

  • Page 29: Windows Keys

    To press the Euro sign on a United States 101 keyboard, hold down  either of the keys and type on the numeric keypad of your 0128 keyboard. To press the Euro sign on an UK keyboard, hold down the Alt Gr ...

  • Page 30: Hot Keys

    Hot Keys Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the corresponding function to the other or next choice.

  • Page 31: Using The Touchpad

    Using the Touchpad CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface. NOTE: For optimal performance of the touchpad, keep your fingers and the pads clean and dry. When tapping on the pad, tap lightly. Do not use excessive force. The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.
  • Page 32 Here are some common terms that you should know when using the touchpad: Term Action Point Move your finger on the pad until the cursor points to the selection on the screen. Click Press and release the left button. –or– Tap gently anywhere on the pad.

  • Page 33: Configuring The Touchpad

    Configuring the Touchpad You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so To configure the touchpad, go to Control Panel ...

  • Page 34: Using The Dvd Drive

    Using the DVD Drive Your computer comes with a DVD drive, usually configured as drive D. Depending on the model, your drive is one of the following: Combo drive can work both as a DVD drive (reading DVD discs in ...

  • Page 35: Inserting And Removing A Disc

    Inserting and Removing a Disc Follow this procedure to insert or remove a disc: 1. Turn on the computer. 2. Press the eject button and the DVD tray will slide out partially. Gently pull on it until it is fully extended. 3.

  • Page 36: Using The Video Features

    Using the Video Features The video subsystem of your computer features: 15.4-inch TFT (Thin-Film Transistor) color LCD display with  1280×800 WXGA resolution Multi-display capability, which allows you to expand your desktop  on the screen to another display device so that you have more desktop space to work on.

  • Page 37: Using The Audio Features

    Using the Audio Features NOTE: To take advantage of the enhanced audio capabilities, the audio driver supplied  with your computer must be installed. (See chapter 6 for details.) If you experience interference while recording, try lowering the microphone  recording volume.

  • Page 38: Connecting Audio Devices

    Connecting Audio Devices For higher audio quality, you can send or receive sound through external audio devices. NOTE: After connecting an external audio device, make sure that you specify the use of the correct audio device in Windows. Audio Output Connector ( ) can be connected to speakers, ...

  • Page 39: Using The Communication Features

    Using the Communication Features Using the Modem (Optional) NOTE: Depending on your model, the RJ-11 connector may not have any function.  To take advantage of the modem feature, the modem driver supplied with your  computer must be installed. (See chapter 6 for details.) The optional internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board.

  • Page 40: Using The Lan

    Using the LAN NOTE: To take advantage of the LAN feature, the LAN driver supplied with your computer must be installed. (See chapter 6 for details.) The internal 10/100 Mbps LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 100 Mbps.

  • Page 41: Using The Wireless Lan (Optional)

    Using the Wireless LAN (Optional) Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment. The WLAN features include: Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes ...
  • Page 42 Turning Off/On the WLAN Radio NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using your computer in the airplane. Your computer has a built-in WLAN hot key to switch the WLAN on/off (see “Hot Keys”...

  • Page 43: Connecting To A Wireless Network

    Connecting to a Wireless Network 1. Make sure that the WLAN radio is on. 2. Right-click the Wireless Network Connection icon located on the Windows system tray and select Connect to a network. 3. If any wireless network is detected, the following window appears on screen.

  • Page 44: Chapter 3 Managing Power

    Chapter 3 CHAPTER Managing Power Your computer operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

  • Page 45: Ac Adapter

    AC Adapter CAUTION: The AC adapter is designed for use with your computer only. Connecting the AC  adapter to another device can damage the adapter. The AC power cord supplied with your computer is for use in the country where you ...

  • Page 46: Battery Pack

    Battery Pack The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter. The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

  • Page 47: Initializing The Battery Pack

    CAUTION: After the computer has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery. NOTE: The battery level may automatically lessen due to the self-discharge process (0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the computer.

  • Page 48: Replacing The Battery Pack

    Replacing the Battery Pack CAUTION: There is danger of explosion if the battery is incorrectly replaced. Replace the  battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions. Do not attempt to disassemble the battery pack. ...
  • Page 49 4. Align the side of a spare battery pack with the side of the battery compartment and gently push the battery pack into place. The two battery release levers would click into position. Managing Power...

  • Page 50: Battery Low Signals And Actions

    Battery Low Signals and Actions The battery icon changes appearance to display the current state of the battery so that you can see how much charge remains (Windows default setting). When the battery charge is above 25 % the battery icon is green. When the battery charge reaches 25 % a yellow triangle with an exclamation point (!) appears above the green battery icon.

  • Page 51: Power Management

    Power Management Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving. With an ACPI-compliant operating system such as Windows Vista, power supply to different computer components is controlled on an as-needed basis.

  • Page 52: Hibernation

    Hibernation NOTE: Make sure that the hibernation feature is enabled in the “When I press the power button,” “When I press the sleep button,” and “When I close the lid” of the Power Options  System Settings Properties from the Control Panel  Mobile PC in Windows Vista.

  • Page 53: Power-Saving Tips

    Power-Saving Tips Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management. Choose a Windows power plan  that saves power. A power plan is a collection of hardware and system settings that control how your computer manages power.

  • Page 54: Chapter 4 Expanding Your Computer

    Chapter 4 CHAPTER Expanding Your Computer You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter. This chapter gives guidelines on installing and using these devices: External monitor ...

  • Page 55: Connecting An External Monitor

    Connecting an External Monitor If you want the benefits of a larger display screen with higher resolution, you can connect an external CRT monitor to your computer. Follow this procedure to connect an external monitor: 1. Make sure that the computer is not turned on. 2.

  • Page 56: Connecting A Usb Device

    Connecting a USB Device Your computer has four USB ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse. USB (Universal Serial Bus) is specified to be an industry standard extension to the PC architecture. It supports “Plug-and-Play” technology so you can install and remove USB devices without turning off the computer.

  • Page 57: Using Expresscards

    Using ExpressCards NOTE: The ExpressCard interface is not compatible with the PC card interface. You need optional adapters for using PC cards on your computer. Your computer has an ExpressCard slot. ExpressCard supports the PCI Express and USB 2.0 serial data interfaces (supporting speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data transfer while conserving power usage.

  • Page 58: Inserting And Removing An Expresscard

    Inserting and Removing an ExpressCard To insert an ExpressCard: 1. Locate the ExpressCard slot on the left side of the computer. 2. Slide the ExpressCard, with its label facing up, all the way into the slot until the rear connectors click into place. 3.

  • Page 59: Internal Components Upgrade

    Internal Components Upgrade You can upgrade your computer by changing the CPU and hard disk or adding memory. However, to avoid damage during the installation procedure, please ask your dealer for help. Do not install an internal component by yourself. Expanding Your Computer...

  • Page 60: Chapter 5 Using Bios Setup

    Chapter 5 CHAPTER Using BIOS Setup BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand.

  • Page 61: When And How To Use Bios Setup

    When and How to Use BIOS Setup When to Use You need to run BIOS Setup Utility when: You see an error message on the screen requesting you to run BIOS  Setup Utility. You want to restore the factory default settings. ...
  • Page 62 The BIOS Setup Utility screen can be divided into four areas: On the top is the menu bar containing the titles of the available  menus. Each menu title brings a specific menu. The center column of the menu displays the current configuration ...

  • Page 63: Moving Around And Making Selections

    Moving Around and Making Selections In most cases, you must go through two levels to complete the setting for an item: menu title and submenu. Use the keyboard to move around and make selections. A brief description of keyboard usage is listed next: Function ...

  • Page 64: Main Menu

    Main Menu The Main menu contains the system date and time settings of the system. System Time sets the system time. System Date sets the system date. Using BIOS Setup...

  • Page 65: Advanced Menu

    Advanced Menu The Advanced menu contains the various system settings. Frame Buffer Size sets the shared memory size of the video controller. The options are 64MB, 128MB, and 256MB. Default setting is 64MB. NOTE: This item is for Legacy VGA and SVGA mode only. When under Windows mode, ...
  • Page 66 Legacy USB Support enables the system's support for Legacy USB device (e.g., mouse, flash disk, except keyboard) in DOS mode. The options are Enabled and Disabled. Default is Enabled. Using BIOS Setup...

  • Page 67: Boot Menu

    Boot Menu The Boot menu sets the sequence of the devices to be searched for the operating system. The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS use to look for a boot device from which to load the operating system.
  • Page 68 Function Shift + 1 Deactivates/activates the highlighted boot device on the “Boot priority order” list. When a device has been deactivated, an “!” (exclamation) symbol appears beside the item and system will bypass it when detecting boot device during POST. Using BIOS Setup...

  • Page 69: Exit Menu

    Exit Menu The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your settings, you must save and exit so that the changes can take effect. Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.

  • Page 70: Chapter 6 Installing Software Drivers

    C:\UTILS for future reference. Drivers can also be installed from the optional driver cd. For Latest driver visit http://www.viglen.co.uk/ This chapter describes how to install the drivers as well as using the P1 Quick Launch Key Utility.

  • Page 71: How To Use The Driver Disc

    How to Use the Driver Disc NOTE: The drivers may have been updated after this manual was published. For driver  upgrade, please visit at : Viglen web site http://www.viglen.co.uk/viglen/support/ftpnotebook.aspx.   This disc supports Windows XP and Windows Vista. ...

  • Page 72: P1 Quick Launch Key Utility

    P1 Quick Launch Key Utility The quick launch key utility allows you to define the “P1” quick launch key. To start the utility, right-click the ESB icon and select “Open” on the Windows system tray. The “ESB” window appears as shown next. Cancel Open Installing Software Drivers...
  • Page 73 Defining the buttons: The box in the window represents the user-definable button. To assign a program to a button, click the Open icon under the box to pop up the Select a File to Open dialog box as shown next and select the desired program.

  • Page 74: Chapter 7 Caring For The Computer

    Chapter 7 CHAPTER Caring for the Computer Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer. This chapter gives you guidelines covering these areas of maintenance: How to protect the computer ...

  • Page 75: Protecting The Computer

    Protecting the Computer To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section. Using the Windows Security Center Windows Security Center protects your computer against intrusion. Caring for the Computer...

  • Page 76: Using The Cable Lock

    Windows Security Center alerts you to take action on the following security essentials: Windows Firewall  Windows Update  Malware Protection (anti-virus, anti-spyware)  Others (Internet security, user account control)  For detailed information on Windows Security Center, see Windows’ Help.

  • Page 77: Taking Care Of The Computer

    Taking Care of the Computer Location Guidelines Use the computer where the temperature is between 10 C (50 F)  and 35 C (95 F). Avoid placing the computer in a location subject to high humidity,  extreme temperatures, mechanical vibration, direct sunlight, or heavy dust.

  • Page 78: Cleaning Guidelines

    Cleaning Guidelines Never clean the computer with its power on.  Use a soft cloth moistened with water or a non-alkaline detergent to  wipe the exterior of the computer. Gently wipe the display with a soft, lint-free cloth. Do not use ...

  • Page 79: When Traveling

    When Traveling Before traveling with your computer, make a backup of your hard  disk data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data. Make sure that the battery pack is fully charged. ...

  • Page 80: Chapter 8 Troubleshooting

    Chapter 8 CHAPTER Troubleshooting Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved. This chapter tells you what actions to take when solving common computer problems.

  • Page 81: Preliminary Checklist

    Preliminary Checklist Here are helpful hints to follow before you take further actions when you encounter any problem: Try to isolate which part of the computer is causing the problem.  Make sure that you turn on all peripheral devices before turning on ...

  • Page 82: Solving Common Problems

    Solving Common Problems For easy reference, the problems are divided into these categories. Problem Type Go to Battery Problems P. 8-4 DVD Drive Problems P. 8-4 Display Problems P. 8-5 ExpressCard Problems P. 8-6 Hardware Device Problems P. 8-6 Hard Disk Drive Problems P.

  • Page 83: Battery Problems

    Battery Problems The battery does not charge (Battery Charge indicator does not light amber). Make sure that the AC adapter is properly connected.  Make sure that the battery is not too hot or cold. Allow time for the  battery pack to return to room temperature.

  • Page 84: Display Problems

    You cannot eject a disc. The disc is not properly seated in the drive. Manually release the disc  following the method described next: 1. Turn off the computer. 2. Insert a small rod, such as a straightened paperclip, into the drive’s manual eject hole and push firmly to release the tray.

  • Page 85: Expresscard Problems

    Bad dots appear on the display at all times. A small number of missing, discolored, or bright dots on the screen  are an intrinsic characteristic of TFT LCD technology. It is not regarded as a LCD defect. Resolution cannot be adjusted to desired setting. Make sure that the video driver is installed correctly.

  • Page 86: Hardware Device Problems

    Hardware Device Problems The computer does not recognize a newly installed device. The device may not be correctly configured in the BIOS Setup  program. Run the BIOS Setup program to identify the new type. Make sure if any device driver needs to be installed. (Refer to the ...

  • Page 87: Lan Problems

    The numeric keypad is disabled. Make sure that the is switched on. (Check if the Num Lock Num Lock  Indicator glows or not.) The external keyboard does not work. Make sure that the keyboard cable is properly connected.  The USB mouse does not work.
  • Page 88 Transmission quality is poor. Your computer may be in an out-of-range situation. Move your  computer closer to the Access Point or another WLAN device it is associated with. Check if there is high interference around the environment and solve ...

  • Page 89: Modem Problems

    Use the Web Manager/Telnet of the Access Point to check whether it  is connected to the network. Reconfigure and reset the Access Point.  I cannot access the network. Make sure that the necessary driver(s) is correctly installed.  Make sure that the network configuration is appropriate.

  • Page 90: Software Problems

    The computer does not enter Sleep or Hibernation mode immediately. If the computer is performing an operation, it normally waits for the  operation to finish. The computer does not resume from Sleep or Hibernation mode. The computer automatically enters Sleep or Hibernation mode when ...

  • Page 91: Startup Problems

    Make sure that the audio driver is correctly installed.  Make sure that the computer is not in Sleep mode.  If using an external speaker, make sure that the speaker is properly  connected. Distorted sound is produced. Make sure that the volume control is not set too high or too low. In ...

  • Page 92: Other Problems

    The message “Operating system not found” appears on the screen after you turn on the computer. If this message appears when you are booting from the hard disk,  insert a bootable disc in the DVD drive and check the condition of the hard disk.

  • Page 93: Resetting The Computer

    Resetting the Computer You may have to reset (reboot) your computer on some occasions when an error occurs and the program you are using hangs up. If the computer operation seems to hang up, first wait. It is possible that the computer is processing data.

  • Page 94: Appendix A Specifications

    Appendix A APPENDIX Specifications NOTE: Specifications are subject to change without any prior notice. Parts Specifications Intel® Pentium-M / Celeron-M processor (Santa Rosa Merom core), 667 MHz FSB (Front Side Bus) ROM BIOS 512 KB EEPROM System 2 × 200-pin DDRII 667 MHz SO-DIMM sockets 1.25-inch height Display Panel 15.4-inch TFT, resolution up to 1280×800 WXGA...
  • Page 95 Parts Specifications Dimension (W×D×H) 358×263×20~36.6 mm (14.1×10.4×0.8~1.4 inch) Weight 2.9 kg (6.4 lb) Operating: 0 C (32 F) to 35 C (95 F) Environment Temperature Storage: –20 C (–4 F) to 60 C (140 F) Humidity Operating: 10 % to 90 % non-condensing Storage: 5 % to 95 % non-condensing Regulation Safety...

  • Page 96: Appendix B Regulatory Information

    Appendix B APPENDIX Regulatory Information This appendix provides regulatory statements and safety notices on your computer. NOTE: Marking labels located on the exterior of your computer indicate the regulations that your model complies with. Please check the marking labels and refer to the corresponding statements in this appendix.

  • Page 97: On The Use Of The System

    On the Use of the System Class B Regulations Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 98: Canadian Department Of Communications

    Canada Canadian Department of Communications Radio Interference Regulations Class B Compliance Notice This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations. Cet appareil numérique de Classe B respecte toutes les exigences du Règlement Canadien sur le matériel brouileur. This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
  • Page 99 ENGLISH CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions. DEUTSCH VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ.

  • Page 100: About The Modem

    About the Modem Caution Never install telephone wiring during a lightning storm.  Never install telephone jacks in wet locations unless the jack is  specifically designed for wet locations. Never touch non-insulated telephone wires or terminals unless the  telephone line has been disconnected at the network interface.

  • Page 101: On The Use Of The Rf Device

    On the Use of the RF Device NOTE: The information in this section applies to models with the wireless LAN module. USA and Canada Safety Requirements and Notices IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 102 The use of wireless devices on airplanes is governed by the Federal  Aviation Administration (FAA). The use of wireless devices in hospitals is restricted to the limits set  forth by each hospital. Antenna use: In order to comply with FCC RF exposure limits, low gain integrated ...
  • Page 103 EMC Requirements This device uses, generates and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC). This device complies with the limits for a Class B digital device pursuant to Part 15 subpart C of the FCC Rules and Regulations.

  • Page 104: European Union Ce Marking And Compliance Notices

    Canada Radio Frequency Interference Requirements To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé...
  • Page 105 Greek To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/EC. Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC. Italian Questo prodotto è conforme alla Direttiva Europea 1999/5/EC. Norwegian Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.
  • Page 106 The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows: General European standards dictate maximum radiated transmit power of 100 mW Effective Isotropic Radiated Power (EIRP) and the frequency range 2400 –...
  • Page 107 Departments in Which the Wireless LAN Module’s Maximum EIRP Not Shown in the Previous Table Frequency Ranges (MHz) Indoors Outdoors 2400 – 2446.5 10 mW Not permitted 2446.5 – 2483.5 100 mW 100 mW on private property with Ministry of Defense approval Turning Off the Wireless LAN Radio NOTE: Turning the wireless LAN radio off is not the same as disabling the wireless LAN card.

  • Page 108: 电子信息产品有毒有害物质或元素名称及含量标示

    电子信息产品有毒有害物质或元素名 称及含量标示 有毒有害物质或元素 项目 部件名称 铅 镉 汞 六价铬 多溴联苯 多溴二苯醚 (Pb) (Cd) (Hg) (Cr+6) (PBB) (PBDE) 金属机构件 塑料机构件 电路板组件 液晶面板 硬盘 光驱 键盘 充电电池组件 适配器 电源线 外部信号连接线 钮扣电池 风扇 散热模块 (金属部分) 喇叭 O : 表示该有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 规定的限量 要求以下。 X : 表示该有害物质至少在该部件的某一均质材料中的含量超出...
  • Page 109 使用除外项目如下： 1. 铅使用于部件、装置的内部连接用高融点锡焊上（铅为 85wt% 以上的有铅锡焊）。 2. 电子陶瓷部件（压电组件・陶瓷介质材料等）内的含铅量。 3. 电子部件的玻璃内的含铅量。 4. 两种以上元素组成之焊料，用于连接微处理器封装与针头且铅 含量超过 80wt% 并少于 85wt%。 5. 铅于覆晶集成电路封装内用于铸模与基板之电子接点之焊锡。 6. 于钢材、铝材、铜材中的含铅量。 7. 通孔盘状及平面数组陶瓷多层电容器焊料所含的铅。 8. 电子接点的电镀，其要求高可靠性，且没有替代性材料之镉。 9. 电池内的含铅量。 10. 电池内的含镉量。 11. 使用于钮扣电池之含汞量。 Regulatory Information B-14...
  • Page 110 Index Battery pack, 1-9 Battery low, 3-7 —A— Charging, 3-3 Checking battery level, 3-5 Initializing, 3-4 AC adapter, 3-2 Replacing, 3-5 Connecting, 1-2 Safety notices, B-3 Safety notices, B-4 Specification, A-1 Specification, A-1 Taking care, 7-5 AC power Troubleshooting, 8-4 Connecting, 1-2 BIOS Setup, 5-1 ACPI, 3-8...
  • Page 111 Connecting external device Microsoft Outlook, 1-10, 2-4 Monitor, 4-2 P1, 1-10, 2-4 USB device, 4-3 EEPROM, A-1 Connector EMC requirements, B-8 Audio output, 1-7, 2-20 Environmental specifications, A-2 Microphone, 1-7, 2-20 ESB. See Easy Start button Copyright protection Esc key, 2-7 Macrovision Corp., 2-17 Euro symbol, 2-10 Cover...
  • Page 112 Power status, 1-11 —O— WLAN, 1-11 Operating system, 1-5, 2-2 —K— —P— Kensington lock, 1-8, 7-2 Keyboard, 1-11, 2-7 Troubleshooting, 8-7 Password, 5-8 Pause key, 2-8 Point, 2-14 —L— POST, 1-5 Beep sound, 5-6 Power button, 1-11, 2-2 LAN, 2-22 Power connector, 1-7 Connector, 1-8 Power Management, 3-8...
  • Page 113 Sleep, 2-2, 3-8 Typewriter key, 2-7 Troubleshooting, 8-10 Sleep button, 2-12 —U— Software Troubleshooting, 8-11 Software driver, 6-1 Upgrading the computer, 4-6 Speaker, 1-11, 2-19 USB device Connecting external speakers, 2-20 Connecting, 4-3 Specifications, A-1 USB port, 1-7, 1-8, 4-3 Startup, 2-2 Troubleshooting, 8-12 —V—...

  • Page 114: Index

    Index...

Table of Contents
