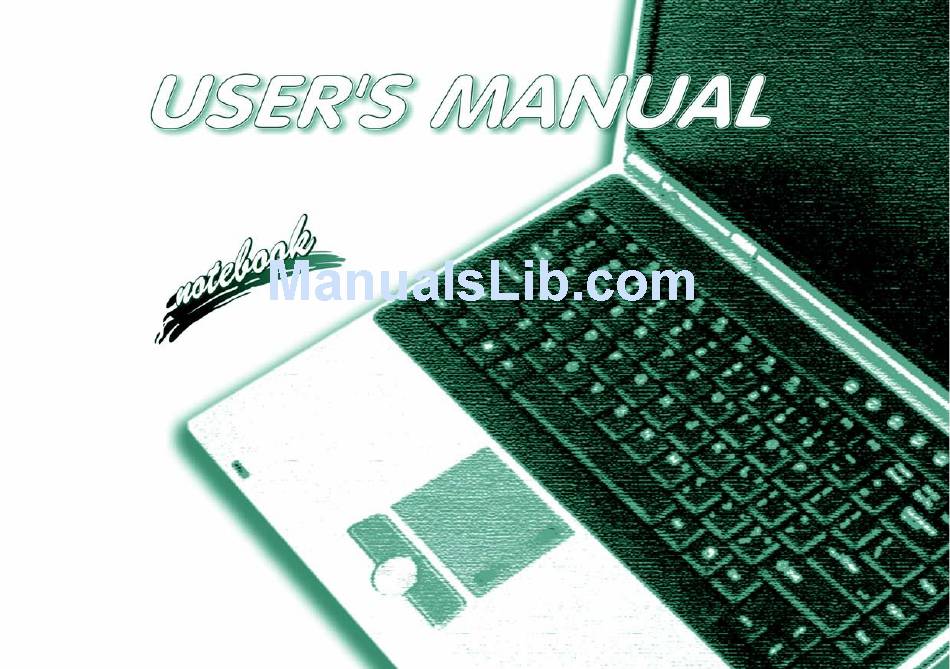

Viglen Dossier XT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dossier XT and is the answer not in the manual?

Questions and answers

Related Manuals for Viglen Dossier XT

Summary of Contents for Viglen Dossier XT

  • Page 3 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Infor- mation contained herein is for reference only and does not constitute a commitment on the part of the man- ufacturer or any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

  • Page 4: Fcc Statement

    Preface FCC Statement (Federal Communications Commission) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Important Safety Instructions

    Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury to persons when using any electrical equipment: Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 6: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be dam- aged.
  • Page 7 Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong magnetic fields. These can hinder proper performance and damage your data. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save your work.

  • Page 8: Power Safety

    Preface Power Safety The computer has specific power requirements: • Only use a power adapter approved for use with this computer. • Your AC adapter may be designed for international travel but it still requires a Power Safety steady, uninterrupted power supply. If you are unsure of your local power specifi- Warning cations, consult your service representative or local power company.

  • Page 9: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the com- puter. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way.

  • Page 10: Cleaning

    Preface Cleaning Do not apply cleaner directly to the computer; use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock.

  • Page 11: Travel Considerations

    Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: Check that the battery pack and any spares are fully charged. Power off the computer and peripherals. Close the display panel and make sure it’s latched.
  • Page 12 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Chapter 8: Troubleshoot- ing, keep these points in mind: Hand-carry the notebook - For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 13 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.
  • Page 14 Preface Lighting Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders. • Position the display to avoid glare or reflections from overhead lighting or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

  • Page 15: Table Of Contents

    Preface Contents Notice ................I System Map: Right View ........1-11 FCC Statement ............II System Map: Bottom View ........1-12 Instructions for Care and Operation ..... IV Windows XP Start Menu & Control Panel .... 1-13 Power Safety ............VI Video Features ............1-14 Battery Precautions ..........VII Video Driver Controls ........
  • Page 16 Preface USB Printer ............2-15 Advanced Configuration and Power Interface ..4-1 Install Instructions: ..........2-15 The Power Sources ..........4-2 Parallel Printer ............2-15 AC Adapter ............4-2 Battery ..............4-2 Video & Audio Controls Turning on the Computer ......... 4-3 Power Schemes ............4-4 Overview ..............3-1 System Power Options ..........
  • Page 17 Preface Updating/Reinstalling Individual Drivers ....5-4 Non-Fatal Errors ........... 6-3 Driver Installation ............5-5 The System Configuration Utility ......6-4 Driver Installation Application ......5-5 Entering Setup ............6-4 Driver Installation Procedure .........5-7 Working with the Menu Bar ........6-5 New Hardware Found ..........5-7 Working with the Pull-Down Menu ......
  • Page 18 Preface Power Saving (Power Menu) .........6-13 Driver Installation (WinXP) ......... 8-6 CPU SpeedStep Controls (Power Menu) ....6-14 Intel PRO/Wireless 2200BG WLAN Turn on power/radio for ..(Power Menu) ..6-14 Driver Installation (Win2000) ......8-8 Exit Menu ...............6-15 Intel PRO/Wireless 2200BG WLAN Save and Exit (Exit Menu) ........6-15 Driver Installation (WinXP) .......
  • Page 19 Preface Viruses ..............9-4 USB 2.0/1.1 Ports ........... A-4 Upgrading and Adding New Hardware/Software ..9-5 Advanced Power Saving Power ................9-7 Display ..............9-9 Power Schemes and Processor Performance ..B-2 Boot Password ............9-10 Intel CPU SpeedStep Controls .........B-3 Audio & CD Device ..........9-11 Windows XP Service Pack 2 .......B-3 Keyboard ..............9-12 Hot Key Display ............B-3...
  • Page 20 Preface Power ...............C-4 Environmental Spec ..........C-4 Physical Dimensions & Weight ......C-5 Optional ..............C-5 WLAN Module Options .......... C-5 XVIII...

  • Page 21: Quick Start Guide

    Quick Start Guide Chapter 1: Quick Start Guide Overview This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the computer and to getting your system started. The remainder of the manual covers the following: •...

  • Page 22: Advanced Users

    Quick Start Guide Advanced Users If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful to refer to “What to Install” on page 5 - “BIOS Utilities” on page 6 - 1 “Upgrading The Computer”...

  • Page 23: System Software

    Quick Start Guide System Software Your computer may already come with system software pre-installed. Where this is not the case, or where you are re-configuring your computer for a different system, you will find this manual refers to the following oper- ating systems: •...

  • Page 24: System Startup

    Quick Start Guide System Startup Remove all packing materials. Place the computer on a stable surface. Securely attach any peripherals you want to use with the notebook (e.g. keyboard and mouse) to their ports. Attach the AC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an outlet, and connect the AC power cord to the AC adapter.

  • Page 25: System Map: Top View With Lcd Panel Open

    Quick Start Guide System Map: Top View with LCD Panel Open Optional Built-In PC Camera Wireless Device Operation Aboard LED Power & Aircraft Communication Indicators The use of any portable LED Status Indicators electronic transmission devices aboard aircraft is Quick-Key Buttons usually prohibited.

  • Page 26: Led Indicators

    Quick Start Guide LED Indicators Table 1 - 2 - LED Status Indicators The two sets of LED indicators (LED Power & Com- munication Indicators and LED Status Indicators) Icon Color Description on the computer display helpful information about the current status of the computer.

  • Page 27: Quick-Key Buttons

    Quick Start Guide Quick-Key Buttons Keyboard These Quick-Keys give instant access to the default The keyboard has an embedded numerical keypad for Internet browser and e-mail program, and toggle pow- easy numeric data input (see Figure 1 - 3) and features er to the optional module(s) (WLAN/Bluetooth/PC Function Keys to allow you to change operational fea- Camera).
  • Page 28 Quick Start Guide Function Keys & Hot Keys To use the function/ Hot Keys, press and hold the Fn key, then press the appropriate function key (Esc - F10 etc.). Additional Hot Keys/enhanced functions are available after installing the Hot Key driver (see“Hot Key (Win2000/WinXP)”...

  • Page 29: System Map: Front & Rear Views

    Quick Start Guide System Map: Front & Rear Views Figure 1 - 4 Front & Rear Views LCD Latches Speaker Built-In Microphone S/PDIF-Out Jack Microphone-In Jack Headphone-Out Jack Line-In Jack Vent/Fan Intake DC-In Jack 10. Security Lock Slot 11. Parallel Port 12.

  • Page 30: System Map: Left View

    Quick Start Guide System Map: Left View Figure 1 - 5 Left View RJ-45 LAN Jack S-Video-Out Jack External Monitor (VGA) Port Mini-IEEE 1394a Port 2 * USB 2.0 Ports IEEE 1394 The Mini-IEEE 1394 port only supports SELF POW- ERED IEEE 1394 devices.

  • Page 31: System Map: Right View

    Quick Start Guide System Map: Right View Figure 1 - 6 - Right View Optical Device Drive Bay (for CD/DVD Device - see page PC Card Slot (see page 4-in-1 Card Reader (reads SD/ MMC/ MS & MS Pro formats - see page Security Lock Slot Changing DVD Regional Codes...

  • Page 32: System Map: Bottom View

    Quick Start Guide System Map: Bottom View Figure 1 - 7 - Bottom View Vent/Fan Intake Modem/Bluetooth & Modem Combo Module The CPU is not a user ser- Cover viceable part. Opening this CPU Cover compartment, or access- Hard Disk/Memory/WLAN ing the CPU in any way, may violate your warranty.

  • Page 33: Windows Xp Start Menu & Control Panel

    Quick Start Guide Windows XP Start Menu & Control Panel Most of the control panels, utilities and programs within Windows XP (and most other Windows versions) are accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk drive, and a shortcut will usually be placed in the Start menu and/or the desktop.

  • Page 34: Video Features

    Quick Start Guide Video Features Video Driver Controls You can switch display devices, and configure display options, from the Display Properties control panel in Windows as long as the video driver is installed. For further video information see “Video & Audio Controls” on page 3 - Click Start, point to Settings and click Control Panel (or click Control Panel).

  • Page 35: Display Devices & Options

    Quick Start Guide Display Devices & Options Besides the built-in LCD, you can also use an external VGA monitor or TV as your display device. A VGA monitor connects to the external monitor (VGA) port a TV to the S-Video-Out Jack. With the video driver in- stalled (see “What to Install”...

  • Page 36: Power Management Features

    Quick Start Guide Power Management Features The Power Options control panel in Windows (see page 12) allows you to configure power management features for your computer. You may conserve power through individual components such as the monitor or hard disk (by means of Power Schemes), or you may use either Standby or Hibernate mode to conserve power throughout the system (enable Hibernate support from the control panel as pictured in Figure 1 - 10).

  • Page 37: Features & Components

    Features & Components Chapter 2: Features & Components Overview Read this chapter to learn more about the following main features and compo- nents of the computer: • The Hard Disk Drive • The Optical (CD/DVD) Device • The 4-in-1 Card Reader •...

  • Page 38: Hard Disk Drive

    Features & Components Hard Disk Drive The hard disk drive is used to store your data in the computer. The hard disk Power Safety can be taken out to accommodate other 2.5" IDE hard disk drives with a height of 9.5 mm. Before attempting to access any of the inter- components...

  • Page 39: Optical Device

    Features & Components Optical Device There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The ac- Sound Volume tual device will depend on the model you purchased (see “Storage” on page C Adjustment 3). The optical device is usually labeled “Drive D:” and may be used as a boot device if properly set in the BIOS (see “Startup Menu”...

  • Page 40: Handling Cds Or Dvds

    Features & Components Handling CDs or DVDs Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data stored on your CDs/ CD Emergency Eject DVDs can be accessed. If you need to manually Note the following: eject a CD (e.g.

  • Page 41: Dvd Regional Codes

    Features & Components DVD Regional Codes To change the DVD regional codes see “Changing DVD Regional Codes” on page 1 - DVD Regional Coding Table 2 - 1 Region Geographical Location DVD Regional Coding USA, Canada Western Europe, Japan, South Africa, Middle East &...

  • Page 42: 4-In-1 Card Reader

    Features & Components 4-in-1 Card Reader The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device. • MMC (MultiMedia Card) • SD (Secure Digital) •...

  • Page 43: Pc Card Slot

    Features & Components PC Card Slot The computer is equipped with a PCMCIA 3.3V/5V slot for one type II PC Card. Make sure you install the driver for the PC Card (see “What to Install” on page 5 - Inserting and Removing PC Cards •...

  • Page 44: Hot Keys

    Features & Components Hot Keys In addition to the basic function key combinations, enhanced Hot Key func- Application Note tions are available when the driver is installed (see “What to Install” on page 5 - The Hot Key functions (see “HotKey/Quick- After installing the Hot Key driver an icon will appear in the taskbar.
  • Page 45 Features & Components Hot Key / Function Table 2 - 2 Quick-Key HotKey/Quick-Key Fn + F1 Figure 2 - 6 on page 2 - 8 Activate the Help Menu Functions Fn + F8 Decrease LCD Brightness Fn + F9 Increase LCD Brightness Plug-In/Remove AC Displays CPU SpeedStep Hot Key Note...

  • Page 46: Check Mail Program

    Features & Components Check Mail Program After you have installed the driver for the Check Mail program (see “What to Install” on page 5 - 1) you may then configure it to give notification when new mail is received. You must be online to receive this notification (note that this program only supports the POP3 protocol), and your default mail pro- gram does not need to be open.
  • Page 47 Features & Components Clicking on Check Mail will bring up the following options menu. Note Check with your Inter- net Service Provider, network administrator or Mail Service provid- er for details on what to put on these pages. Figure 2 - 8 Check Mail Account Setup and Options...
  • Page 48 Features & Components Figure 2 - 9 Check Mail Enabled You may enable an audible warning for received mail by clicking on Set Mail Wave, and browsing to a .WAV sound file to use for mail notification. Click Enable play wave for mail arrival, and SAVE to save the settings. Figure 2 - 10 Set Mail Wave 2 - 12 Check Mail Program...

  • Page 49: Touchpad And Buttons/Mouse

    Features & Components TouchPad and Buttons/Mouse The TouchPad is a device for pointing (controlling input positioning) on the Mouse Driver computer’s display screen by sensing finger movement, and downward pres- sure. It is an alternative to the mouse; however, you can also add a mouse to If you are using an ex- your computer through one of the USB ports.

  • Page 50: Configuring The Touchpad And Buttons

    Features & Components Configuring the TouchPad and Buttons Once you have installed the TouchPad drivers (see “What to Install” on page 5 - 1) you can configure the functions by double-clicking the TouchPad driver icon on the taskbar. You may then configure the TouchPad tapping, buttons, scrolling, pointer motion and sensitivity options to your preferences.

  • Page 51: Adding A Printer

    Features & Components Adding a Printer The most commonly used peripheral is a printer. The following conventions Parallel Printer will help you to add a printer, however it is always best to refer to the printer manual for specific instructions and configuration options. After setting up the printer attach the paral- lel cable to the printer.
  • Page 52 Features & Components 2 - 16...

  • Page 53: Video & Audio Controls

    Video & Audio Controls Chapter 3: Video & Audio Controls Overview This chapter covers: • Keyboard Video Controls • Dynamic Video Memory Technology • Display Properties Drivers • Intel Extreme Graphics 2 for Mobile • Display Devices You are unable to use •...

  • Page 54: Advanced Video Controls

    Video & Audio Controls Advanced Video Controls This section is about making adjustments for the LCD, and switching display Protecting the LCD devices. You can switch display devices with the Fn + Display (F7) toggle. Do not allow any for- eign objects (i.e.

  • Page 55: Dynamic Video Memory Technology

    Video & Audio Controls Dynamic Video Memory Technology ® Intel DVMT automatically and dynamically allocates as much (up to 64MB) system memory (RAM) as needed to the video system (the video driver must DVMT Notes be installed - see “What to Install” on page 5 - 1).

  • Page 56: Display Properties

    Video & Audio Controls Display Properties The video interface lets you change the screen resolution and color output to Screen Resolution/ whatever is most comfortable/efficient for you. This is a matter of hardware, Screen Area Note video memory and the driver for your operating system. The driver interface shows the available options (see “LCD Options”...
  • Page 57 Video & Audio Controls Figure 3 - 2 Display Properties & Advanced Options Intel(R) Extreme Graphics 2 for Mobile You can click Graph- ics Properties (but- ton) in the Intel(R) When the Display Properties control panel is open, click the Advanced Extreme Graphics 2 (button) to bring up the options tabs.

  • Page 58: Intel Extreme Graphics 2 For Mobile

    Video & Audio Controls Intel Extreme Graphics 2 for Mobile After installing the video driver there will be an additional control panel en- Taskbar Icon titled Intel(R) Extreme Graphics 2M. Access the control panel as follows: You can also access Click Start (menu), point to Settings and click Control Panel (or click Con- the controller proper- trol Panel).
  • Page 59 Video & Audio Controls You may make changes to the Devices, Color, Schemes, Hot Keys by clicking the appropriate tab and adjusting the setting, then clicking OK. The Informa- tion and Open GL tabs display useful information about the graphics proper- ties of the computer, and the Support item in the Information tab has weblinks to the latest information (drivers, troubleshooting issues etc.) on the Intel Website.

  • Page 60: Schemes

    Video & Audio Controls Schemes Use Schemes to configure quick settings for applications which require spe- cific resolution and color settings in order to run properly e.g. games, multi- Application.exe media programs. To set the schemes: You will need to locate the actual application Go to the Intel(R) 82852/82855 GM/GME Graphics Controller Properties executable (.exe) file,...

  • Page 61: Display Devices

    Video & Audio Controls Display Devices Besides the built-in LCD, you can also use an external VGA monitor or TV as your display device. A VGA monitor connects to the external monitor (VGA) port a TV to the S-Video-Out Jack Figure 3 - 5 Left Side View Using the Driver to...

  • Page 62: Switching/Enabling Displays (Driver)

    Video & Audio Controls Switching/Enabling Displays (Driver) With the video driver installed (see “What to Install” on page 5 - 1), you can use its built-in controls to switch between the displays as follows: Vertical Refresh Rate Plug the VGA monitor or TV into the appropriate port/jack (see page The vertical refresh rate Go to the Intel(R) 82852/82855 GM/GME Graphics Controller Properties of your monitor is impor-...

  • Page 63: Multi-Monitor Modes

    Video & Audio Controls Multi-Monitor Modes In addition to the single LCD display mode you have the following Multi- Monitor modes available when an external monitor or TV is attached. Intel(R) Dual Display Clone This mode will drive multiple displays with the same content. Use this feature to display the screen through a projector for a presentation.
  • Page 64 Video & Audio Controls To Enable Dual Display Clone Mode: Plug the VGA monitor or TV into the appropriate port/jack (see page Go to the Intel(R) 82852/82855 GM/GME Graphics Controller Properties control panel (see “Intel Extreme Graphics 2 for Mobile” on page 3 - and select Devices (tab).
  • Page 65 Video & Audio Controls To Enable Extended Desktop Mode: Plug the VGA monitor or TV into the appropriate port/jack (see page Go to the Intel(R) 82852/82855 GM/GME Graphics Controller Properties Device Settings control panel (see “Intel Extreme Graphics 2 for Mobile” on page 3 - Extended Desktop and select Devices (tab).
  • Page 66 Video & Audio Controls To Enable Extended Desktop (Display Properties) Plug the VGA monitor or TV into the appropriate port/jack (see page Click Start, point to Settings (or just click Control Panel) and click Control Panel (if you are in Category View choose Appearance and Themes). Double-click Display (icon).

  • Page 67: Tv System

    Video & Audio Controls TV System If you are using a TV as a display device you may change the video standard to NTSC or PAL as follows: Plug the VGA monitor or TV into the appropriate port/jack (see page Go to the Intel(R) 82852/82855 GM/GME Graphics Controller Properties control panel (see “Intel Extreme Graphics 2 for Mobile”...

  • Page 68: Audio Features

    Video & Audio Controls Audio Features You can configure the audio options on your computer from the Sounds and Sound Volume Audio Devices /Sounds and Multimedia Windows control panel (see Adjustment Figure 1 - 8 on page 1 - 13). Additional audio controls are available from the How high the sound Sound Effect Manager icon in the taskbar/control panel, and the AV Rack...

  • Page 69: Power Management

    Power Management Chapter 4: Power Management OS Note Overview Power management To conserve power, especially when using the battery, your computer uses the functions will vary ACPI power management system. Power management conserves power by slightly depending on controlling individual components of the computer (the monitor and hard disk your operating system.

  • Page 70: The Power Sources

    Power Management The Power Sources The computer can be powered by either an AC adapter or a battery pack. Power Button as Standby or AC Adapter Hibernate Button Use only the AC adapter that comes with your computer. The wrong type of If you are using a fully AC adapter will damage the computer and its components.

  • Page 71: Turning On The Computer

    Power Management Turning on the Computer Now you are ready to begin using your computer. To turn it on simply press Shutdown the power button on the front panel. Note that you should always shut your com- When the computer is on, you can use the power button as a Standby/Hiber- puter down by choos- nate/Shutdown hot-key button when it is pressed for less than 4 seconds ing the Shut Down/...

  • Page 72: Power Schemes

    Power Management Power Schemes You can set your computer to conserve power through individual components Resuming by means of Power Schemes. You can also adjust the settings for each Operation scheme to set the monitor to turn off after a specified time, and the computer's The system can re- hard disk motor to turn off if the hard disk drive has not been accessed for a sume from Monitor or...
  • Page 73 Power Management Each Windows Power Scheme will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery power). CPU SpeedStep Controls & CPU Choose the Home/Office Desk scheme for maximum performance when the Performance computer is powered from an AC power source.

  • Page 74: System Power Options

    Power Management System Power Options You can use the system power options to stop the computer’s operation and restart where you left off. This system features Standby and Hibernate sleep mode levels (Hibernate mode will need to be enabled by clicking the option in the Hibernate tab in the Power Options control panel - Figure 4 - 2 on page 4 -...

  • Page 75: Standby

    Power Management Standby Standby saves the least amount of power, but takes the shortest time to return to full operation. During Standby the hard disk is turned off, and the CPU is System Resume made to idle at its slowest speed. All open applications are retained in memo- The system can resume ry.

  • Page 76: Configuring The Power Button

    Power Management Configuring the Power Button The power button may be set to send the computer in to either Standby or Hi- bernate mode (Figure 4 - 3). In Standby mode, the LED will flash green. In Hibernate mode the LED will be off. If you are in a power saving mode set to save power through individual components (e.g.

  • Page 77: Battery Information

    Power Management Battery Information Please follow these simple guidelines to get the best use out of your battery. Low Battery New Battery Warning Always completely discharge, then fully charge, a new battery (see “Battery When the battery is FAQ” on page 4 - 12 for instructions on how to do this).

  • Page 78: Recharging The Battery With The Ac Adapter

    Power Management Battery life may be shortened through improper maintenance. To optimize the life and improve its performance, fully discharge and recharge the battery at least once every 30 days. Conserving Battery Power We recommend that you do not remove the battery yourself. If you do need to remove the battery for any reason see “Removing the Battery”...

  • Page 79: Proper Handling Of The Battery Pack

    Power Management Proper handling of the Battery Pack • DO NOT disassemble the battery pack under any circumstances • DO NOT expose the battery to fire or high temperatures, it may explode • DO NOT connect the metal terminals (+, -) to each other Damaged Battery Warning Should you notice any physical defects (e.g.

  • Page 80: Battery Faq

    Power Management Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Caution Don’t turn off the computer by yourself even when you see a message that in- Danger of explosion if dicates the battery is critically low, just let the computer use up all of the bat- battery is incorrectly...

  • Page 81: Drivers & Utilities

    Drivers & Utilities Chapter 5: Drivers & Utilities What to Install This chapter deals with installing the drivers and utilities essential to the operation or improvement The Device Drivers & Utilities + User’s Manual of some of the computer’s subsystems. The system CD-ROM contains the drivers and utilities neces- takes advantage of some newer hardware compo- sary for the proper operation of the computer.
  • Page 82 Drivers & Utilities Navigate (Browse..) to D: You will notice that many of the instructions for driver installation require you to “Navigate (Browse) to D:”. We assume that you will install all drivers and utilities from the built-in CD device and it is assigned to “Drive D:”.

  • Page 83: Service Packs

    Drivers & Utilities Service Packs Check the warnings on the following pages regard- ing installation of the appropriate Service Pack for Windows XP Service Pack 2 your Windows OS. Make sure you have installed Make sure you install Windows XP Service Pack 2 the appropriate Service Pack before installing all (or a Windows XP version which includes Service the drivers.

  • Page 84: Authorized Driver Message

    Drivers & Utilities Authorized Driver Message Updating/Reinstalling Individual Drivers If you receive a message telling you that the driver you are installing is not authorized (Digital Signa- If you wish to update/reinstall individual drivers it ture Not Found), just click Yes or Continue Any- may be necessary to uninstall the original driver.To way to ignore the message and continue the do this go to the Control Panel in the Windows OS...

  • Page 85: Driver Installation

    Drivers & Utilities Driver Installation Driver Installation Application Check the driver installation order from Table 5 - Insert the Device Drivers & Utilities + User’s Man- 1, on page 5 - 6 (the drivers must be installed ual CD-ROM and the Driver Installation applica- in this order) which is the same as that listed in tion will run automatically.
  • Page 86 Drivers & Utilities Feature Windows 2000 (SP4)/Win XP (SP2) Service Pack Install the appropriate Service Pack for your system if not included in your Windows version Chipset Page 5 - 7 Audio Page 5 - 7 Video Page 5 - 8 Network (LAN) Page 5 - 8 Modem...

  • Page 87: Driver Installation Procedure

    Drivers & Utilities Driver Installation Procedure Chipset (Win2000/WinXP) This section covers driver and utility installation in- 1. Double-click Chipset from the Driver structions for Windows 2000 Professional and Win- Installation menu. dows XP Home & Professional. Click Start (menu) > Run... and navigate New Hardware Found (Browse..) to D:\Driv- ers\inf_update\infinst_autol.exe and click...

  • Page 88: Video (Win2000/Winxp)

    Drivers & Utilities Video (Win2000/WinXP) LAN (Win2000/WinXP) 1. Double-click VGA from the Driver Installa- 1. Double-click Lan from the Driver Installa- tion menu. tion menu. Click Start (menu) > Run... and navigate Click Start (menu) > Run... and navigate (Browse..) to D:\Drivers\VGA\Setup.exe (Browse..) to D:\Drivers\Lan\Setup.exe and click OK.

  • Page 89: Modem (Win2000/Winxp)

    Drivers & Utilities Modem (Win2000/WinXP) 1. Double-click Modem from the Driver Installation menu. Modem Country Selection Be sure to check if the modem country selection is ap- propriate for you (Control Panel > Phone and Mo- For Win2000 dem Options). Click Start (menu) >...

  • Page 90: Touchpad (Win2000/Winxp)

    Drivers & Utilities TouchPad (Win2000/WinXP) PCMCIA & Card Reader (Win2000/ 1. Double-click TouchPad from the Driver WinXP) Installation menu. 1. Double-click PCMCIA CardReader from the Driver Installation menu. For Win2000 Click Start (menu) > Run... and navigate Click Start (menu) > Run... and navigate (Browse...) to D:\Drivers\PCMCIA-Car- (Browse..) to D:\Drivers\Touch- dReader\setup.exe and click OK.

  • Page 91: Check Mail (Win2000/Winxp)

    Drivers & Utilities Check Mail (Win2000/WinXP) Hot Key (Win2000/WinXP) 1. Double-click E-MAIL LED from the 1. Double-click HotKey from the Driver Driver Installation menu. Installation menu. Click Start (menu) > Run... and navigate Click Start (menu) > Run... and navigate (Browse..) to D:\Drivers\E-mail (Browse..) to D:\Drivers\HotKey LED\Setup.exe and click OK.

  • Page 92: Wireless Lan (Win2000/Winxp)

    Drivers & Utilities Wireless LAN (Win2000/WinXP) PC Camera (Win2000/WinXP) See the introduction in “Intel PRO/Wireless Mini- See install procedure in “PC Camera Driver In- PCI WLAN Module” on page 8 - 2, and check the stallation (Win2000)” on page 8 - 21 “PC Cam- install procedure for your appropriate module and era Driver Installation (WinXP)”...

  • Page 93: Bios Utilities

    BIOS Utilities Chapter 6: BIOS Utilities Settings Warning Overview Incorrect settings can This chapter is about the computer’s built-in software. cause your system to malfunction. To correct Your computer comes with built-in BIOS (Basic Input Output System) mistakes return to the which is an essential set of software routines stored on a chip in your comput- SCU, go to the Exit er.

  • Page 94: The Power-On Self Test (Post)

    BIOS Utilities The Power-On Self Test (POST) Each time you turn on the computer, the system takes a few seconds to con- The POST Screen duct a POST, including a quick test of the on-board RAM. As the POST pro- ceeds, the computer will tell you if there is anything wrong.

  • Page 95: Failing The Post

    BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non-fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

  • Page 96: The System Configuration Utility

    BIOS Utilities The System Configuration Utility The SCU program tells the system how to configure itself and manage basic BIOS Settings V’s features and subsystems (e.g. port configuration and power management). The OS Settings settings are stored in a nonvolatile battery and written to the CMOS RAM. Though many options This means that the settings are saved even when the computer is turned off.

  • Page 97: Working With The Menu Bar

    BIOS Utilities Working with the Menu Bar You can use the mouse to navigate around the various menus and submenus of the SCU, or alternatively, you can use the following key combinations: Table 6 - 1 Keys Action SCU Menu Activates the menu bar Navigation Keys →...

  • Page 98: Working With The Pull-Down Menu

    BIOS Utilities Working with the Pull-Down Menu Once your desired menu bar item is highlighted, press Enter or left-click with the mouse to see the pull-down menu items. The following keys allow you to move about the pull-down menu: Table 6 - 2 Keys Action Pull-Down Menu...

  • Page 99: Working With Sub-Menus

    BIOS Utilities Working with Sub-Menus Some pull-down menu options have an arrow to the right of the entry which SCU Screens indicates a sub-menu is available. Choose these sub-menus by pressing Enter and the screen will be displayed. Navigate through these screens by using the The screens which ap- pear on the following keys in the table below:...

  • Page 100: Startup Menu

    BIOS Utilities Startup Menu Figure 6 - 2 Insyde Software SCU For Intel chipset Nov 12, 2004 9:40:02 am Startup Disks Components Power Exit Startup Menu Date and Time Devices System √ Fast Boot Floppy Drive A = 1.44MB Boot Device Hard Drive C = 20005MB CPU Clock...

  • Page 101: Boot Device (Startup Menu)

    BIOS Utilities Boot Device (Startup Menu) Specify which device your computer should look on for an operating system by priority. In most cases your computer “boots” (starts-up from) the hard disk. There are cases where you may want to “Boot” from a floppy disk in drive “A:”...

  • Page 102: Display Oem Logo (Startup Menu)

    BIOS Utilities Display OEM logo (Startup Menu) Enable or disable (enabled by default) the display of the OEM logo (if appli- Password Warning cable) during the POST process. If you choose to set a Fast Boot for Windows XP (Startup Menu) boot password, NEV- ER forget your pass- Enable or disable (enabled by default) the fast system startup option if you are...

  • Page 103: Disks Menu

    BIOS Utilities Disks Menu Figure 6 - 3 Insyde Software SCU For Intel chipset Nov 12, 2004 6:40:02 am Startup Disks Components Power Exit Disks Menu Devi IDE Settings System (IDE Settings) _ Virus Alert Hard ive C = 20005M IDE Settings CPU Cl ck = 100...

  • Page 104: Components Menu

    BIOS Utilities Components Menu Figure 6 - 4 Components Menu Insyde Software SCU For Intel chipset Nov 12, 2004 6:40:02 am Startup Disks Components Power Exit LPT Port Devices System Keyboard Numlock Hard Drive C = 20Keyboard Repeat Keyboard Repeat CPU Clock = 1700 MHz Memory...

  • Page 105: Power Menu

    BIOS Utilities Power Menu Insyde Software SCU For Intel chipset Nov 12, 2004 6:40:02 am Startup Disks Components Power Exit Power Menu _ Low Power Saving Devices System m The Power Menu al- _ Medium Power Saving _ High Power Saving lows you to set power Hard Drive C = 30007 M...

  • Page 106: Cpu Speedstep Controls (Power Menu)

    BIOS Utilities CPU SpeedStep Controls (Power Menu) You can set the mode for the Intel CPU SpeedStep controls here (“Intel CPU CPU SpeedStep SpeedStep Controls” on page B - 3 gives full detail on the settings). Intel Controls & CPU Pentium M processors fully support these settings, however if you have a Performance Celeron M Processor the settings are emulated by CPU throttling and you...

  • Page 107: Exit Menu

    BIOS Utilities Exit Menu Insyde Software For Intel chipset Nov 12, 2004 6:40:02 am Figure 6 - 6 Startup Disks Components Power Exit Exit Menu Devices System m Save and Exit Exit (No Save) Hard Drive C = 30007 MB CPU Clock = 1700 MHz Default Settings...

  • Page 108: Exit (No Save) - (Exit Menu)

    BIOS Utilities Exit (No Save) - (Exit Menu) This option allows you to exit the SCU without saving any changes made. Default Settings (Exit Menu) This option allows you to reset the SCU settings to the original defaults before any changes were made to the system. Restore Settings (Exit Menu) This option will allow you to restore the SCU settings to the last changes you had made.

  • Page 109: Upgrading The Computer

    Upgrading The Computer Chapter 7: Upgrading The Computer Overview This chapter contains information on upgrading the computer. Follow the Warranty Warning steps outlined to make the desired upgrades. If you have any trouble or prob- lems you can contact your service representative for further help. Before you Please check with your begin you will need: service representative...

  • Page 110: When Not To Upgrade

    Upgrading The Computer When Not to Upgrade These procedures involve opening the system’s case, adding and sometimes replacing parts. Power Safety Warning You should not perform any of these upgrades if: Before you undertake any upgrade proce- • Your system is still under warranty or a service contract dures, make sure that you have turned off the •...

  • Page 111: Removing The Battery

    Upgrading The Computer Removing the Battery If you are confident in undertaking upgrade procedures yourself, for safety Warranty Warning reasons it is best to remove the battery. Please check with your Turn the computer off, and turn it over. service representative Slide the latch in the direction of the arrow.

  • Page 112: Upgrading The Hard Disk Drive(S)

    Upgrading The Computer Upgrading the Hard Disk Drive(s) The hard disk drive(s) can be taken out to accommodate other 2.5" IDE hard HDD System disk drives with a height of 9.5mm (h) (see “Storage” on page C - 3). Follow Warning your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined...
  • Page 113 Upgrading The Computer Pull the tab in the direction of the arrow in order to release the disk assembly form the connector. Lift the hard disk assembly up out off the computer. Remove screws from points on the side of the hard disk assembly in order to separate the bracket from the hard disk Reverse the process to install a new hard disk(s).

  • Page 114: Upgrading The System Memory (Ram)

    Upgrading The Computer Upgrading the System Memory (RAM) The computer has two memory sockets for 200 pin Small Outline Dual In-line Supported RAM (SO-DIMM) - DDR type memory modules (see “Memory” on page C - 2 Module Types details of supported module types). The total memory size is automatically de- tected by the POST routine once you turn on your computer.
  • Page 115 Upgrading The Computer Gently pull the two release latches ( & on the sides of the memory socket in the direction indicated by the arrows in Figure 7 - Contact Warning Be careful not to touch the metal pins on the module’s connecting edge.

  • Page 116: Upgrading The Optical (Cd/Dvd) Device(S)

    Upgrading The Computer Upgrading the Optical (CD/DVD) Device(s) Turn off the computer, and turn it over and remove the battery. Locate the hard disk/memory bay cover and remove screws Remove the bay cover Use a screwdriver to carefully push the optical device out of the computer at point Figure 7 - 6...

  • Page 117: Upgrading The Processor

    Upgrading The Computer Upgrading the Processor If you want to upgrade your computer by replacing the existing processor with Warranty a faster/new one you will need to contact your customer service representa- tive. We recommend that you do not do this yourself, since if it is done incor- The CPU is not a user rectly you may damage the processor or mainboard.
  • Page 118 Upgrading The Computer 7 - 10...

  • Page 119: Modules

    Modules Chapter 8: Modules Overview This chapter contains the information on the WLAN, Bluetooth, and PC Camera modules which may come with your computer, depending on the configuration purchased. If you are unsure please contact your service repre- sentative. The chapter includes information on the following: •...

  • Page 120: Intel Pro/Wireless Mini-Pci Wlan Module

    Modules Intel PRO/Wireless Mini-PCI WLAN Module Either an Intel PRO/Wireless 2100 (802.11b), 2200BG (802.11b/g) or Wireless Device 2195ABG (802.11a/b/g) Mini-PCI WLAN module is supplied as a standard Operation Aboard feature for the computer. You will have the appropriate software CD provided Aircraft for your module.
  • Page 121 Modules To get help on the network settings you can view the User Guides from the Intel PRO CD-ROM. Figure 8 - 1 Installation Screens For Intel PRO Wireless 2100 For Intel PRO Wireless 2195ABG & Intel PRO Wireless 2200BG For Intel PRO Wireless 2200BG Intel PRO/Wireless Mini-PCI WLAN Module 8 - 3...

  • Page 122: Intel Pro/Wireless 2100 Wlan Driver Installation (Win2000)

    Modules Intel PRO/Wireless 2100 WLAN Driver Installation (Win2000) 1. Insert the Intel PRO CD-ROM into the CD drive. 2. Click Wireless LAN Adapters (button). 3. Click Install Software (button). 4. Click Next. 5. Click the button to accept the license and click Next > Next > Install >...
  • Page 123 Modules 13. Input your network name and click Next, then select your network settings and click Next. 14. Click Finish and close the open windows. Windows 2000 Internet Explorer You can now install the Administration Tools. 1. Insert the Intel PRO CD-ROM into the CD drive. Make sure that you in- 2.

  • Page 124: Intel Pro/Wireless 2100 Wlan

    Modules Intel PRO/Wireless 2100 WLAN Driver Installation (WinXP) 1. Insert the Intel PRO CD-ROM into the CD drive. 2. Click Wireless LAN Adapters (button). 3. Click Install Software (button). 4. Click Next. 5. Click the button to accept the license and click Next > Next > Install >...
  • Page 125 Modules 12. Click “Install from a list or specific location (Advanced)” then click Next. 13. Select “Search for the best driver in these locations.” and select ONLY “Include this location in the search:”. 14. Navigate (Browse...) to D:\ProW2100\PROW7100\WINXP and click OK > Next. 15.

  • Page 126: Driver Installation (Winxp)

    Modules Intel PRO/Wireless 2200BG WLAN Driver Installation (Win2000) Which Driver? 1. Make sure the module is powered on, then insert the Intel PRO CD- ROM into the CD drive. Note that there are two driver installation op- 2. See the sidebar note in order to determine which driver to install. tions for the Intel Pro/ 3.
  • Page 127 Modules 16. You can configure the settings by going to the Intel (R) PROset for Wireless control panel (Start > Programs > Intel Network Adapt- ers). Windows 2000 Internet Explorer You can view the User Guides by inserting the Intel PRO CD-ROM and click- ing View User Guides (button) as per “Installation Screens”...

  • Page 128: Intel Pro/Wireless 2200Bg Wlan Driver Installation (Winxp)

    Modules Intel PRO/Wireless 2200BG WLAN Driver Installation (WinXP) Which Driver? 1. Make sure the module is powered on, then insert the Intel PRO CD- ROM into the CD drive. Note that there are two driver installation op- 2. See the sidebar note in order to determine which driver to install. tions for the Intel Pro/ 3.
  • Page 129 Modules 12. Click “Install from a list or specific location (Advanced)” then click Next. 13. Select “Search for the best driver in these locations.” and select ONLY “Include this location in the search:”. 14. Navigate (Browse...) to D:\PROW2200\WINXP and click OK > Next.

  • Page 130: Intel Pro/Wireless 2195Abg Wlan Driver Installation (Win2000)

    Modules Intel PRO/Wireless 2195ABG WLAN Driver Installation (Win2000) Windows 2000 1. Make sure the module is powered on, then insert the Intel PROSet/ Internet Explorer Wireless CD-ROM into the CD drive. 2. Click Install Software (button). Make sure that you in- 3.

  • Page 131: Intel Pro/Wireless 2195Abg Wlan Driver Installation (Winxp)

    Modules Intel PRO/Wireless 2195ABG WLAN Driver Installation (WinXP) 1. Make sure the module is powered on, then insert the Intel PROSet/ Wireless CD-ROM into the CD drive. 2. Click Install Software (button). 3. Click the button to accept the license and click Next > Next > OK. 4.

  • Page 132: Bluetooth Module

    Modules Bluetooth Module Before installing the Bluetooth driver, make sure that the optional Bluetooth Wireless Device module is on (the LED will be green). Use the Bluetooth Quick-Key (see Operation Aboard “Quick-Key Buttons” on page 1 - 7) to toggle power to the Bluetooth module Aircraft (if the Found New Hardware Wizard appears, click Cancel).

  • Page 133: Bluetooth Driver Installation (Win2000)

    Modules Bluetooth Driver Installation (Win2000) 1. Insert the Bluetooth CD-ROM into the CD drive. 2. The program will run automatically. 3. If the Found New Hardware Wizard appears, click Cancel. 4. Click Install Drivers and Application Software and click Next. 5.
  • Page 134 Modules Bluetooth Driver Audio Setup (Win2000) After installing the Bluetooth driver in Windows 2000 you may no longer hear any sound, nor see the Volume icon in the taskbar. If this is the case then fol- low this procedure: Go to the Sounds & Multimedia Control Panel (Start Menu and point to Settings and click Control Panel then double-click the Sounds &...

  • Page 135: Bluetooth Driver Installation (Winxp)

    Modules Bluetooth Driver Installation (WinXP) 1. Insert the Bluetooth CD-ROM into the CD drive. 2. The program will run automatically. Bluetooth Support 3. Click Install Drivers and Application Software and click Next. in Windows XP 4. Click the button to accept the license agreement, then click Next. Service Pack 2 5.

  • Page 136: Bluetooth Control Panel Options

    Modules Bluetooth Control Panel Options You may need to change some control panel options after installing the Blue- tooth driver: Audio Go to the Start menu and point to Settings (or just click Control Panel) and click Control Panel, then double-click the Sounds & Audio Devices/ Sounds &...
  • Page 137 Modules FAX (Win2000) Go to the Start menu and point to Settings and click Control Panel, then double-click the Fax icon. Click Advanced Options (tab) and click the Open Fax Service Management Console (button). Click Devices in the Tree window on the left. The fax devices will be displayed in the right window, with the device with the highest priority displayed at the top.

  • Page 138: Pc Camera

    Modules PC Camera If you have purchased the optional PC Camera you will need to install the de- Taking Still vice driver for it as indicated on the following pages (make sure you install Pictures the drivers in the order indicated in Table 5 - 1, on page 5 - 6).

  • Page 139: Pc Camera Driver Installation (Win2000)

    Modules PC Camera Driver Installation (Win2000) 1. Insert the PC Camera CD-ROM into the drive. 2. Click Next (click Yes if asked if you want to continue at any time). 3. Click Finish to restart the computer. 4. After restart the computer will find the new hardware for you (click Yes if asked if you want to continue at any time).

  • Page 140: Pc Camera Audio Setup

    Modules PC Camera Audio Setup If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in Windows. (WinXP) Go to the Start menu and point to Settings (or just click Control Panel) and click Control Panel, then double-click the Sounds &...
  • Page 141 Modules Figure 8 - 2 Audio Setup (Windows XP) PC Camera 8 - 23...

  • Page 142: Amcap

    Modules AMCAP AMCAP is a video viewer useful for general purpose video viewing and test- ing, and can capture video files to .avi format. Pre-Allocating File Space Run the AMCAP program from the Start > Programs/All Programs > CMM You may pre-allocate PC Camera menu (it is recommended that you set the capture file before the file size for the cap- the capture process - see Set Capture File below).
  • Page 143 Modules Eliminating Screen Flicker If you find that the video screen in the AMCAP program is flickering, you can try to adjust the option from the Video Capture Filter options. Run the AMCAP program from the Start > Programs/All Programs > CMM PC Camera menu.
  • Page 144 Modules 8 - 26...

  • Page 145: Troubleshooting

    Troubleshooting Chapter 9: Troubleshooting Overview Should you have any problems with your computer, before consulting your service representative, you may want to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.

  • Page 146: Basic Hints And Tips

    Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the solution to a problem when your computer appears not to be working. • Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power “LED Indicators”...

  • Page 147: Backup And General Maintenance

    Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wallet.

  • Page 148: Viruses

    Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the definitions file updates are usually downloadable directly from the internet.

  • Page 149: Upgrading And Adding New Hardware/Software

    Troubleshooting Upgrading and Adding New Hardware/Software • Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are doing, otherwise you will risk severely damaging your system. • Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what you are doing.
  • Page 150 Troubleshooting • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs. If possible, go back and undo the change you just made and see if the problem still occurs. •...

  • Page 151: Power

    Troubleshooting Power Problem Possible Cause - Solution You turned on the power Battery missing / incorrectly installed. Check the battery bay, make sure the battery is but it doesn’t work. present and seated properly (the design of the battery only allows it to go in one way). Make sure there’s nothing interfering with the battery contacts.
  • Page 152 Troubleshooting Problem Possible Cause - Solution The computer feels too Make sure the computer is properly ventilated and the vents/fan intakes are not blocked. If hot. this doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the computer isn’t sitting on a thermal surface (see “Overheating”...

  • Page 153: Display

    Troubleshooting Display Problem Possible Cause - Solution Nothing appears The system is in a power saving mode. Toggle the sleep/resume key combination, Fn + F3 screen. (see “Sleep Button” on page 4 - The screen controls need to be adjusted. Toggle the screen control key combinations Fn + F8/F9 (see “Keyboard Video Controls”...

  • Page 154: Boot Password

    Troubleshooting Boot Password Problem Possible Cause - Solution forget boot If you forget the password, you may have to discharge the battery of the CMOS. Contact password. your service representative for help. Password Warning If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.

  • Page 155: Audio & Cd Device

    Troubleshooting Audio & CD Device Problem Possible Cause - Solution The sound cannot be The volume might be set too low. Check the volume control in the Volume Control Panel heard or the volume is in the Windows taskbar, or use the key combination Fn + F5 and F6 (see “Audio very low.

  • Page 156: Keyboard

    Troubleshooting Keyboard Problem Possible Cause - Solution Unwelcome numbers If the LED is lit, then Num Lock is turned ON. Check that Padlock mode is not enabled appear when typing. (see “LED Indicators” on page 1 - Other Keyboards If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will detect and enable it automatically.

  • Page 157: Operation

    Troubleshooting Operation Problem Possible Cause - Solution The system freezes or The system’s power saving features have timed-out. Use the AC adapter, press a key on the screen goes dark. the keyboard, or press the sleep (Fn + Esc) key combination, or press the power button if no LEDs are lit.

  • Page 158: Modules

    Troubleshooting Modules Problem Possible Cause - Solution Wireless LAN/ The modules are off. Check the LED indicators to see if the modules are on or off (see Bluetooth/ PC Camera “LED Indicators” on page 1 - 6). If the LED indicator is off, then press the Quick-Key modules cannot combination in order to enable the modules (see...

  • Page 159: Interface (Ports & Jacks)

    Appendix A : Interface (Ports & Jacks) Overview The following chapter will give a quick description of the interface (ports & jacks) which allow your com- puter to communicate with external devices, connect to the internet etc. A - 1...

  • Page 160: Built-In Microphone

    Ports and Jacks Item Description Built-In Microphone The built-in microphone allows you to record on your computer Card Reader Port The card reader allows you to use some of the latest digital storage cards. Push the card into the slot and it will appear as a removable device. DC-In Jack Plug the supplied AC adapter into this jack to power your computer.

  • Page 161: Microphone-In Jack

    Item Description Microphone-In Jack Plug an external microphone in to this jack to record on your computer. Mini-IEEE 1394a Port This port allows a high-speed connection to various peripheral devices, e.g. external disk drives and digital cameras (see note below). IEEE 1394 The Mini-IEEE 1394a ports only support SELF POWERED IEEE 1394 devices.

  • Page 162: Security Lock Slot

    Item Description Security Lock Slot To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store. S/PDIF-Out Jack This S/PDIF (Sony/Philips Digital Interface Format) Out Port allows you to connect your DVD-capable PC to a Dolby AC-3 compatible receiver for “5.1”...

  • Page 163: Advanced Power Saving

    Appendix B: Advanced Power Saving This Appendix contains advanced information on Power Schemes and how they affect the computer’s CPU performance, and information on Intel CPU SpeedStep controls. B - 1...

  • Page 164: Power Schemes And Processor Performance

    Power Schemes and Processor Performance Each Windows Power Scheme will also adjust the processor performance of your machine in order to save power. This is worth bearing in mind if you are Windows Control Policies experiencing any reduced performance (especially under DC/battery power). Windows defines four control policies (see sidebar) used with each power Constant CPU’s...

  • Page 165: Intel Cpu Speedstep Controls

    Intel CPU SpeedStep Controls Additional controls are available to support the Intel Pentium M processor’s CPU Performance mobile power management features. If you have a Celeron M Processor the with SpeedStep settings are emulated by CPU throttling and you may still set the options to your preference.
  • Page 166 Windows 2000 or Windows Windows XP with Service XP with Service Pack 1/1a Pack 2 SpeedStep CPU SpeedStep Control Control Settings Power Power Setting CPU Speed Source Speed Source You can adjust the SpeedStep control set- 600MHz ~ Max CPU Max AC In AC In tings from the BIOS...

  • Page 167: Specifications

    Appendix C: Specifications Latest Specification Information The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly proces- sor types/speeds and CD/DVD device types) may be changed or updated due to the manufacturer's release sched- ule.

  • Page 168: Processor Types

    Feature Specification µ Processor Types Intel Pentium® M - (478-pin) Micro-FCPGA 0.13) 0.13 Micron Process Technology, 1MB package On-die L2 Cache & 400MHz FSB - 1.4/ 1.5/ 1.6/ 1.7 GHz µ Intel Pentium® M - (478-pin) Micro-FCPGA 0.09) 0.09 Micron Process Technology, 2MB package On-die L2 Cache &...

  • Page 169: Display

    Feature Specification Display Dynamic Video Memory Technology (Shared Fully DirectX 7/8 Compliant Graphics Engine Memory up to 64MB) Supports VESA DDCI, DDC2B and DDC 3.0 128 bit 2D/3D Graphics Engine Specifications Motion Compensation for DVD Accelerator Storage One changeable 12.7mm(h) Optical Device (CD/DVD) Type Drive (see “Optional”...

  • Page 170: Card Reader

    Feature Specification Card Reader Embedded 4-in-1 Card Reader (MS/ MS Pro/ SD/ MMC) Communication 56K Plug & Play Fax/Modem V.90/92 Bluetooth & MDC Modem Combo Module Compliant (Factory Option) 10/100M Fast Ethernet (IEEE 802.3 and Intel PRO/Wireless LAN Module with Mini-PCI 802.3u Standard Compliant) Interface (see “WLAN Module Options”...
  • Page 171 Feature Specification Physical 329mm (w) * 275mm (d) * 25mm (h) Min 3.1 kg With Battery Dimensions & Weight Optional Optical Drive Module Options: Bluetooth & MDC Modem Combo Module CD-ROM Drive Module Combo Drive Module PC Camera with USB Interface DVD-ROM Drive Module DVD-Dual Drive Module Software DVD Player...
  • Page 172 C - 6...

Table of Contents
