Page 1: Instructions For Use

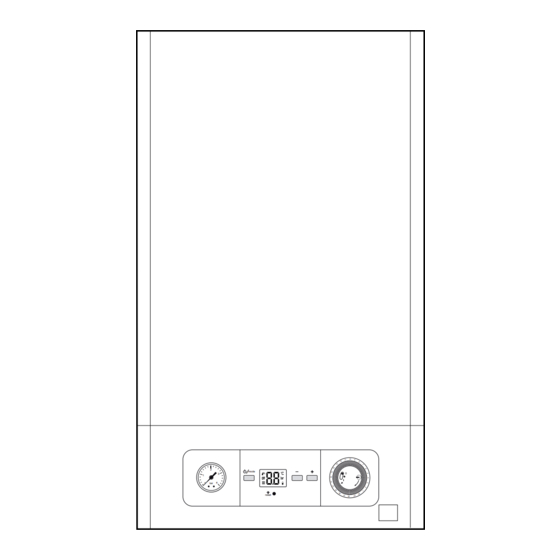

CaprizPlus Instructions for Use To be left with the user G.C. No. 47-157-19 G.C. No. 47-157-20 High Effi ciency Condensing Combination Boilers mode reset www.heatline.co.uk Service Call 0844 736 9138, Technical Help (Chargeable) Call 0906 802 0253... -
Page 2: Table Of Contents
READ CAREFULLY BEFORE USING Read me ..................... 3 Introducing your appliance ................. 5 Product documentation ................5 Safety ......................6 What to do if you smell gas? ............6 Safety recommendations ..............6 Safety regulations ................7 Guarantee / Responsibility ................. 8 Recycling .................... -
Page 3: Read Carefully Before Using
Guarantee Pack READ CAREFULLY BEFORE USING The pack contains the letter of 1 Read me introduction, the guarantee and the extended guarantee, all of which we These instructions are an integral part recommend you to read. From time to time of the boiler and must, to comply with other promotional literature may be added. - Page 4 • To obtain service, please call your Benchmark is managed and promoted installer or Heatline’s own service by the Heating and Hotwater Industry organisation. Council. Benchmark • For more information visit www.centralheating.co.uk Heatline is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to...
-
Page 5: Introducing Your Appliance
2 Introducing your appliance Accessories Appliance description The CaprizPlus is compatible with most high (230V) and low (24V) thermostats. The CaprizPlus range of boilers are The function of the connections is designed for use as part of a sealed water switching only and therefore no voltage central heating system with fully pumped should be applied to the terminals. -
Page 6: Safety
Explanation of symbols • Never perform any maintenance or repair of the appliance yourself. Only competent persons are allowed to DANGER: Risk of injury. work on the appliance. • Never tamper with safety devices. ATTENTION: Risk of damage • Do not attempt to modify the appliance to the appliance or to its or its immediate surroundings as surroundings. -
Page 7: Safety Regulations
appliance has shut down as these Gas Safety (Installation and Use) surfaces may still be hot and any Regulations contact with them may cause injury. In your own interest and that of safety, it • The hot water delivered by the is the Law that ALL gas appliances have appliance may initially be very hot, been installed by a competent person... -
Page 8: Guarantee / Responsibility
Any alteration not approved by Heatline, The CE mark shows that this could invalidate the certifi cation, boiler appliance has been designed warranty and may also infringe the current according to the safety issue of the statutory requirements. techniques and rules in force. The compliance of this CE Mark appliance with the relevant... -
Page 9: Recycling
Appliance use / manufacturer - Any defects caused by inadequate frost responsibility protection. Servicing/maintenance should be carried - Any deterioration or maladjustment out by a competent person approved following changes in the nature or at the time by the Health and Safety pressure of the gas or the water used, Executive, in accordance with the rules in or a change to, or the wrong application... -
Page 10: Clearances
Appliance 7 Clearances This symbol indicates that this appliance must not be disposed of with household waste, that it should be 2 0 0 selectively collected for energy recovery, reuse or recycling. • Take the appliance to an appropriate collection point. -
Page 11: How To Operate Your Appliance
HOW TO OPERATE YOUR APPLIANCE 8 Overview Display mode reset Temperature adjustment System pressure gauge Anologue clock ON/OFF and Mode selection button Reset button (When required) (Do not use Display a sharp object to depress this button) Symbol indicates temperature or pressure Heating Symbol indicates burner ON... - Page 12 Switching On Turning off Check that all isolating valves and the gas Press the ON / OFF button (2) until service cock below the appliance are open the display screen goes blank. and that water fl ows from the hot water taps, close the taps.
- Page 13 Temperature of the water °C Minimum Maximum TIMER Setting the time Rotate the outside of the clock face (2) clockwise to indicate the current time (4) at the black arrow (5). Setting the programme “ON and OFF” times. Refer to diagram. •...
-
Page 14: Any Assistance
ANY ASSISTANCE? Like all condensing boilers it will produce a plume of 9 Fault Finding condensation from the fl ue terminal in cool weather. This section covers the faults that can be This is due to the high rectifi ed by the User in order to restore the effi... -
Page 15: Appliance Safety Devices
10 Appliance safety devices System Protection The boiler alone cannot ensure that the 10.1 Boiler Shutdown installation is protected against frost. NOTE: Any exposed pipe work should be The boiler software is designed to lagged and an external frost thermostat recognise the potential for an overheat fi... -
Page 16: Safety Discharge Valve
10.4 Safety Discharge Valve • Only a competent person should service or repair this appliance. The safety discharge valve and discharge pipe is fi tted to the boiler. The service engineer should complete the relevant Service Record on the • If there is any discharge from the pipe, Benchmark Checklist after each service. -
Page 17: Sealed Water Systems
or for approved stockist, visit www. For energy saving advice you can contact heatline.co.uk. the Energy Savings Trust for advice or visit www.energysaving trust.org.uk who • Please quote the name and model offer simple effective advice about saving number of the appliance as shown on energy. - Page 18 - 18 - Service Call 0844 736 9138, Technical Help (Chargeable) Call 0906 802 0253...
- Page 19 - 19 - Service Call 0844 736 9138, Technical Help (Chargeable) Call 0906 802 0253...
- Page 20 Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.
