Page 1: User Instructions

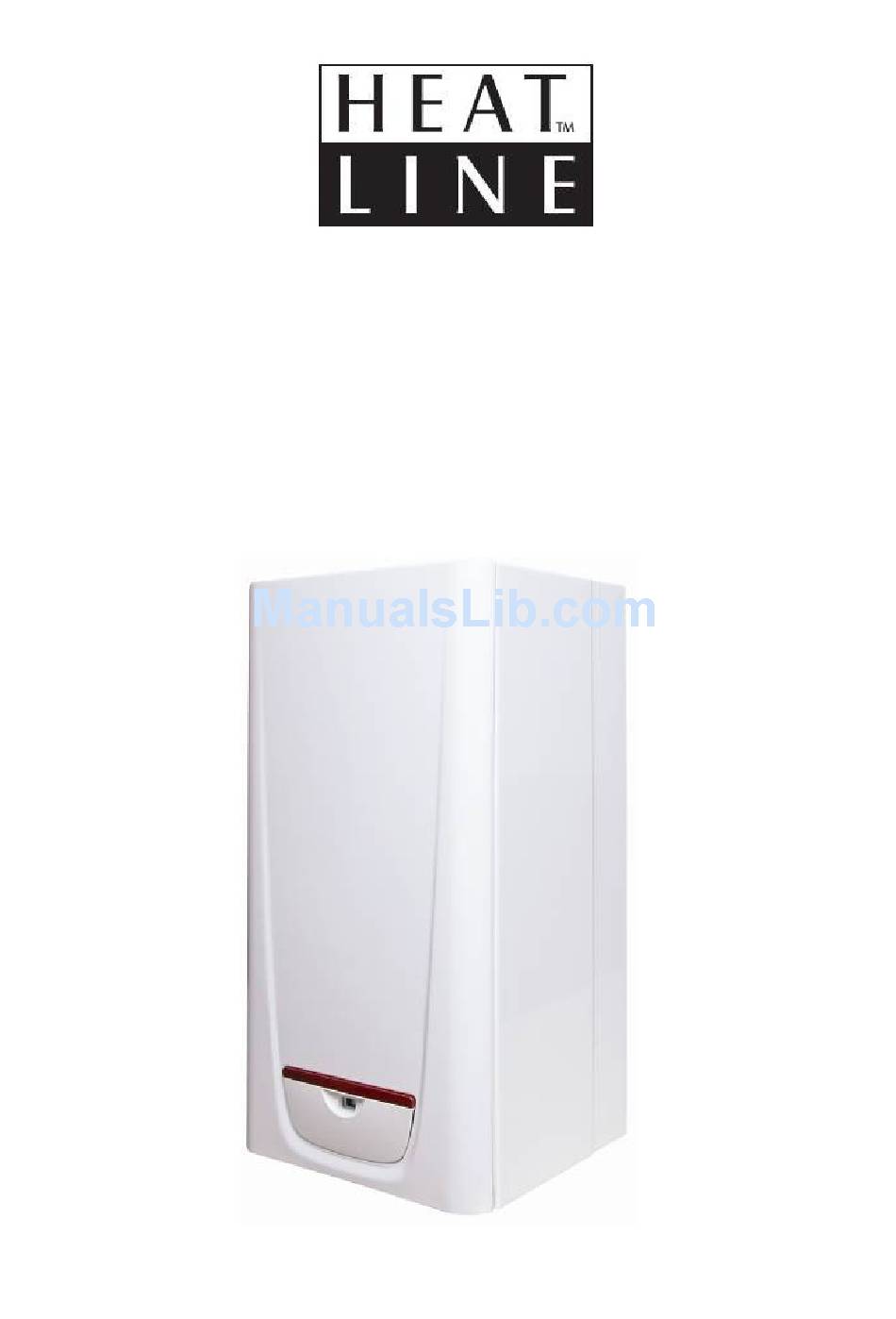

SOLUXE 30 & 35 PRE-MIX CONDENSING COMBINATION BOILER User Instructions Page 48... - Page 2 51BR3326 Directive 90/396/EEC 51BR3335DR Directive 92/42/EEC The Heat Line™ range of central heating boilers are manufactured from high quality materials and designed for reliability and optimum performance. Heat Line™ are committed to the continual development of their appliances and reserve the right to make changes without notification to ensure their customers benefit from the latest advances in combustion technology and energy conservation.
- Page 3 IMPORTANT INFORMATION The Heat Line™ boiler is a high efficiency gas fired boiler and represents the highest level of technology found in today’s gas boiler market. In order to maintain peak efficiency along with optimum performance and reliability it is essential that the boiler be serviced at least once per year by a competent person such as a CORGI Registered Engineer.
- Page 4 DOMESTIC HOT WATER MODE: When hot water demand is requested the boiler will fire automatically. An integral pump is then energised and hot water from the boilers primary circuit is circulated through the secondary heat exchanger, allowing the instantaneous transferral of heat to the incoming cold water.
- Page 5 BOILER CONTROLS The function and operation of the main controls located on the control panel fascia (figure 3) is as follows: Figure 3 1- C.H. Pressure Gauge 4- Function Switch 2- D.H.W. Temperature Control 5- LCD Display 3- C.H. Temperature Control 6- Electronic Timer 1.
- Page 6 5. LCD Display Screen: While giving the operational status of the boiler and water temperature, to aid in fault diagnostics the control unit has a built in facility that automatically indicates a fault status. If more than one fault simultaneously occurs, then only the highest priority fault is displayed. (Figure 4) Figure 4 5.1.
- Page 7 Do not use abrasive or solvent cleaners. FURTHER ADVICE For further advice or information contact Heat Line ™ Service Enquiries by telephone on 0870 777 8318 in UK and 01 466 4664 in Ireland or e-mail via our web site at www.heatline.co.uk...
