Utilitech 7113-01-L User Manual

Ventilation fan with light.
Hide thumbs
ATTACH YOUR RECEIPT HERE
Serial Number _______________ Purchase Date ______________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
AB13917
TM
VENTILATION FAN
WITH LIGHT
MODEL #7113-01-L
ITEM #0553449
Français p. 14
Español p. 27
Lowes.com

   Related Manuals for Utilitech 7113-01-L

   Summary of Contents for Utilitech 7113-01-L

  • Page 1

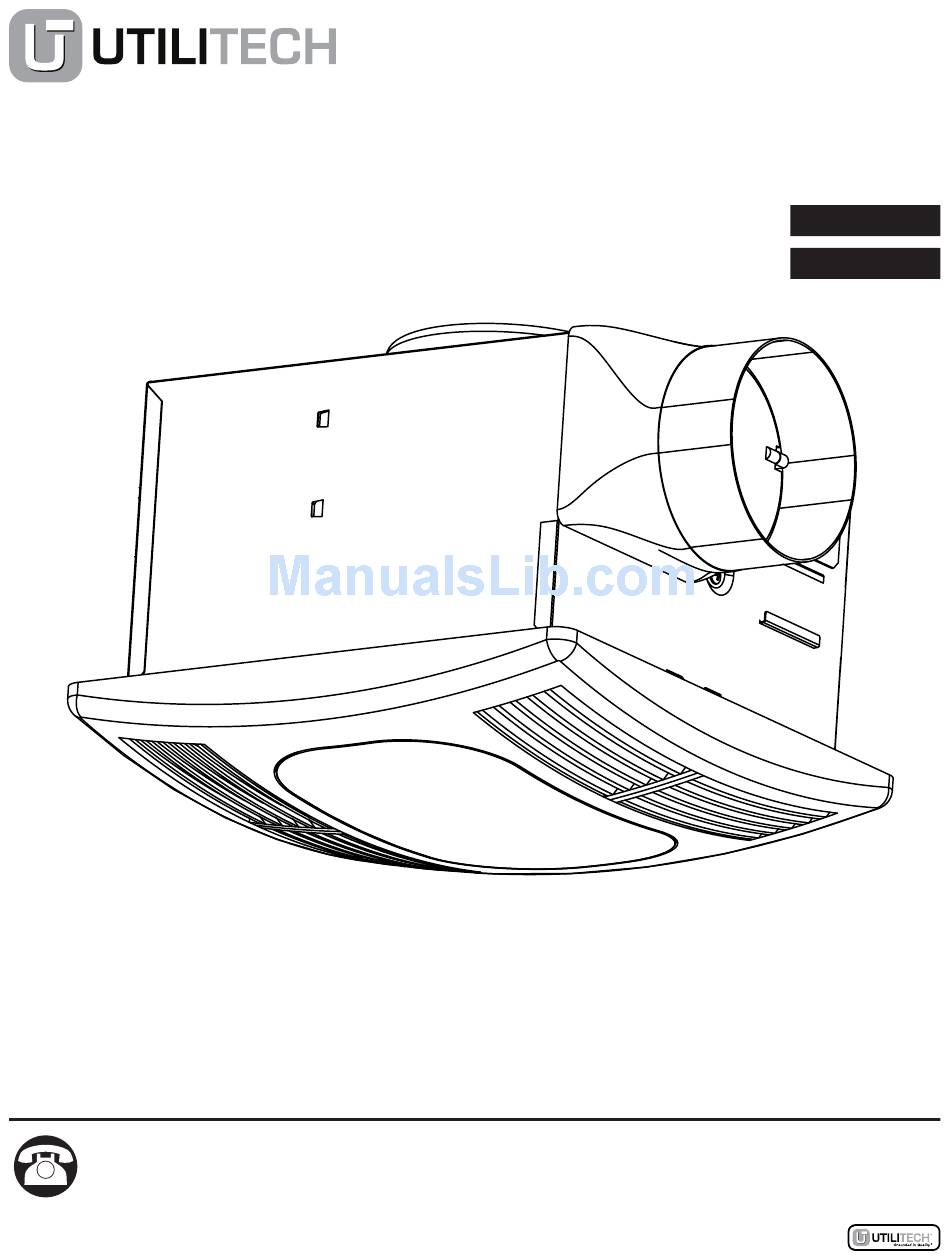

    ITEM #0553449 VENTILATION FAN WITH LIGHT MODEL #7113-01-L Français p. 14 Español p. 27 ATTACH YOUR RECEIPT HERE Serial Number _______________ Purchase Date ______________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications ........................2 Package Contents ..........................3 Safety Information ..........................4 Preparation ............................5 New Construction Assembly Instructions ...................6 Existing Construction Assembly Instructions ..................10 Care and Maintenance ........................11 Troubleshooting ..........................12 Warranty ............................13 PRODUCT SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Airflow: 90 CFM Power consumption: 32 W 120 V, 60 Hz Exhaust fan speed: 790 RPM...

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Fan body Suspension bracket II Grille Suspension bracket III Suspension bracket I GU24, 13 watt bulb HARDWARE CONTENTS (shown actual size) Long Wood Short Machine Screw Screw Qty. 8 Qty. 3 Lowes.com...

  • Page 4: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Always disconnect the power supply prior to servicing the fan, motor or junction box. Installation work must be carried out by a qualified person(s) in accordance to all local and safety codes including the rules for fire-rated construction.

  • Page 5: Preparation

    PREPARATION Tools Required for Assembly (not included): Hammer, Drill Bits, Flathead Screwdriver, Wire Nuts, Nails, Duct Tape, Phillips Screwdriver, Utility Knife Helpful Tools (not included): Electric Drill, Wood Screws WARNING: Turn off electricity at breaker box before beginning installation. Carefully remove unit from carton. Check area above installation location to be sure that wiring can run to the planned location and that duct work can be run and the area is sufficient for proper ventilation.

  • Page 6: New Construction Assembly Instructions

    NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS NEW CONSTRUCTION – ATTACHING TO THE JOIST BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Insert the suspension bracket into the fan body. (If spacing between joists is 21-1/4 in. to 23-1/2 in. (540 to 597 mm), connect suspension bracket I and II).

  • Page 7

    NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS 5. Install a circular duct (not included) and secure it with duct tape or clamps (neither included). Finish ceiling work. Ceiling hole should be flush with the edge of the flange. (DO NOT FLUSH MOUNT TO JOIST. Flange should be flush with ceiling board.) See dimensions for ceiling hole on page 5.

  • Page 8

    EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS Installing the fan body in an existing building REQUIRES AN ACCESSIBLE AREA (attic or crawl space) above the planned installation location and existing duct and wiring. BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1.

  • Page 9

    EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 5. Insert fan body (A) into the ceiling cut out making sure to align the duct connector with the fan body (A). Flange should be on the bathroom side of the drywall. NOTE: Duct/outlet adapter can be removed for easier installation through the ceiling opening.

  • Page 10: Existing Construction Assembly Instructions

    EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS 9. Install a circular duct (not included) and secure it with duct tape or clamps (neither included). Finish ceiling work. Ceiling hole should be flush with the edge of the flange. (DO NOT FLUSH MOUNT TO JOIST. Flange should be flush with ceiling board.) See dimensions for ceiling hole on page 5.

  • Page 11: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Disconnect power supply before servicing. See SAFETY INFORMATION before proceeding. Routine maintenance should be done at least once a year. CAUTION • Never use solvents, thinner or harsh chemicals for cleaning the fan. • Do not allow water to enter the motor. •...

  • Page 12: Troubleshooting

    CARE AND MAINTENANCE 4. Dampen cloth with dish detergent, wipe the fan housing and dry with a cloth. Replace the grille. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Be sure the CFM rating on the fan CFM too great matches the size of your room Check damper to ensure it is opening Damper not working properly or and closing properly.

  • Page 13: Warranty

    Inquiries regarding warranty claims can be directed to 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. Printed in China Utilitech & UT Design ® is a registered trademark of LF, LLC. All rights reserved.
