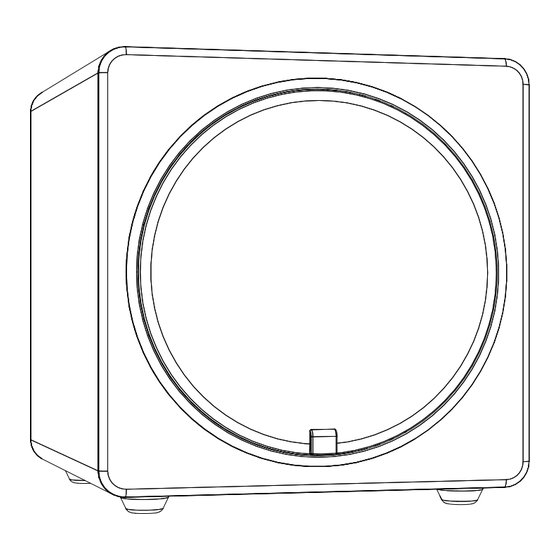

Episode evolution es-sub-evo6-100 powered subwoofer
Hide thumbs
Table of Contents

Advertisement

Quick Links

EVOLUTION SERIES
OWNER'S MANUAL
POWERED SUBWOOFER
ES-SUB-EVO6-100
