Important
重要事項

Table of Contents

1 Safety precautions for installation .......................2
2 Dimensions ............................................................3
(built-in) ..................................................................4
4 Installation Location ..............................................5
5 Electrical Work .......................................................6
6 Installation of the unit ...........................................7
Do not disassemble the top plate when installing the unit.
q
Do not install an oven under the cabinet.
q
Be sure to do a test run and give an appropriate explanation of the proper way to
q
use to the customers. This product can be selected as free-standing or built-in.
Keep this instruction.
Be sure to entrust a qualified gas technicians (or a personnel from gas company)
q
close a gas valve when replacing the gas appliances with this unit.
Install the unit in accordance with the Installation Instructions. Otherwise, it may
q
affect performance of the product.
Any malfunction or accident, etc. resulting from failure to follow Installation
q
Instructions is not covered under warranty.
q
切勿在安裝本機時將面板拆下。
q
q
切勿將爐灶安裝在櫥櫃的下面。
q
q
q
請務必進行試運行 , 並告知用戶正確的使用方法。此產品可以選擇作為座檯式或嵌
入式。請妥善保管本說明書。
q
q
更換本 IH 磁應煮食爐後,原來使用的煤氣裝置和管線,必須委托具有專業資格的
技術人員(或煤氣公司)封閉。
q
q
請在安裝說明書的指導下安裝本機。否則,可能會影響本產品的性能。
不按照安裝說明書進行安裝所發生的故障或事故等,不在保證範圍內。
q
q

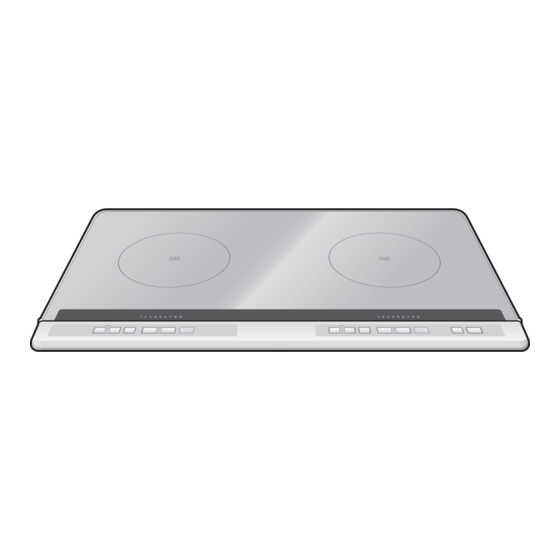

Installation Instructions
Induction Heating Cooktop
Model No.
KY-E227B / KY-C227B
型號
目錄
1 安裝時的安全防護措施 .............................................2
2 尺寸..........................................................................3
3 有關訂製廚房的尺寸(嵌入式) ..............................4
4 安裝位置 ..................................................................5
5 電氣工程 ..................................................................6
6 安裝本機 ..................................................................7
7 安裝後的檢驗項目 ...............................................封底
安裝說明書
IH磁應煮食爐

Advertisement

Table of Contents

   Related Manuals for Panasonic KY-E227B

   Summary of Contents for Panasonic KY-E227B

  • Page 1: Table Of Contents

    Installation Instructions 安裝說明書 Induction Heating Cooktop IH磁應煮食爐 Model No. KY-E227B / KY-C227B 型號 Important Do not disassemble the top plate when installing the unit. Do not install an oven under the cabinet. Be sure to do a test run and give an appropriate explanation of the proper way to use to the customers.
  • Page 2: Safety Precautions For Installation

    Safety precautions for installation Dimensions 安裝時的安全防護措施 尺寸 Please observe these precautions fully 請完全遵守下述防護措施 (measurement: mm) (單位:mm) : Failure to follow these instructions may Side view Top view Warning : 表示如不避免,則可能導致死亡或 警告 cause a risk of personal injury or death. 嚴重傷害的某種潛在危害情況。 頂視圖...
  • Page 3: Connected Dimensions With Custom Kitchen

    Connected dimensions with custom kitchen (built-in) Installation Location 有關訂製廚房的尺寸(嵌入式) 安裝位置 Ensure the opening for ventilation inside the cabinet. Follow the related law when installing the unit. 安裝本機時應按照相關的規定。 確保櫥櫃內部的通風口位置。 Distance from the wall. (measurement: mm) (measurement: mm) Cutout dimension Side view 距牆的距離。...
  • Page 4: Electrical Work

    為了避免劃傷操作台,請將包裝用墊板放在本機的 220V/20A with a breaker on power supply. with following specifications. 下面。(嵌入式) 有斷路保護器時, 請務必遵照下列規格安裝漏電斷路器。 切勿在座檯式時,放置在紙或墊子上。 請安裝單相220V/20A的專用回路。 Rated current KY-E227B Use the following interior electric cable. 額定電流 KY-C227B 請使用下列的內部電線。 Rated sensitivity current 30mA 額定感度電流 Wall socket More than 2.0mm wire diameter or...
  • Page 5: Check Items After The Installation

    Before installation, cut along perforation to take off a serial number seal that is on the backside of the unit. Then stick it to “Serial No.” on the Guarantee certificate. 安裝前,請從折線處剪開並取出本機 後面的機身編號貼紙。然後,將其黏貼在保用證的“機身編號”的位置。 Serial No. seal   Guarantee Serial No. certificate Serial No. seal Stick here. Web Site: http://panasonic.net ZY16H8741 F0909I1102 C Panasonic Corporation 2009 Printed in Japan...
