Horizon Fitness Comfort 3 Owner's Manual

Hide thumbs Also See for Comfort 3:

Advertisement

Quick Links

Download this manual See also: Owner's Manual

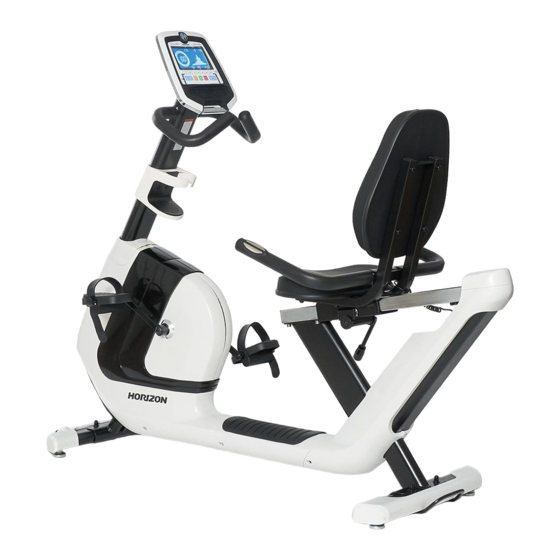

EXERCISE BIKE OWNER'S MANUAL
Read the BIKE gUIdE before using this OWNER'S MANUAL.
Comfort 3
Comfort 5
Comfort 5 i
Comfort 6i
Comfort 8 i
Comfort 7
Comfort 7 i
Comfort R
Comfort R i

Advertisement

loading
Need help?

Need help?

Do you have a question about the Comfort 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Horizon Fitness Comfort 3

Summary of Contents for Horizon Fitness Comfort 3

  • Page 1 Comfort 8 i Comfort 3 Comfort 5 Comfort 7 Comfort R Comfort 5 i Comfort 7 i Comfort R i Comfort 6i EXERCISE BIKE OWNER’S MANUAL Read the BIKE gUIdE before using this OWNER’S MANUAL.

  • Page 2: Important Precautions

    IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using an exercise product, basic precautions should always be followed, including the following: Read all instructions before using this exercise bike. It is the responsibility of the owner to ensure that all users of this exercise bike are adequately informed of all warnings and precautions.
  • Page 3 wARNINg ASSEMBLY READ AND SAVE ALL INSTRUCTIONS bEfORE ASSEmbLINg OR USINg THIS ExERCISE bIkE. IT IS STRONgLy RECOmmENDED TO TAkE THE fOLLOwINg SAfETy INSTRUCTIONS. • CAUTION: If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately and consult your wARNINg physician before continuing.
  • Page 4 RECUMBENT BIKE PRE ASSEMBLY TOOLS REqUIRED: HANDLEBARS CONSOLE F 13/15mm Flat Wrench/Screwdriver F 5mm L-Wrench WARNING UNPACkINg F 6mm L-Wrench Consult a physician prior to SEAT BACK CONSOLE MAST using any exercise equipment. Possibility of serious injury if equipment is used improperly. Heart rate monitoring systems Unpack the product where you will be using it.
  • Page 5 RECUMBENT BIKE ASSEMBLY STEP 1 RECUMBENT BIKE ASSEMBLY STEP 2 HARDwARE fOR STEP 1 : HARDwARE fOR STEP 2 : Comfort BOLT (A) FLAT WASHER (B) SCREW (E) Comfort M8x56 mm Φ9xΦ18x2.0T mm M4x12 mm Recumbent Recumbent Qty: 4 Qty: 4 Qty: 2 Bike Bike...
  • Page 6 STEP 3 STEP 4 RECUMBENT BIKE ASSEMBLY RECUMBENT BIKE ASSEMBLY HARDwARE fOR STEP 3 : HARDwARE fOR STEP 4 : BOLT (G) FLAT WASHER (B) Comfort BOLT (F) BOLT (I) SPRING WASHERS (C) Comfort M8X18 mm Φ9xΦ18x2.0T mm M8x60 mm M8X18 mm M8x2.0T mm Recumbent...
  • Page 7 STEP 5 STEP 6 RECUMBENT BIKE ASSEMBLY RECUMBENT BIKE ASSEMBLY HARDwARE fOR STEP 5 : HARDwARE fOR STEP 6 : Comfort BOLT (J) FLAT WASHER (B) BOLT (K) ARC WASHER (H) Comfort M8x45 mm Φ9xΦ18x2.0T mm M10x65 mm Φ10.5xΦ20x2.0T mm Recumbent Recumbent Qty: 8...
  • Page 8 STEP 7 RECUMBENT BIKE ASSEMBLY RECUMBENT BIKE ASSEMBLY HARDwARE fOR STEP 7 : asseMBLY CoMpLete! Comfort PRE-ASSEMBLED SCREW Comfort M5X10 mm Recumbent Recumbent Qty: 4 Bike Bike Comfort r CONSOLE hardware for step 7 is pre-installed. Overall dimension: 165 x 64 x 135 cm Net Weight: 47 kg / 103 lbs Attach the rIght pedaL to the rIght CraNK gross Weight: 54 kg / 119 lbs...
  • Page 9 UPRIgHT BIKE PRE ASSEMBLy TOOLS REqUIRED: SMART DEVICE AND READING RACK F 13/15mm Flat Wrench/Screwdriver CONSOLE F 5mm L-Wrench WARNING UNPACkINg Consult a physician prior to HANDLEBARS using any exercise equipment. Possibility of serious injury if HEART RATE GRIP equipment is used improperly. Unpack the product where you will be using it.
  • Page 10 MAIN FRAME REAR STABILIZER Note: Lifting up the machine will help your assembly. FRONT STABILIZER First put in place the stabilizer and then insert the bolts will also make your assembly easier. BOLTS (A) CoMfort 3 showN CoMfort 8i showN...
  • Page 11 Tilt up the front of the SEAT Note: Be careful not to pinch any cable while might help you gain a more stable riding experience. assembling. SCREW (D) CoMfort 3 showN CoMfort 3 showN CoMfort 3 showN...
  • Page 12 MAIN FRAME CONSOLE CABLES Slide CoNsoLe Mast groMMet down over MaIN Note: You may need extra help to route the heart rate fraMe. BOLT (G) cable and tighten the handlebar. BOLT (E) FLAT WASHER (B) CoMfort 3 showN CoMfort 8i showN...
  • Page 13 RIGHT PEDAL Comfort 8i pedal. Please be care not to pinch yourself when Overall dimension: 132 x 55 x 140 cm CoMfort 3 showN assembling. CoMfort 3 showN Net Weight: 42 kg / 92.5 lbs gross Weight: 47.5 kg / 104.5 lbs...

  • Page 14: Bike Operation

    BIKE OPERATION This section explains how to use your bike’s console and programming. The BASIC OPERATION section in the BIKE gUIdE has instructions for the following: • LOCATION Of THE bIkE • POwER/gROUNDINg INSTRUCTIONS • SEAT POSITIONINg • mOVINg THE bIkE •...
  • Page 15 COmfORT 3 CONSOLE OPERATION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. LCD DISPLAy wINDOwS: Time, distance, Calories, Speed, RPM, Resistance Level, Heart Rate, Calories, Watts, HR Wheel, Workout Profile.
  • Page 16 COmfORT 5/5i/6i/R CONSOLE OPERATION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. LCD DISPLAy wINDOwS: Time, distance, Calories, Speed, RPM, Resistance Level, Heart Rate, Calories, Watts, HR Wheel, Profile. ENERgy SAVER: to minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode Comfort 5 for 15 mins) and cab be quickly woken up with a touch of a button.
  • Page 17 COmfORT 7 CONSOLE OPERATION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. LCD DISPLAy wINDOwS: Time, distance, Calories, Speed, RPM, Resistance Level, Heart Rate, Calories, Watts, HR Wheel, Profile. ENERgy SAVER: to minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode Comfort 7 for 15 mins) and can be quickly woken up with a touch of a button.
  • Page 18 COmfORT 7i/8i/Ri CONSOLE OPERATION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. LCD DISPLAy wINDOwS: Time, distance, Calories, Speed, RPM, Resistance Level, Heart Rate, Calories, Watts, HR Wheel, Profile. ENERgy SAVER: to minimize energy consumption, your machine will enter energy saver mode automatically (after entering stand-by mode Comfort 8i for 15 mins) and can be quickly woken up with a touch of a button.

  • Page 19: Display Windows

    COMFORT 3/5/5i dISPLAYS COMFORT 6i dISPLAYS COMFORT 7 dISPLAYS COMFORT 8i dISPLAYS Comfort 3 Comfort 7 Comfort 5 Comfort 7i Comfort 5i Comfort 8i Comfort 6i Comfort Ri Comfort R DISPLAy wINDOwS DISPLAy wINDOwS • TImE: Shown as minutes: seconds. View the time remaining •...

  • Page 20: Finishing Your Workout

    PROgRAm INfORmATION THE CONSOLE qUICk START Comfort 3: 10 Programs (Manual / Intervals / game / Weight Loss / Rolling / Cadence / Random / Constant Watts / THR Zone / Custom) Hold START/STOP for 3 seconds. 1) Make sure the power is on.
  • Page 21 Level 8 Level 14 Level 9 Level 15 Level 10 (Comfort 5i, 6i, 7i, 8i, Ri) Level 16 Level 11 (Comfort 3, 5, R) Level 12 INTERVALS Warm Up Program Segments - Repeat Cool down Seconds Segment 3) gAmE: This warm up game simulates a Car Racing game. To control the car up and down, you pedal faster or slower. Try to...
  • Page 22 Level 14 Level 1 Level 15 Level 2 (Comfort 5i, 6i, 7i, 8i, Ri) Level 16 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9 Level 10 Level 11 (Comfort 3, 5, R) Level 12...
  • Page 23 Level 6 Level 9 Level 7 Level 10 Level 8 Level 11 Level 9 Level 12 Level 10 Level 13 (Comfort 3, 5, R) Level 11 Level 14 Level 12 Level 13 ROLLINg Level 14 (Comfort 7) Warm Up Program segments...
  • Page 24 Level 4 Level 13 Level 5 Level 14 Level 6 Level 15 Level 7 (Comfort 5i, 6i, 7i, 8i, Ri) Level 16 Level 8 Level 9 Level 10 Level 11 Level 12 Level 13 (Comfort 3, 5, R) Level 14...
  • Page 25 Level 5 Level 9 Level 6 Level 10 Level 7 Level 11 Level 8 Level 12 Level 9 (Comfort 3, 5, R) Level 13 Level 10 (Comfort 5i, 6i, 7i, 8i, Ri) Level 14 RANDOm Warm Up Program segments Cool down...
  • Page 26 11) INTERVAL wATT PROgRAm: Allows you to choose a high WATTs value and a low WATTs value. The interval program will 12) THR zONE: Simulate the intensity of your favorite sport as the program resistance automatically adjusts to maintain a set Target switch between High and Low WATTs values, making for a very intense and effective workout.
  • Page 27 14) STRENgTH bUILDER: Help you gradually increase your muscle strength with a preset workout program. Time based program 15) CUSTOm 1 & 2: Customized workout, time defaults to 15 minutes. (Comfort 3 does not have Custom 2) with 20 levels to choose from. User sets time and level using (up/down arrows) and ENTER.

  • Page 28: Using Your Media Player

    Eng2 and press Enter. Use the Enter key to navigate to P2 Press ENTER to select language mode, use arrow keys to select the language you desire. (COmfORT 3 IS NOT INCLUDED) Press and hold STOP for 3-5 seconds to exit ENg2.
  • Page 29 COmfORT 3 ExPLODED VIEw COmfORT 3 PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME LEFT SHROUd PdC11985464L SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A RIgHT SHROUd PdC11985464R INNER BUSHINg PdZ153100 CONSOLE MAST dECORATIVE RINg PEZ12280 BEARINg 6003ZZ CRANK dECORATIVE RINg PEZ582315 dRIVE PULLEY...
  • Page 30 COmfORT 5 ExPLODED VIEw dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS SPACER NBO1031514 WASHER 18X10X2.0T SEAT PAd BEARINg 6203ZZ CONSOLE FLAT HEAd HEX SCREW M10X20MM TRUSS PHILIPS SCREW M5X12 NYLON NUT POWER AdAPTOR MIddLE CONSOLE CABLE FBg9009P BOTTLE HOLdER A PdA1447112 TRUSS HEX SCREW M8X15 BOTTLE HOLdER B PdA109119...
  • Page 31 COmfORT 5 PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME LEFT SHROUd PdC11985464L SPACER NBO1031514 WASHER 18X10X2.0T SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A RIgHT SHROUd PdC11985464R SEAT PAd BEARINg 6203ZZ INNER BUSHINg PdZ153100 CONSOLE MAST dECORATIVE RINg PEZ12280 CONSOLE FLAT HEAd HEX SCREW...
  • Page 32 COmfORT 5i ExPLODED VIEw COmfORT 5i PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME WASHER Ø15XØ7X2.0T SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A SPRINg WASHER M6X1.5T INNER BUSHINg PdZ153100 LEFT CRANK NBZ124170L,L170MM BEARINg 6003ZZ RIgHT CRANK NBZ124170R,L170MM dRIVE PULLEY NEA24020A CRANK COVER MAgNET Ø15X7T,1400gS HEX FLANgE SCREW...
  • Page 33 COmfORT 6i ExPLODED VIEw dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS TRUSS HEX SCREW M8X40 TRUSS HEX SCREW M8X60 20MM LEVELER PCg60508A COUNTER SINK PHILIPS SCREW M4X12 REAR STABILIZER HEX WRENCH 5MM,L,65MMX25MM REAR STABILIZER COVER PdC55398 "PLUS" WRENCH SEA131415 SEAT POST LEFT PEdAL PCZ15863L SEAT POST COVER PEZ184854...
  • Page 34 COmfORT 6i PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME WASHER Ø15XØ7X2.0T TRUSS HEX SCREW M8X40 TRUSS HEX SCREW M8X60 20MM SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A SPRINg WASHER M6X1.5T LEVELER PCg60508A TRUSS HEX SCREW M8X15 INNER BUSHINg PdZ153100 LEFT CRANK NBZ124170L,L170MM...
  • Page 35 COmfORT 7 ExPLODED VIEw COmfORT 7 PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME LEFT SHROUd PdC11985464L SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A RIgHT SHROUd PdC11985464R INNER BUSHINg PdZ153100 CONSOLE MAST dECORATIVE RINg PEZ12280 BEARINg 6003ZZ CRANK dECORATIVE RINg PEZ582315 dRIVE PULLEY NEA24020A RUBBER STEP-THROUgH PAd PdC2131056...
  • Page 36 COmfORT 7i ExPLODED VIEw dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS Ø31.8X1.5 KNOB PCZ43650 TRUSS ENd CAP SPACER NBO1031514 AdJUSTMENT CABLE FBZ535 SEAT PAd LOWER CONSOLE CABLE FBg7009P CONSOLE MOTOR FBC4-2,150MM TRUSS PHILIPS SCREW M5X12 ROUNd HEAd PHILIPS SCREW M6X10 HANd gRIP HR SENSOR CABLE FBg6002PA FLY WHEEL POWER AdAPTOR...
  • Page 37 COmfORT 7i PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME WASHER Ø15XØ7X2.0T TRANSPORTATION WHEEL PBKXd-083 SPRINg WASHER M8X2.0T SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A SPRINg WASHER M6X1.5T TRUSS HEX SCREW M8X40 M8 HEIgHT 15MM INNER BUSHINg PdZ153100 LEFT CRANK NBZ124170L,L170MM-9/16"...
  • Page 38 COmfORT 8i ExPLODED VIEw COmfORT 8i PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS MAIN FRAME WASHER Ø15XØ7X2.0T SEAT HEIgHT AdJUSTMENT KNOB PAZ161525A SPRINg WASHER M6X1.5T INNER BUSHINg PdZ153100 LEFT CRANK NBZ124170L,L170MM BEARINg 6003ZZ RIgHT CRANK NBZ124170R,L170MM dRIVE PULLEY NEA24020A CRANK COVER MAgNET Ø15X7T,1400gS HEX FLANgE SCREW...
  • Page 39 COmfORT R ExPLODED VIEw dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS ROUNd HEAd PHILIPS SELF TAPPINg SCREW ST3X12 BOTTLE HOLdER B PdA109119 PDC17971214 FOAM STICKER FAF6941851 CONSOLE MAST gROMMET FRONT STABILIZER ACCESSORY PAZ577298 FRONT STABILIZER COVER PdC55398A AUdIO CABLE TRANSPORTATION WHEEL PBKXd-083 FLAT WASHER 20X9X2.0T TRUSS HEX SCREW M8X40...
  • Page 40 COmfORT R PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS 3/8"X26,7.0t( 15) PBKXD-083 MAIN FRAME ALLEN HEX FLANgE SLIP SCREW NUT RUBBER STEP-THROUgH PAd PdC340150 TRANSPORTATION WHEEL BEARINg 6003ZZ FLAT WASHER Ø18XØ10X2.0T CONSOLE MAST TRUSS HEX SCREW M8X40 10 dRIVE PULLEY Ø240X19T,6,NEA24020A IdLE WHEEL FLEXINg PLATE...
  • Page 41 COmfORT Ri ExPLODED VIEw dESCRIPTION SPECIFICATIONS HEX WRENCH "PLUS" WRENCH SEA131415 HEX WRENCH 6MM (65X25) LEFT PEdAL Jd-3A RIgHT PEdAL Jd-3A TRUSS SELF TAPPINg SCREW Ø4X12 COUNTER SINK HEX SCREW M10X65 (ALL THREAd) ARC WASHER Ø20XØ10.5X2.0T...
  • Page 42 COmfORT Ri PARTS LIST dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS dESCRIPTION SPECIFICATIONS NCZ26540B-1(8.5KG) MAIN FRAME INdUCTION FLY WHEEL CLIP-SHORT PCA7258A (Ø8X28.5) HANd gRIP HR SENSOR CABLE FOR FBg6703P THE HANdLEBAR BEARINg 6003ZZ CKS HEX SCREW M6XP1.0X15, 8.8 REAR SUPPORT TUBE TOP COVER PCZ141111 TRUSS ENd CAP for Ø31.8,1.5t...
  • Page 43 Disposal TRUSS HEX SCREW M8*45 Vision Fitness / Horizon Fitness / TEMPO Fitness / TREO Fitness products are recyclable. At the end if its useful TRUSS HEX SCREW M8*60 life please dispose of this article correctly and safely (local refuse sites).
  • Page 45 EXERCISE BIKE OWNER’S MANUAL Comfort Upright bike and Recumbent Bide Owner’s Manual 0613’14 Rev. 2.8 © 2014 Horizon Fitness...
