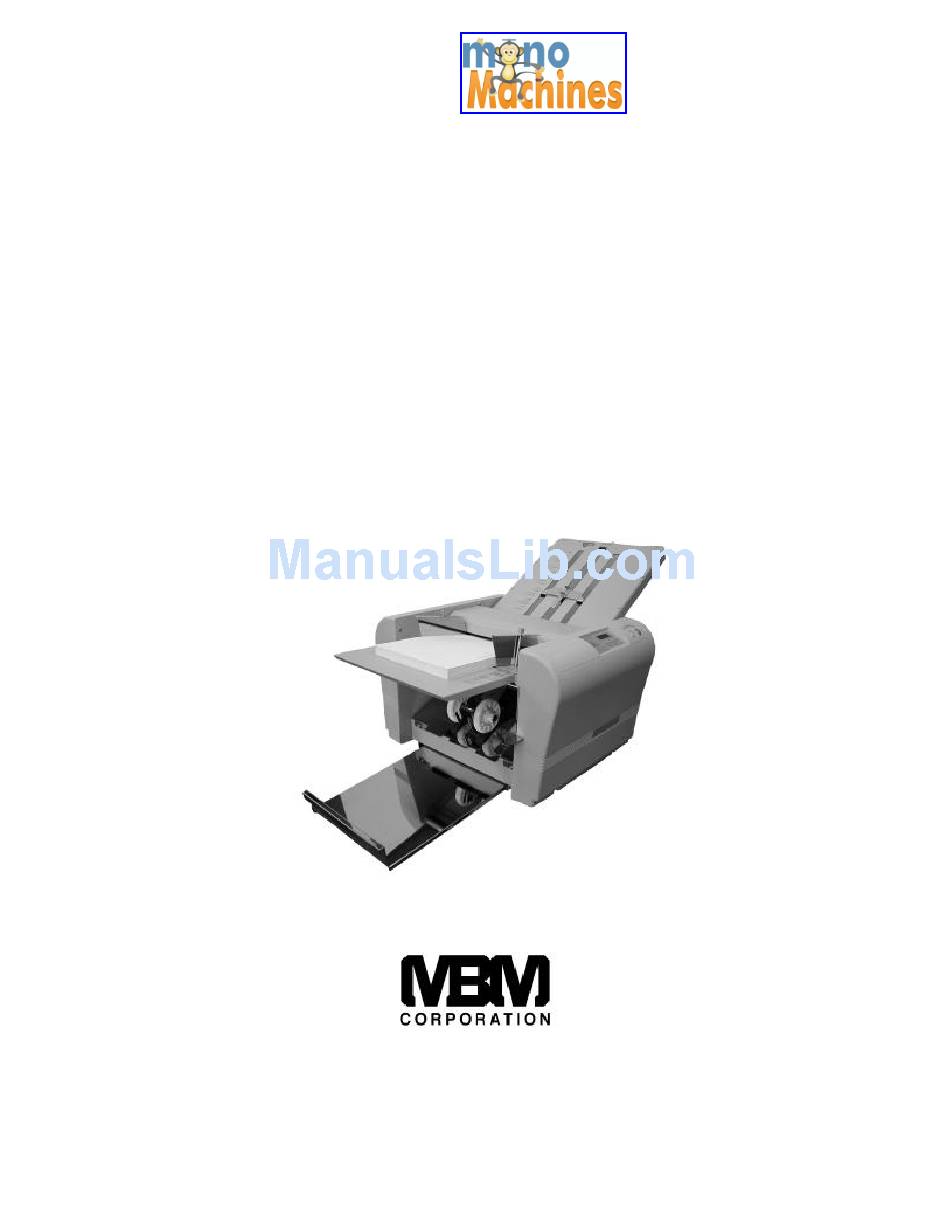

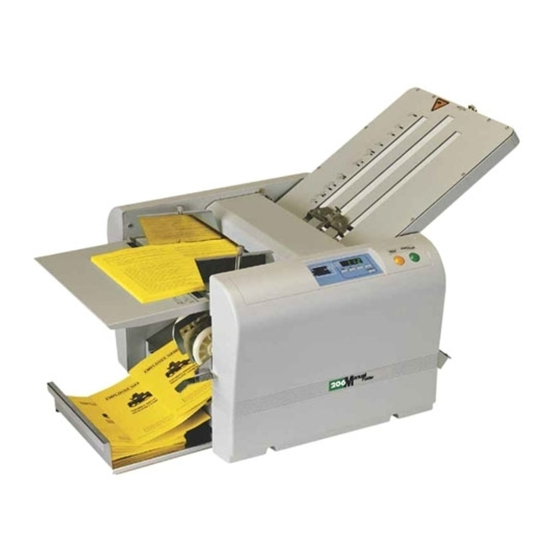

- Page 1 For More Info Click Here ---> OPERATION MANUAL MBM 206M Manual Paper Folder A PRODUCT OF 1-800-223-2508 www.mbmcorp.com http://www.monomachines.com...
- Page 2 http://www.monomachines.com For More Info Click Here ---> Safety Instructions Definition of Symbols and Notes In this manual following names and signs stand for possible dangers. Danger This symbol stands for immediate danger threatening the life and health of persons. Disregarding these instructions may cause severe injury. Caution This symbol stands for an endangering situation that may occur.
- Page 3 http://www.monomachines.com Caution Do not let hair, clothing or jewelry near the machine while operating. Doing so may cause serious injury. Do not put the machine on an unstable or slanted surface. Doing so may cause the machine to drop or fall, causing property damage and possible injury. Store and operate the machine in a clean, dust-free environment with low humidity.
-
Page 4: Table Of Contents
Thank you for purchasing the MBM 206M Manual Paper Folder. You should receive many years of reliable service from this machine. Compact and easy to use, the 206M Paper Folder is sure to streamline your paper folding tasks, saving you valuable time. Please read this Operation Manual carefully before using this machine. -
Page 5: For More Info
For More Info Click Here ---> (1) Specifications Model 206M Manual Paper Folder 3.5” × 5” 11” × 17” Paper size Smaller size for single fold only. Paper quality High-quality to medium-quality paper Single, Letter, Zigzag, Double Parallel, and Fold-out. -
Page 6: Accessories
http://www.monomachines.com For More Info Click Here ---> (2) Accessories Make sure that the following accessories are included in the package after opening it. Please contact your local dealer immediately if there are missing accessories. Accessories Illustration Table 1 Table 2 Power source cord Paper support guides (right and left) -
Page 7: Part Name
http://www.monomachines.com (3) Description of Parts For More Info Click Here ---> Number Name Number Name Roller cover Table 1 Left side cover Control panel Paper feed roller Paper feed table Paper guide Table 2 Auxiliary feed table Right side cover Paper discharge roller Paper feed table lever Paper stacking table... -
Page 8: Designation And Functions Of Operation Panel
http://www.monomachines.com (4) Designation and Functions of Operation Panel Designation/Indication Function TEST key Test folding of two sheets is performed. START/STOP key Operation starts and if pushed again, the machine stops. CLEAR/RESET key Clearing the indication of the counter / resetting an error. Numerical key Used for batch counting. -
Page 9: Preparations
http://www.monomachines.com (5) Preparation Install Table 1 and 2: Insert Table 1 on the studs indicated by (a) and (b) as shown in the picture to the right. Insert Table 2 on the studs indicated by (c) and (d) as shown in the picture to the right. -
Page 10: Operation
http://www.monomachines.com Setting the paper exit roller: Paper Exit Roller The exit roller should be moved to the proper position according to the paper size. Note: Refer to “Roller position indication” label. If ejection is not performed proper ly, set it to a different position. Example: ”... -
Page 11: Fold Skew Adjustment
http://www.monomachines.com Fold Feed Angle / Skew Adjustment: Turn the feed angle adjustment knob to the right if the lower side of the folded paper slants to the right. Turn the knob to the left of the lower side slants to the left. Note: In cases other than single fold, put the folded paper face down on Table 1 to make a feed angle adjustment. -
Page 12: Clearing A Paper Jam
http://www.monomachines.com Under the following conditions the machine will automatically stop feeding: (Press the CLEAR/RESET key to reset after the error has been corrected) Conditions Indication on Control panel When the START/STOP key is pressed while there is no stock. When the START/STOP key is pressed while the paper feed lever is in the upper position. -
Page 13: Cross Folding
http://www.monomachines.com Cross Folding: Cross folding refers to performing the double parallel, letter, or other types of folds on single-folded sheets of paper. Example: 11” × 17” sheet is folded in half, and then cross-folded to letter size to fit into a standard # 10 envelope. Note: The maximum weight of paper that can be used for cross folding is 28#. -
Page 14: Fine Adjustments For Table 1
http://www.monomachines.com Fine Adjustments for Table 1 Direction to turn the Table 1 Fold type Plane (A) fine adjustment knob Single fold Table 1 is not used Long Gate fold Short Long Letter fold Short Long Zigza g fold Short Long Double parallel fold Short... -
Page 15: Fine Adjustments For Table 2
http://www.monomachines.com Fine Adjustments for Table 2 Direction to turn the Table 2 Fold type Plane (B) fine adjustment knob Long Single fold Short Long Gate fold Short Long Letter fold Short Long Zigzag fold Short Long Double parallel fold Short Long Fold-out fold Short... -
Page 16: Daily Maintenance
http://www.monomachines.com (7) Maintenance 1 Before cleaning the machine, be sure to set POWER to the OFF position and unplug the power cord from the outlet. 2 When the unit is not in use, put the machine cover in place to prevent dust, paper particles , etc. from accumulating on the fold rollers. -
Page 17: Troubleshooting
http://www.monomachines.com For More Info Click Here ---> (8) Troubleshooting Trouble Possible Cause Measures Jog the paper sufficiently. Make sure that Paper sticks just after it is printed the ink is dry. Clean the paper feed separator using Stains on the paper separator approved cleaner. - Page 18 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
- Page 19 http://www.monomachines.com For More Info Click Here ---> http://www.monomachines.com...
