- Page 1 OPERATION MANUAL MBM 208J MANUAL FOLDER 1-800-223-2508 www.mbmcorp.com Rev. 1.01...
-
Page 3: Safety Instructions
Safety Instructions Definition of Symbols and Notes The following names and signs stand for possible dangers: Danger This symbol stands for immediate danger. Disregarding these instructions may cause severe injury. Caution This symbol stands for a potentially dangerous situation. Disregarding these instructions may lead to injuries or damage to property. - Page 4 Warning ① ② ① Moving Parts ② Warning Label...
-
Page 5: Table Of Contents
Introduction Thank you for purchasing the EZF-200 Manual Paper Folder. You should receive many years of reliable service from this machine. Compact and easy to use, the EZF-200 Paper Folder is sure to streamline your paper folding tasks, saving you valuable time. Please read the Operation Manual thoroughly before using this machine. -
Page 6: Accessories
1. Accessories After un-boxing the EZF-200, make sure that the following accessories are present. Please contact your local dealer immediately if anything is missing. Accessories Table 1 Table 2 Power source cable Paper support guides (right and left) Machine cover Operation Manual (this booklet) -
Page 7: Description Of Parts
2. Description of Parts ② ③ ④ ⑤ ⑥ ⑦ ① ⑫ ⑬ ⑧ ⑨ ⑩ ⑪ ⑮ ⑦ ⑭ Stopper plate Number Name Number Name ① Auxiliary feed table ⑨ Paper feed table lever ② Paper guide ⑩ Paper discharge roller ③... -
Page 8: Designation And Functions Of Operation Panel
3. Designation and Functions of Operation Panel ⑦ ⑤ ③ ⑥ ① ② ④ ⑧ Designation/Indication Function ① TEST key Performs test folding of two sheets. ② START/STOP key Starts and stops machine. ③ CLEAR/RESET key Clears the counter / resets after an error. ④... -
Page 9: Preparations
4. Preparation Install Table 1 and 2: Insert Table 1 on the studs indicated by (a) and (b) as shown in picture. Insert Table 2 on the studs indicated by (c) and (d) as shown in picture. Note: When setting Table 1, be sure to put its stopper plate at the center position. Caution: Be sure that both Table 1 and 2 fit correctly on the studs (a), (b), (c) and (d). -
Page 10: Operation Procedure
Setting the paper exit roller: The exit roller should be moved to the proper position according to the paper size. Refer to the “Roller Position Indication” label. If ejection is not performed properly, try a different position. Example: Set the roller to position ONE when using A3 paper. Roller position indication label 5. -
Page 11: Fold Feed Angle / Skew Adjustment
5.4 Fold Feed Angle / Skew Adjustment Watch the folded paper ejected from the machine as ejected and refer the chart below. Turn feed adjustment knob right or left to adjust skew. Folding Single Double Parallel Fold Out Pattern Arrow shows direction of sheet ejected to stacking... -
Page 12: Cross Folding
5.7Cross Folding (Re-Folding): Cross folding refers to performing the double parallel, letter, or other types of folds on single-folded sheets of paper. Note: The maximum weight of paper that can be used for cross folding is 104.7g/㎡. However, the following variables may affect performance of the paper stock being folded: paper type, paper size, grain direction, printing quality, as well as the relative humidity and temperature of the operating environment. -
Page 13: Fine Adjustments For Table 1
5.8 Fine Adjustments for Table 1 Direction to turn the Table 1 Fold type Plane (A) fine adjustment knob Single fold Table 1 is not used Long Gate fold Short Long Letter fold Short Long Zigzag fold Short Long Double parallel fold Short Long... -
Page 14: Fine Adjustments For Table 2
5.9 Fine Adjustments for Table 2 Direction to turn the Table 2 Fold type Plane (B) fine adjustment knob Long Single fold Short Long Gate fold Short Long Letter fold Short Long Zigzag fold Short Long Double parallel fold Short Long Fold-out fold Short... -
Page 15: Speed Adjustment
5.10 Speed adjustment In the following cases, try to adjust the speed: ・If wrinkles appears or skews occur to sheets of soft paper such as groundwood paper, reduce the speed. ・To reduce the operating sound, reduce the speed. ・When sheets of thick paper jam, increase the speed. Adjust the speed using the “+”... -
Page 16: Functions That Can Be Set
5.11 Functions that can be set In this mode, the “interval function (patch processing),” “operation memory,” and “operating sound enabled/disabled” can be set. Hold down the “MODE” key. “ rb” will be displayed on the seven-segment LED display. The functions (settings) are enabled when each digit is lit, or they are disabled when each digit is flickering. -
Page 17: Interval Function (Batch Processing)
5.12 Interval function (batch processing) The interval function sections the folding operation at each set time. Select the interval function in the operation of “5.8 Functions that can be set.” Method of switching the screen The screen switches by pressing the “1000” key. (Setting check →... -

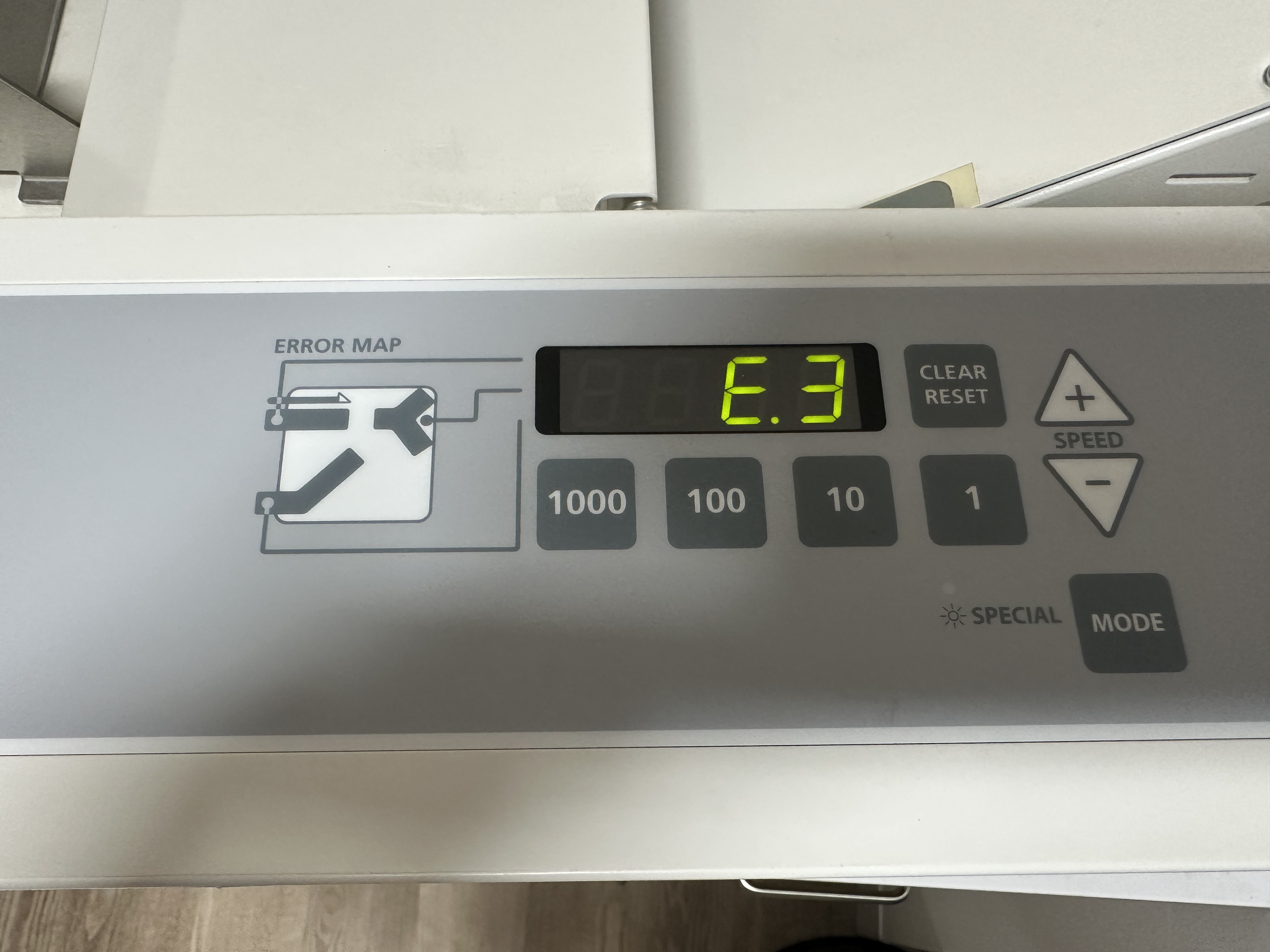

Page 18: Error Indications, Situations, And Measures
5.13 Error indications, situations, and measures The machine will automatically stop in the following cases Indication Situation Measure ① The Start/Stop key was pressed ①Set sheets of paper. without sheets of paper. ②The Start/Stop key or the Test key ②Shift down the paper feed table was pressed with the paper feed lever. -
Page 19: Maintenance (Cleaning And Replacement Of Consumable Items)
6. Maintenance ( Cleaning and replacement of consumable items Keep roller cover closed to prevent dust from accumulating on the rollers. Clean the rollers regularly using a cleaner suitable for rubber rollers or a cloth slightly dampened with water. -
Page 20: Troubleshooting
7. Troubleshooting Trouble Possible Cause Measures Recently printed paper sticks Jog the paper sufficiently. Make sure that together the ink is dry. Clean the paper feed separator using Stains on the paper separator appropriate cleaner. Stains on the paper feed rubber Clean the dust or ink on the paper feed The paper does roller... -
Page 21: Specifications
